| Working height max | 8,1m |
|---|---|
| Platform height max | 6,1m |
| Maximum lifting capacity | 159kg |
| Maximum number of people in the lift | 1 |
| Platform dimension (LxW) | 1,8 x 0,70 m |
| Push | 0,51m |
| Turning radius inside / outside | 0 / 1.4m |
| Speed, high / low (km / h) | 4 / 1,1 |
| Rise ability max | 25% |
| Raise / lower time (sec) | 41.5 / 42 seconds |
| Deck | marking-free |
| Drivetrain | 2WD |
| Power source | 2 x 12 V / 100 Ah |
| Battery charger | 24 V / 15 A |
| Length | 1,36m |
| Width | 0,76m |
| Height | 1,98 m |
| Weight | 1060 kg |
| Dimensions | 136 × 76 × 198 cm |

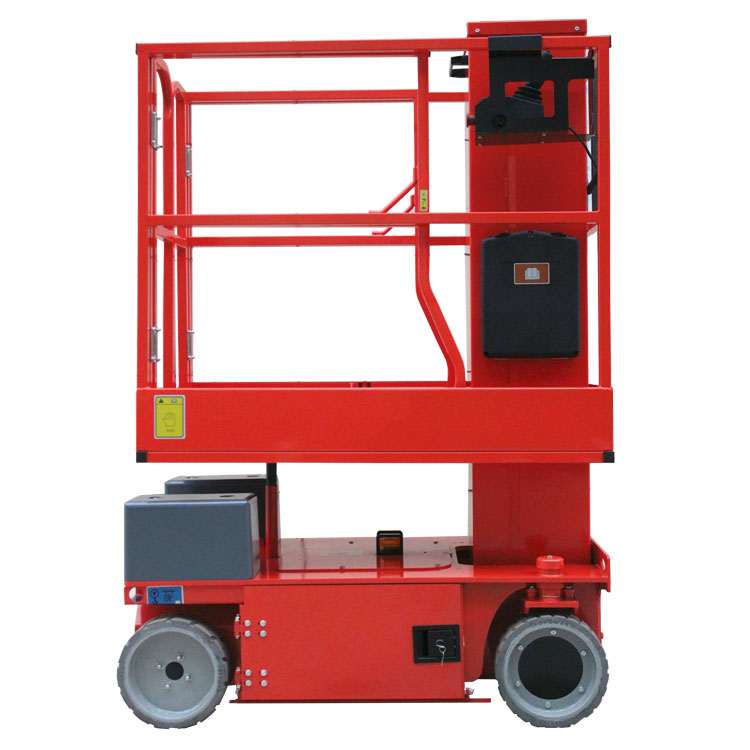

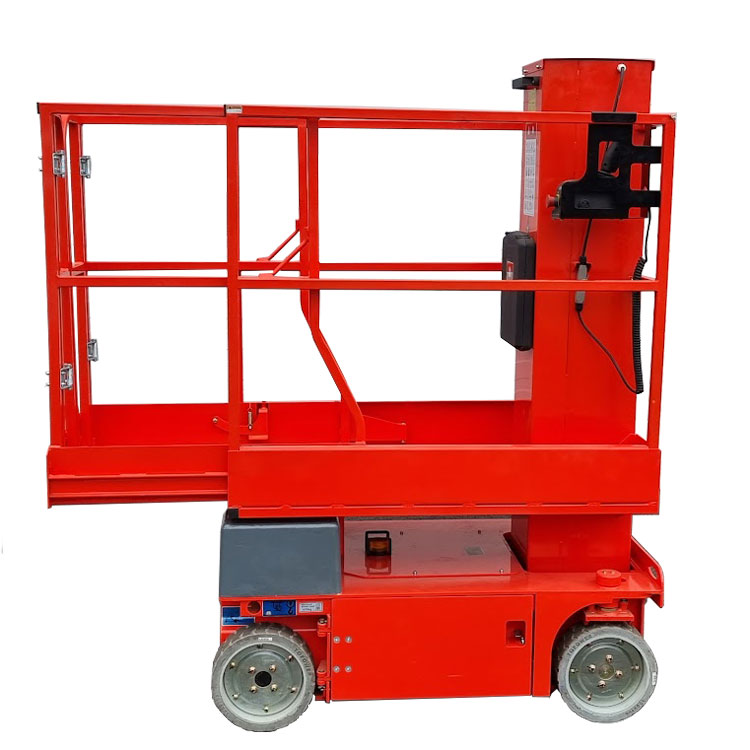

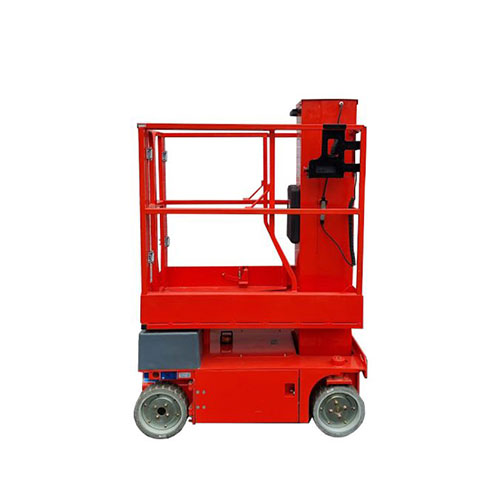

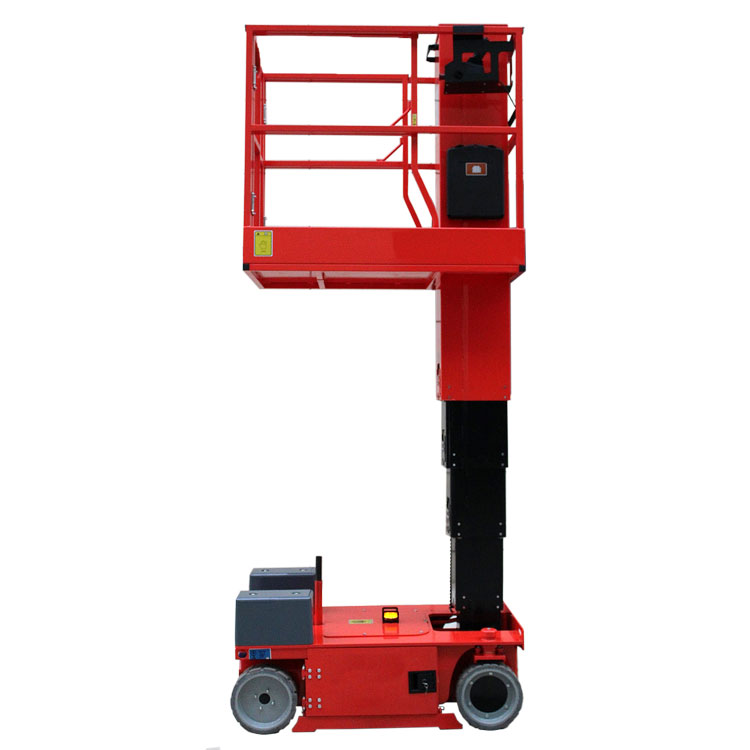

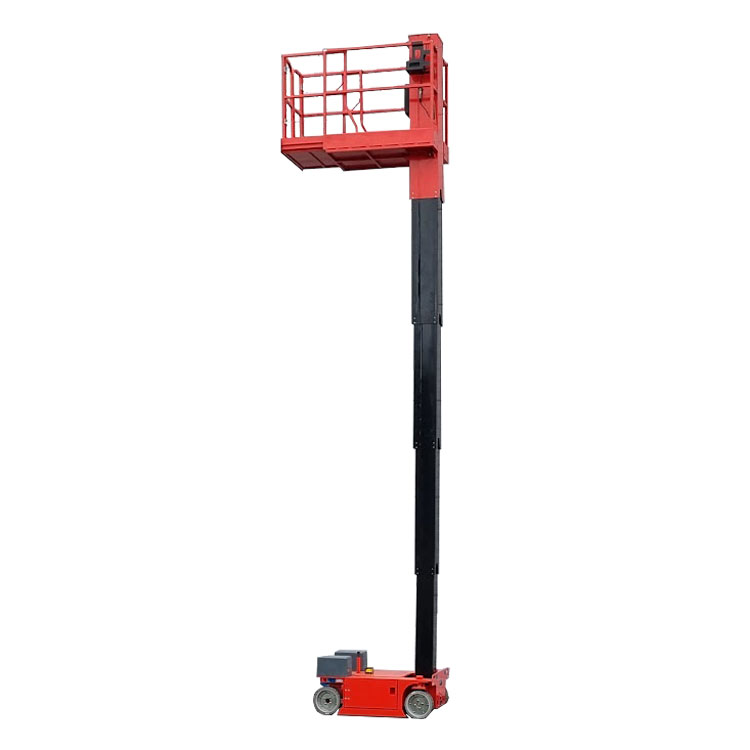

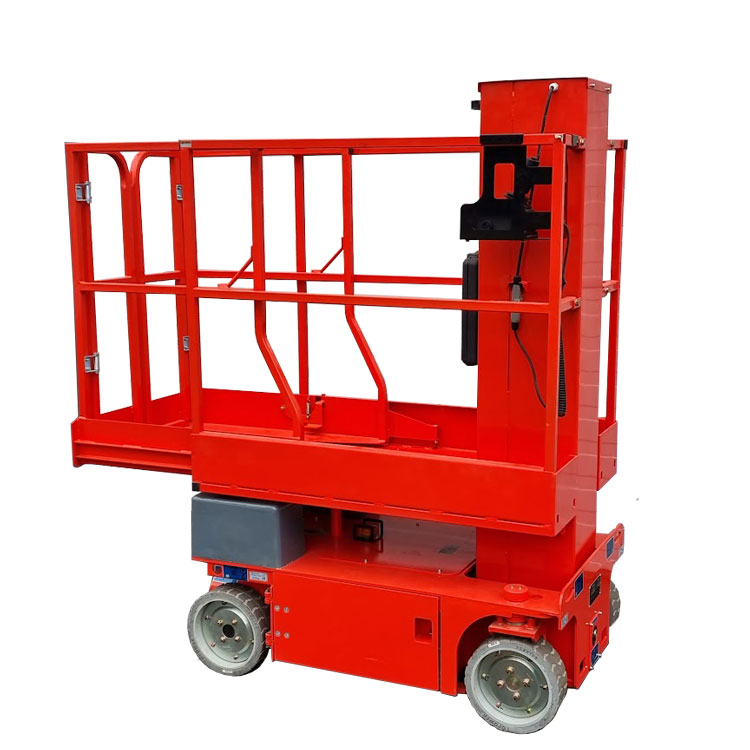

Instant TM2030 ED – 8,1m
The Instant TM20 is the optimal mast lift for working on small surfaces. The TM20 is compact and easy to maneuver, and it fits through standard doorways. The lift weighs only 1060 kg and has a working height of 8.1m.
This versatile mast lift also has a platform extension as standard, which easily expands the working area.
Call for Price
Send RequestStandard equipment:
• Proportional driving
• Marker-free tires
• 2 WD
• Automatic brakes
• Emergency lowering
• Emergency stop buttons
• Self-diagnosis on board
• Tilt sensor and alarm
• Motion alarm
• Horn
• Hour meter
• Forklift pockets
• Rotating warning light
• Overload sensor with alarm
