| Working height max | 8m |
|---|---|
| Platform height max | 6m |
| Maximum lifting capacity | 150kg |
| Maks antall personer i lift | 1 |
| Platform dimension (LxW) | 0,78 x 0,70 m |
| Push | 0,55m |
| Length of platform with extension | 1,33 x 0,70 m |
| Turning radius inside | 0 m |
| Speed, high / low (km / h) | 4 / 1,1 |
| Rise ability max | 25% |
| Raise / lower time (sec) | 43/35 |
| Deck | marking-free |
| Drivetrain | 2WD |
| Power source | 2 x 12 V / 100 Ah |
| Battery charger | 24 V / 11 A, integrated |
| Length | 1,4m |
| Width | 0,82m |
| Height | 1,98 m |
| Weight | 1120 kg |
| Dimensions | 140 × 82 × 198 cm |

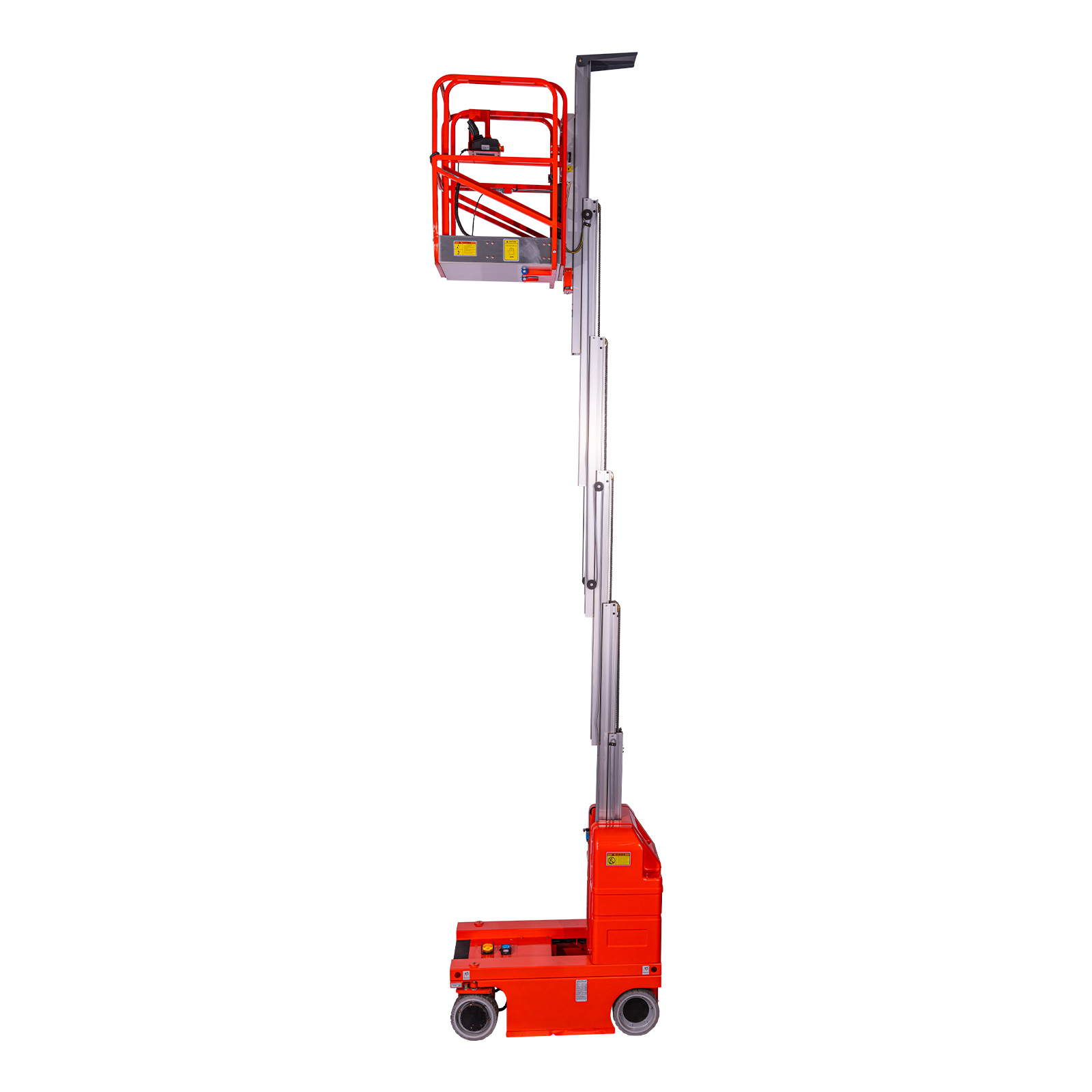

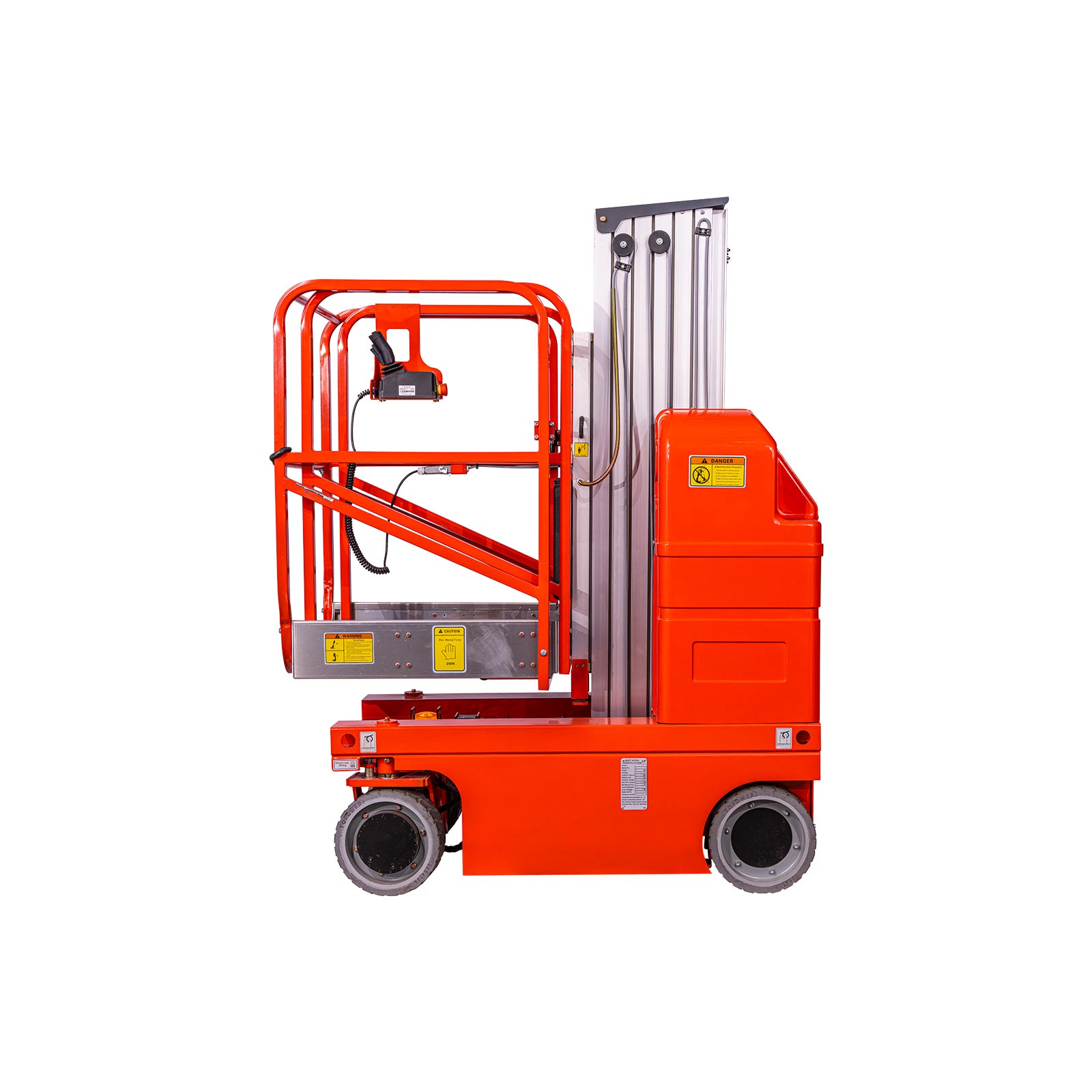

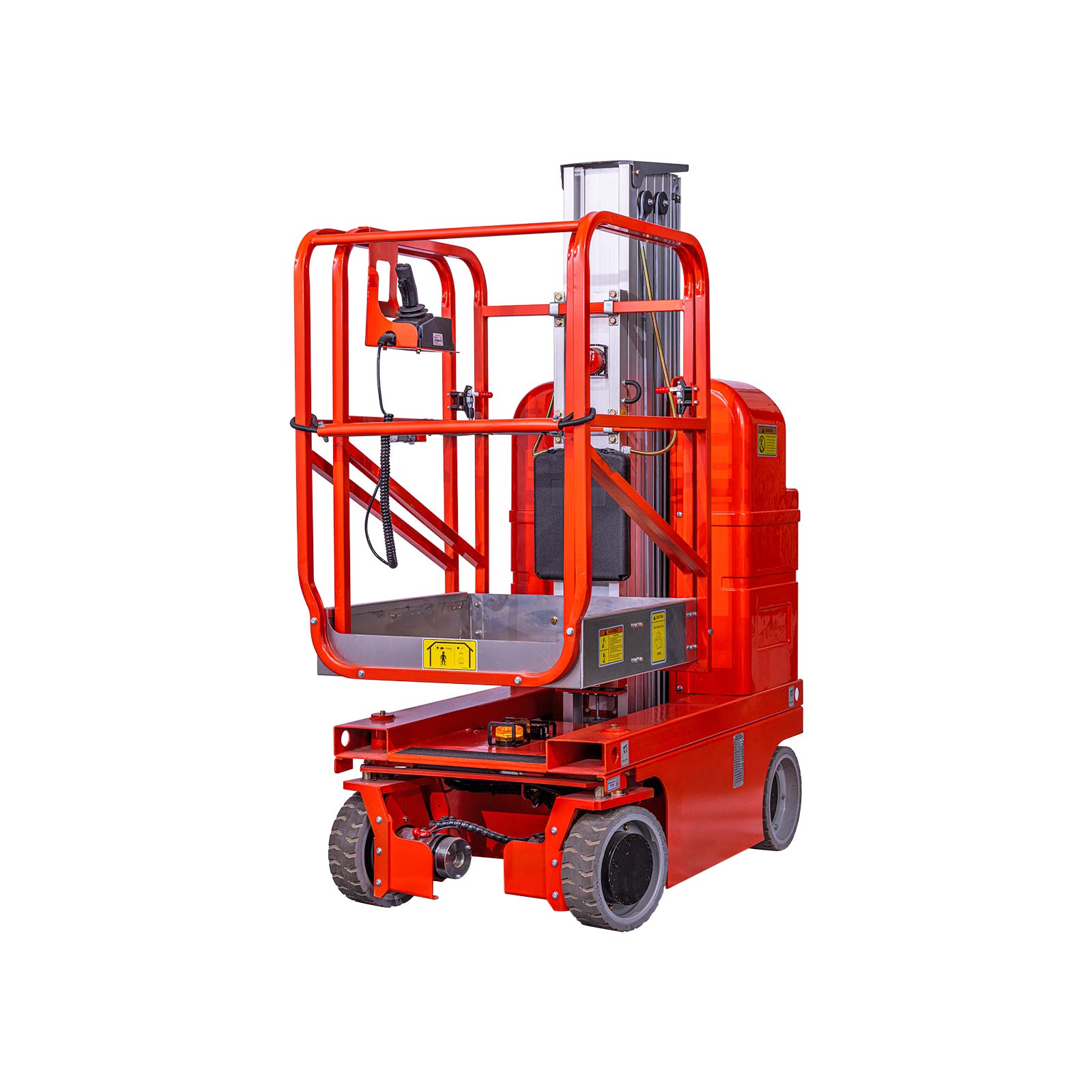

Instant AMWP8-1100 – 8m
Due to its size and the ability to fold, the AMWP1100 series is perfect for work in tight spaces. The mast lifts weigh from only 1120 kg and have a working height of 8.0 m.
The AMWP1100 series can handle a weight of up to 150 kg, and the platform can also be extended by 0.55 m. On order, it is possible to get machines for less than 1000 kg, but without a platform with an extension.
Call for Price
Send RequestStandard equipment:
• Proportional driving
• Marker-free tires
• 2 WD
• Automatic brakes
• Emergency lowering
• Emergency stop buttons
• Self-diagnosis on board
• Tilt sensor and alarm
• Motion alarm
• Horn
• Hour meter
• Forklift pockets
• Rotating warning light
• Overload sensor with alarm
