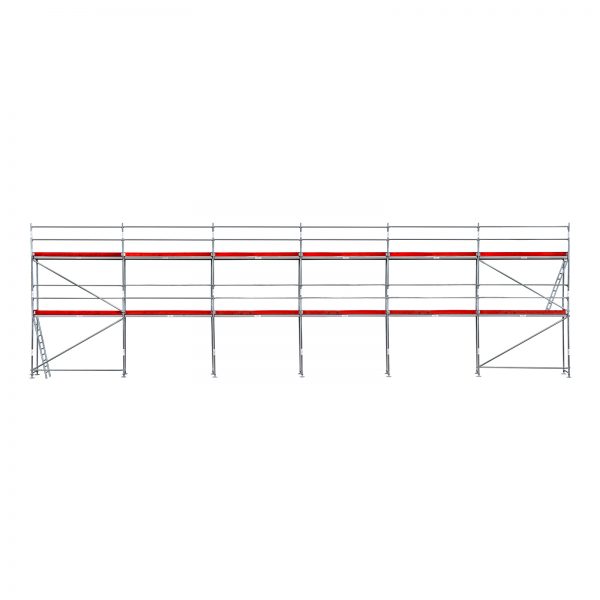

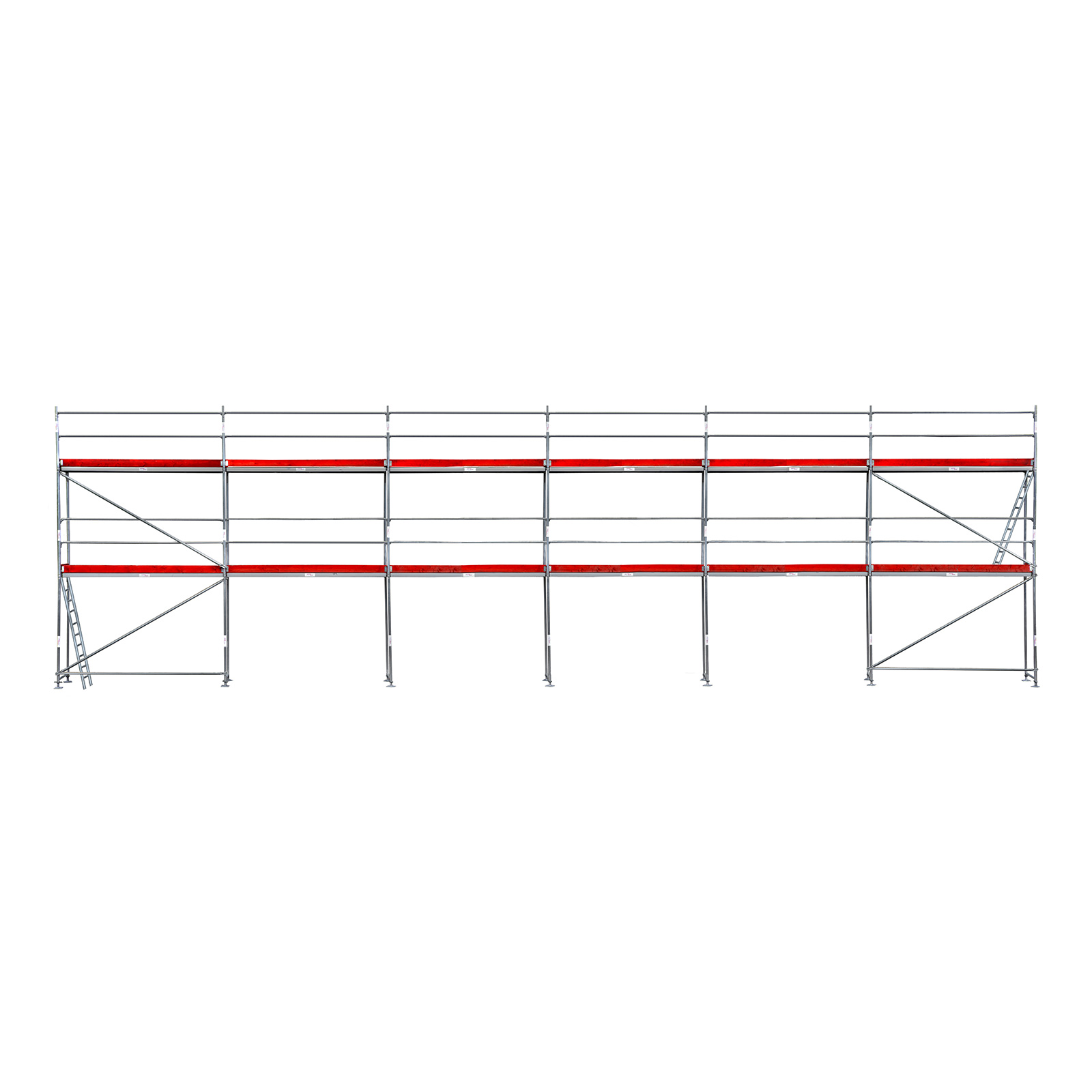

Scaffolding trailer with 101m2 scaffolding package

900-00HENGER3

Working height: 6m
(6.5m when using leg adjustments)
Platform height: 4m
Scaffolding length: 18,42m
Number of sections length: 6
Number of sections height: 2

Load class 3 (200kg/ m²)
Certified

The scaffolding trailer is delivered with all-season tires and an advertising sign on top.

Call for Price

Send Request
Area:

Sqm without leg adjustments extracted: 92 m2
Sqm with leg adjustments extracted: 101 m2
Scaffolding length:

18,42m
Height:

6m working height
4m platform height
Components:

14 pcs Vertical frame 2.0m – aluminum
2 pcs End railing top platform
5 pcs L-frame / railing post – aluminum
2 pcs End railing other platform height
24 pcs Railings simple stays in steel
14 pcs Bench adjustment w / foot plate 0.5m
10 pcs Platform 3.07m length – aluminum profile
2 pcs Platform with hatch and ladder 3.07m length – aluminum profile
12 pcs Footer
4 pcs Footer end piece
4 pcs Diagonal brace for 3.07 m length
2 pcs Horizontal brace for 3.07m length
7 pcs Wall mount 0,38m
7 pcs Coupling for wall mounting
7 eyebolts
1 pcs Silent scaffolding trailer
1 pcs Registration of trailer
2 pcs Straps 2 tons
2 pcs Straps 4 tons
Weight 1120 kg
Dimensions 540 × 188 × 240 cm

We deliver our Instant Blitz-Fix scaffolding packages on our own scaffolding trailer. All scaffolding parts are easily accessible and have their permanent place, and you easily have a complete overview of the parts. On the trailer there is a separate space for leg adjustments and small parts such as wall brackets etc. We deliver the trailer fully registered and straps are included for safe transportation.

Few and simple details make Instant Blitz-Fix very easy and quick to assemble/disassemble, which in turn increases efficiency and reduces costs. Instant Blitz-Fix is constructed in aluminum with very lightweight components, which contributes to minimal risk when working at height. The scaffolding system is designed with dimensions and specifications that allow the system to be used interchangeably with several other scaffolding brands. Scaffolding is type-approved with load class 3 (200kg/m2).

Instant Blitz-Fix facade scaffolding is manufactured under strict quality requirements for both raw materials and production. The scaffolding is tested and certified by the leading certification body in the EU.

The scaffolding system can be recommended for the vast majority of facade jobs. Construction work, maintenance, rehabilitation, plumbing, insulation work, carpentry, etc. The scaffolding is equally suitable for tradesmen and homeowners.

Key facts about Instant Blitz-Fix facade scaffolding:
– Type approved with load class 3 (200 kg/m2).
– Maximum platform height: 24m (without calculation)
– Base scaffolding span: 3,07m. Complete details also for scaffolding trusses: 0.50m, 0.73m, 1.09m, 1.57m, 2.07m and 2.57m
– Basic vertical frame: 2.00m x 0.73m. Equalization frames: 0.66m, 1.00m and 1.50m
– Double railings in aluminium or single railings in galvanized steel.
– Platform with aluminum square profiles and platform plate in 12mm non-slip waterproof veneer. Also available with aluminum platform plate.
– Access via platform with hatch and integrated inclined ladder or alternatively hatch and loose ladder.
– Full range of additional equipment such as external and internal brackets, mesh grids for extra protection during roof work, various types of couplings, truss girders, pedestrian passage frames, etc.
