Sale

Combi scaffold for gable 68m2

900-00KOMBI4

Working height: 6/8 m
(6.5 / 8.5 m when using leg adjustments)
Platform height: 4/6 m
Scaffolding length: 9.21 / 12.28 m
Number of sections length: 3/4
Number of sections height: 2/3

Load class 3 (200kg / m²)
Certified

Instant Blitz-Fix is a modern modular frame scaffolding in aluminum. The scaffolding is made of high quality aluminum and is a round profile on the pipe. This is the most used and most preferred type of scaffolding in Norway.

Call for Price

Send Request
Area:

Sqm with leg adjustments extracted: 68 m2

Scaffolding length:

9,21 / 12,28 m

Height:

6m / 8m working height
4m / 6m platform height

Components:

10 pcs Vertical frame 2.0m – aluminum
04 pcs End railing top platform height
03 pcs Railing post / L-frame 1.0 m
02 pcs End railing other platform height
16 pcs Railings simple stays in steel
10 pcs Bench adjustment w / foot plate 0.5m
05 pcs Platform standard 3.07m length – aluminum profile
03 pcs Platform w / hatch and ladder 3.07m length – aluminum profile
08 pcs Footer
06 pcs Footer end piece
04 pcs Diagonal brace for 3.07 m length
02 pcs Horizontal brace for 3.07m length
06 pcs Wall mount 0.38m
06 pcs Coupling for wall mounting
06 pcs Eye bolt

Weight 591 kg
Dimensions 365 × 120 × 140 cm

Few and simple details make Instant Blitz-Fix very easy and quick to assemble / disassemble, which in turn increases efficiency and reduces costs. Instant Blitz-Fix is constructed in aluminum with very light components, which contributes to minimal risk when working at height. The scaffolding system is designed with dimensions and specifications which means that the system can also be used interchangeably with several other scaffolding brands. Scaffolding is type approved with load class 3 (200kg / m2).

Instant Blitz-Fix facade scaffolding is produced under strict quality requirements for both raw materials and production. The scaffolding has been tested and certified by a leading certification body in the EU.

The scaffolding system can be recommended for most facade jobs. Building work, maintenance, rehabilitation, plumbing work, insulation work, carpentry work etc. The scaffolding is just as suitable for craftsmen as for homeowners.

Key facts about Instant Blitz-Fix facade scaffolding:
– Type approved with load class 3 (200 kg / m2).
– Maximum platform height: 24m (free of charge)
– Basic scaffolding: 3.07m. Complete details also for scaffolding subjects: 0.50m, 0.73m, 1.09m, 1.57m, 2.07m and 2.57m
– Basic vertical frame: 2.00m x 0.73m. Compensatory limits: 0.66m, 1.00m and 1.50m
– Double railings in aluminum or single railings in galvanized steel.
– Platform with aluminum square profiles and platform plate in 12mm non-slip waterproof veneer. Can also be delivered with aluminum platform plate.

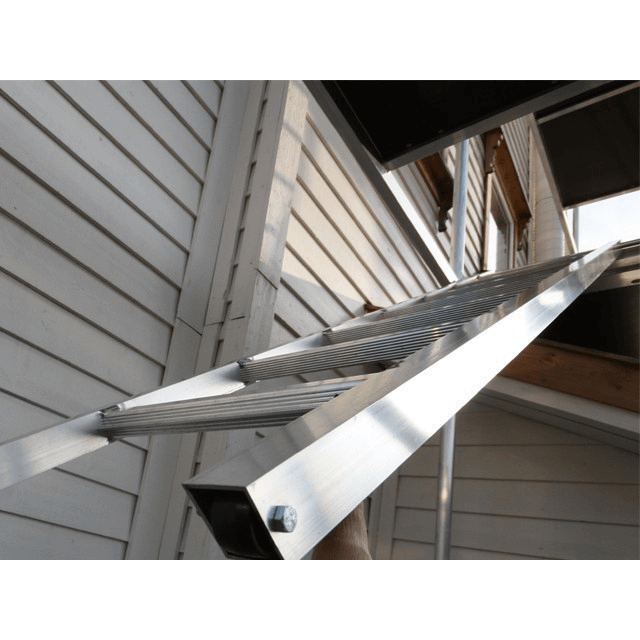

– Access via platform with hatch and integrated sloping ladder or hatch and loose ladder.
– Full range for accessories such as exterior and interior consoles, mesh grilles for extra protection during roofing work, various types of connections, truss girders, walk-through frames for pedestrians, etc.
