Scaffolding 4 floors

900-00PABYGG4

Add-on set of 4 floors. for those who want to extend the scaffolding.

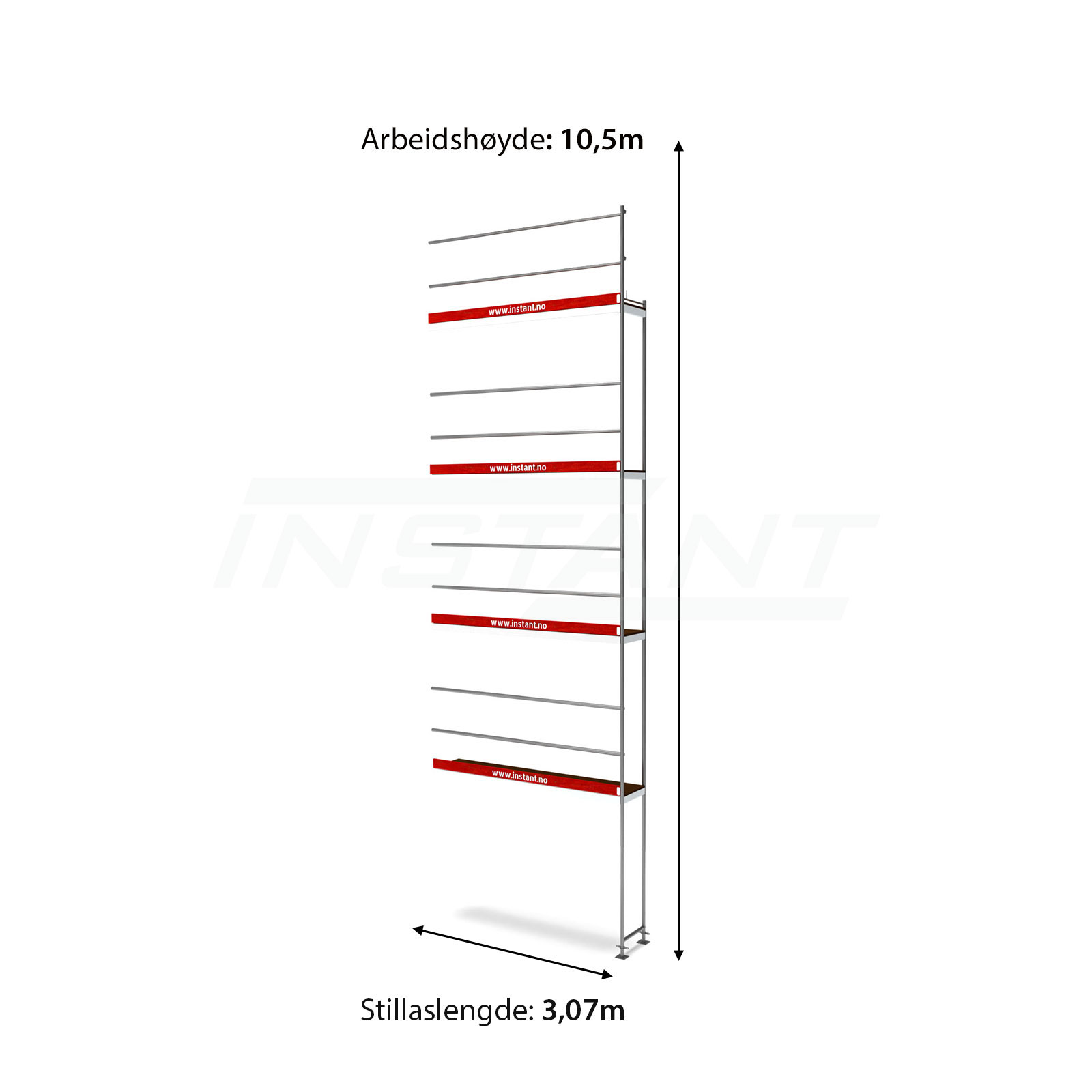

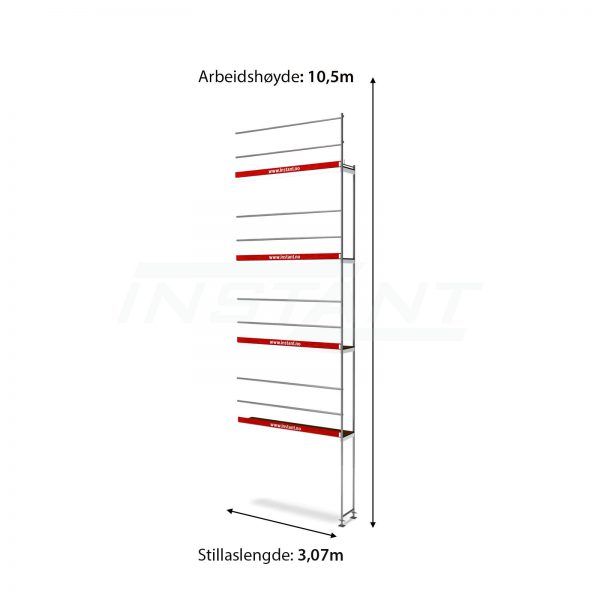

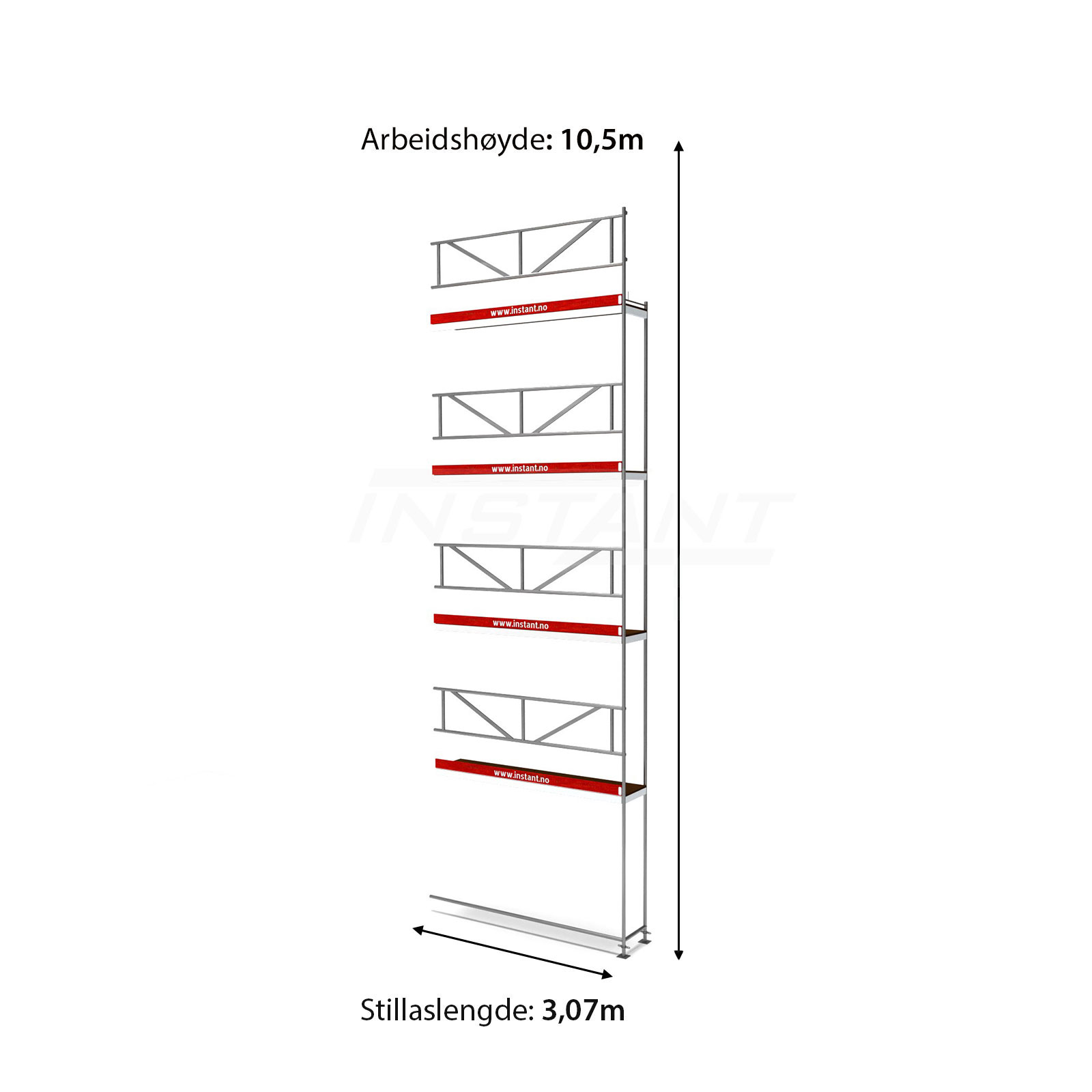

Working height: 10m
(10.5m using leg adjustments)
Platform height: 8m
Scaffolding length: 3.07m
Number of sections length: 1

Load class 3 (200kg / m²)
Certified

Call for Price

Send Request
Scaffolding length:

3,07m

Height:

10m working height
8m platform height

Components:

04 pcs Vertical frame 2.0m – aluminum
08 pcs Railings simple stays in steel
01 pcs L-frame
02 pcs Bench adjustment w / foot plate 0.5m
04 pcs Platform 3.07m length – aluminum profile
04 pcs Footer
04 pcs Wall mount
04 pcs Coupling for wall mounting
04 pcs Eye bolt

Weight 238 kg
Dimensions 365 × 75 × 80 cm

Few and simple details make Instant Blitz-Fix very easy and quick to assemble / disassemble, which in turn increases efficiency and reduces costs. Instant Blitz-Fix is constructed in aluminum with very light components, which contributes to minimal risk when working at height. The scaffolding system is designed with dimensions and specifications which means that the system can also be used interchangeably with several other scaffolding brands. Scaffolding is approved with load class 3 (200kg / m2).

Instant Blitz-Fix facade scaffolding is produced under strict quality requirements for both raw materials and production. The scaffolding has been tested and certified by a leading certification body in the EU.

The scaffolding system can be recommended for most facade jobs. Building work, maintenance, rehabilitation, plumbing work, insulation work, carpentry work etc. The scaffolding is just as suitable for craftsmen as for homeowners.

Key facts about Instant Blitz-Fix facade scaffolding:
– Type approved with load class 3 (200 kg / m2).
– Maximum platform height: 24m (free of charge)
– Basic scaffolding: 3.07m. Complete details also for scaffolding subjects: 0.50m, 0.73m, 1.09m, 1.57m, 2.07m and 2.57m
– Basic vertical frame: 2.00m x 0.73m. Compensatory limits: 0.66m, 1.00m and 1.50m
– Double railings in aluminum or single railings in galvanized steel.
– Platform with aluminum square profiles and platform plate in 12mm non-slip waterproof veneer. Can also be delivered with aluminum platform plate.
– Access via platform with hatch and integrated sloping ladder or hatch and loose ladder.
– Full range for accessories such as exterior and interior consoles, mesh grilles for extra protection during roofing work, various types of connections, truss girders, passage frames for pedestrians, etc.
