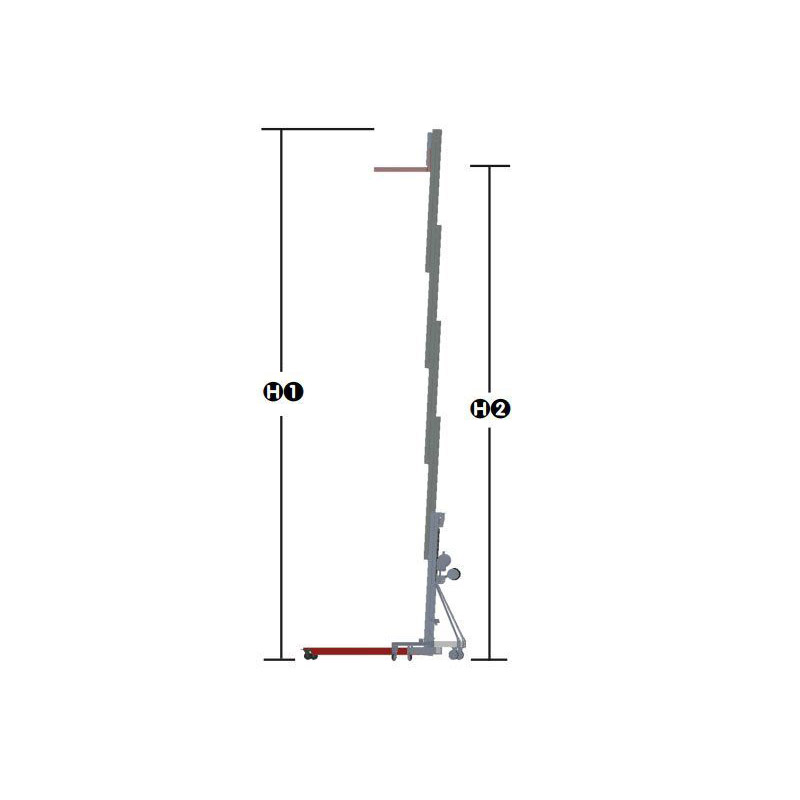

| Standard height forks-up H1 | 3.48m |
|---|---|
| Standard height forks-down H2 | 2.96m |

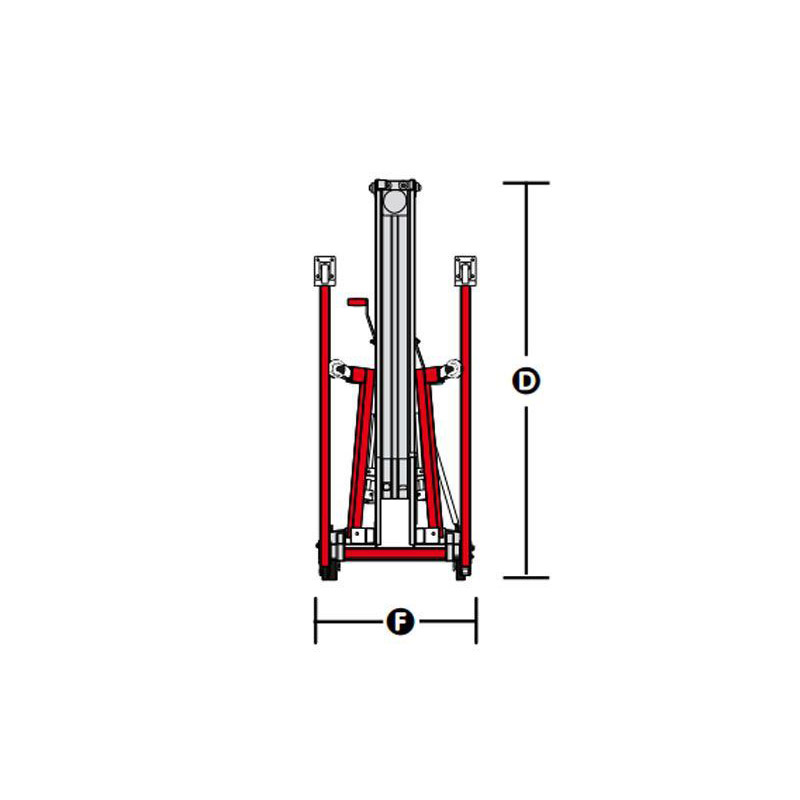

| Height-stowed D | 2.02m |

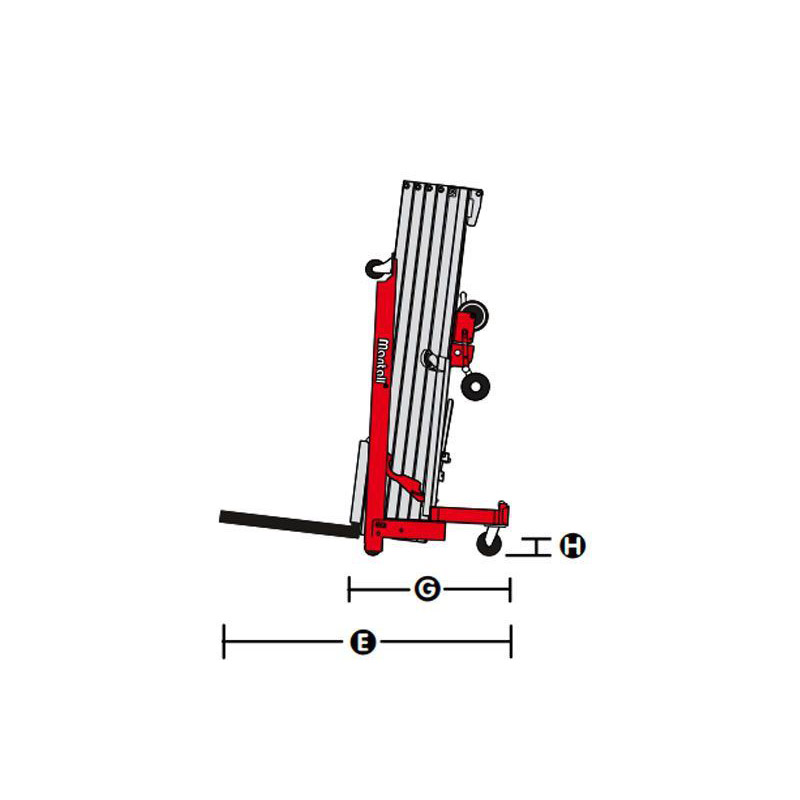

| Length-stowed E | 0.75m |
| Length-operating K | 2.2m |
| Width-stowed F | 0.79m |
| Stabilizers lowered | 1.9m |
| Load height minimum | 0.15m |
| Load center (46cm) | 454kg |
| Load center (61cm) | 454kg |
| Load center (107cm) | 181kg |
| Power | Single speed winch |
| Weight | 163 kg |
| Dimensions | 75 × 79 × 202 cm |

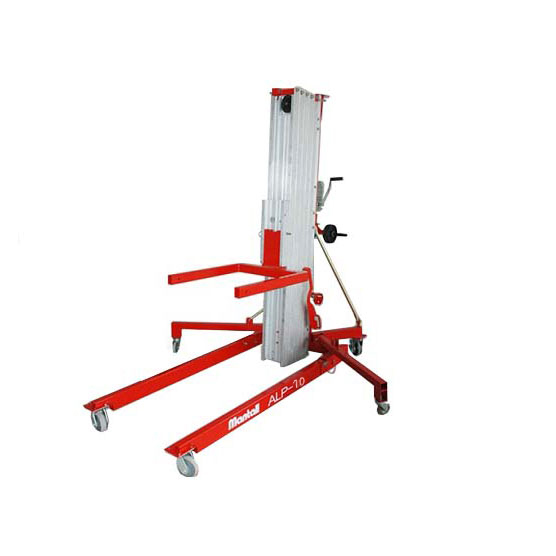

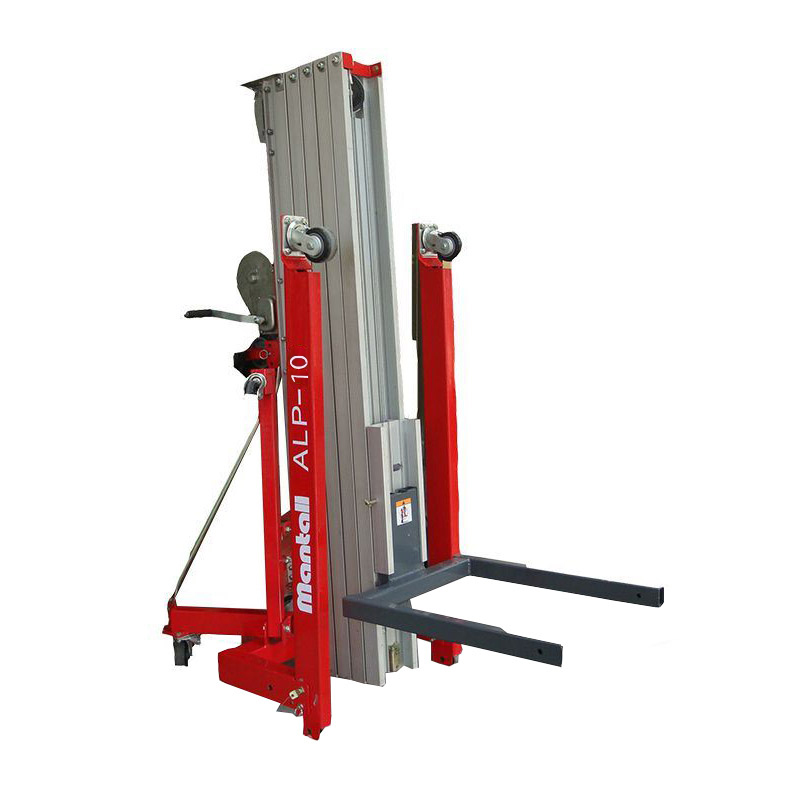

Mantall ALP-10
The Mantall ALP-10 super material lift can lift a heavy load of 454kg up to 3.48 meters in height. The ALP series super material lift is a manually operated material lift with no power source required.

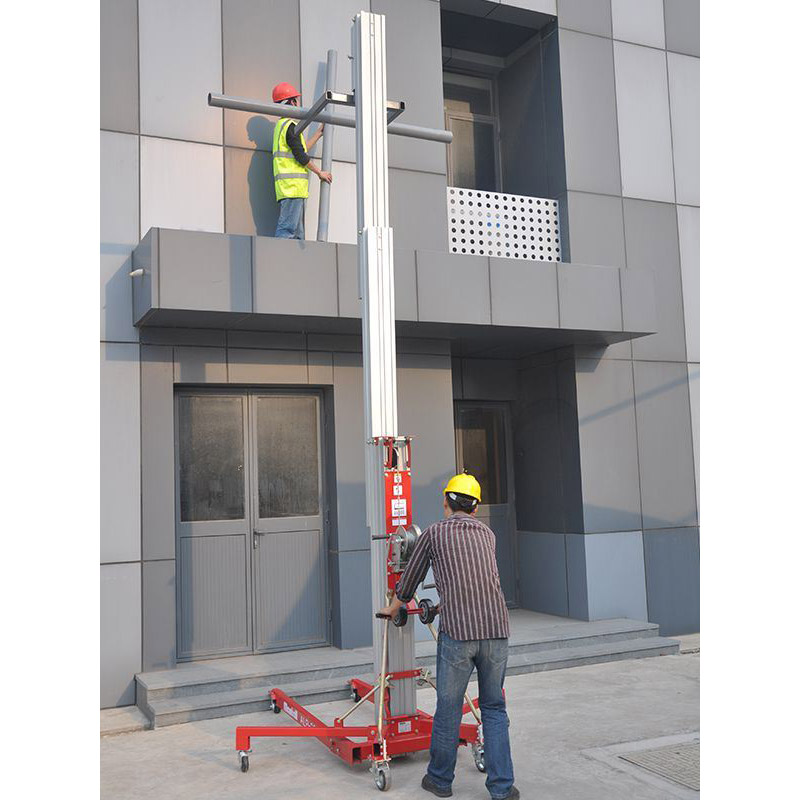

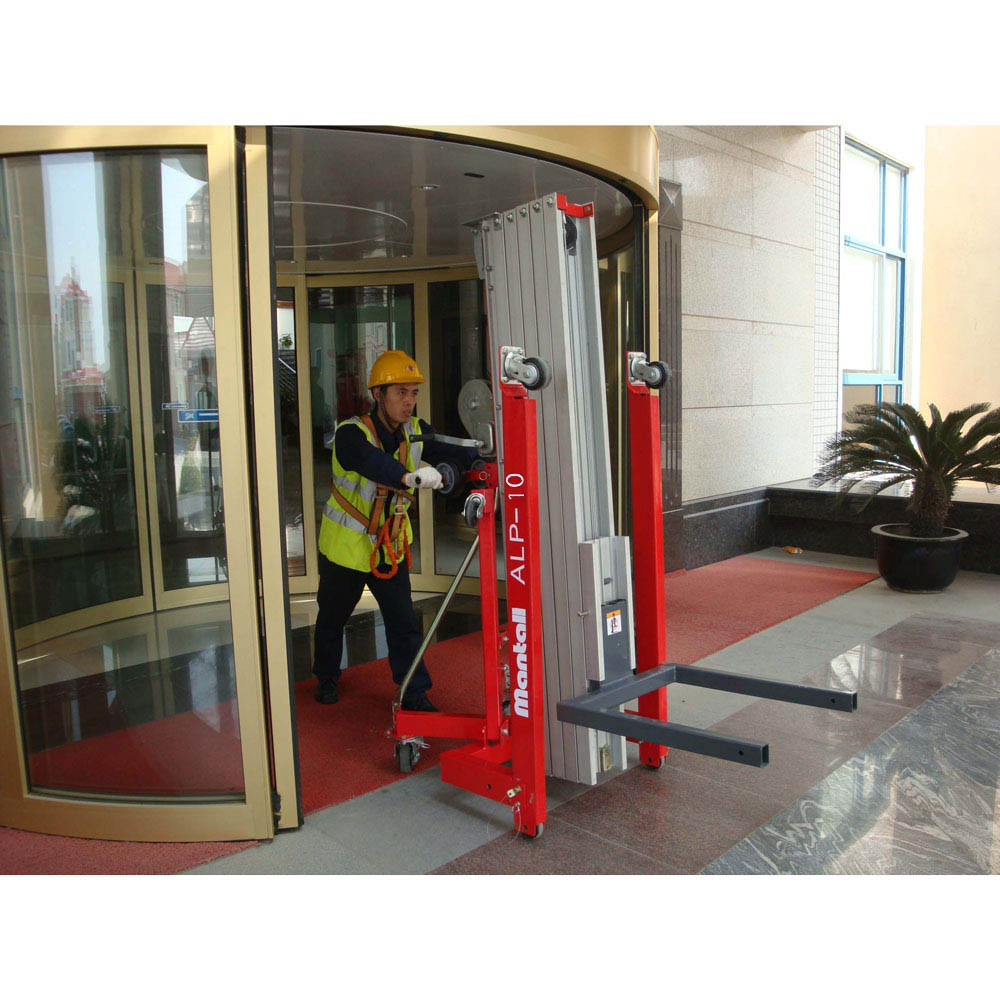

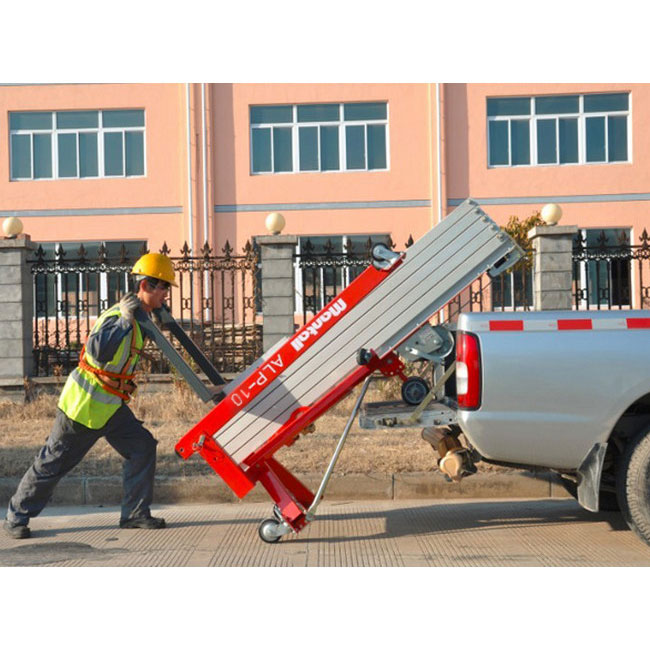

The compact structure, lightweight and portable design enable it to effortlessly pass through standard doorways, as well as easily to be set up and loaded into a truck. The product is ideal for applications requiring lifting tasks, such as warehouse picking, ducting and ventilation installation, stage construction, HVAC repairing, etc.
Max height: 3.48m
Max load: 454kg
Product height: 2,02m
Product width: 0,79m
Call for Price
Send RequestStandard Features
Incorporates a silent ratchet system
Transportation wheels
Roller wheels with brake
Standard forks
Telescopic mast design
Solid steel base
Optional
Adjustable forks
Flat forks
Boom
Pipe cross forks
Load platform
Anti-fall function
