| Working height max: | 13,1m |
|---|---|
| Platform height max: | 11,1m |
| Range max: | 6,1m |
| Lifting capacity max: | 220kg |
| Maximum number of people in the lift: | 2 |
| Basket size (LxWxH): | 1,2 x 0,8 x 1,1m |
| Boom rotation: | 355° |
| Jib length: | 1,2m |
| Power outlet in basket: | Yes |
| Wheel drive: | Yes |
| Support legs: | Hydraulic |
| Support leg width: | 3,45m |
| Slope: | 8% |
| Transport length: | 6,35m |
| Transport width: | 1,55m |
| Transport height: | 1,99m |
| Net weight: | 1450kg |
| Weight | 1450 kg |
| Dimensions | 635 × 155 × 199 cm |

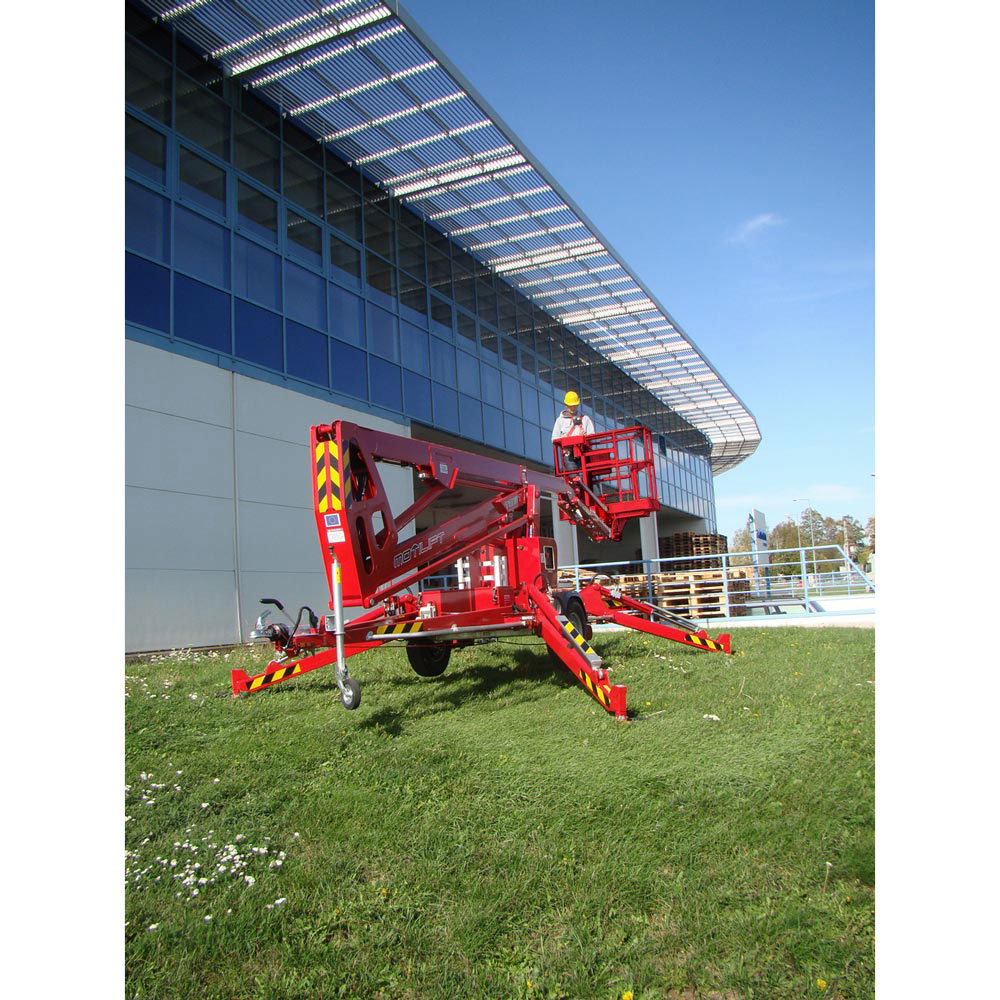

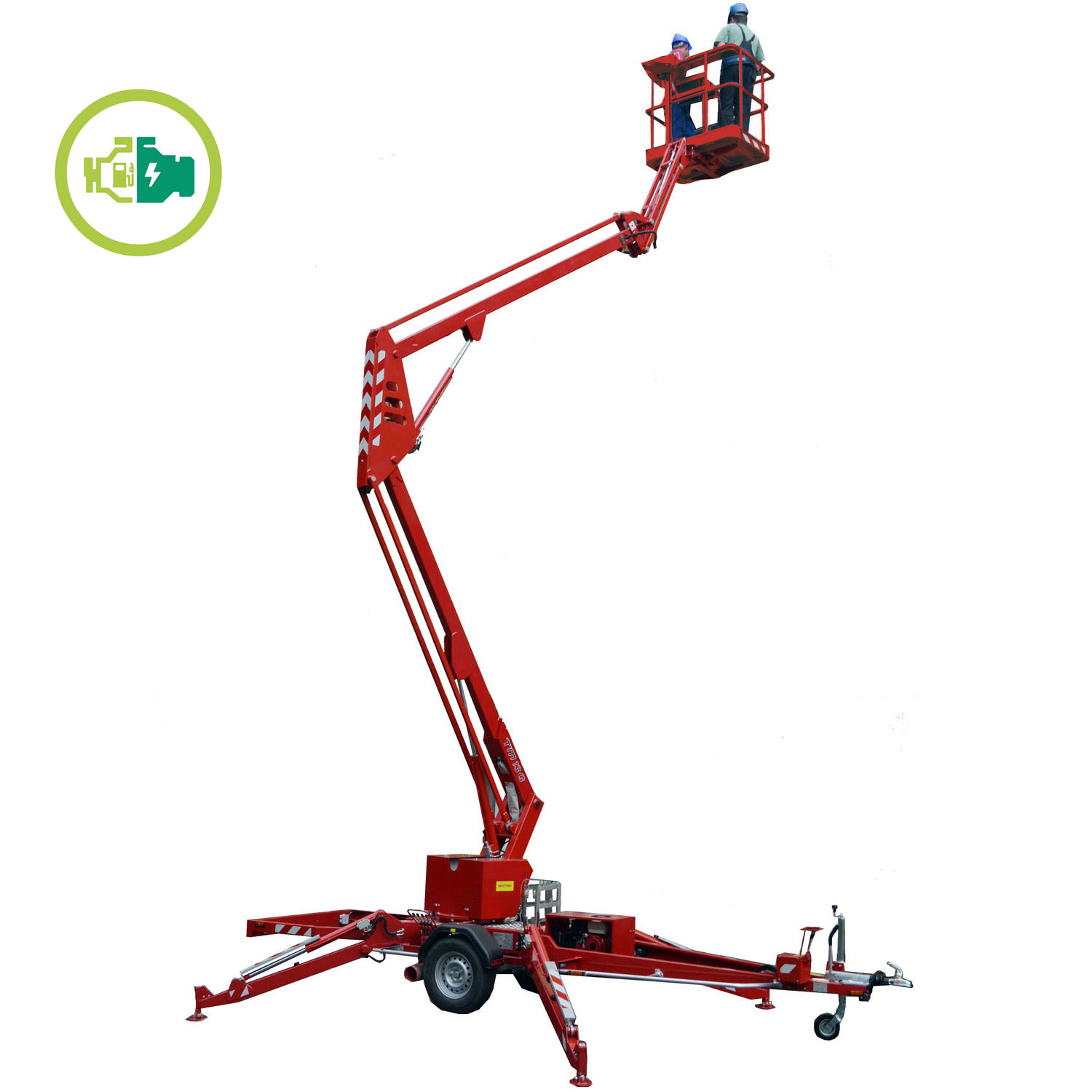

Europelift TM13G ECO – 13m
The Europelift TM13G ECO is a practical and robust trailer mounted lift that makes difficult jobs easy. The articulated arm and jib combination provides easy access to the most difficult areas with up to 220kg in the basket.
The Europelift TM13G ECO has a working height of up to 13.1 meters and can be loaded with up to 220 kg. The lift is specified as standard with wheeled operation, hydraulic outriggers and swivel basket.
The model has hydraulic controls and a steel basket. This distinguishes the model from the TM13G.
Call for Price
Send RequestStandard equipment:
– 230V
– Honda engine (option)
– Telescopic boom lift
– Hydraulic controllers
– 1,3m jib
– 230V AC outlet in the basket
– Wheel drive
– Platform leveling with 3° auto-correction
– Chassis leveling sensor at 1°
– Earth pressure sensors on all anchorage plates with audible and visible alarms
– Hour counter
– CE marking and EU road approval

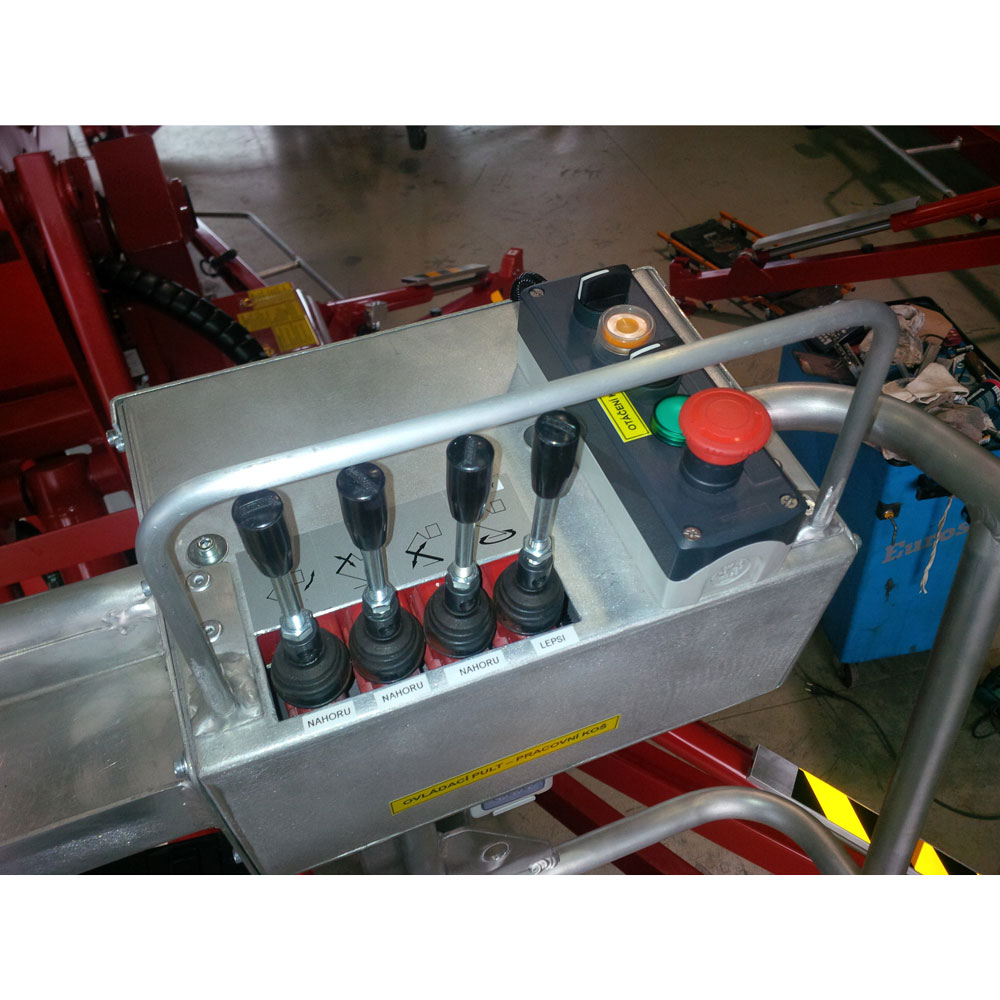

– Ground and upper controls with tarpaulin cover
– Manual recovery with hand pump
– Automatic reverse and overrun brakes plus handbrake
– Steel basket
– Color of the machine: RAL3002 (red)
Additional equipment:
– Operating option 230V operation
– Battery operation option
– Automatic chassis level
– Customized color
– Dual-Power source 230V & Honda
– Battery power 24V 225Ah
– On-board 230V Generator 5KV Honda EM5500
– G.R.P. basket with toolbox (2 man)
– Anchor plate mats
