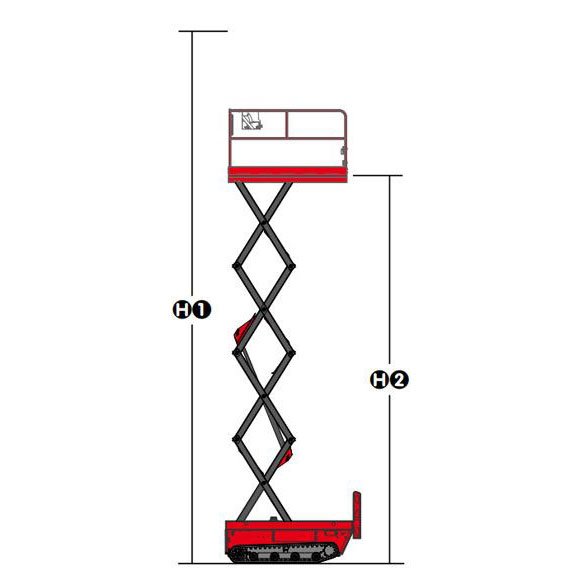

| Max. working height H1 | 6.8 m |
|---|---|
| Max. platform height H2 | 4.8 m |
| Platform extension | 0.9 m |
| Lifting capacity | 230 kg |
| Lifting capacity on the extension | 115 kg |

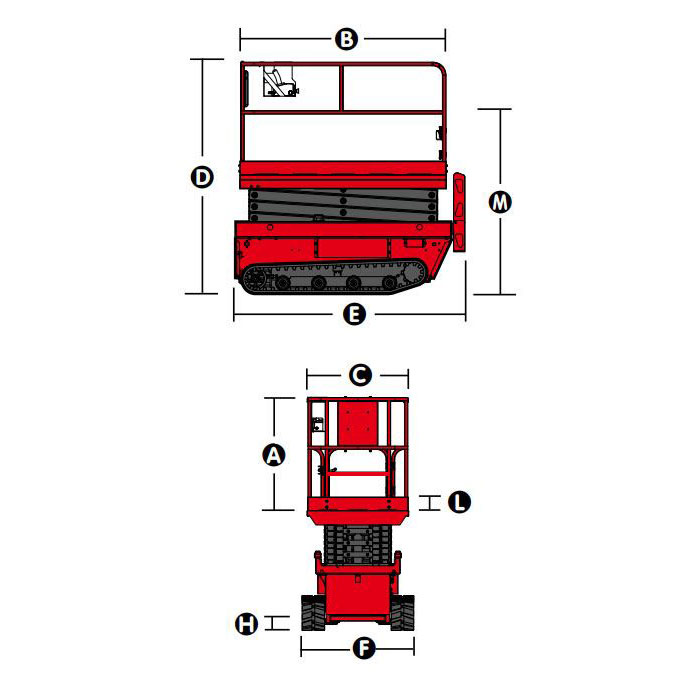

| Platform size B*C*A | 1.84×0.9×1.1 m |
| Length and width E*F | 2.26×1.12 m |
| Height D | 2.12 m |
| Height-guardrails folded | 1.75 m |
| Ground clearance(m) | 0.13 m |
| Raising time/Lowering time(s) | 24/22 s |
| Drive speed, stowed | 1.7 Km/h |
| Drive speed, raised | 0.7 Km/h |
| Gradeability | 40% |
| Tilt sensor- front to back | 3° |
| Tilt sensor- side to side | 2° |
| Outrigger - Tilted front to back | 4.5° |
| Outrigger - side to side | 10° |
| Drift | Elektrisk |
| Max. platform occupancy | 2 personer |
| Power source | 24V/225Ah |
| Weight | 1445 kg |
| Dimensions | 226 × 112 × 212 cm |

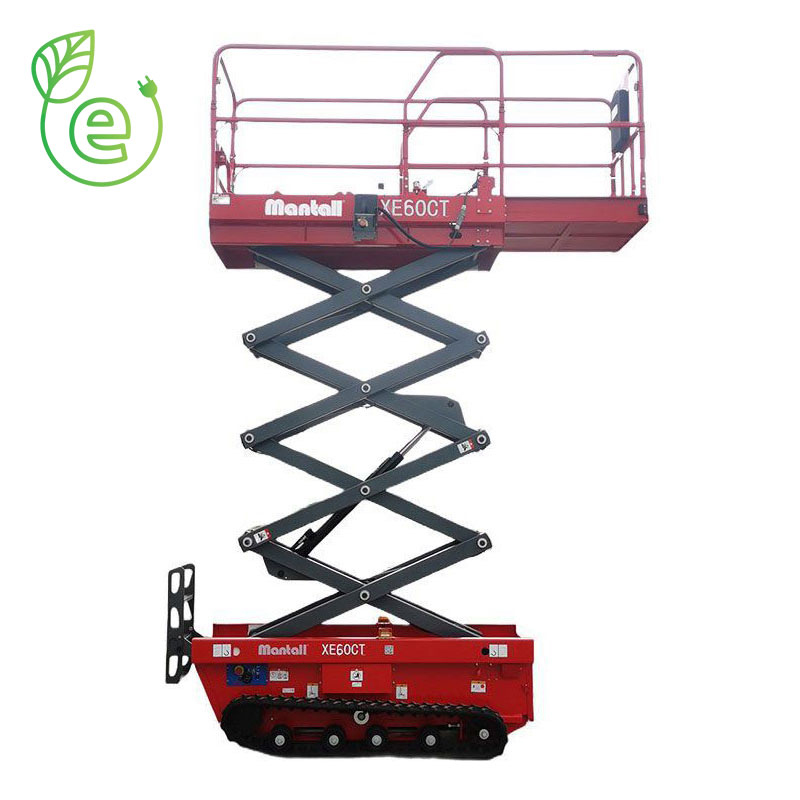

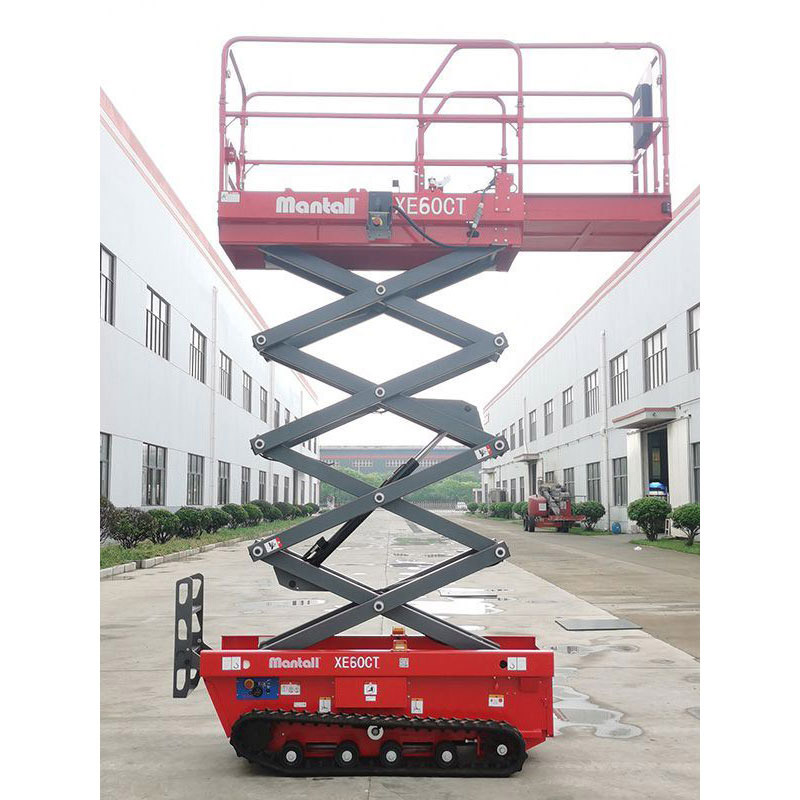

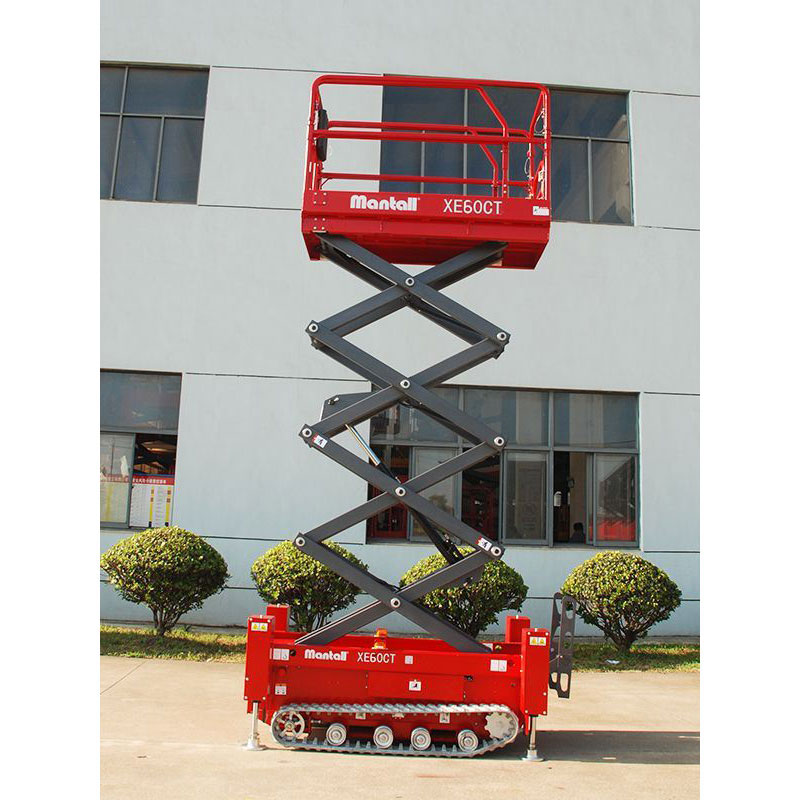

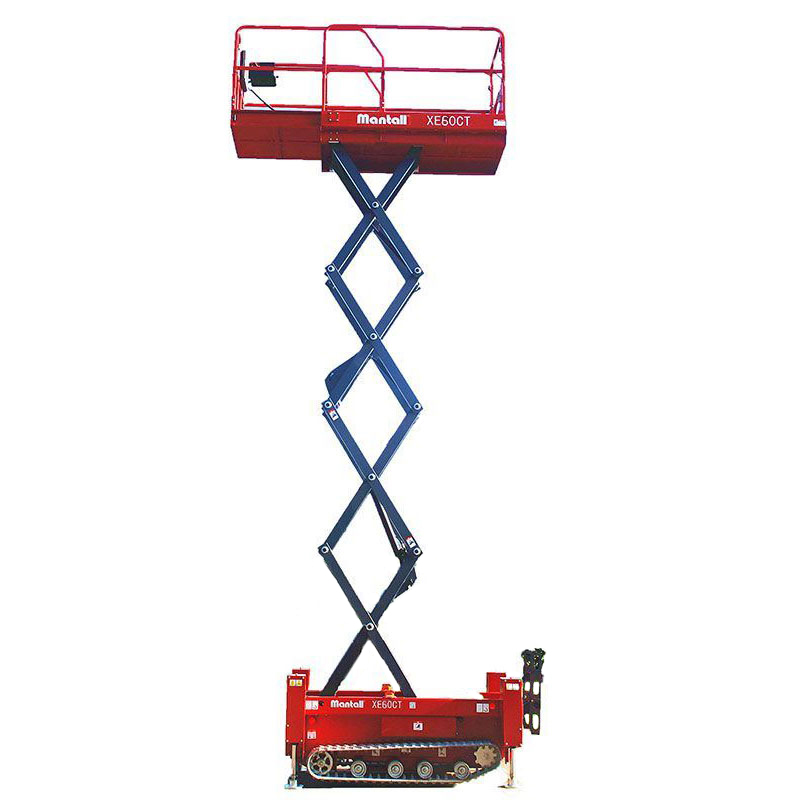

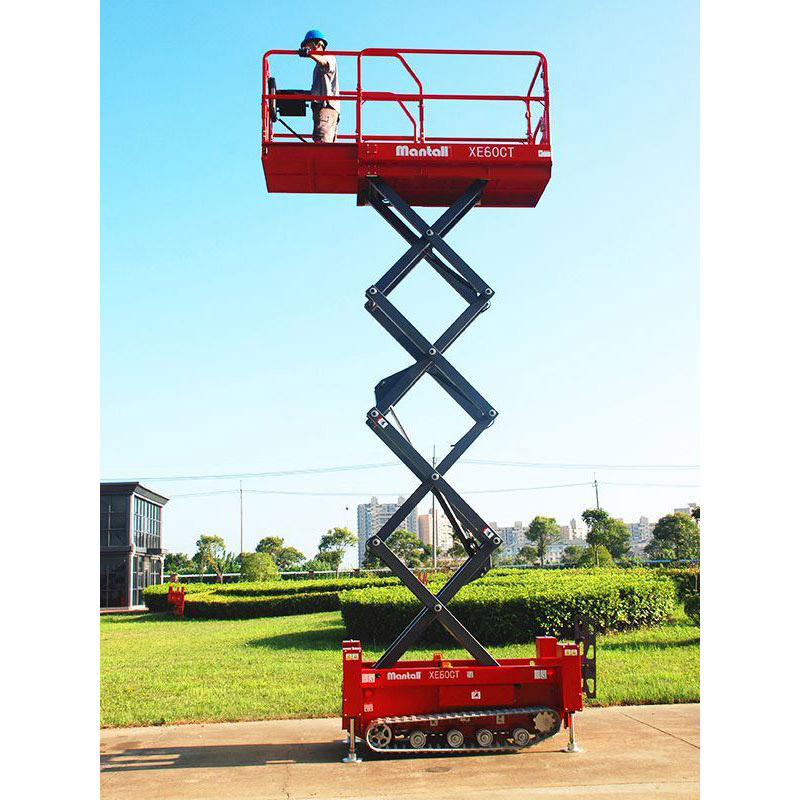

Mantall XE60CT OR – 6.8m
Mantall has a wide range of tracked lifts for indoor and outdoor use. The XE60CT OR has a working height of 6.8m and a maximum platform extension of 0.9m. The platform capacity is 230 kg.
The lift is designed to work on uneven surfaces because it has hydraulic self-levelling legs, which allow the user to automatically level the scissor lift on slopes up to 4.5 degrees front to back and up to 10 degrees side to side.
The tank-like structure allows the lift to work in soft terrain without sinking, making it highly suitable for outdoor use.
Call for Price
Send RequestStandard Features
- 0.9X1.84Mplatform
- Tilt alarm system
- Fault diagnosis system
- Automatic brake system
- 200*72 hard rubber crawler
- Hour meter
- External charging indicator
- AC socket in the platform
- All motion alarm
- Fault code display
- Indicator light
- Buzzer
- Proportional control
- Emergency lower down
- Maintenance free battery
- This crawler electric scissor lift has the characteristics of zero emission, no noise, and has strong climbing function.
- Load capacity up to 230Kg, the lifting is stable, safe and reliable.
- With on board diagnostic system, intelligent fault alarm system and other functions.
