| Working height max: | 20,8m |
|---|---|
| Platform height max: | 18,8m |
| Range max: | 10.8 m (100kg in basket) / 8.4m (220kg) |
| Lifting capacity max: | 220kg |
| Maximum number of people in the lift: | 2 |
| Basket size (LxWxH): | 1,4×0,7×1,1 m |
| Boom rotation: | 365° |
| Jib length: | 1,3m |
| Power outlet in basket: | Yes |
| Support legs: | Hydraulic |
| Support legs width: | 3,26m |
| Slope: | 6,9 % |
| Engine type: | Honda engine (battery available as an option) |
| Transport length: | 5,45m |
| Transport width: | 0,79m |
| Transport height: | 1,99m |
| Net weight: | 2930kg |
| Weight | 2930 kg |
| Dimensions | 545 × 79 × 199 cm |

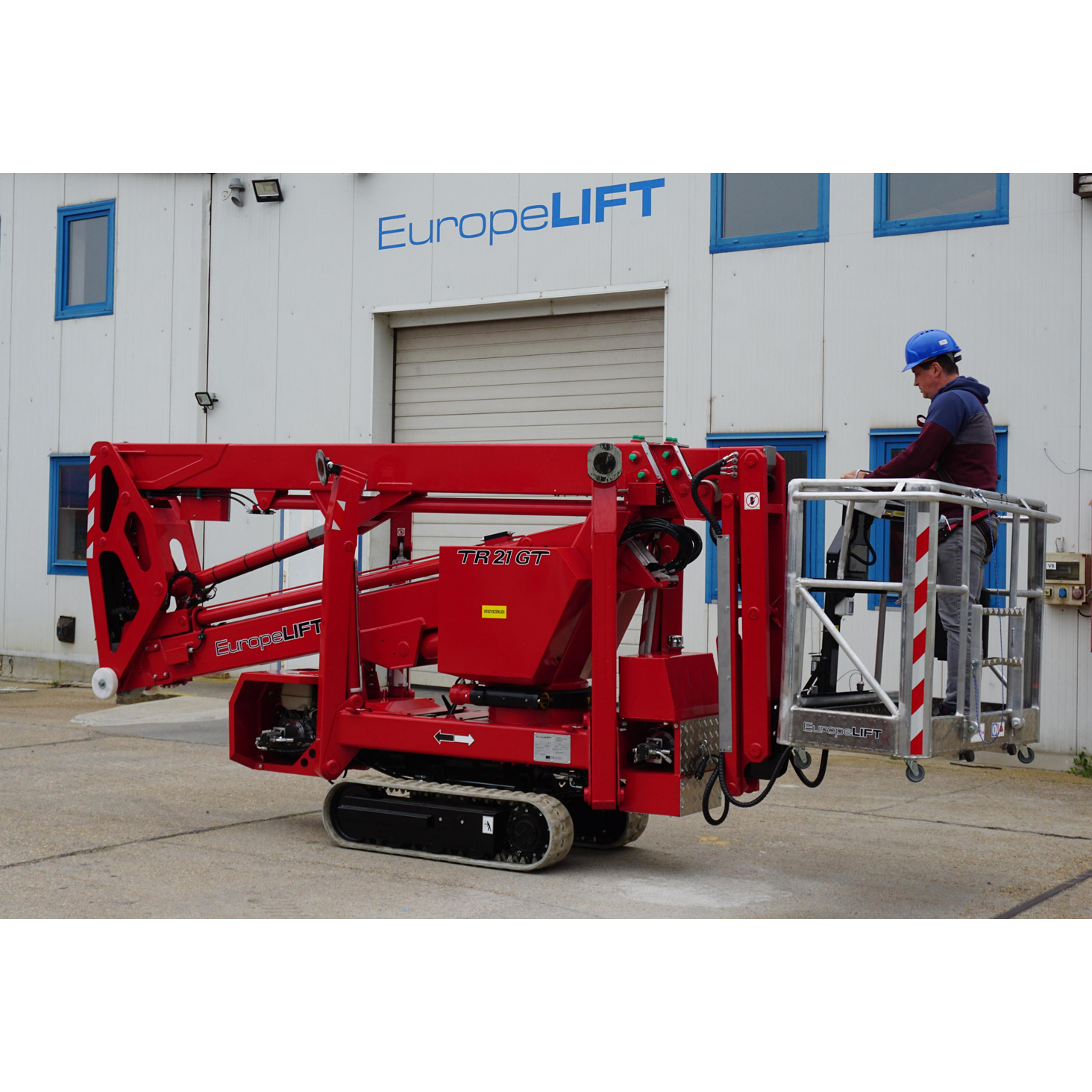

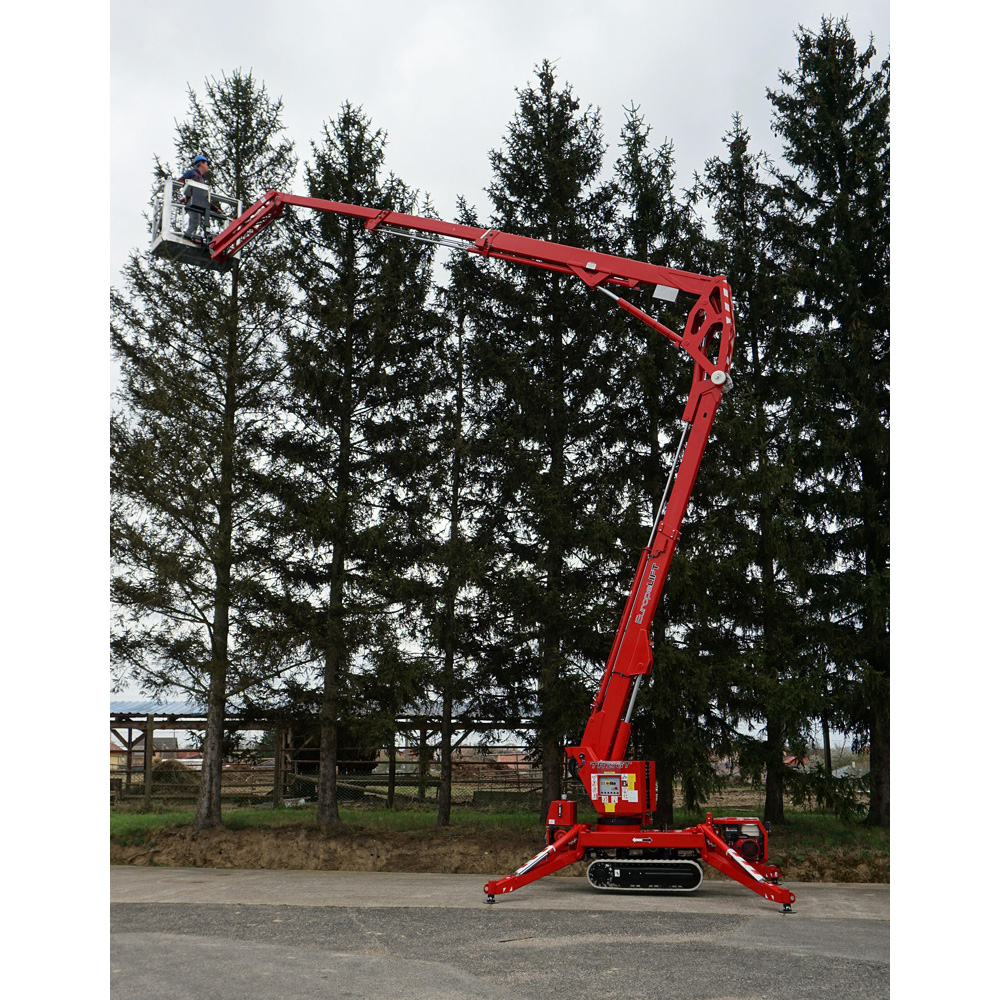

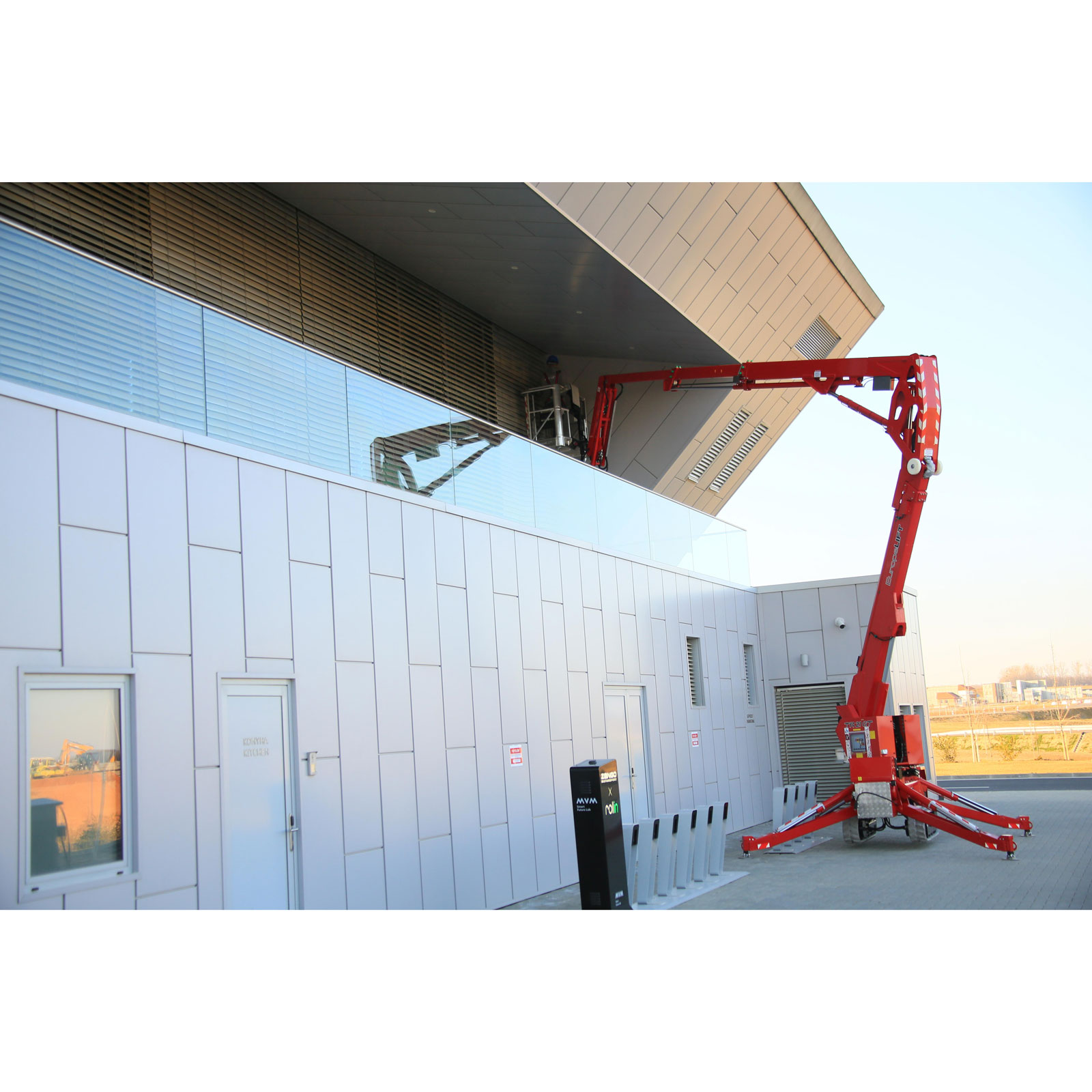

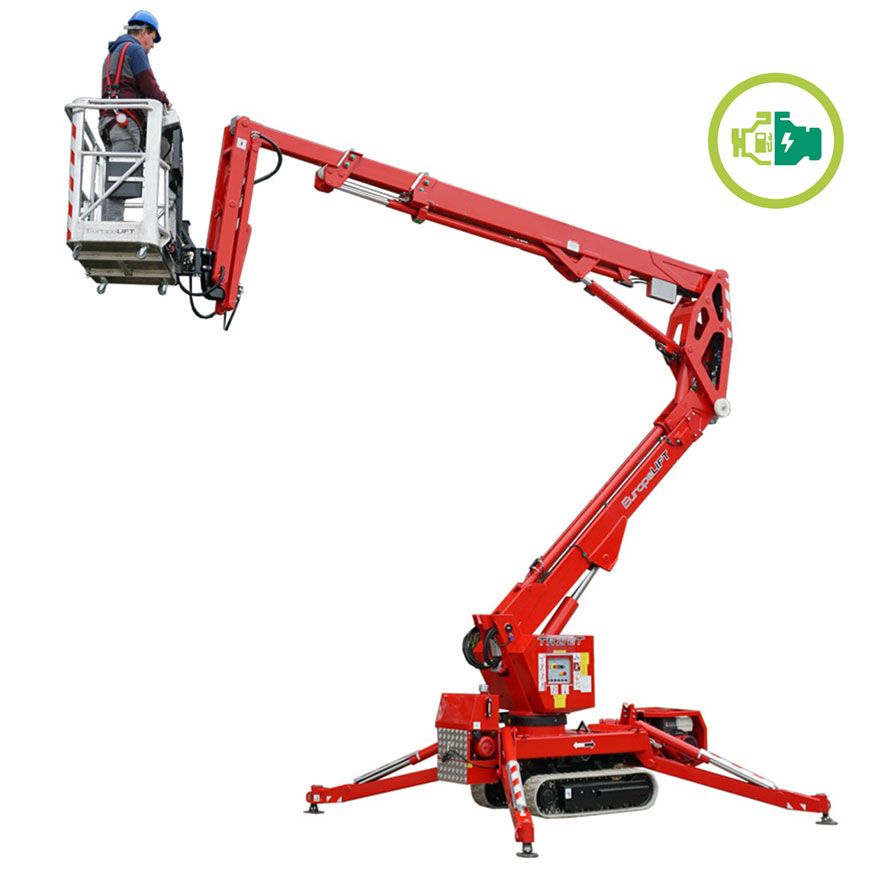

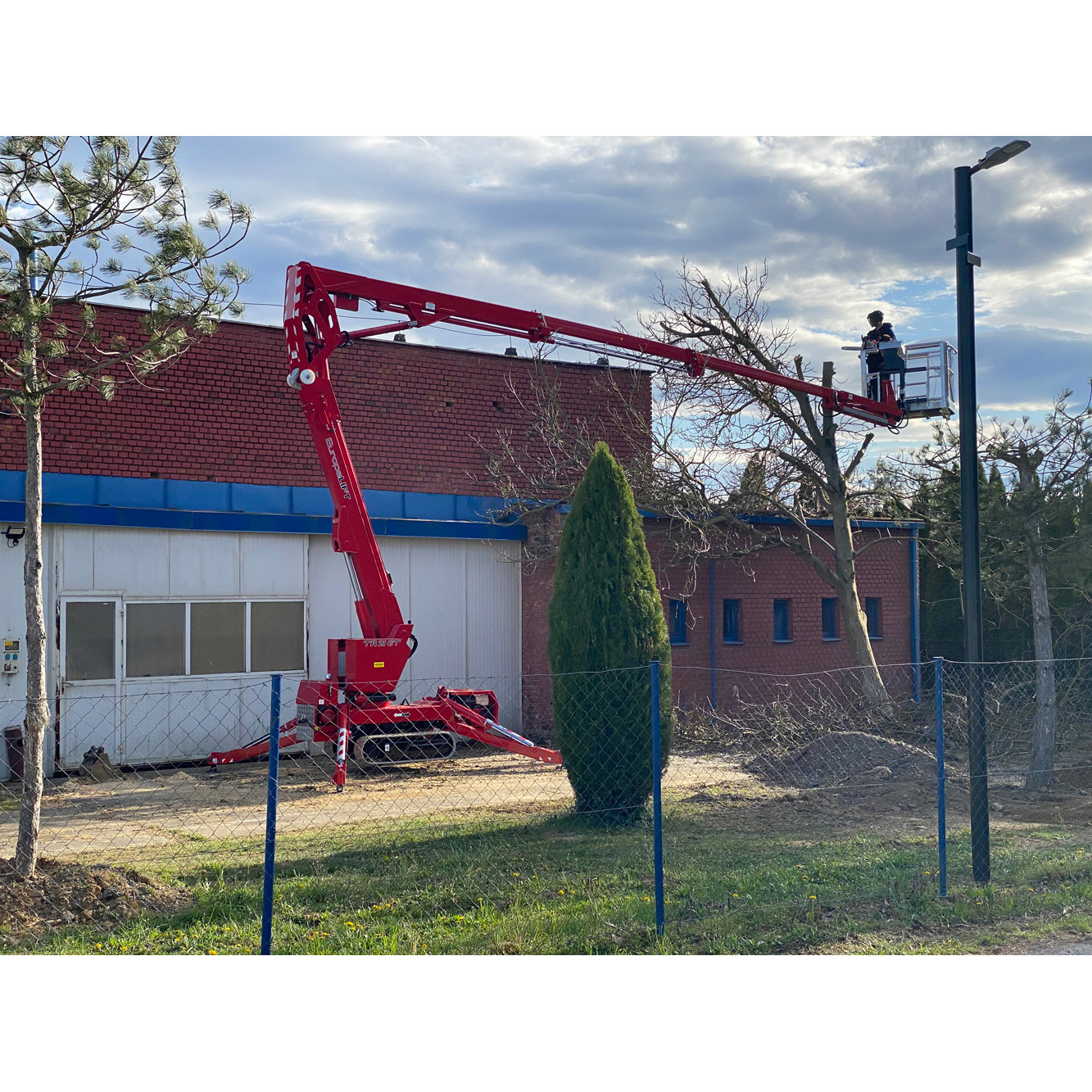

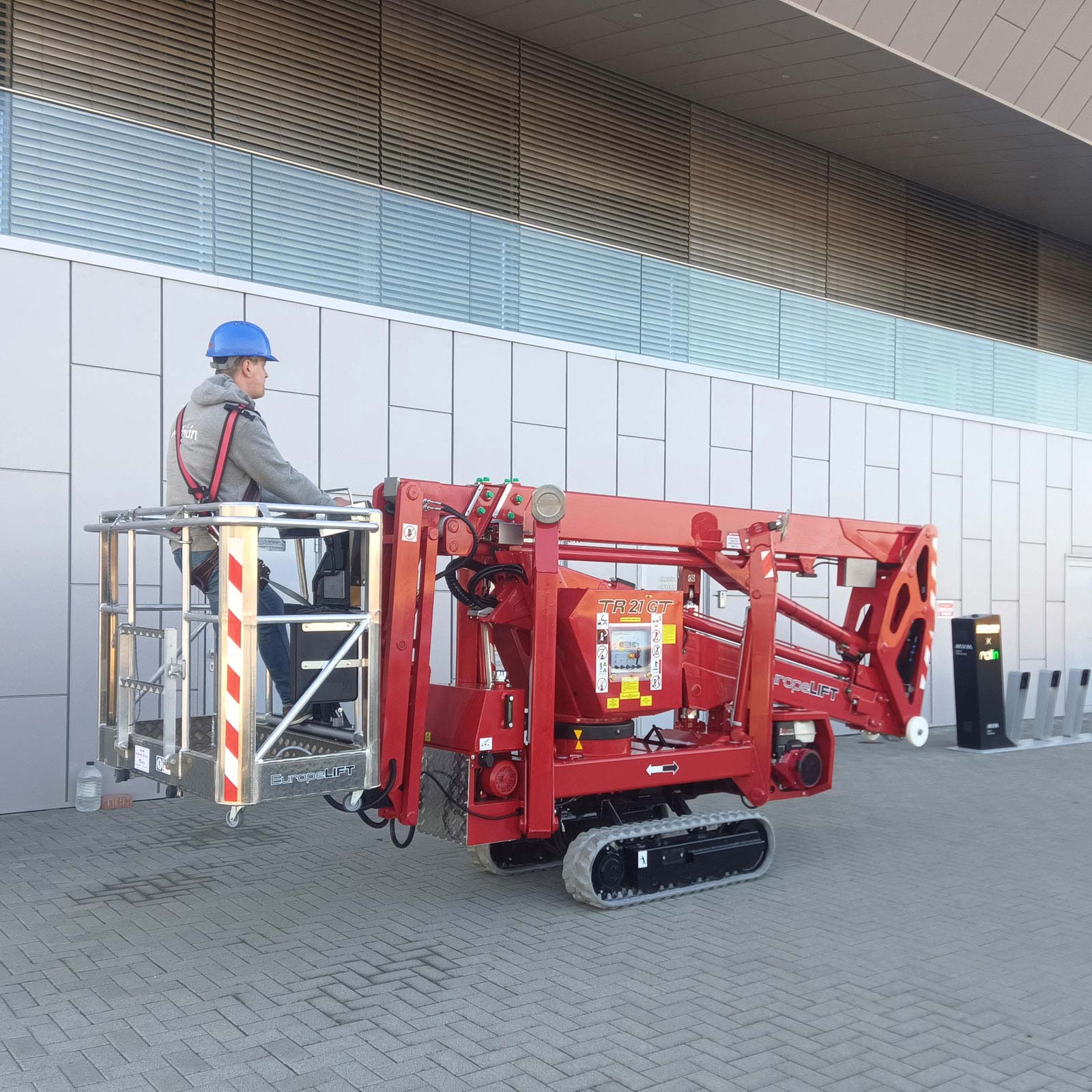

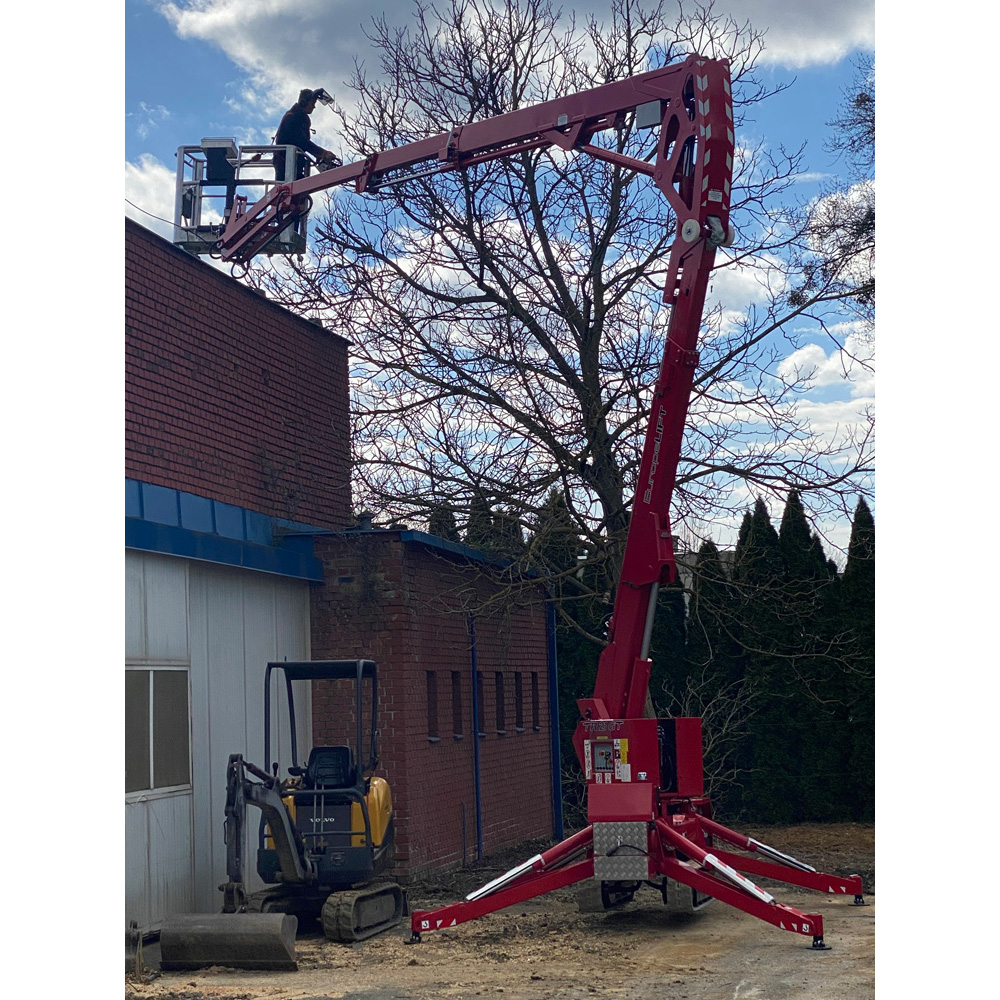

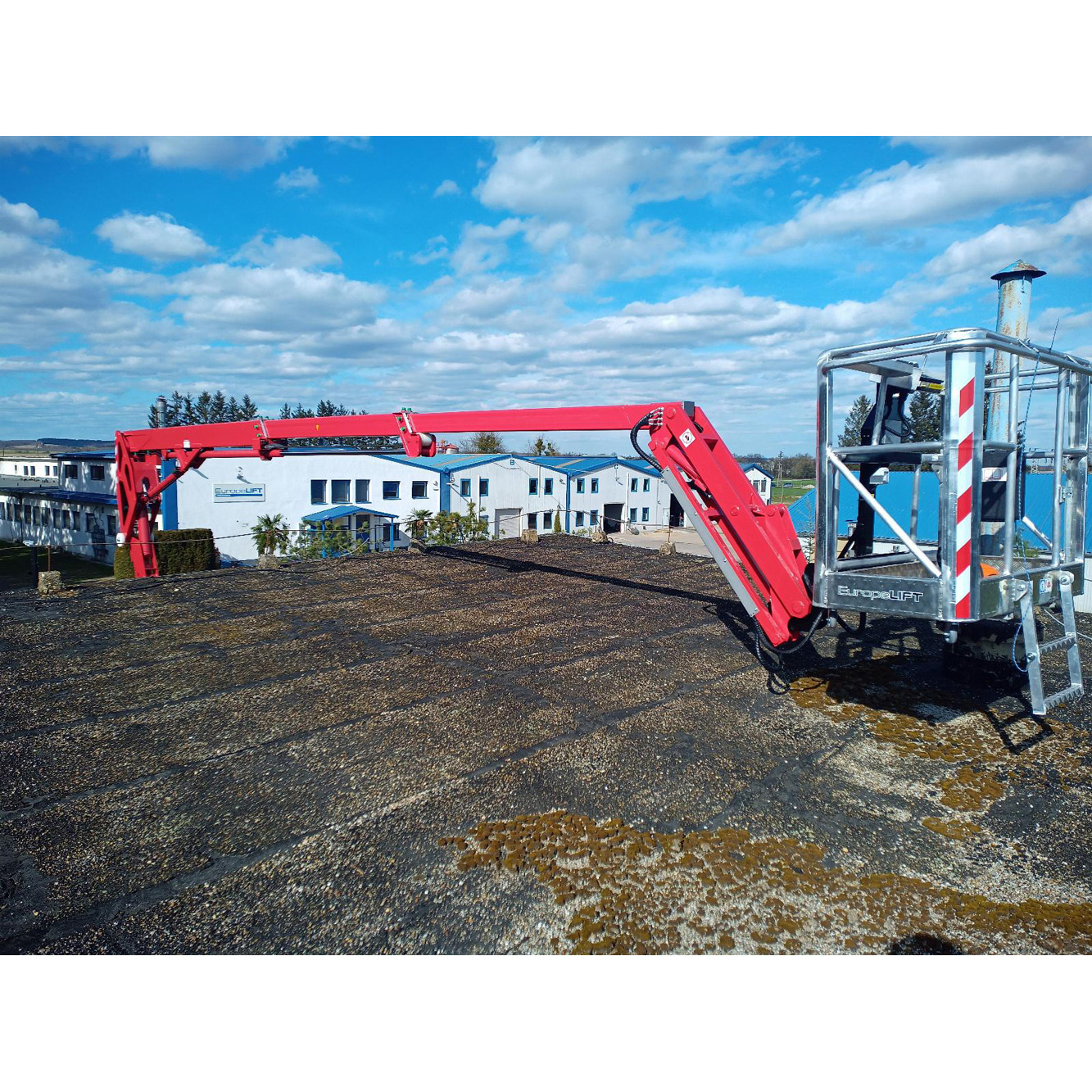

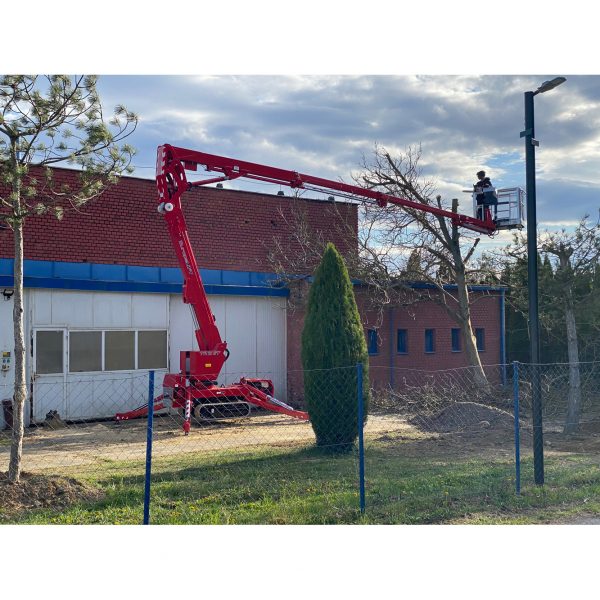

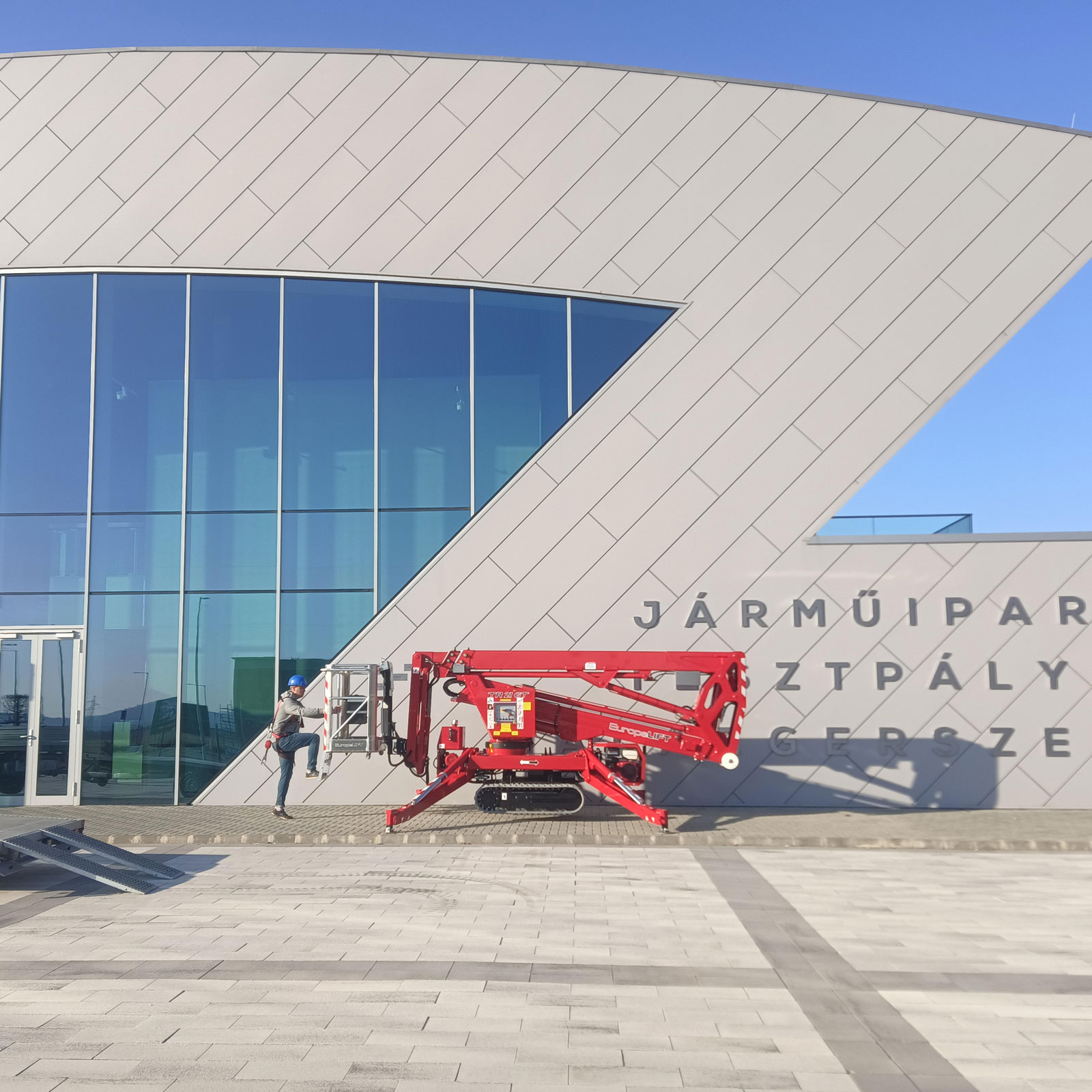

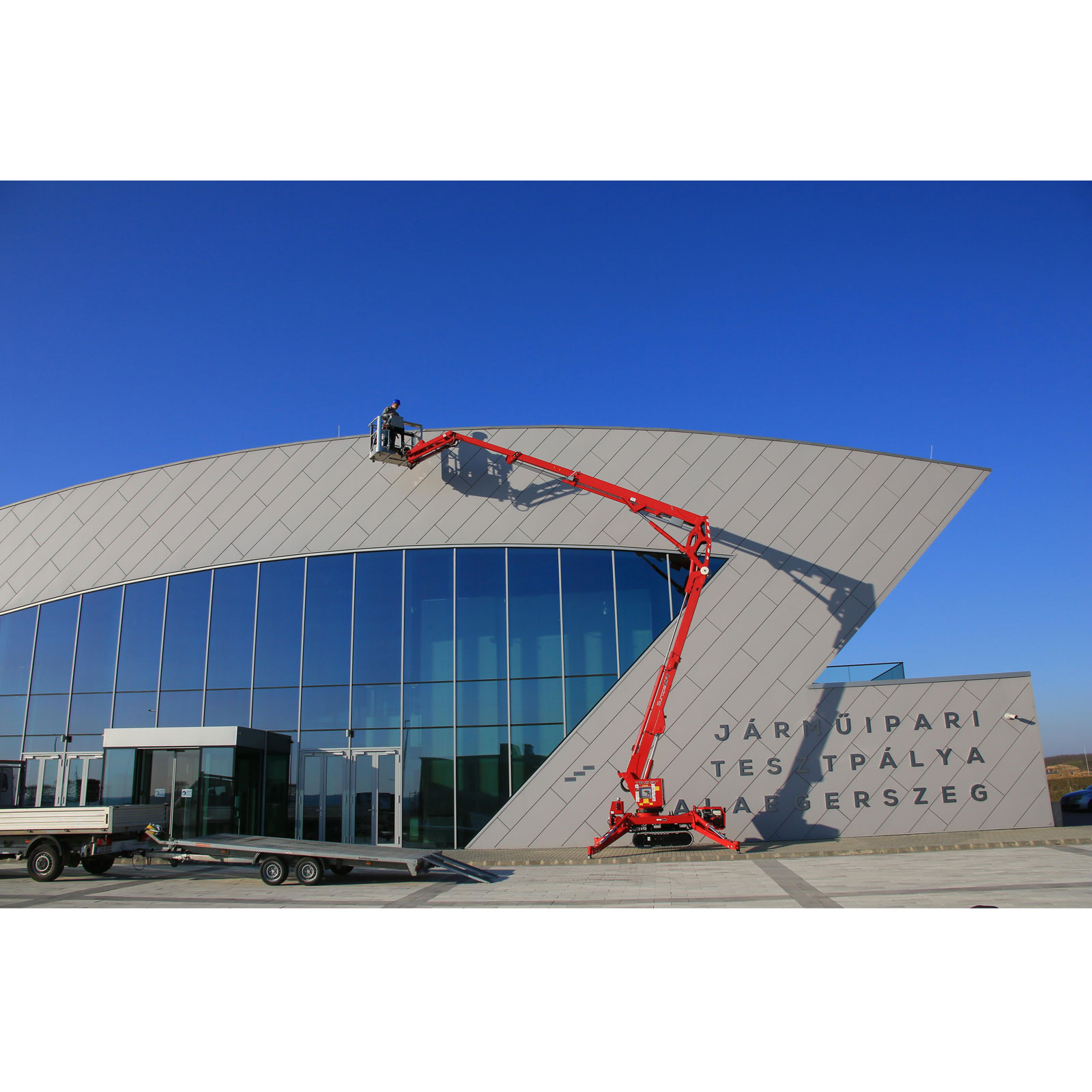

Europelift TR21 GT – 21m
Europelift has a wide range of crawler lifts for indoor and outdoor use. Europelift TR18GT is easy to use while having an impressive lifting height. With a relatively low ground pressure and mark-free belts, this is suitable for everything from flat floors to rough terrain.
Europelift TR18GT has a working height of 21 m and a horizontal extension of 10.5 m (100kg in basket) and 8.4m (220kg in basket). The platform capacity is 220 kg and the basket can rotate 365 °.
Call for Price
Send RequestStandard equipment:
• Automatic platform level with 3 automatic adjustments

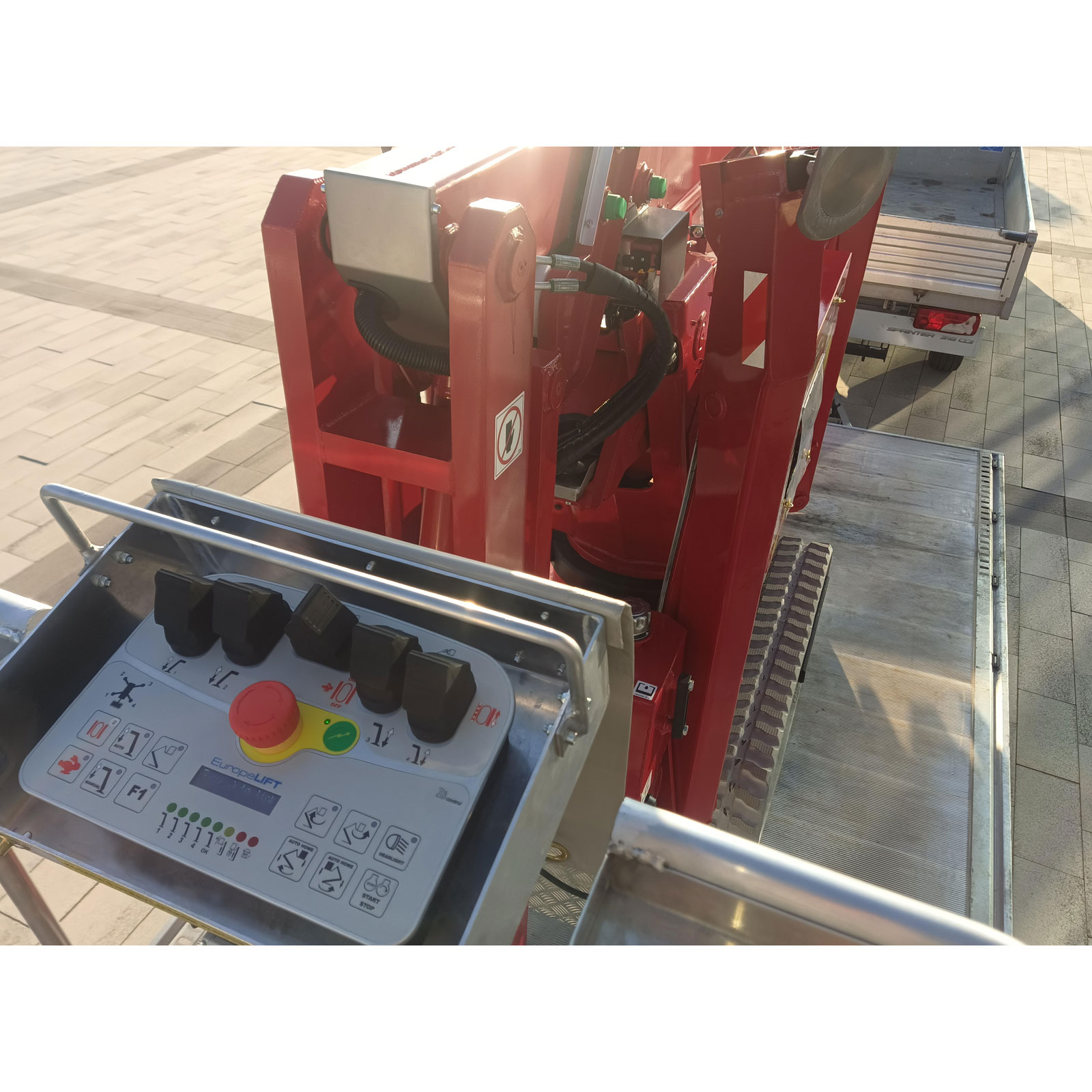

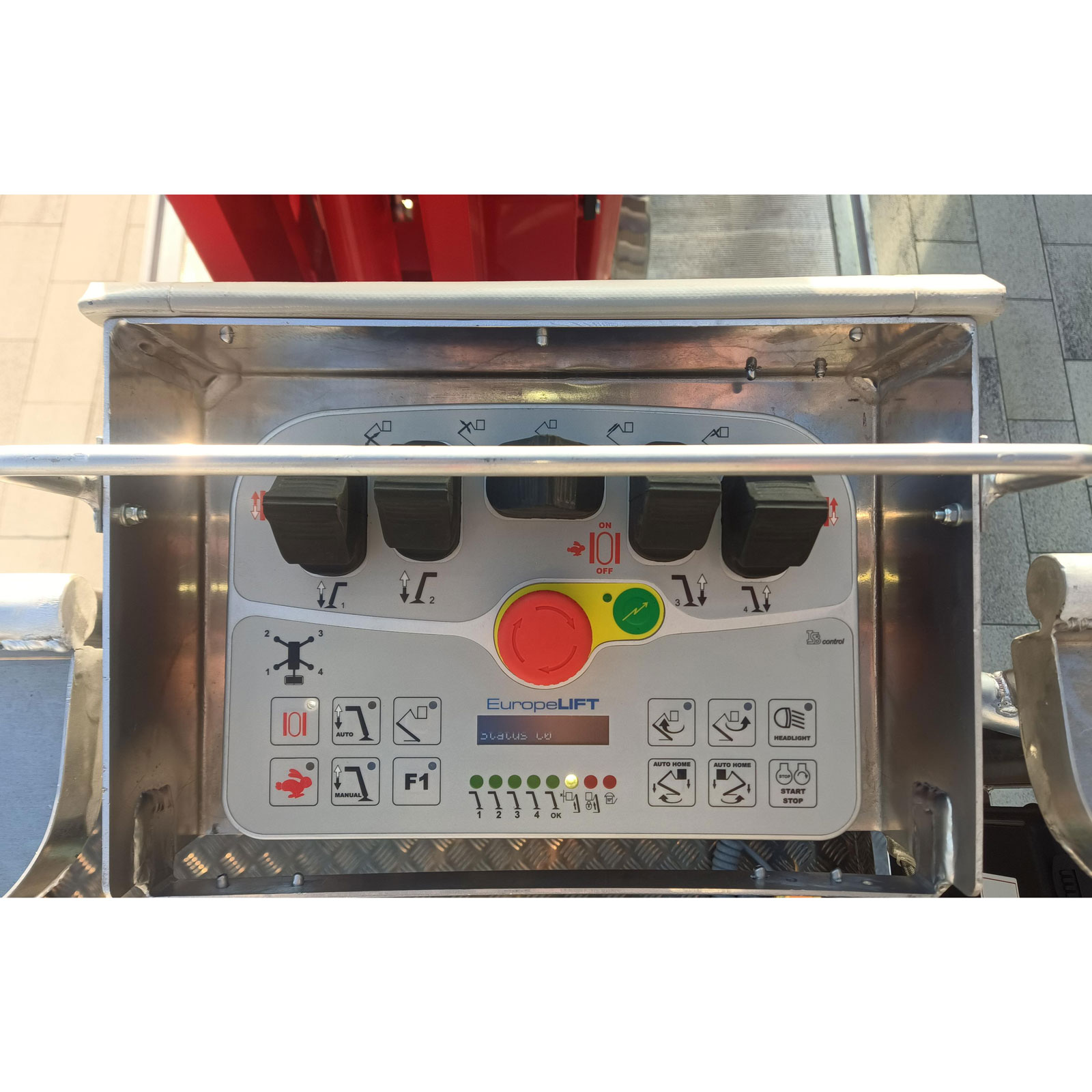

• Proportional electro-hydraulic controls with fingertip joystick
• 1,3 m jib
• Ground pressure sensors on all anchor plates with audible and visible alarms
• Ground and upper controls with tarpaulin cover
• 230V outlet in the basket
• Aluminum basket with handrail and tool box
• Hour meter
• Emergency lowering
• Color of machine: RAL3002 (red)
Additional equipment:
• Operating options Battery operation
• Automatic chassis level
• Custom color
• G.R.P. basket with toolbox (2 people)
• Anchor plate mats
