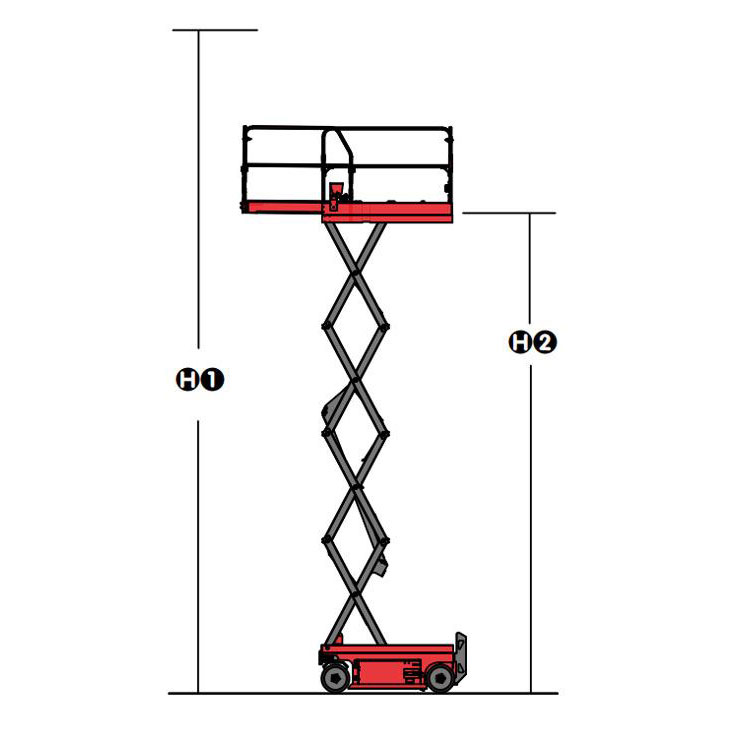

| Working height max H1 | 7.8 m |
|---|---|
| Platform height max H2 | 5.8 m |
| Platform extension size | 0.9 m |
| Lifting capacity | 230 kg |
| Lifting capacity on the extension | 115 kg |
| Max. platform occupancy | 2 pers |

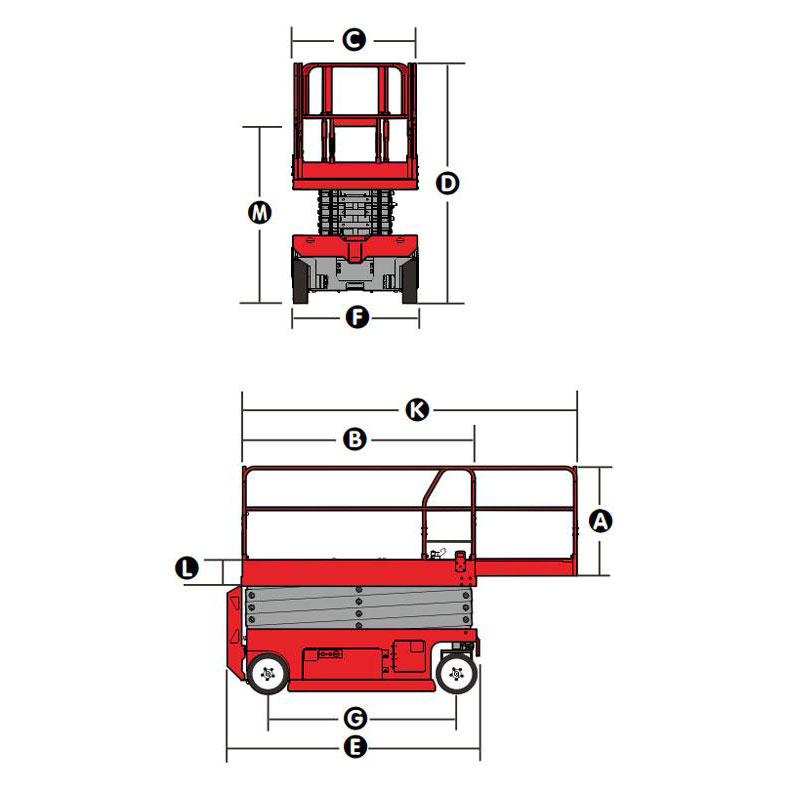

| Dimension of the platform B*C*A | 1.64 × 0.75 × 1.1 m |
| Length and width E*F | 1.93 × 0.77 m |
| Height D | 2.13 m |
| Height-guardrails folded M | 1.78 m |
| Wheelbase G | 1.32 m |
| Ground clearance H | 0.06 m |
| Ground clearance-deployed potholes | 0.02 m |
| Turning radius-inside | 0.8 m |
| Turning radius-outside | 1.56 m |
| Raising time/lowering time | 14/11 s |
| Drive speed-stowed | 3.8 km/h |
| Drive speed-raised | 0.7 km/h |
| Gradeability | 30% |
| Tilt (front to back/side to side) | 3° / 2° |
| Tire size | 356×114×254 mm |
| Power source | 4×6V/225Ah |
| Weight | 1490 kg |
| Dimensions | 193 × 77 × 213 cm |
Sale

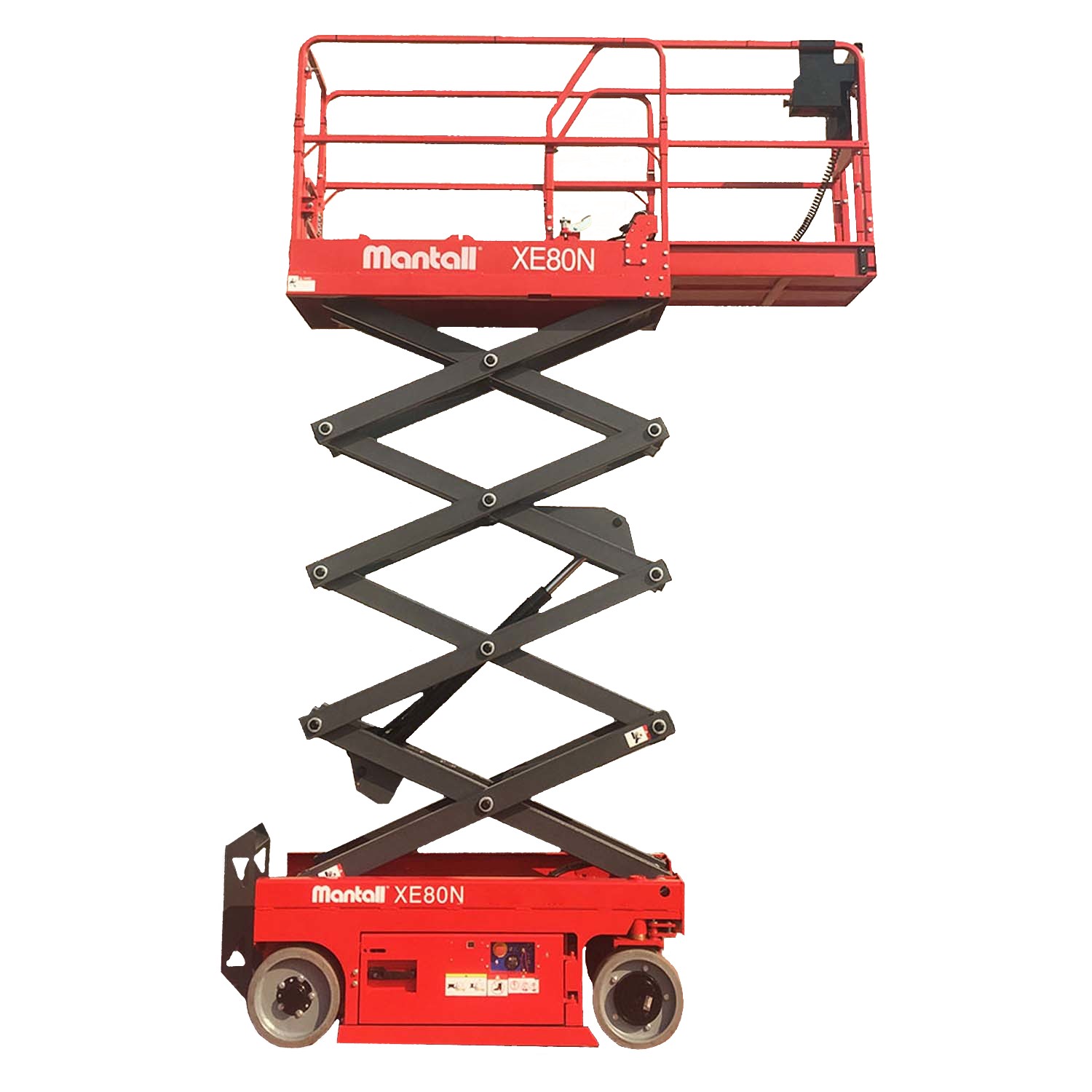

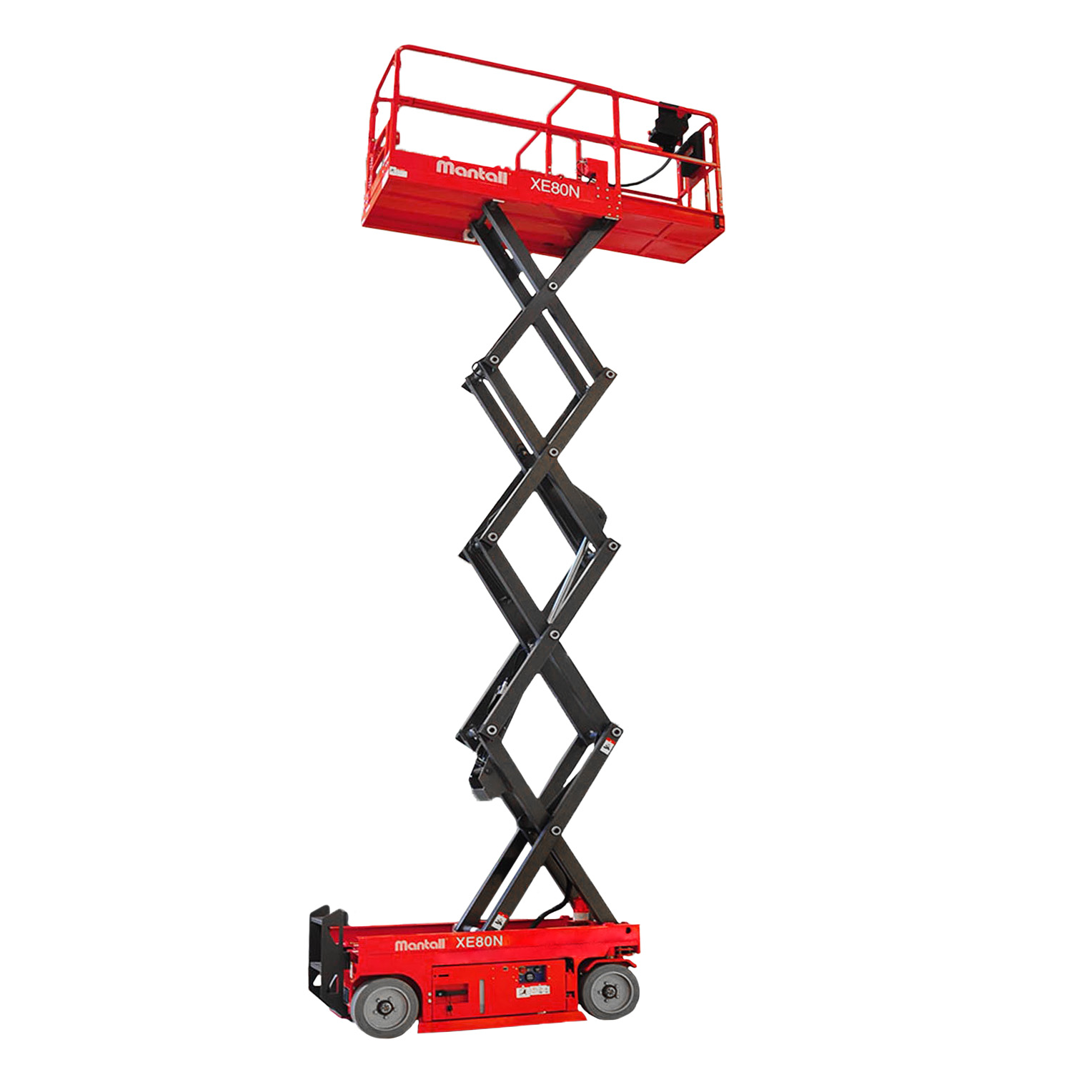

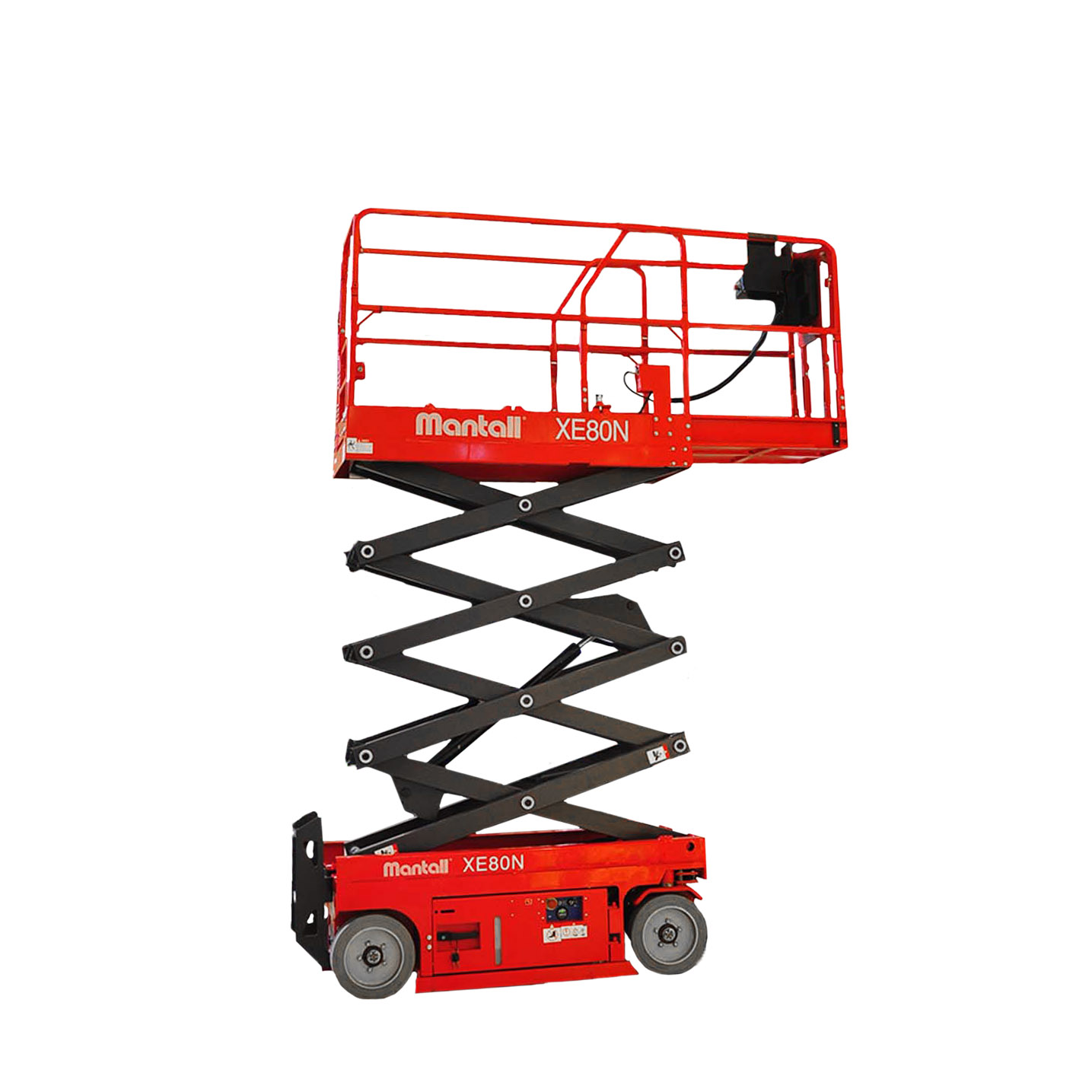

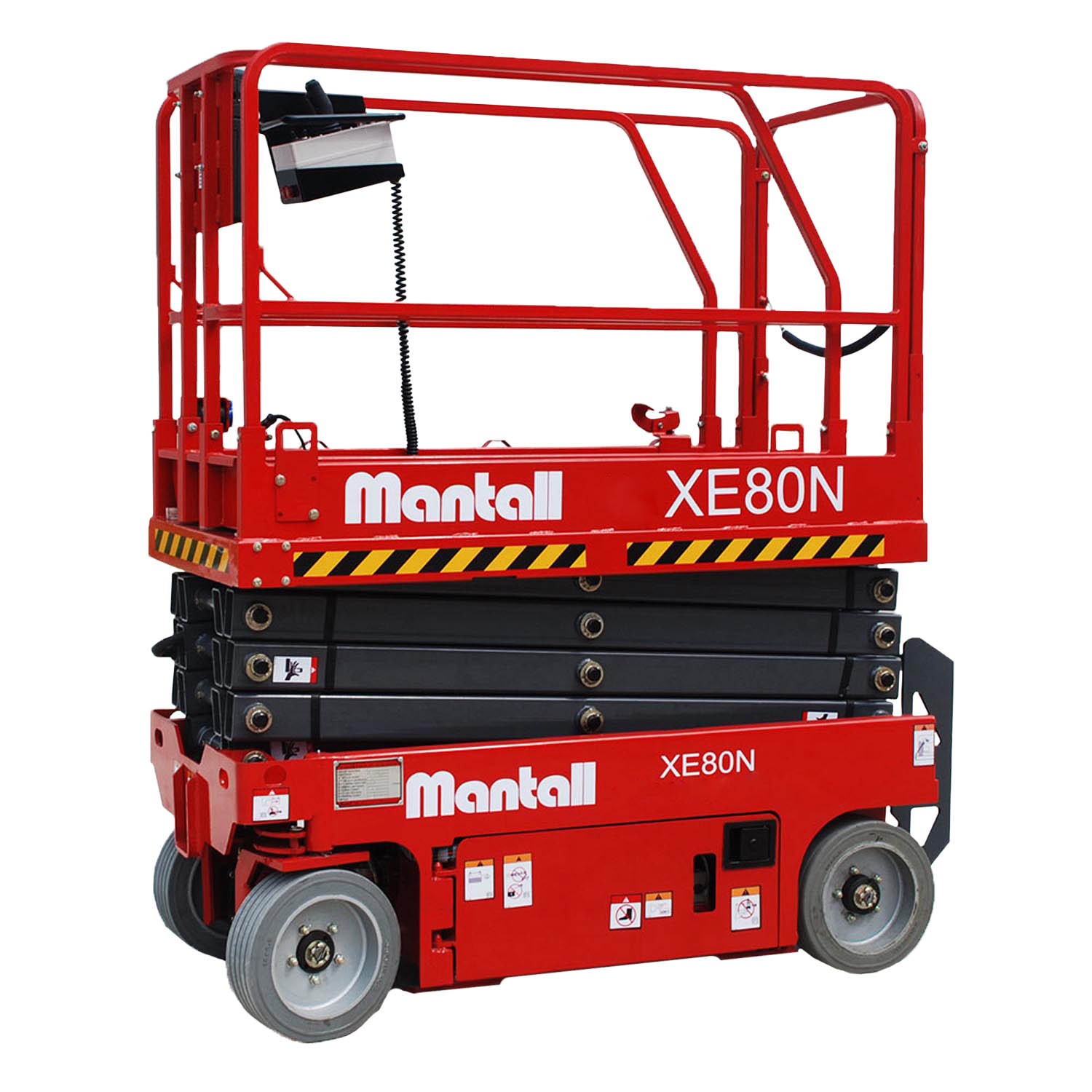

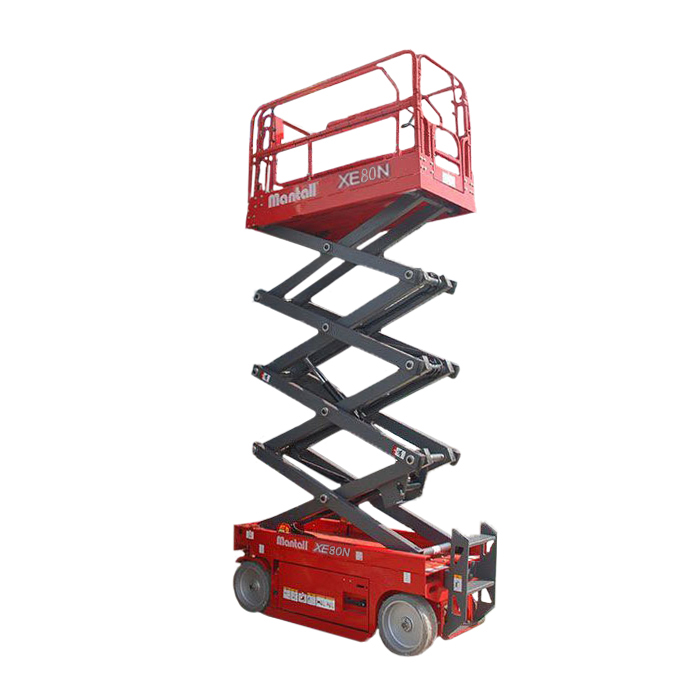

Mantall XE80N – 8m
Narrow electric scissor lift for indoor use and/or flat surfaces. Lifting capacity of 230 kg and working height up to 7.8 m. Permitted for 2 persons in basket.
Mantall XE80N has very low noise levels, no emissions and is suitable for indoor use. It can be operated from full height and has an extendable platform of 0.9m.
The lift also has a number of safety features for safe operation, as well as joystick with proportional control for lifting and traveling, making the lift very easy to use.
Call for Price
Send RequestStandard Features
- Battery powered
- Proportional driving
- 2WD
- Extension on platform
- Foldable railing
- Non-marking wheels
- Automatic braking system
- Emergency lowering
- Emergency stop
- Self-diagnosis system
- Tilt sensor with alarm
- Hour meter
- Forklift pockets
- Warning light
- Integrated battery charger
- CE-marked
