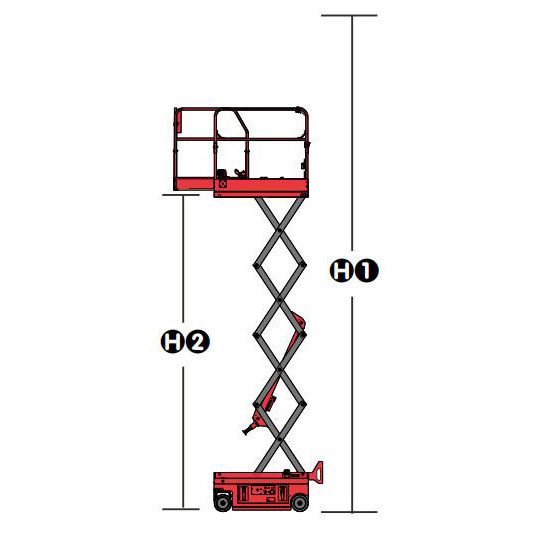

| Working height max H1 | 6.4 m |
|---|---|
| Platform height max H2 | 4.4 m |
| Platform extension size | 0.55 m |
| Lifting capacity | 240 kg |
| Lifting capacity on the extension | 100 kg |
| Max. platform occupancy | 2 pers |

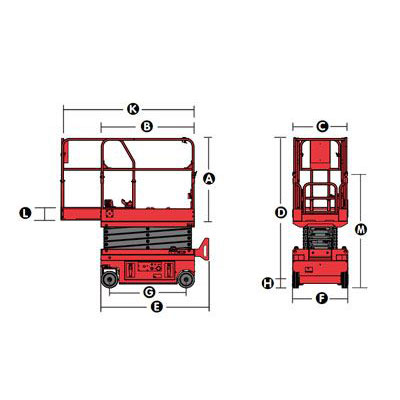

| Dimension of the platform B*C*A | 1.28 X 0.76 X 1.1 m |
| Platform length-extended K | 1.83 m |
| Overall length and width E*F | 1.49 X0 .76 |
| Height stowed D | 2.03 |
| Height-guardrails folded M | 1.59 |
| Wheelbase G | 1.05 |
| Ground clearance H | 0.06 m |
| Ground clearance-deployed potholes | 0.015 m |
| Turning radius-inside | 0.35 m |
| Raised time/Lowering time | 23/19 s |
| Drive speed-stowed | 3 km/h |
| Drive speed-raised | 0.8 km/h |
| Gradeability | 25% |
| Tilt sensor (front to back/side to side) | 3° / 2° |

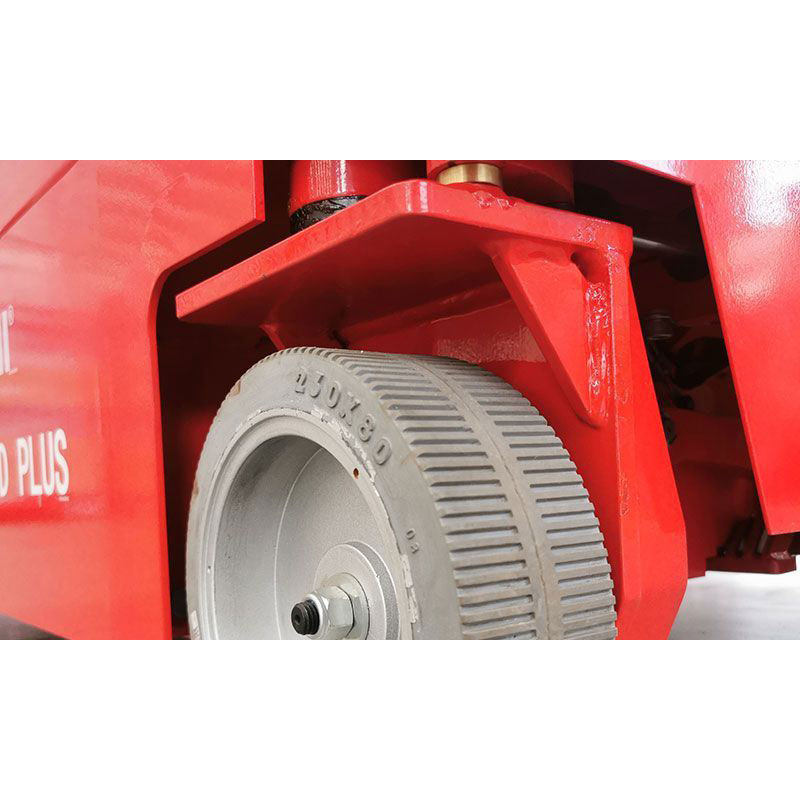

| Non-marking tires | 230 mm |
| Power source | 24V |
| Weight | 820 kg |
| Dimensions | 149 × 76 × 203 cm |

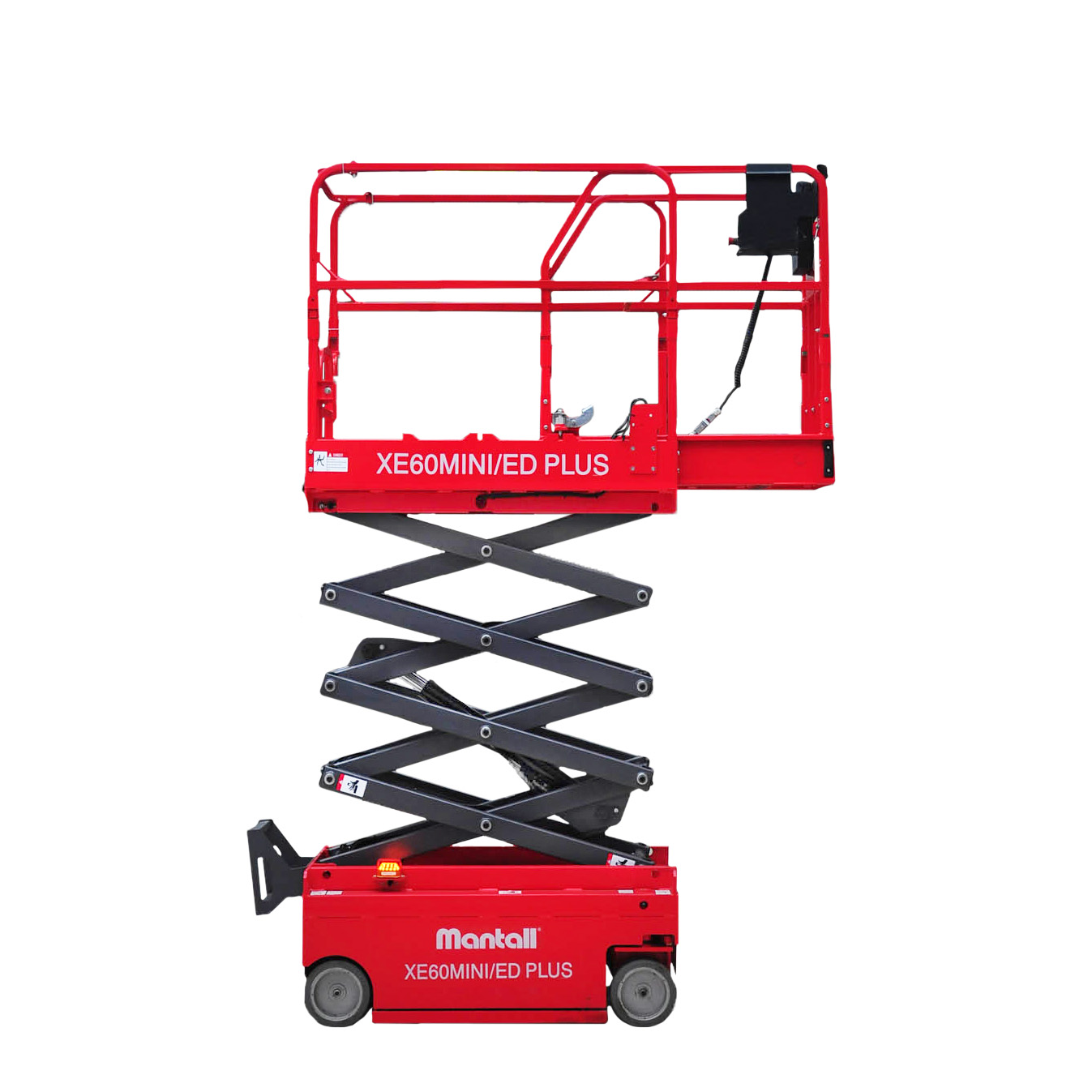

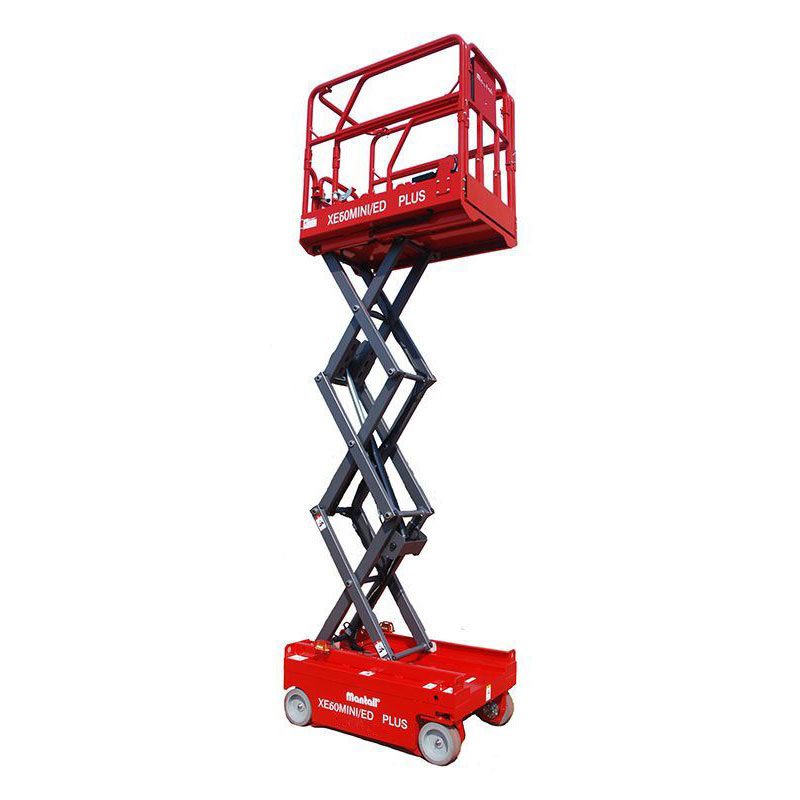

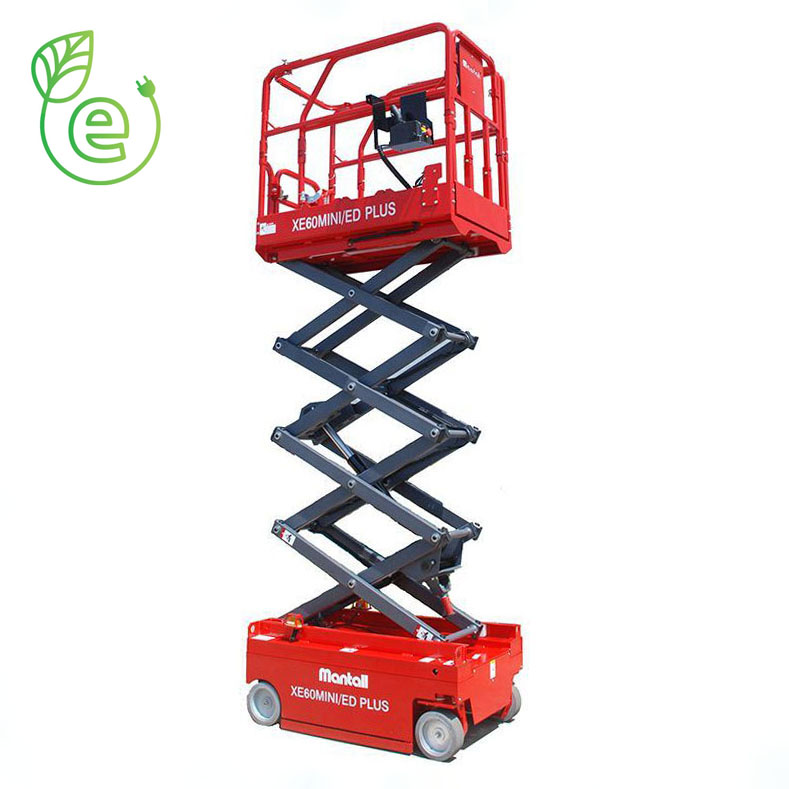

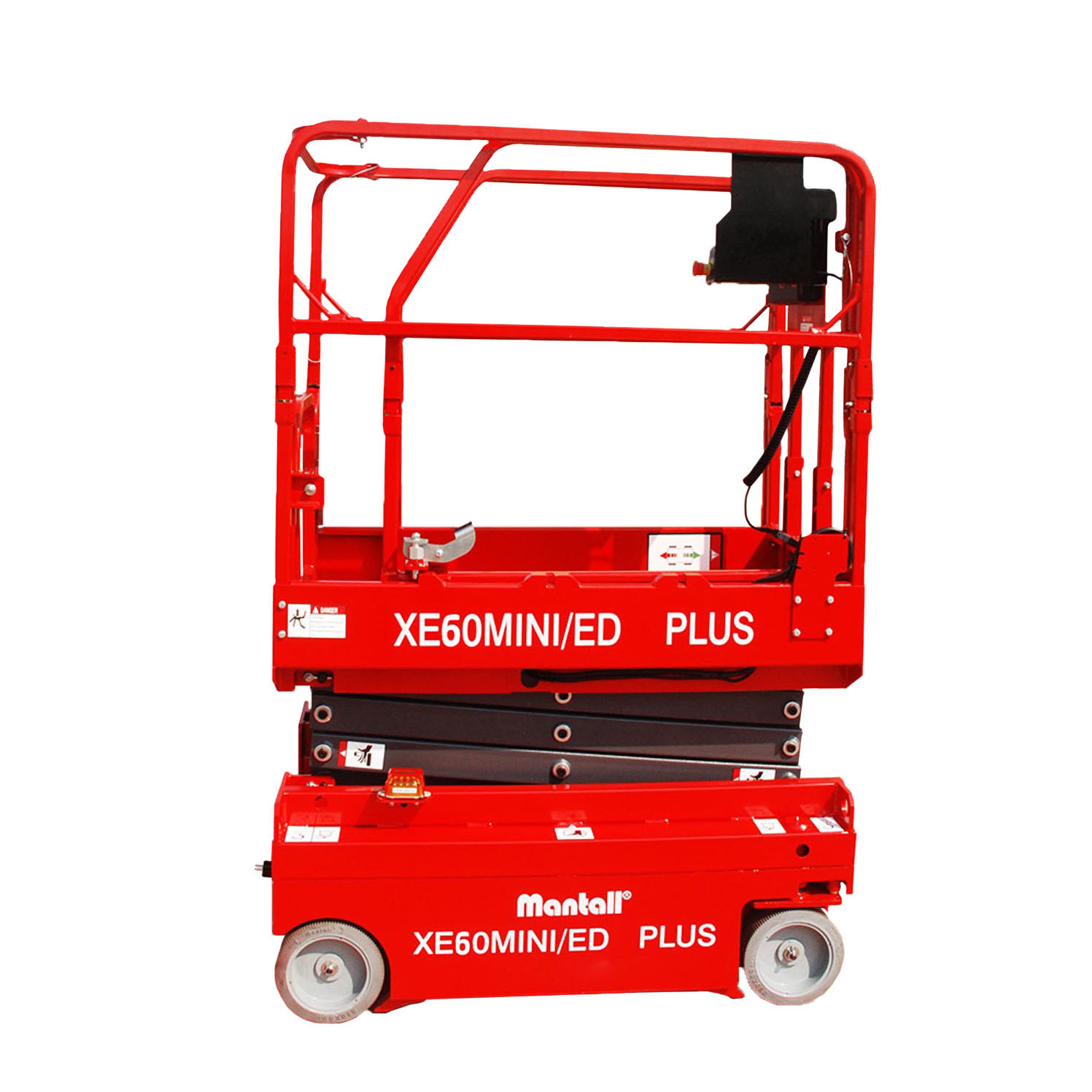

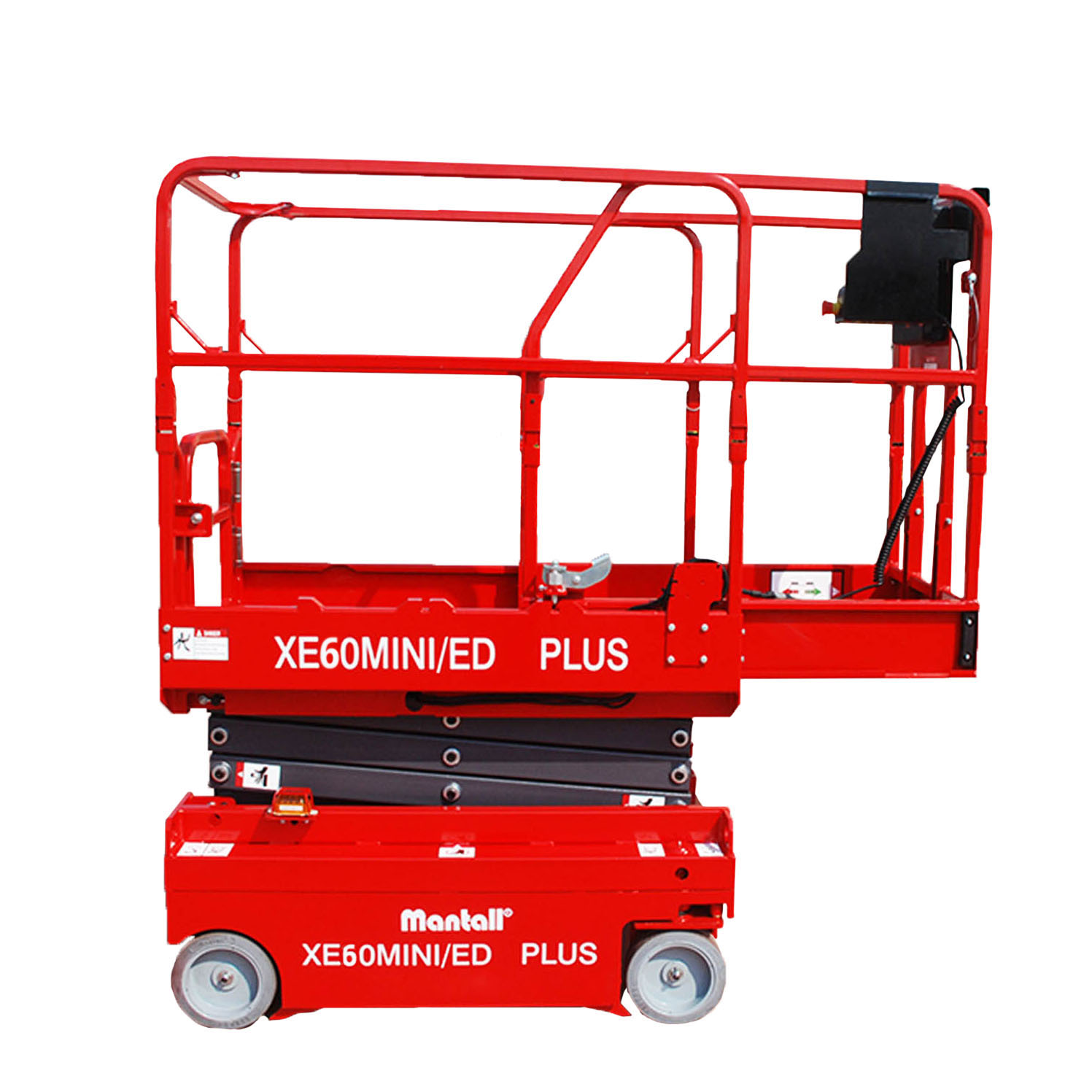

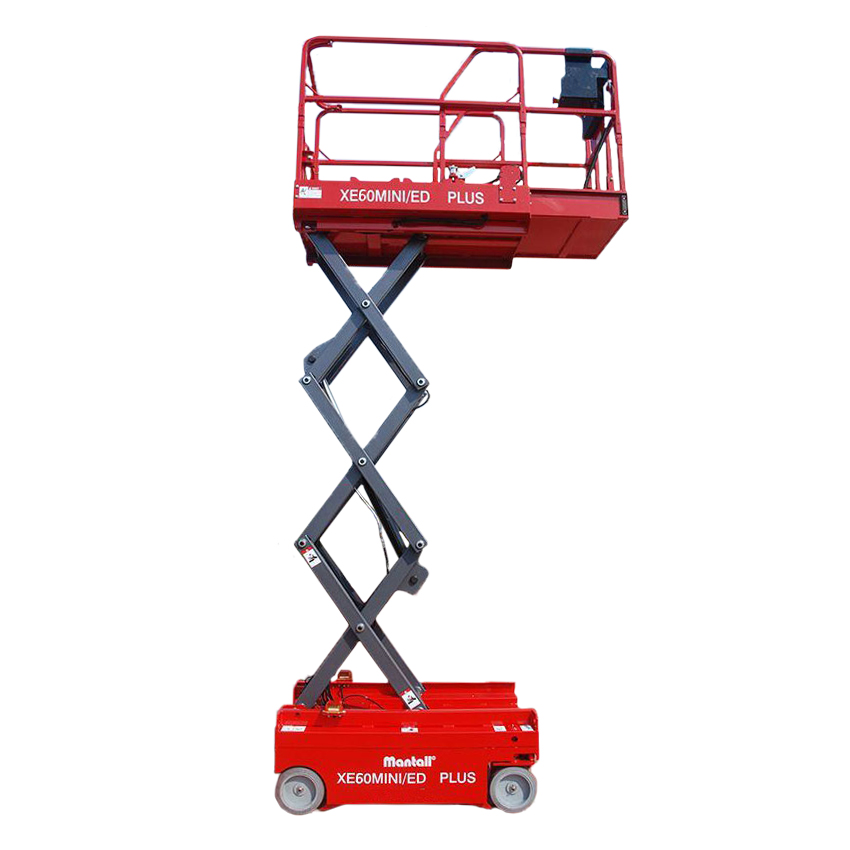

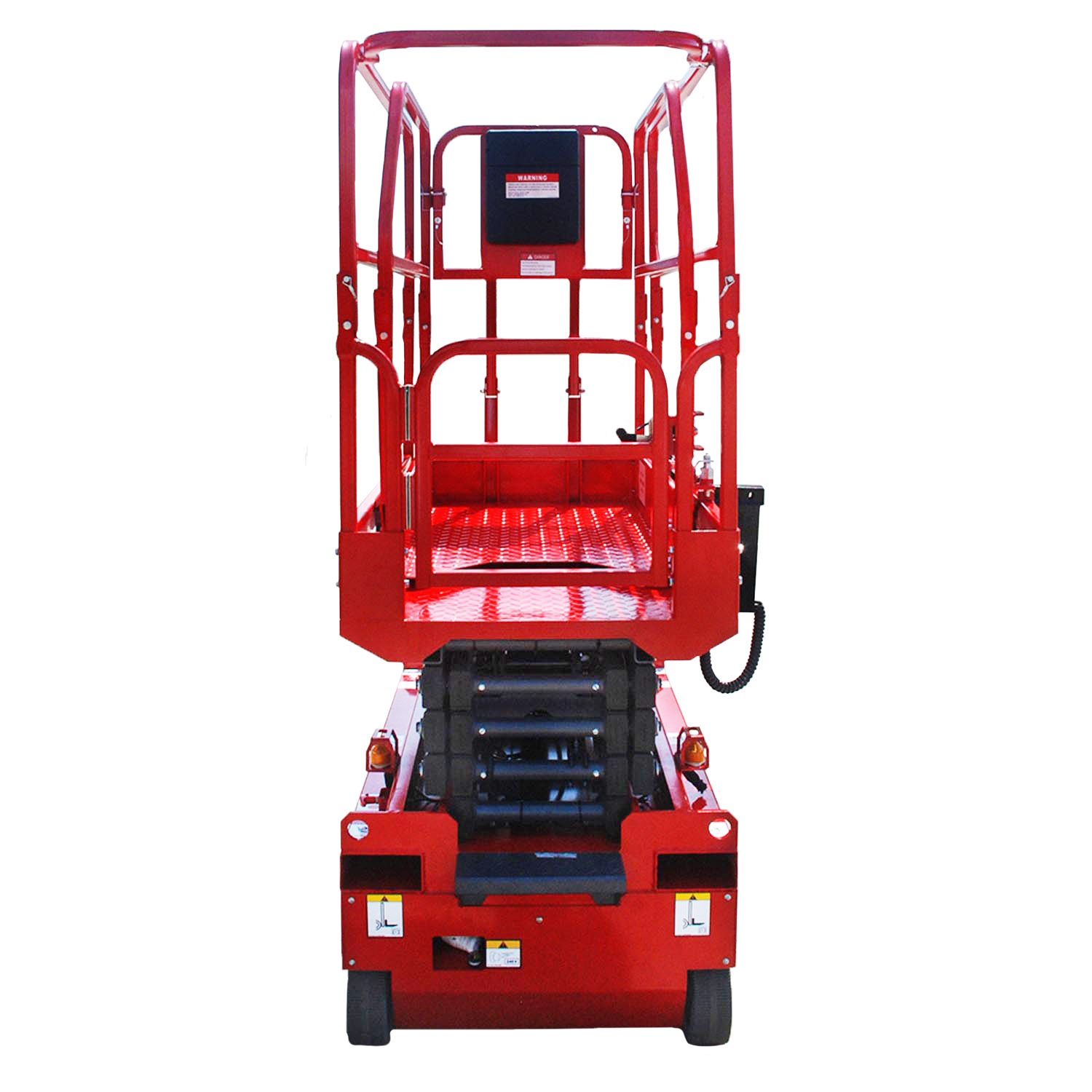

Mantall XE60ED PLUS – 6.4m
Narrow and compact electric scissor lift for indoor use and/or flat surfaces. Lifting capacity of 240 kg and working height up to 6.4m. Allowed for 2 persons in basket.
Mantall XE60 has very low noise levels, no emissions and is suitable for indoor use. It can be operated from full height and has an extendable platform of 0.55m.

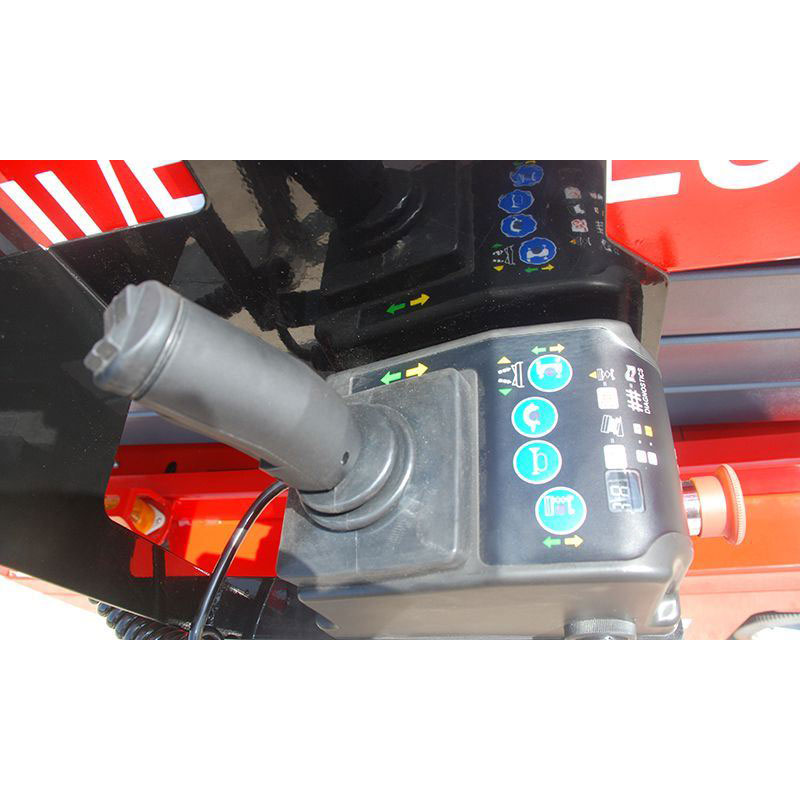

The lift also has a number of safety features for safe operation, as well as joystick with proportional control for lifting and traveling, making the lift very easy to use.
Call for Price
Send RequestStandard Features
- Battery powered
- Proportional driving
- Platform extension
- Non-marking wheels
- 4*2WD
- Automatic braking system

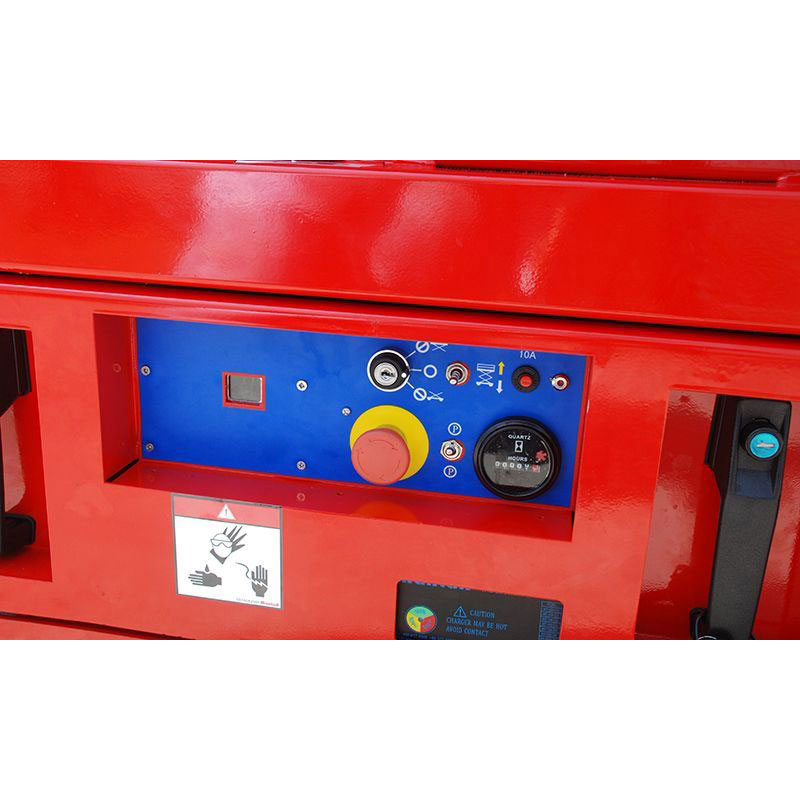

- Emergency lowering

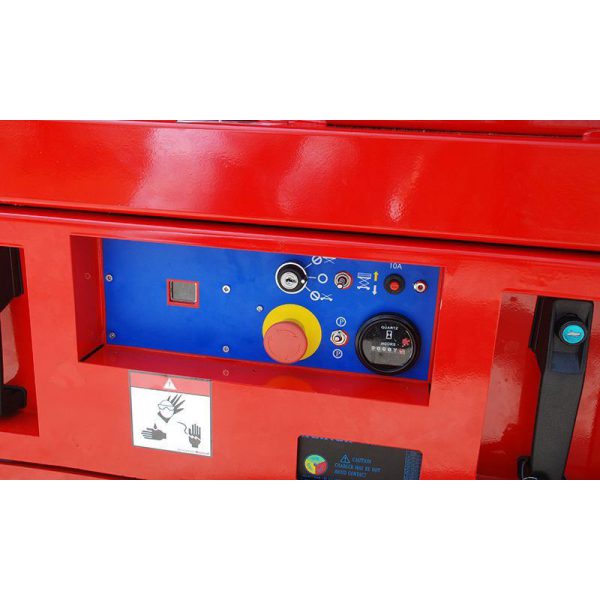

- Emergency stop
- Self-diagnosis system
- Tilt sensor with alarm
- Integrated battery charger
- Warning light
- Hour meter
- Forklift pockets
- CE-marked
