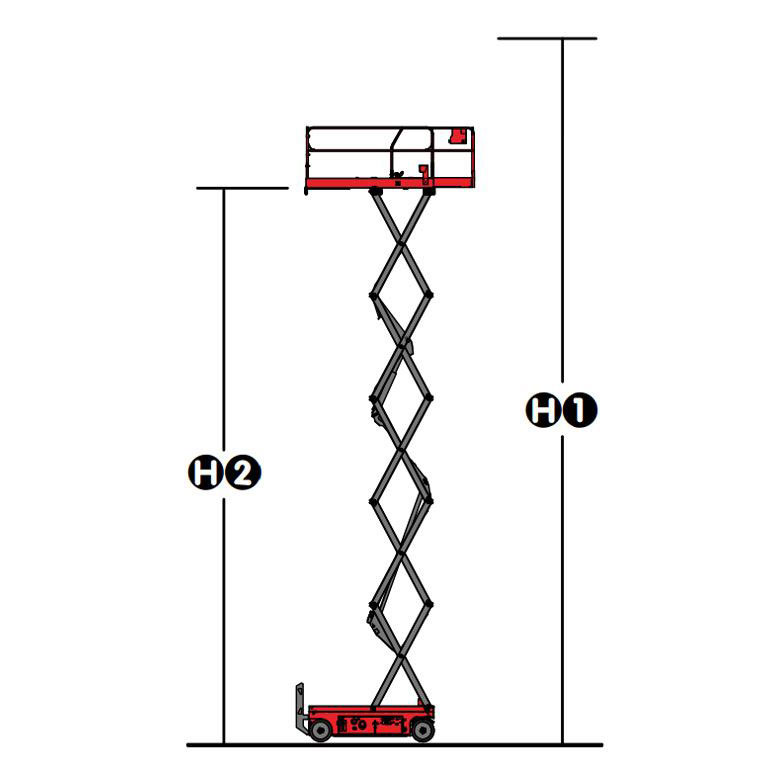

| Working height max H1 | 14 m |
|---|---|
| Platform height max H2 | 12 m |
| Platform height max H2 | 1m |
| Lifting capacity | 350 kg |
| Lifting capacity on the extension | 120 kg |
| Max. platform occupancy | 2 pers |

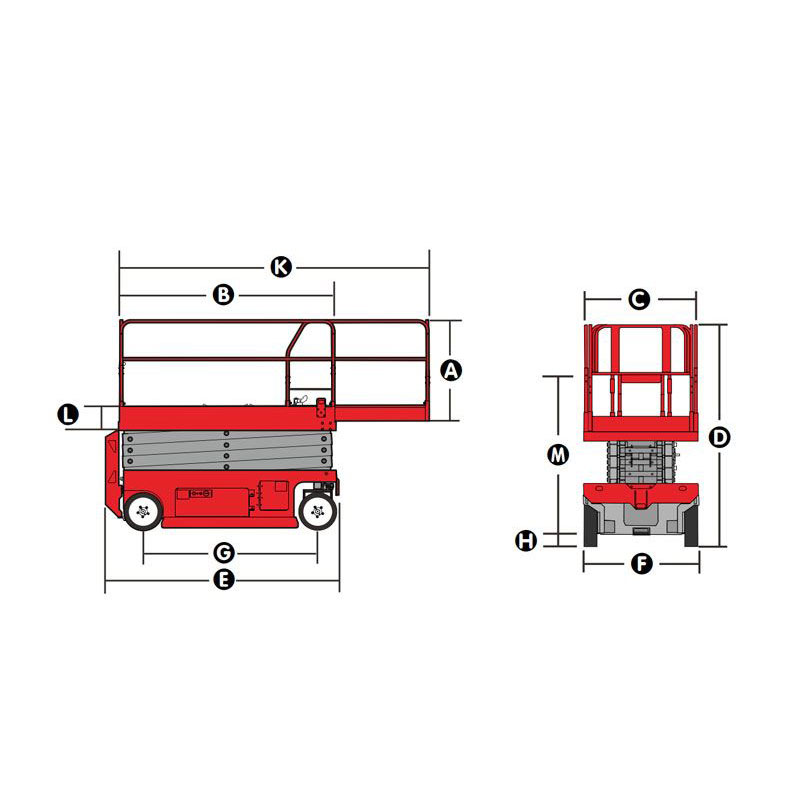

| Dimension of the platform B*C*A | 2.25 * 1.14 * 1.12 m |
| Length and width E*F | 2.51 * 1.2 m |
| Height D | 2.55 m |
| Height-guardrails folded M | 1.87 m |
| Wheelbase G | 1.85 m |
| Ground clearance H | 0.1 m |
| Ground clearance-deployed potholes | 0.019 m |
| Turning radius-inside | |
| Turning radius-outside | 2.3 m |
| Raising time/lowering time | 61/42 s |
| Drive speed-stowed | 3.4 km/h |
| Drive speed-raised | 0.7 km/h |
| Gradeability | 25% |
| Tilt (front to back/side to side) | 3° / 2° |
| Tire size | 406 * 127 mm |
| Power source | 4×6V/225Ah |
| Weight | 3245 kg |
| Dimensions | 251 × 120 × 255 cm |

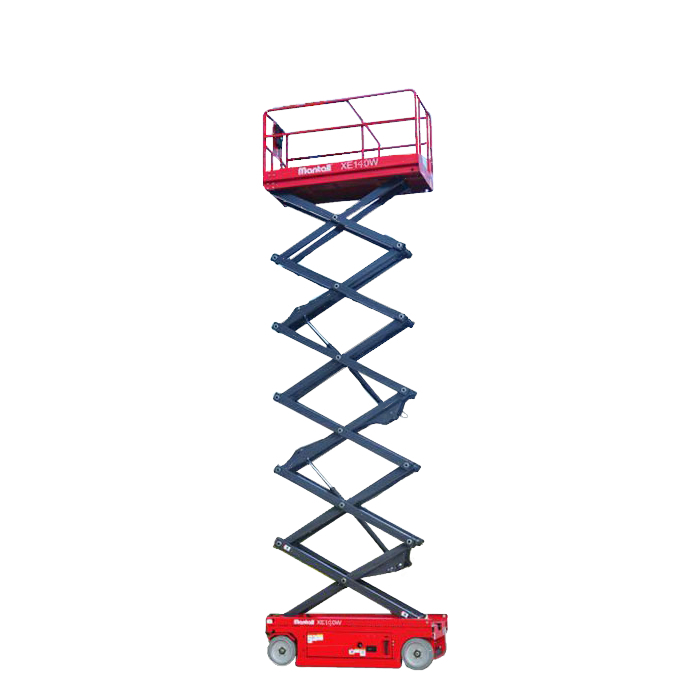

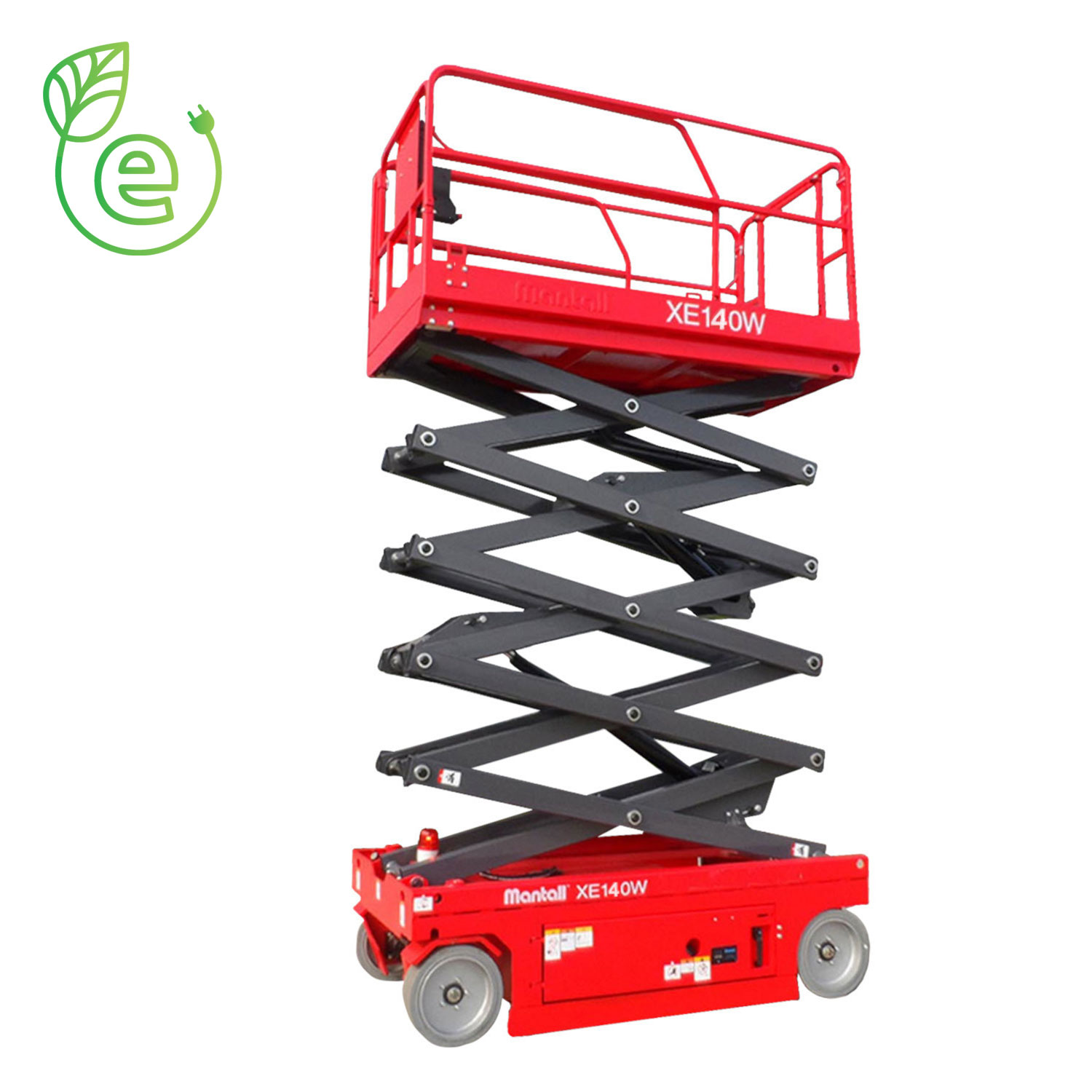

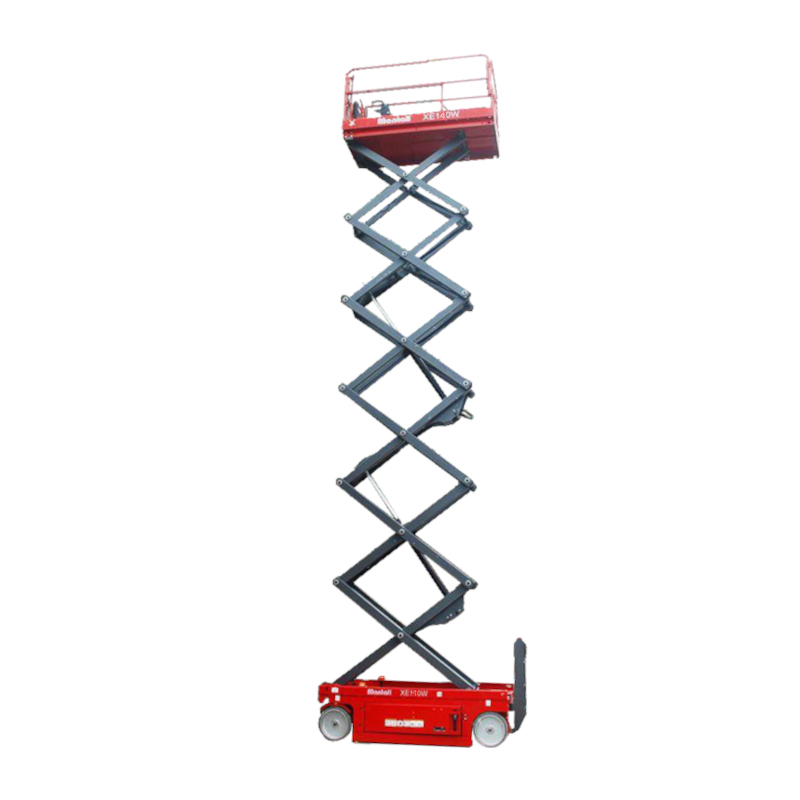

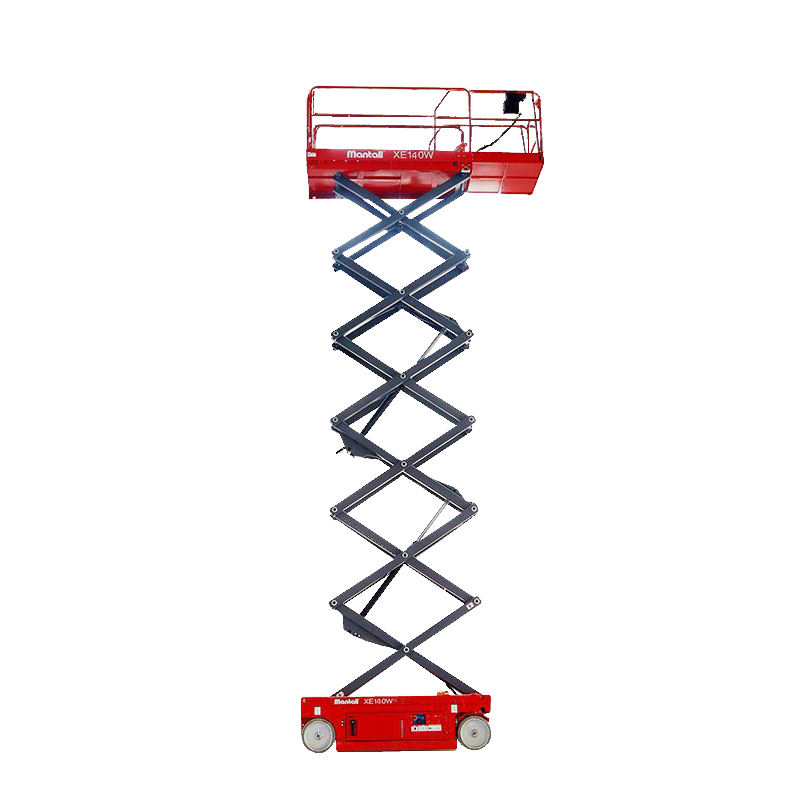

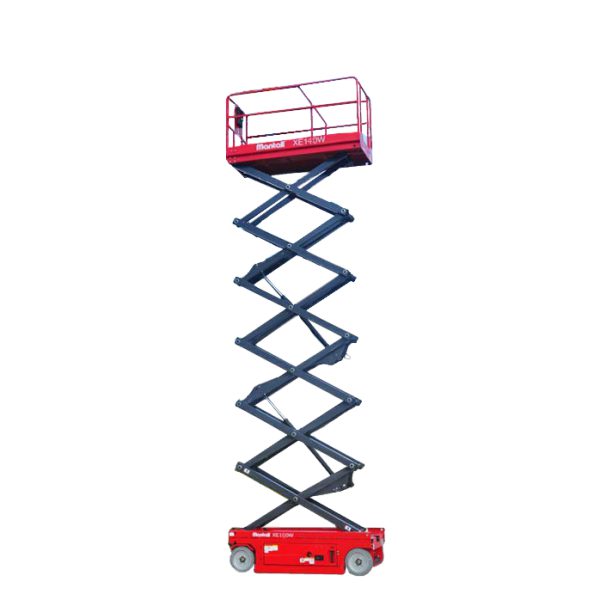

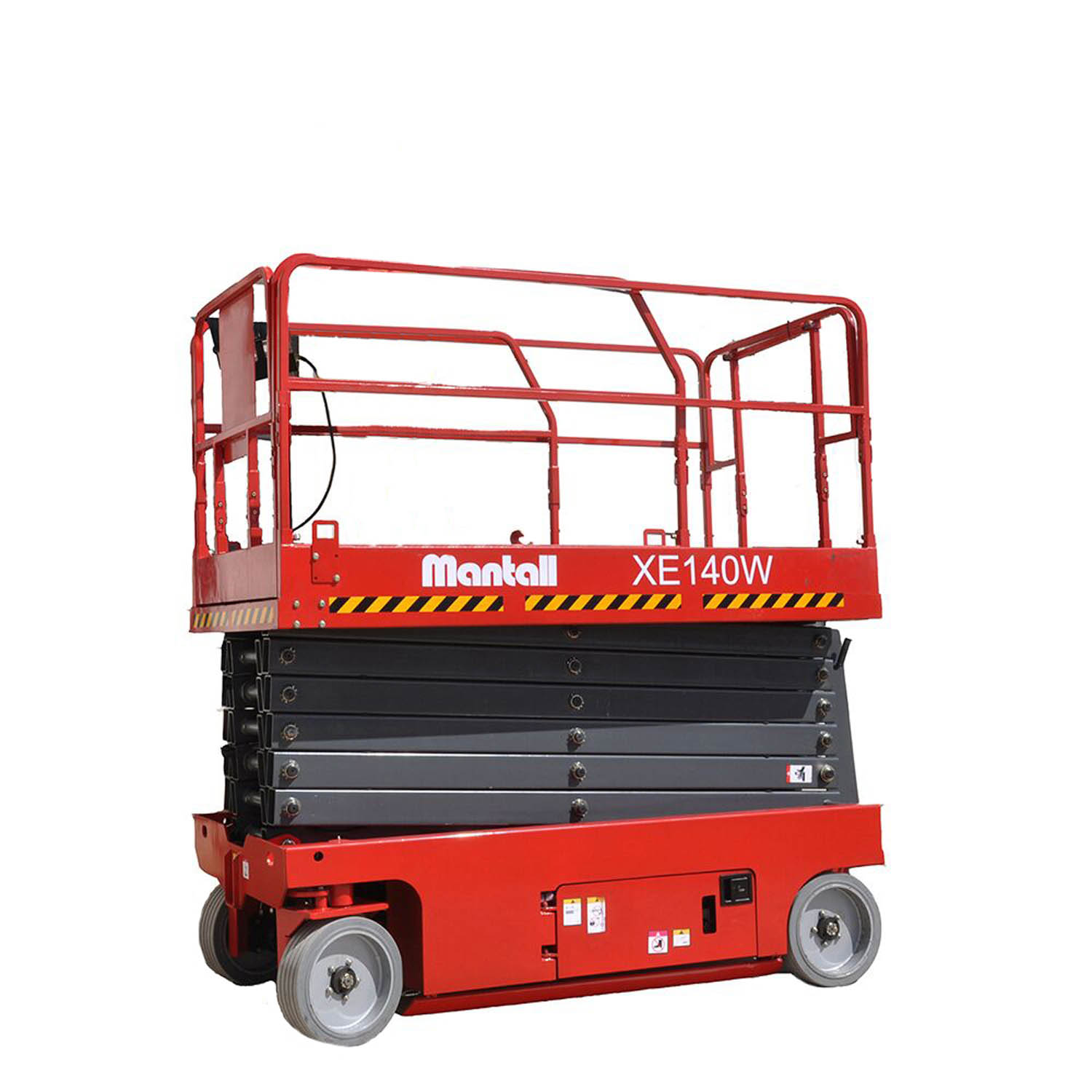

Mantall XE140W – 14m
Versatile electric scissor lift for indoor use and/or flat surfaces. The lift has a maximum working height of up to 14 m and allows for 2 persons in the basket.
Mantall XE140W is intended for those who need platform space and high lifting capacity. The lift has a platform width of 1.12m and a lifting capacity of 350 kg, providing plenty of space for extra work equipment.
The lift has very low noise levels, no emissions and is suitable for indoor use. It can be operated from full height and has a 1m extendable platform.
The lift also has a number of safety features for safe operation, as well as joystick with proportional control for lifting and driving, making the lift very easy to use.
Call for Price
Send RequestStandard Features
- Battery powered
- Proportional driving
- 2WD

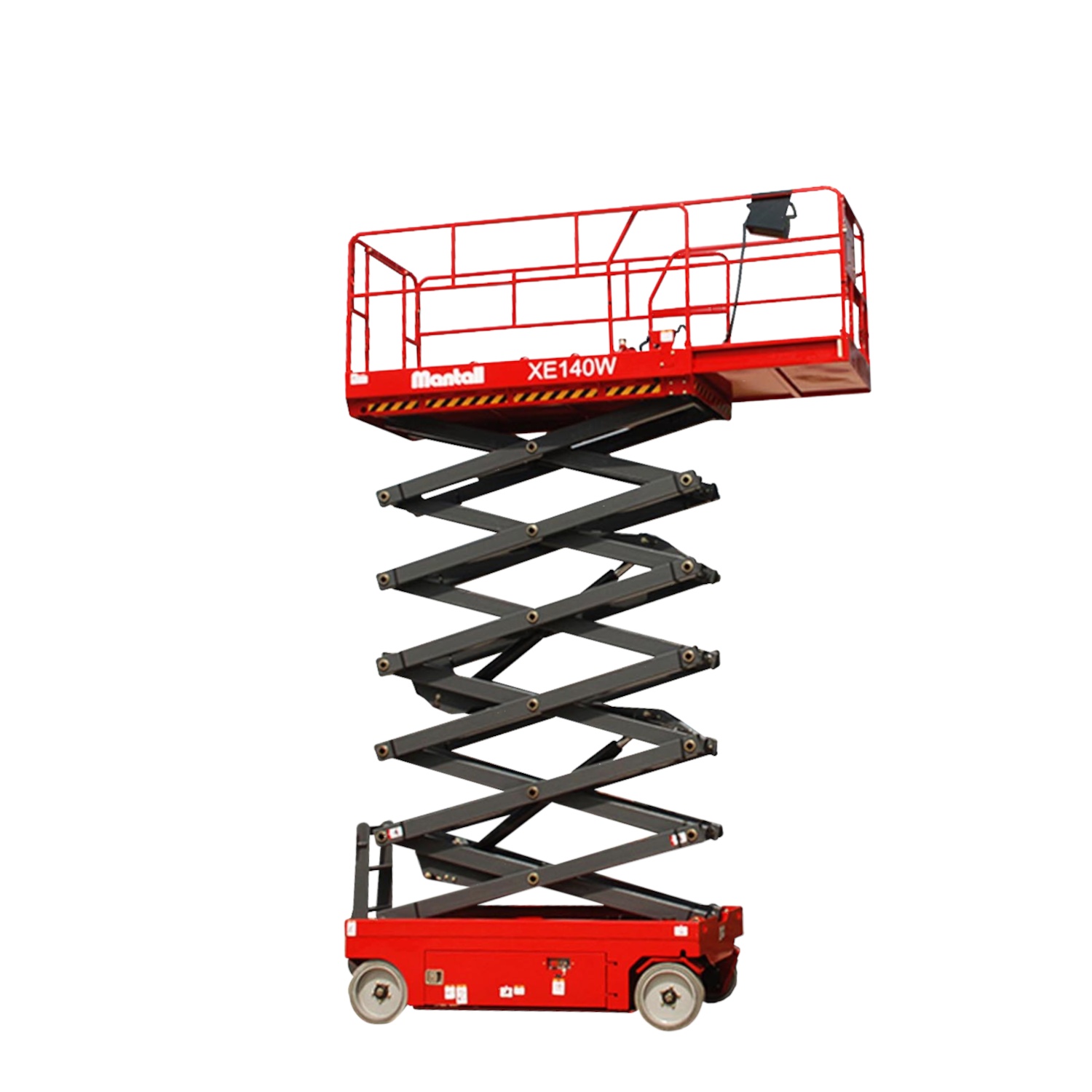

- Extension on platform
- Foldable railing

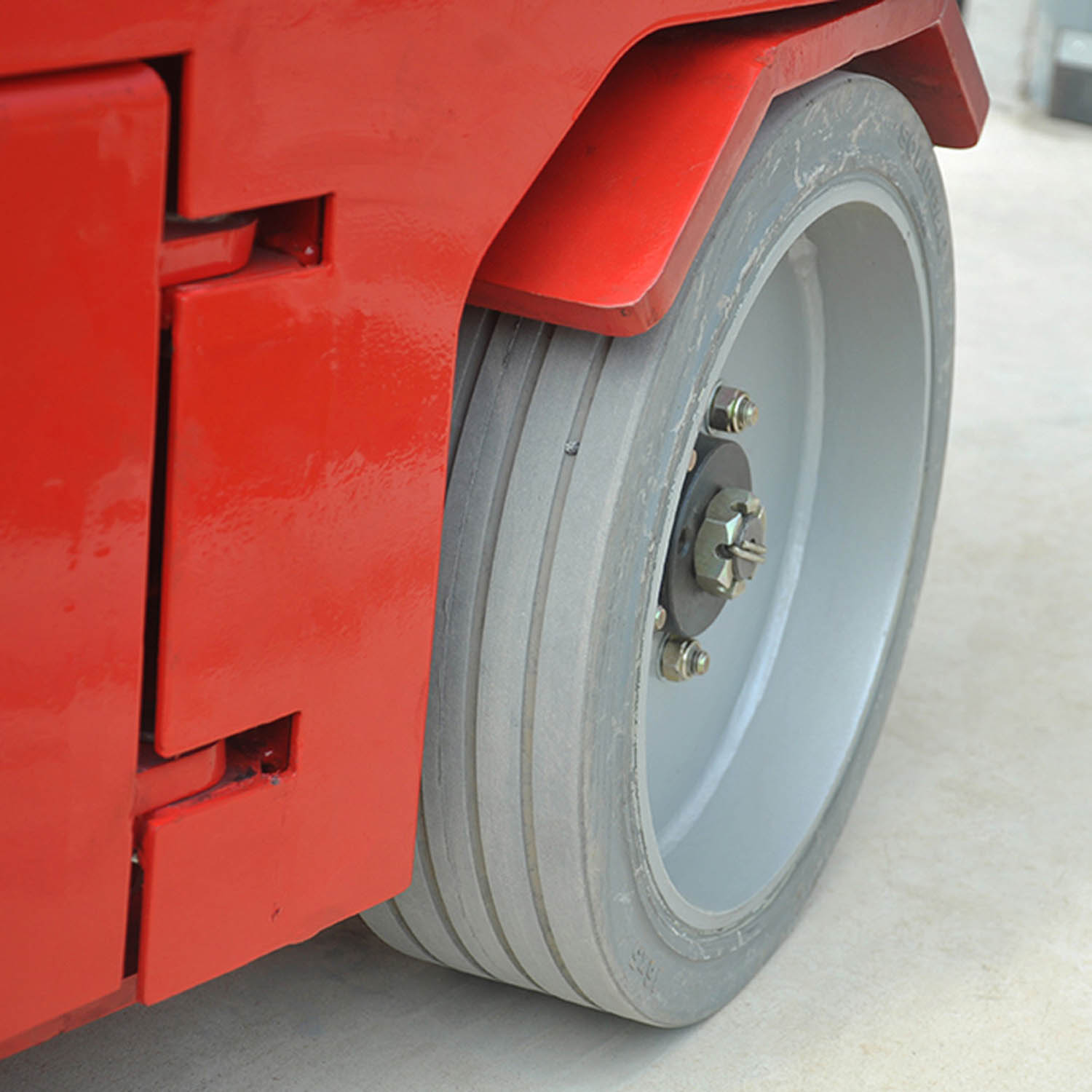

- Non-marking wheels
- Automatic braking system
- Emergency lowering
- Emergency stop
- Self-diagnosis system
- Tilt sensor with alarm
- Hour meter
- Forklift pockets
- Warning light
- Integrated battery charger
- CE-marked
