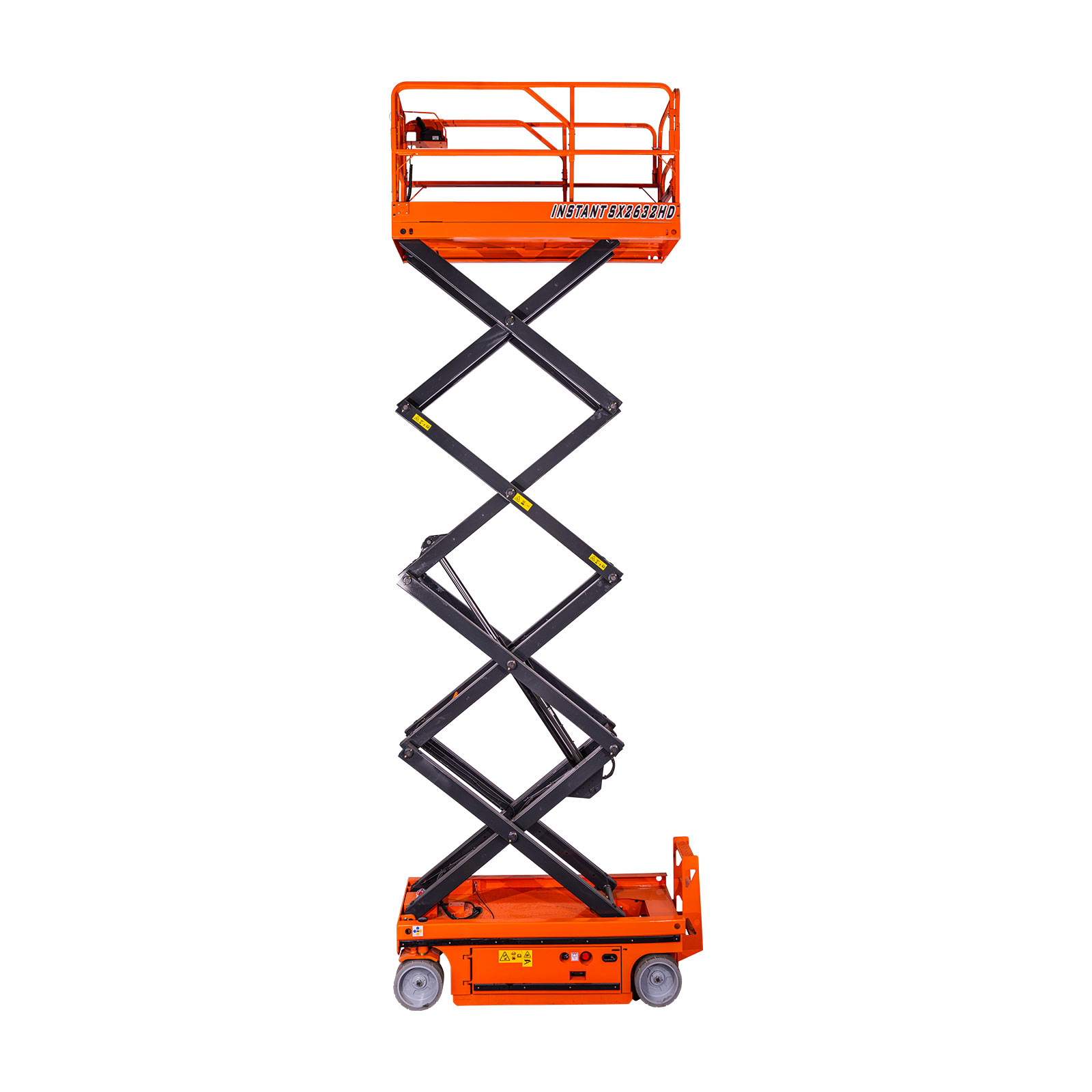

| Working height max | 10m |
|---|---|
| Platform height max | 8m |
| Lifting capacity | 230kg |
| Lifting capacity on extension | 113kg |
| Maximum number of people in the lift | 2 |
| Platform dimension (LxW) | 2,27 x 0,81m |
| Push | 0,9m |
| Length of platform with extension (LxW) | 3,17 x 0,81m |
| Ground clearance total / raised | 10 cm |
| Turning radius inside / outside | 0m / 2,2m |
| Speed, high / low (km / h) | 3,5/ 0,8 |
| Rise ability max | 25% |
| Raise / lower time (sec) | 28/40 |
| Deck | marking-free |
| Drive | 2WD |

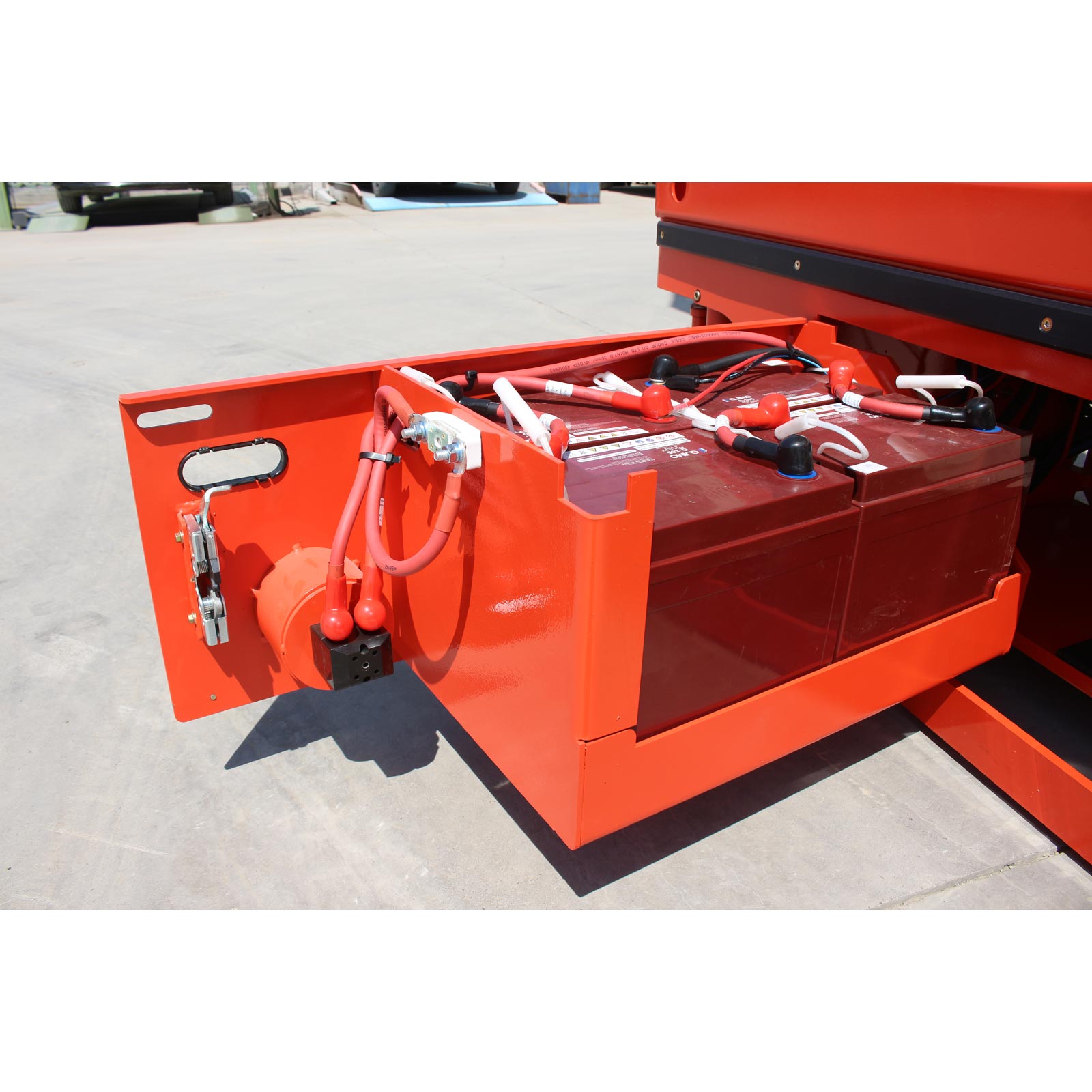

| Power source | 4x6V/225Ah batteries |
| Length | 2,48m |
| Width | 0,83m |
| Height (railing up / down) | 2,32m/1,99m |
| Net weight | 2260kg |
| Weight | 1970 kg |
| Dimensions | 248 × 83 × 199 cm |

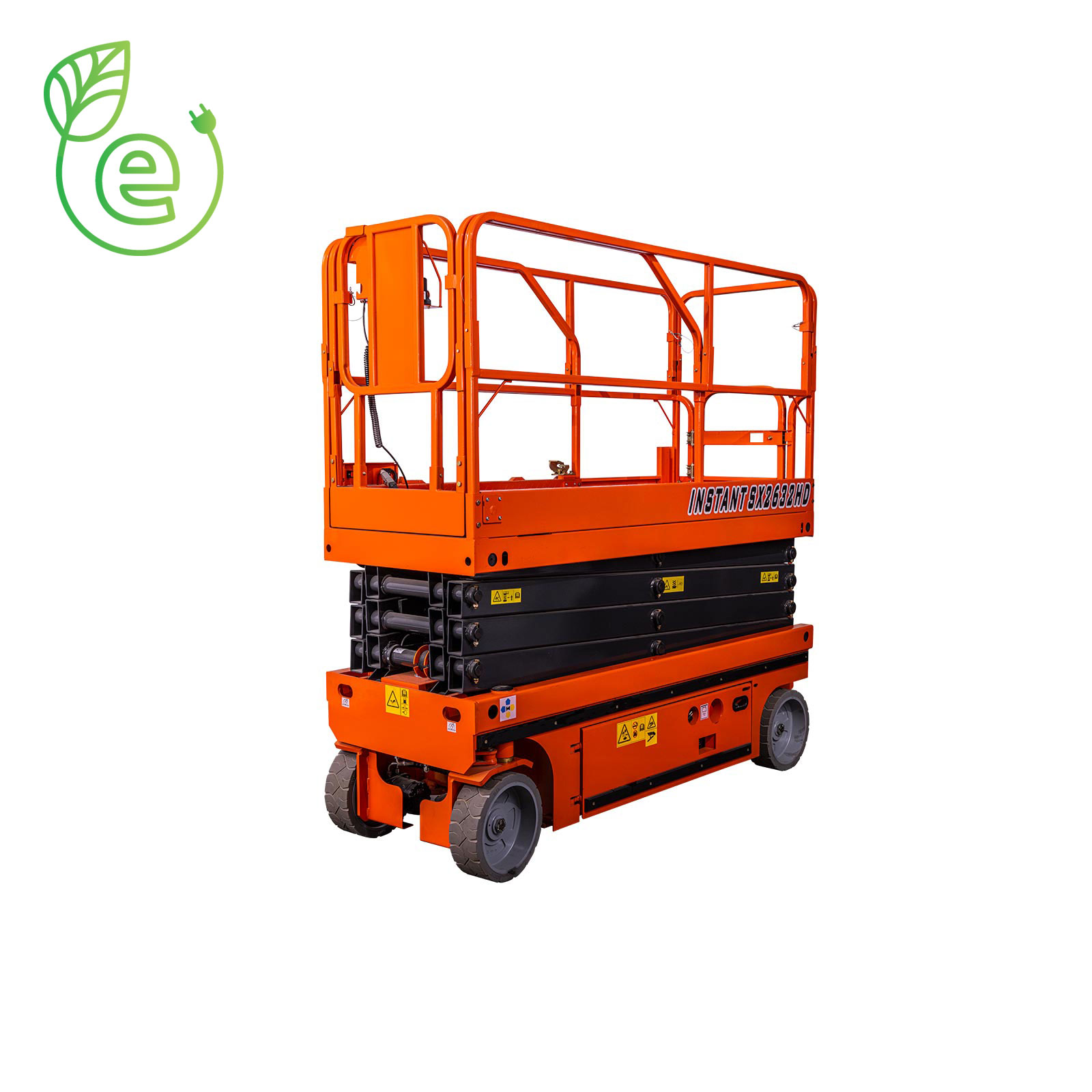

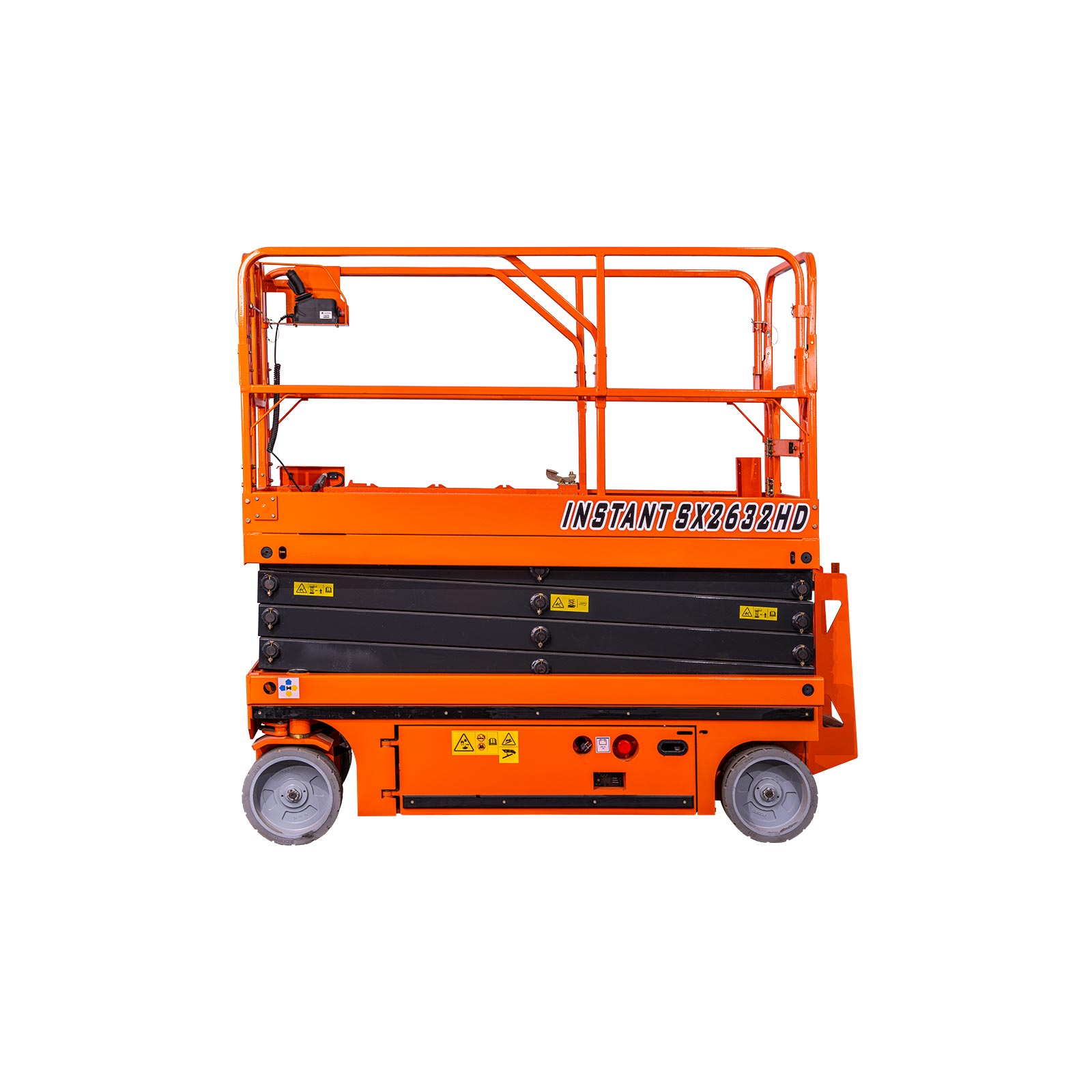

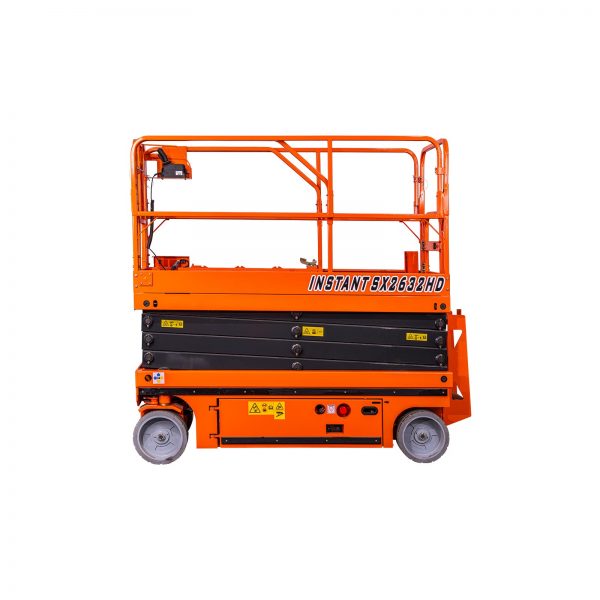

Instant SX2632 HD – 10m
Narrow electric scissor lift for indoor use and / or flat surface. Lifting capacity of 230 kg, working height up to 10 m and a platform width of 0.81 m. This provides plenty of space for work equipment, while at the same time making it easily accessible to hard-to-reach places.
Instant SX2632 HD has a very low noise level, no emissions and is well suited for indoor use. It can be driven from full height and has a sliding platform of 0.9m.
The lift also has a number of safety functions for safe operation, as well as a joystick with proportional control for lifting and driving which makes the lift very easy to use.
Call for Price
Send RequestStandard equipment:
- Battery powered
- Proportional driving
- 2WD
- Slide on platform
- Foldable railing

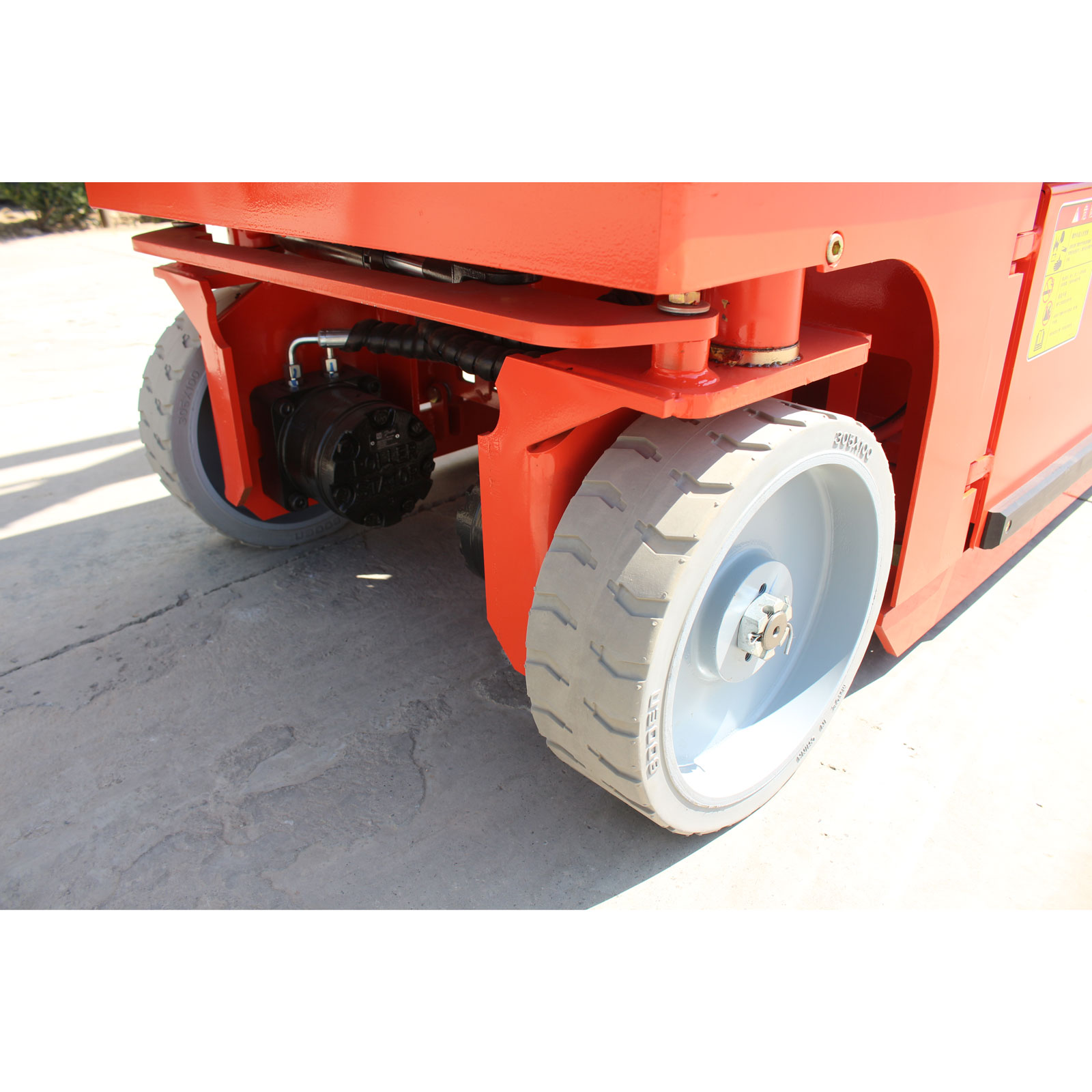

- Marking-free wheels
- Automatic braking system
- Emergency sink
- Emergency stop
- Self-diagnosis System
- Tilt sensor with alarm
- Motion alarm
- Hour meter
- Forklift pockets
- Warning light
- Integrated battery charger
- CE marked
