| Working height max H1 | 12m |
|---|---|
| Platform height max H2 | 10m |
| Platform extension size | 1.5 m |
| Lifting capacity | 454 kg |
| Lifting capacity on the extension | 136 kg |
| Dimension of the platform B*C*A | 2.5 * 1.6 * 1.15 m |
| Platform length with extension K | 4 m |
| Length and width E*F | 2.67*1.76 m |
| Height D | 2.52 m |
| Height - guardrail down M | 1.83 m |
| Wheelbase G | 1.89 m |
| Ground clearance H | 0.17 m |
| Turning radius-inside | 1.58 m |
| Turning radius-outside | 3.89 m |
| Raising time/lowering time | 45/37s |
| Drive speed-stowed | 4.0 km/h |
| Drive speed-raised | 0.8 km/h |
| Gradeability | 40% |
| Tilt (front to back/side to side) | 3° / 2° |
| Outrigger level (front to back) | 9° |
| Outrigger level (side to side) | 13° |
| Wheels | 675*280 mm |
| Max. number of people in lift | 2 pers |
| Power source | Kubota/Yanmar |
| Wheel drive | 4WD |
| Weight | 3930 kg |
| Weight with outriggers | 4390 kg |
| Dimensions | 267 × 176 × 252 cm |

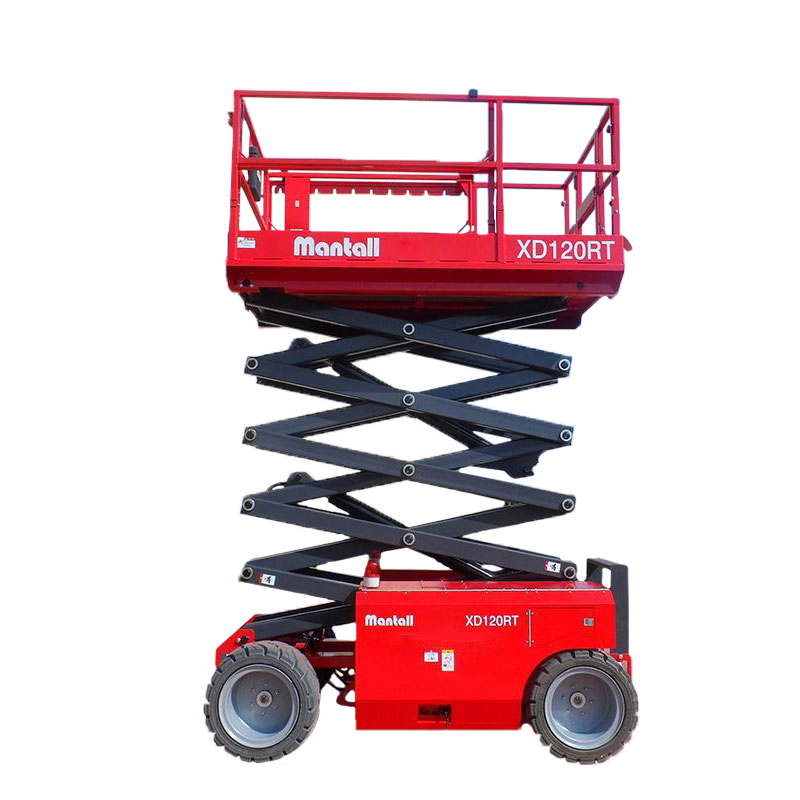

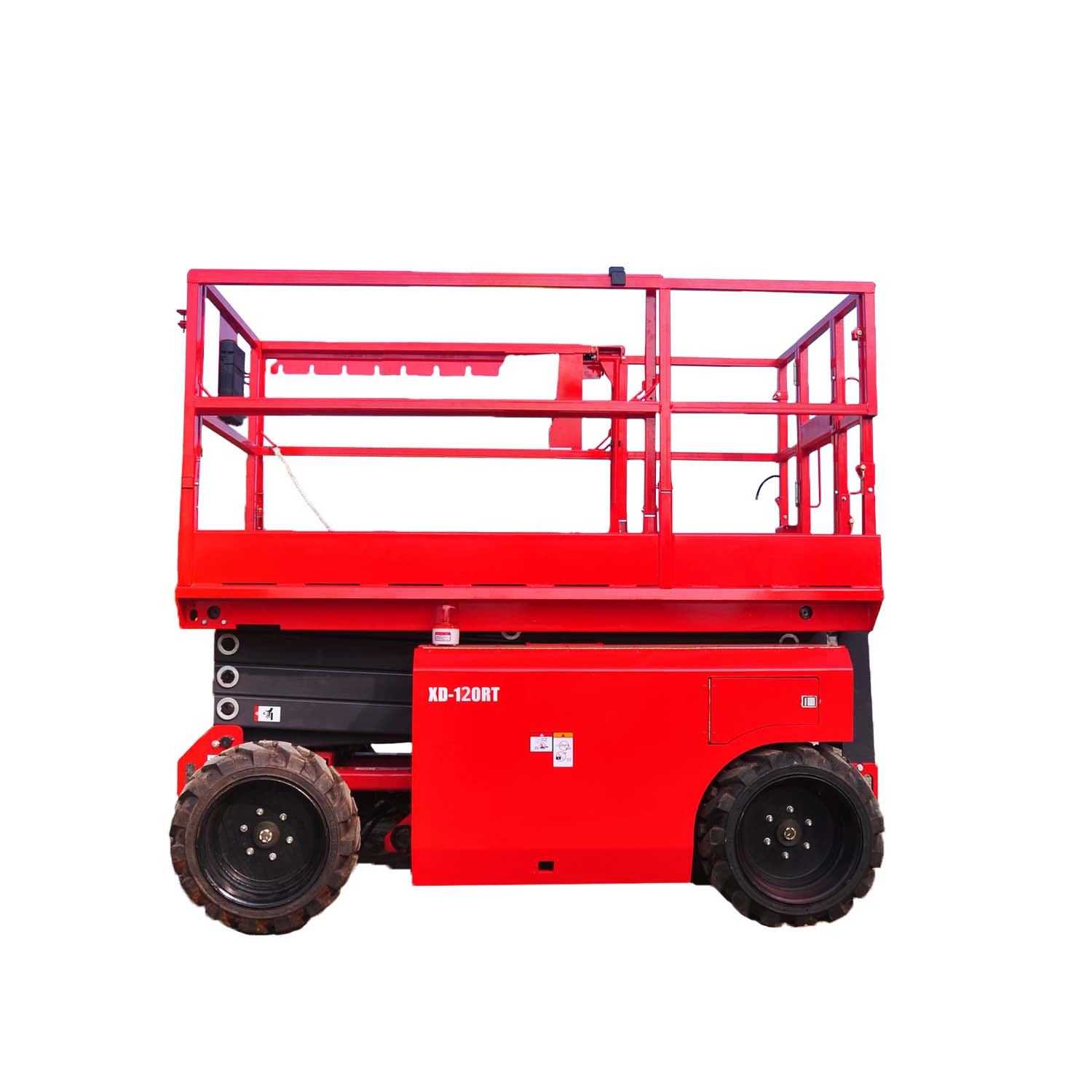

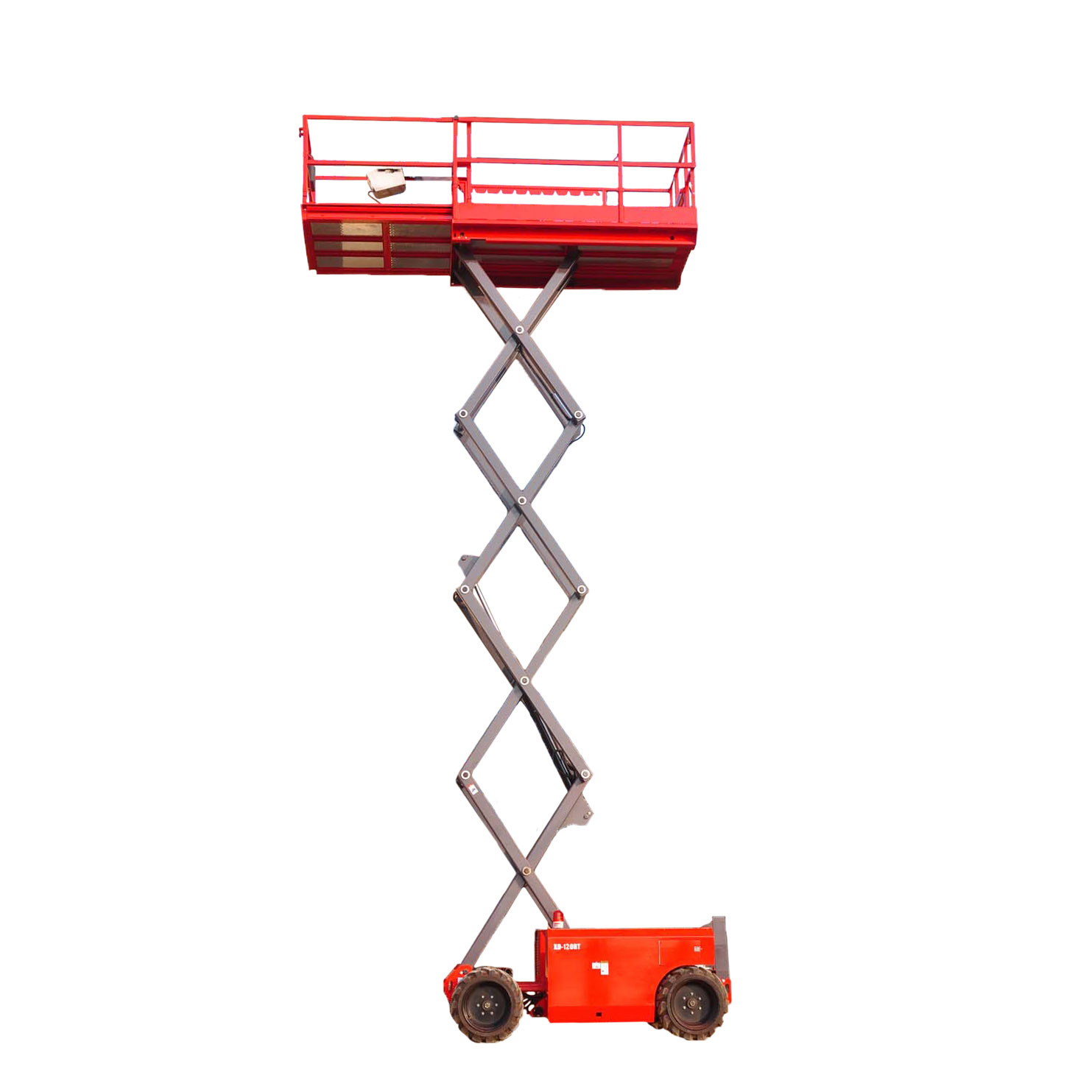

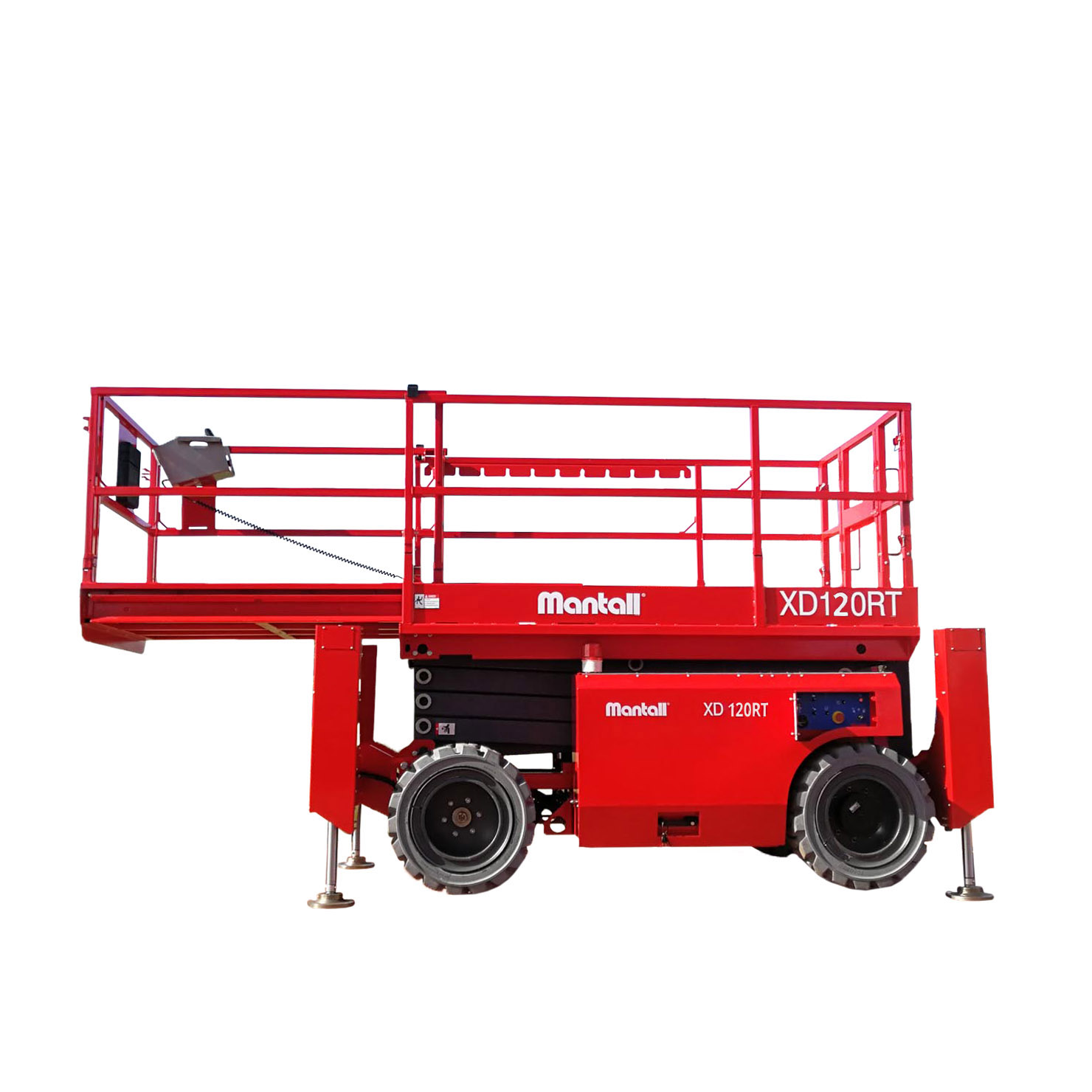

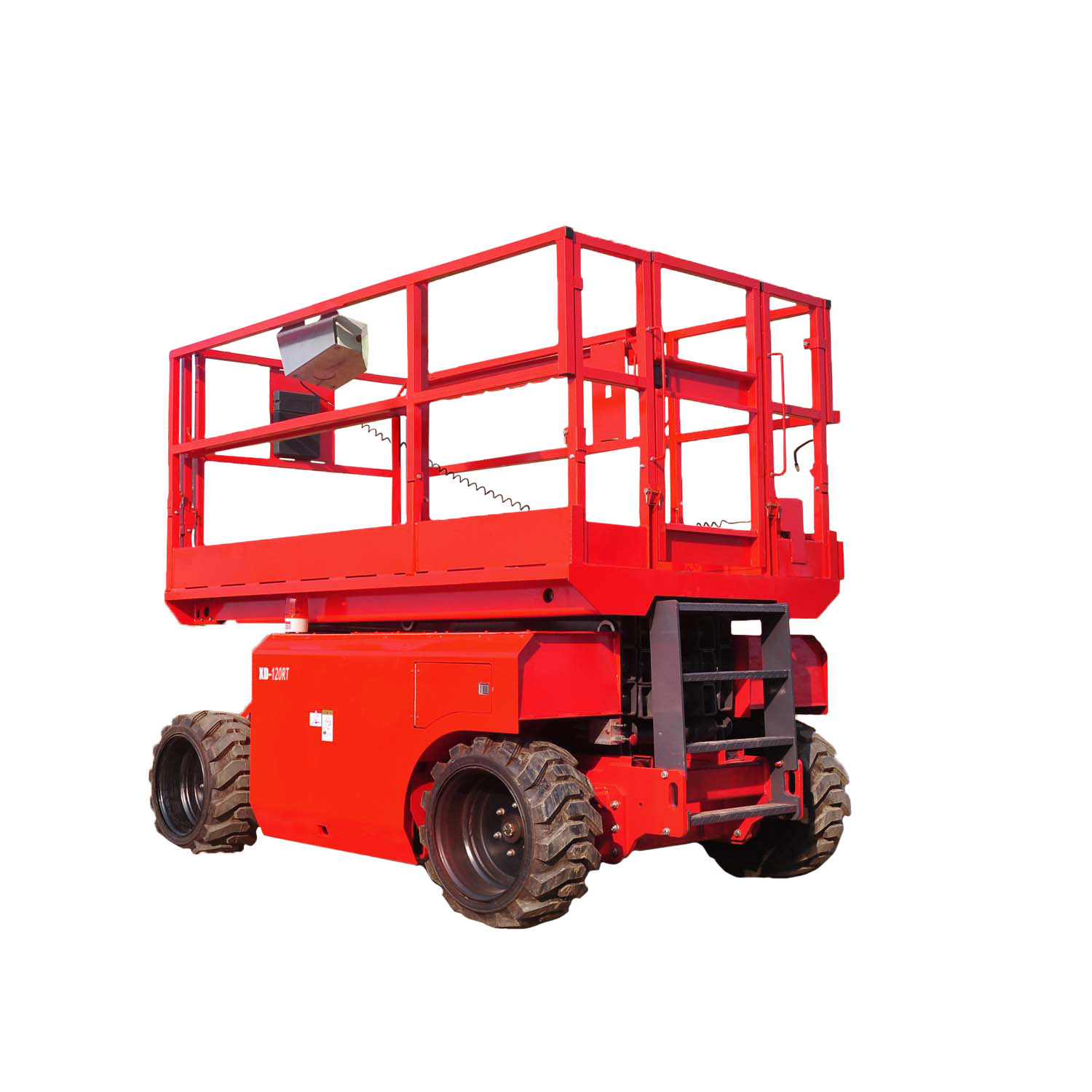

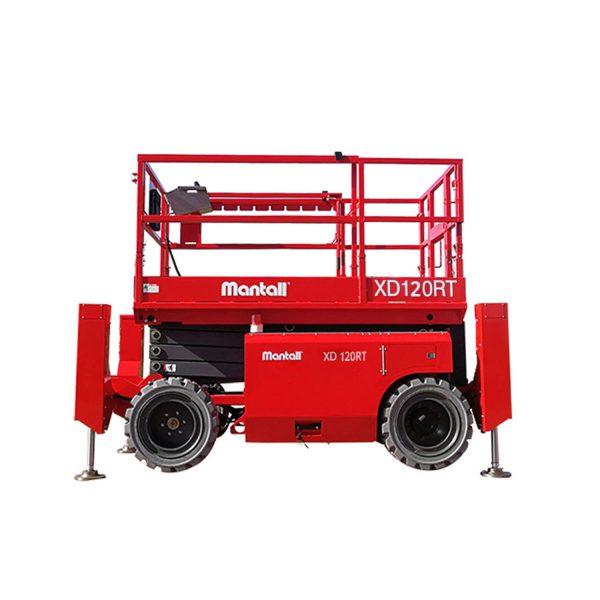

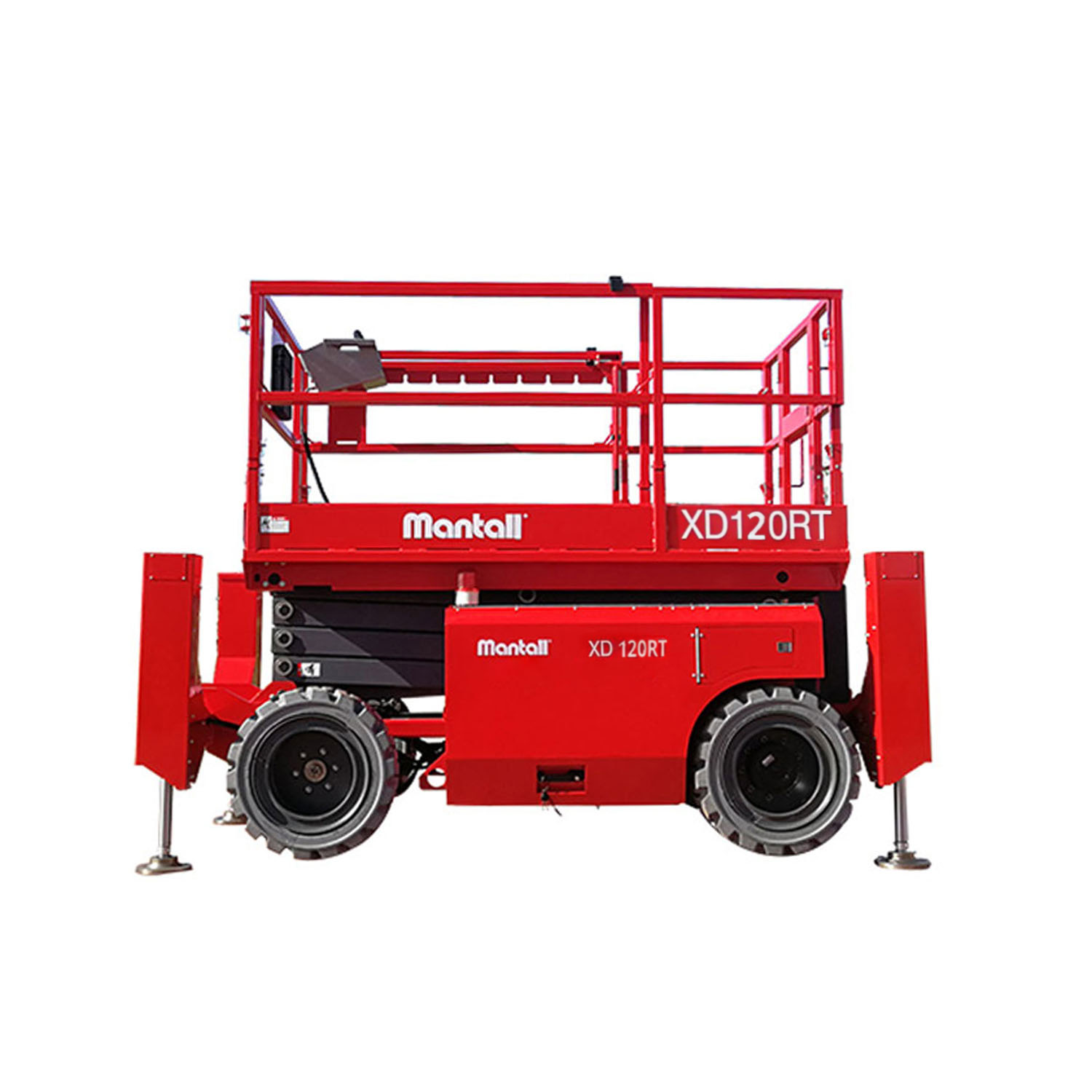

Mantall XD120RT – 12m
Mantall XD120RT is an all-terrain scissor lift with a maximum working height of 12 meters. The machine has a platform capacity of 454 kg.
The lift is equipped with a diesel engine, four-wheel drive and 40 percent gradeability, enabling you to perform most jobs in rough terrain.
The XD120RT also has a number of safety features for safe operation, as well as joystick with proportional control for lifting and traveling that makes the lift very easy to use.
Call for Price
Send RequestStandard Features
- Diesel engine
- Foldable railing
- Diagnostic system
- AC wiring to platform
- 4 WD
- Tilt sensor with alarm
- Emergency lowering
- Emergency stop
- Hour meter
- Warning light
- Proportional driving
- Solid tires for terrain
- Push-out on platform
- CE-marked
