| Working height max | 5,6m |
|---|---|
| Platform height max | 3,6m |
| Maximum lifting capacity | 227kg |
| Maks antall personer i lift Maximum number of people in the lift | 2 |
| Platform dimension (LxW) | 1,8 x 0,70 m |
| Push | 0,51m |
| Turning radius inside / outside | 0 / 1.4m |
| Speed, high / low (km / h) | 4 / 1,1 |
| Rise ability max | 25% |
| Raise / lower time (sec) | 31 / 32 seconds |
| Deck | marking-free |
| Drivetrain | 2WD |

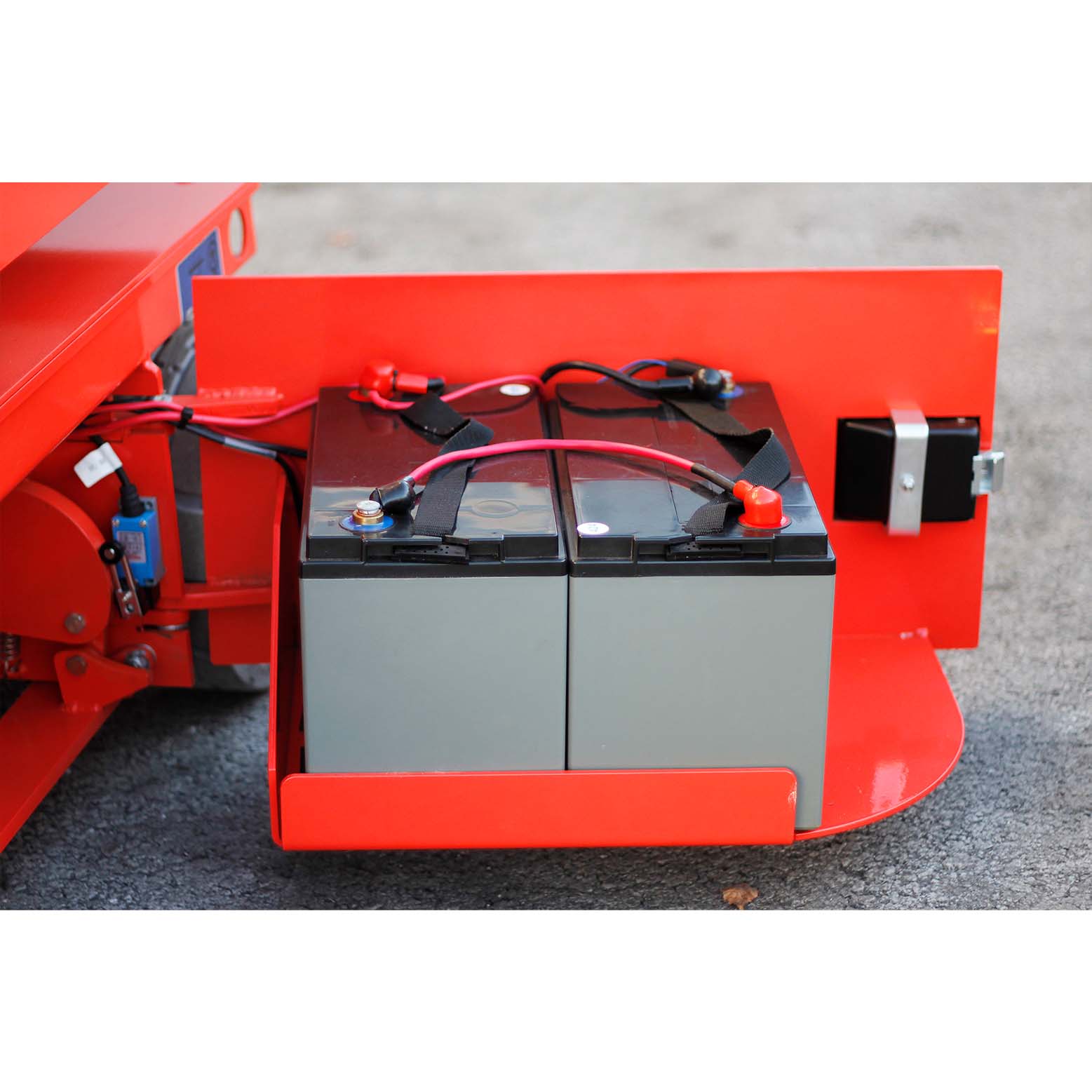

| Power source | 2 x 12 V / 100 Ah |
| Battery charger | 24 V / 15 A |
| Length | 1,36m |
| Width | 0,76m |
| Height | 1,70 m |
| Weight | 810 kg |
| Dimensions | 136 × 76 × 170 cm |
Sale

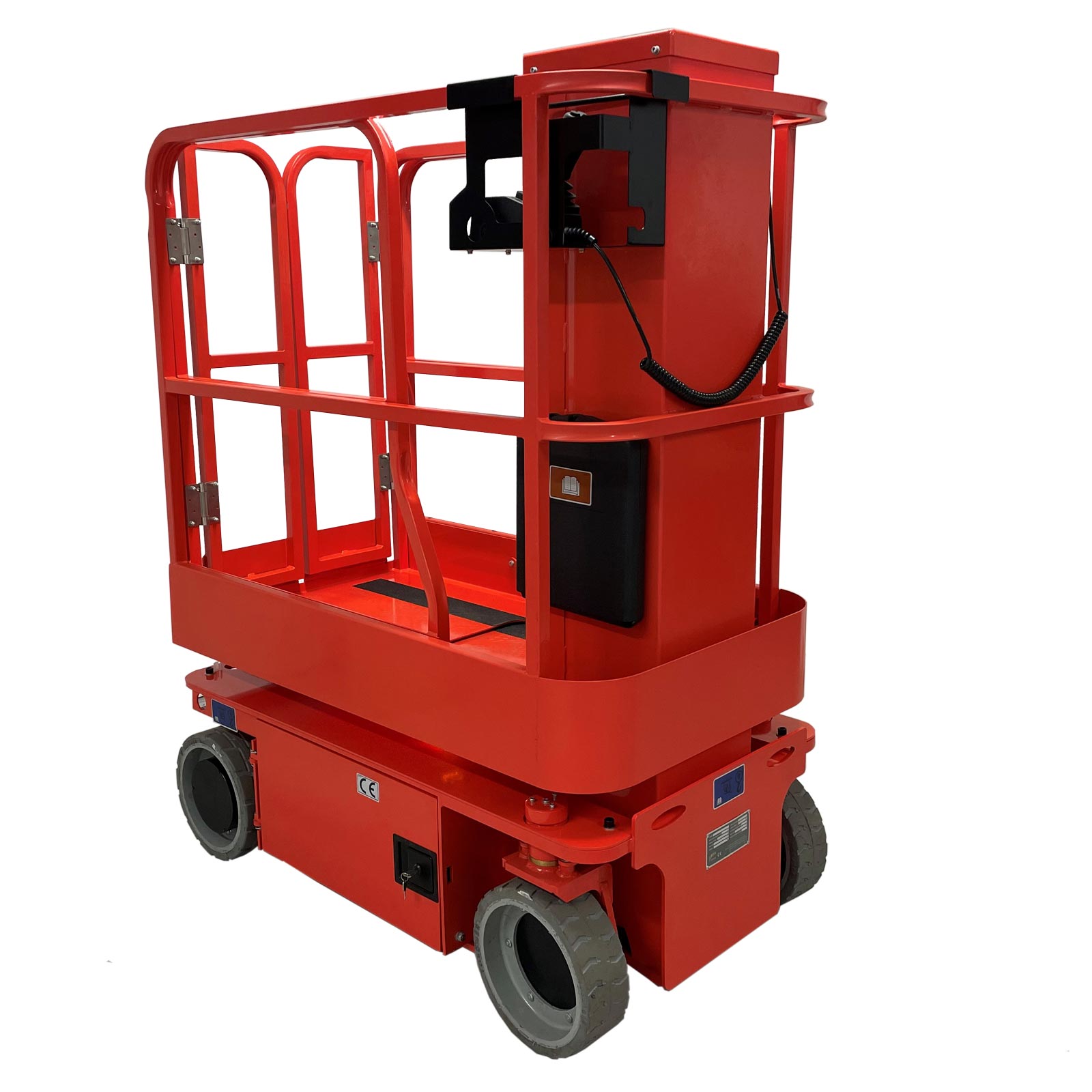

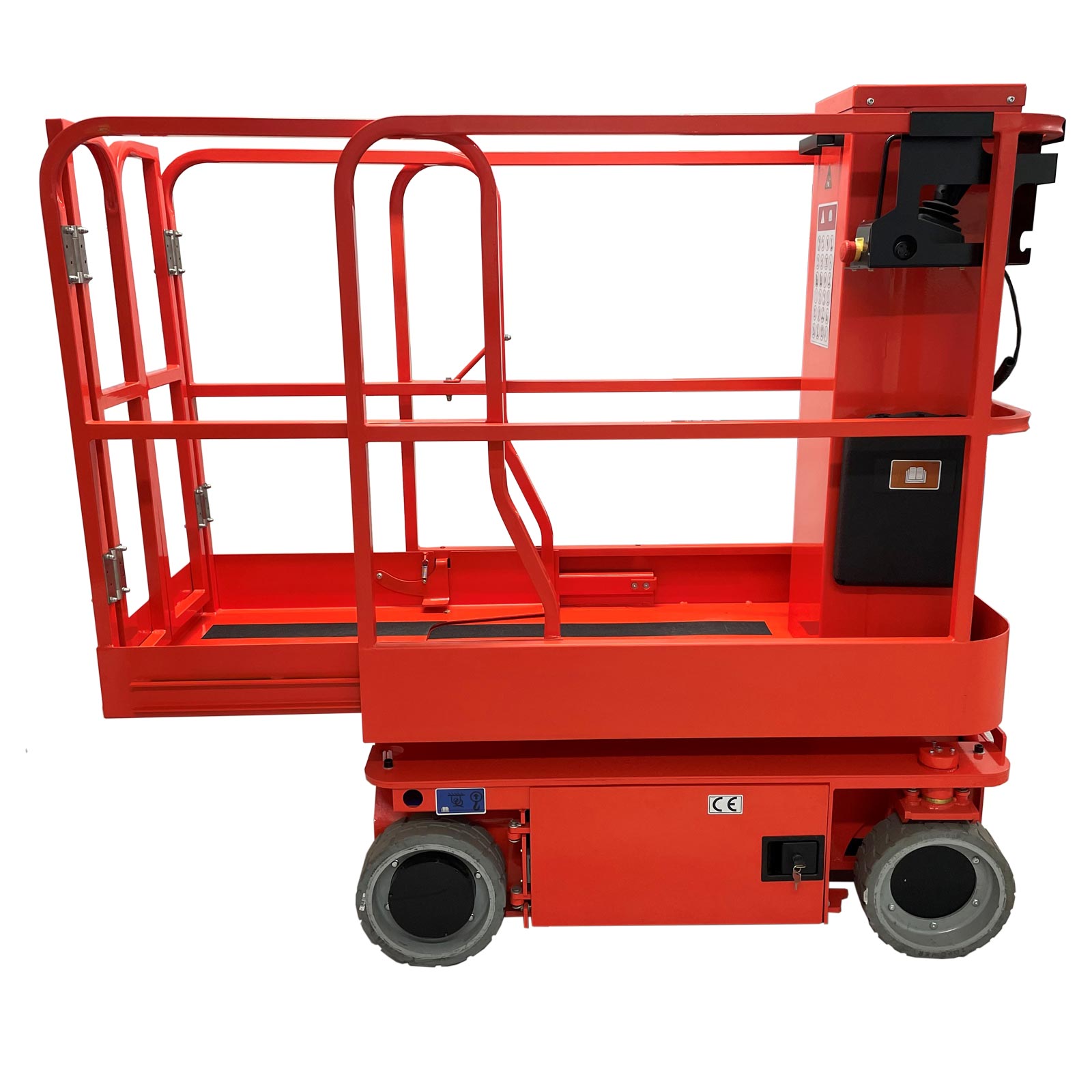

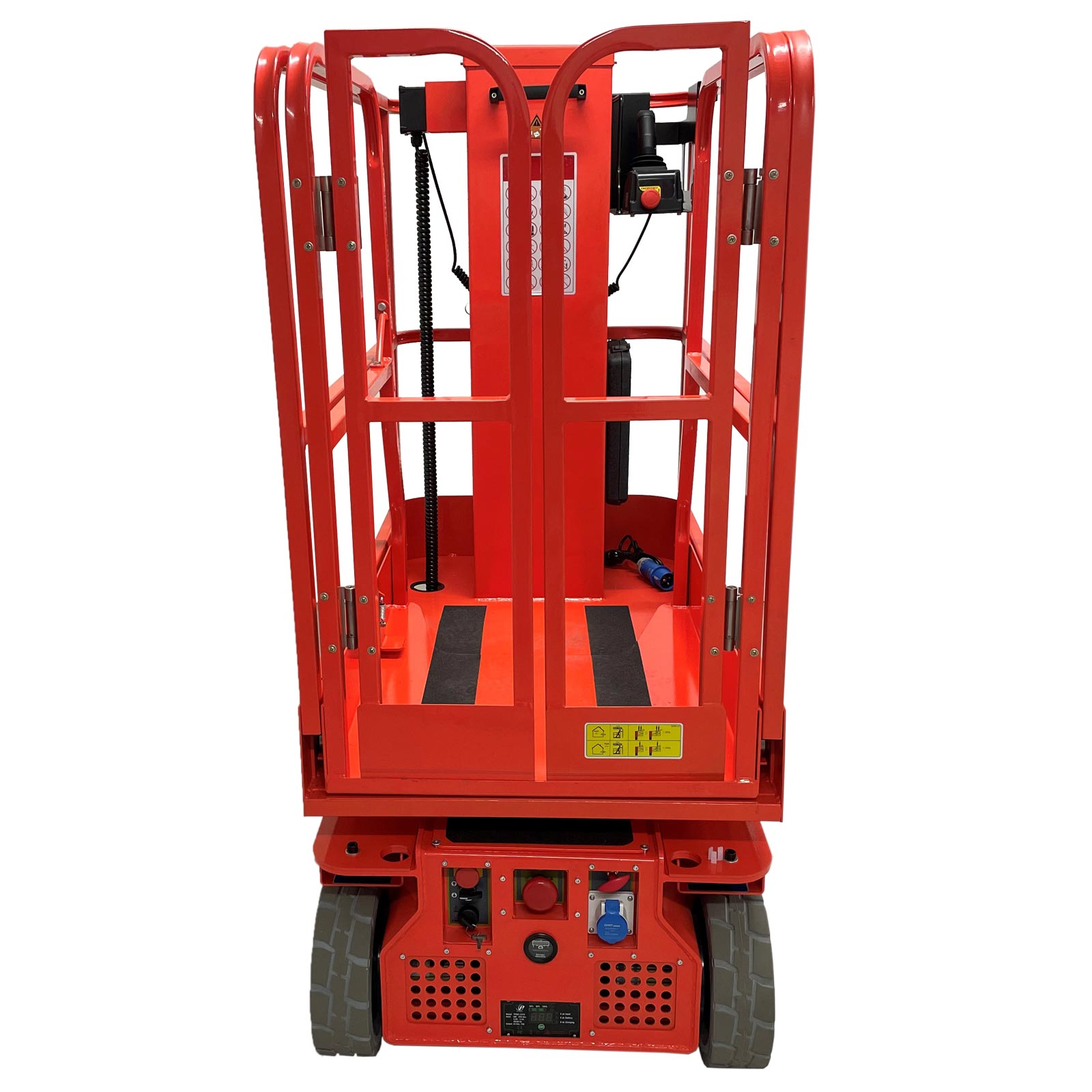

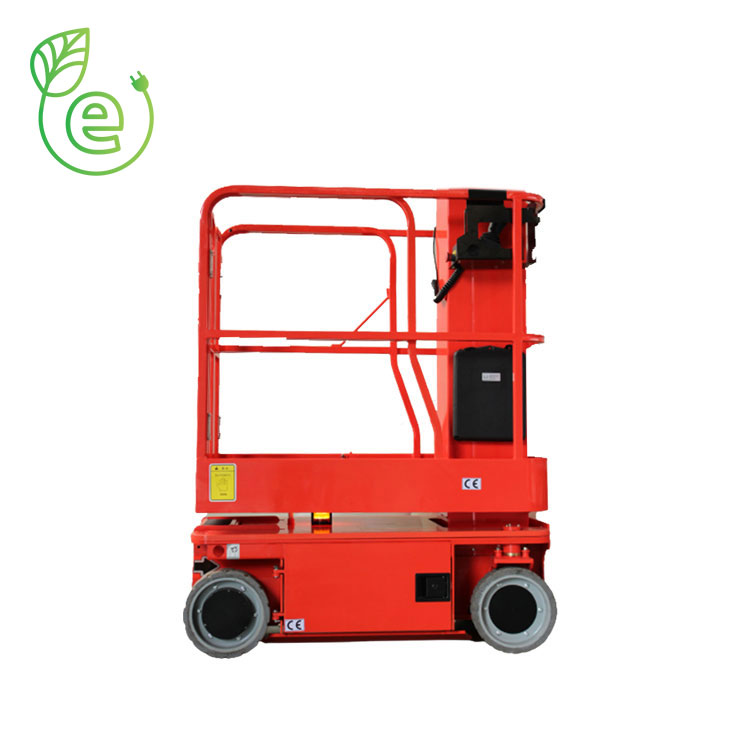

Instant TM12- 5,6m
Instant TM12 is the optimal mast lift for you who work on small surfaces. TM12 is compact and easy to maneuver, and it comes through standard doorways. The lift weighs only 810 kg and has a working height of 5.6 m.
This versatile mast lift also has a platform extension as standard that easily expands the work area. The lift can be used by up to two people with tools.
Call for Price
Send RequestStandard equipment:

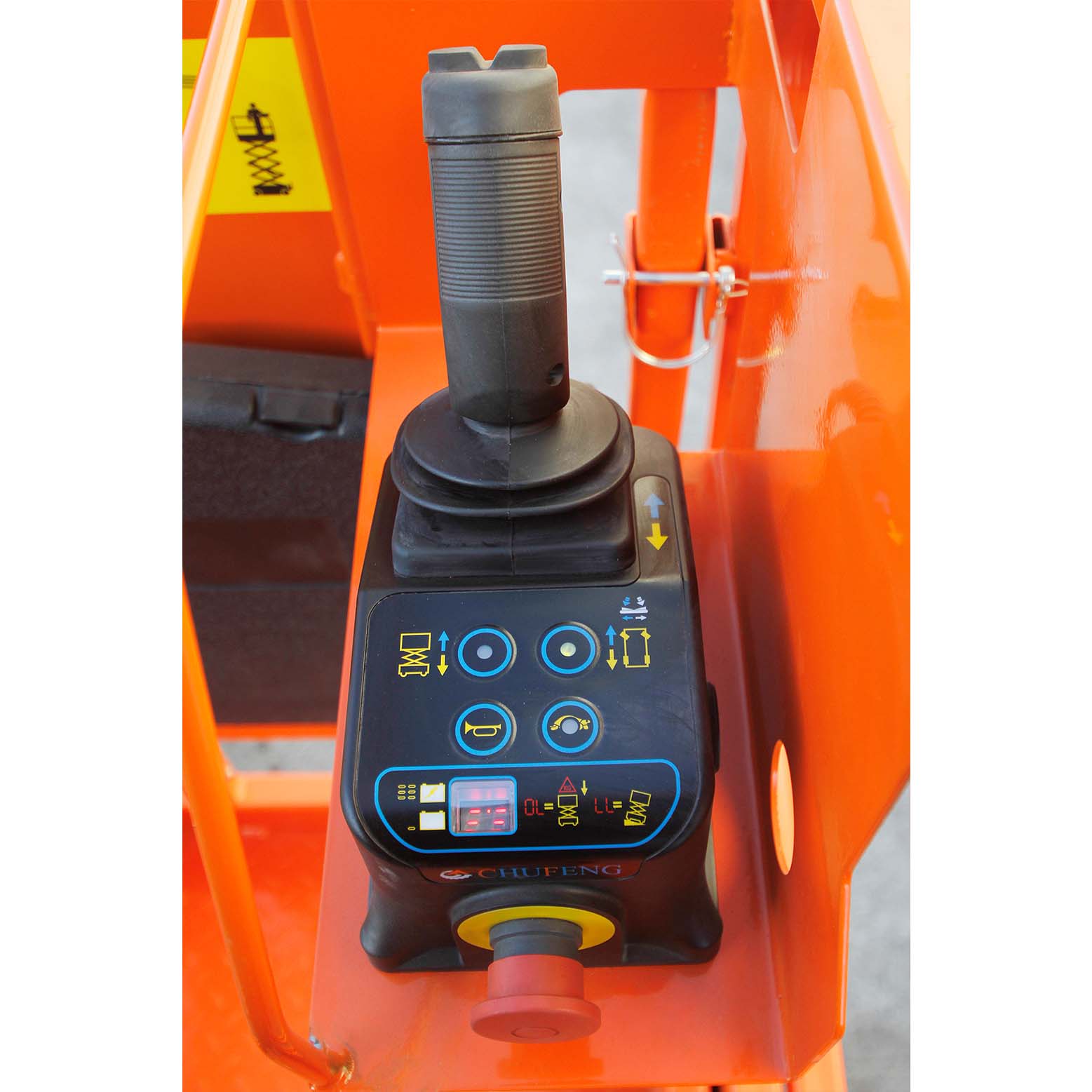

• Proportional driving
• Marker-free tires
• 2 WD
• Automatic brakes
• Emergency lowering
• Emergency stop buttons
• Self-diagnosis on board
• Tilt sensor and alarm
• Motion alarm
• Horn
• Hour meter
• Forklift pockets
• Rotating warning light
• Overload sensor with alarm
