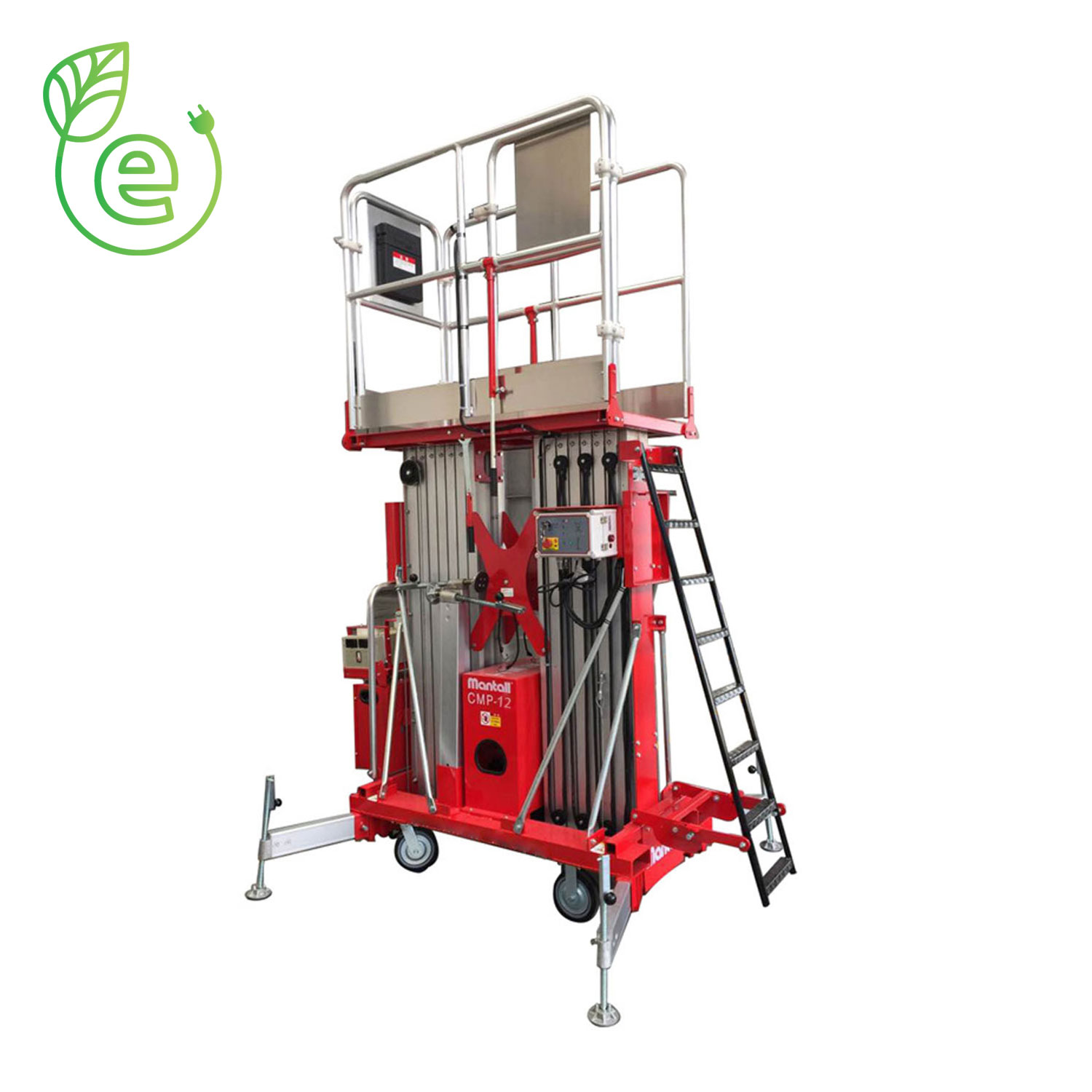

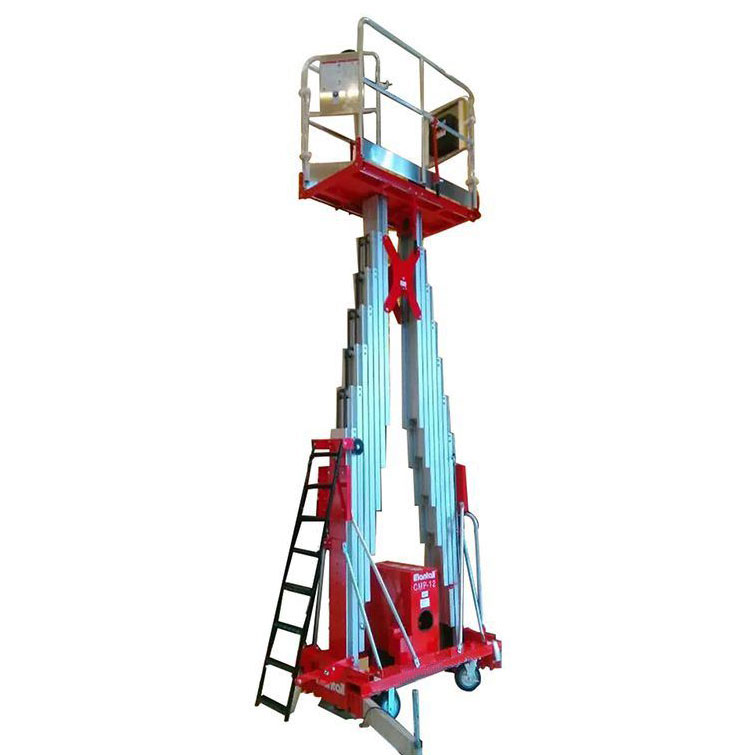

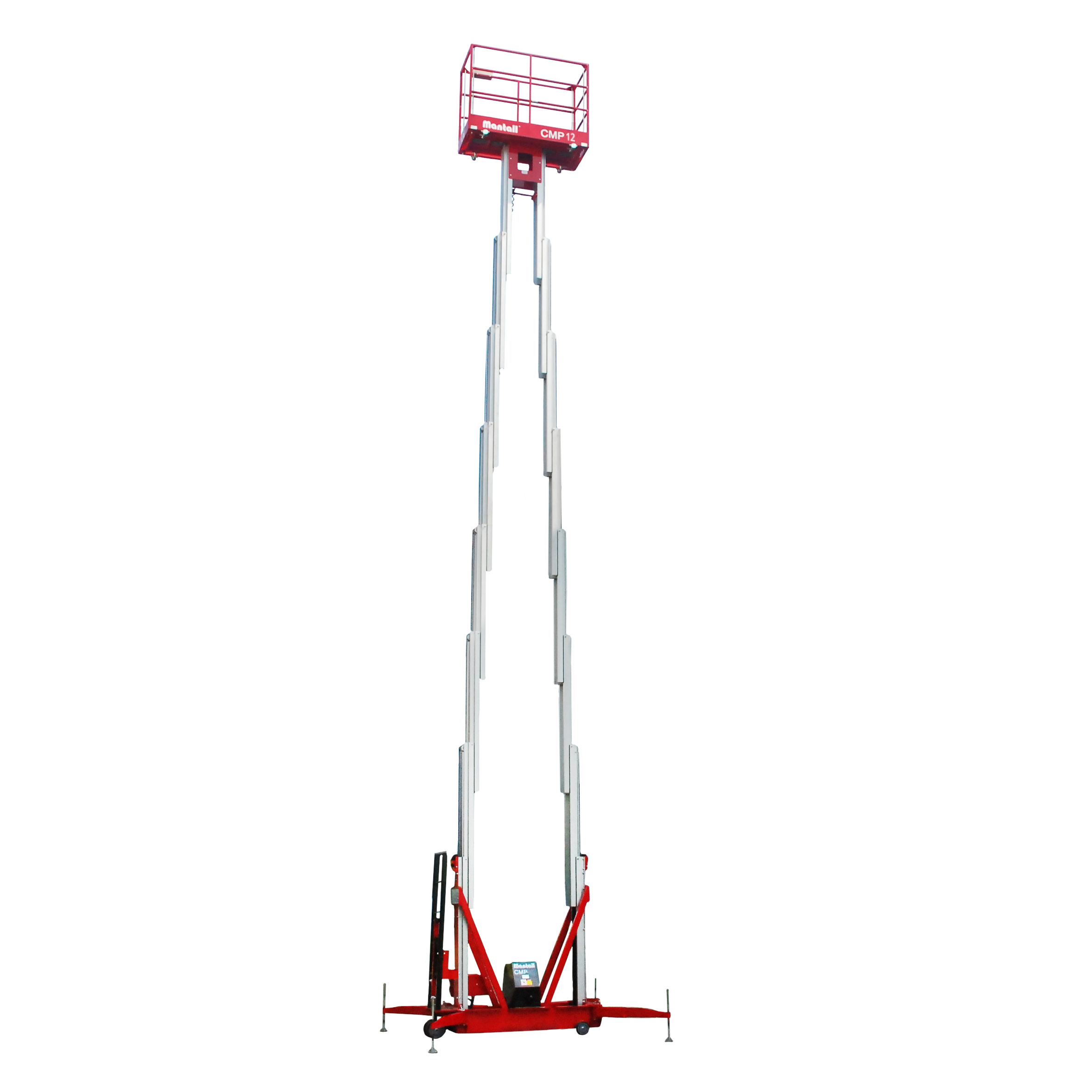

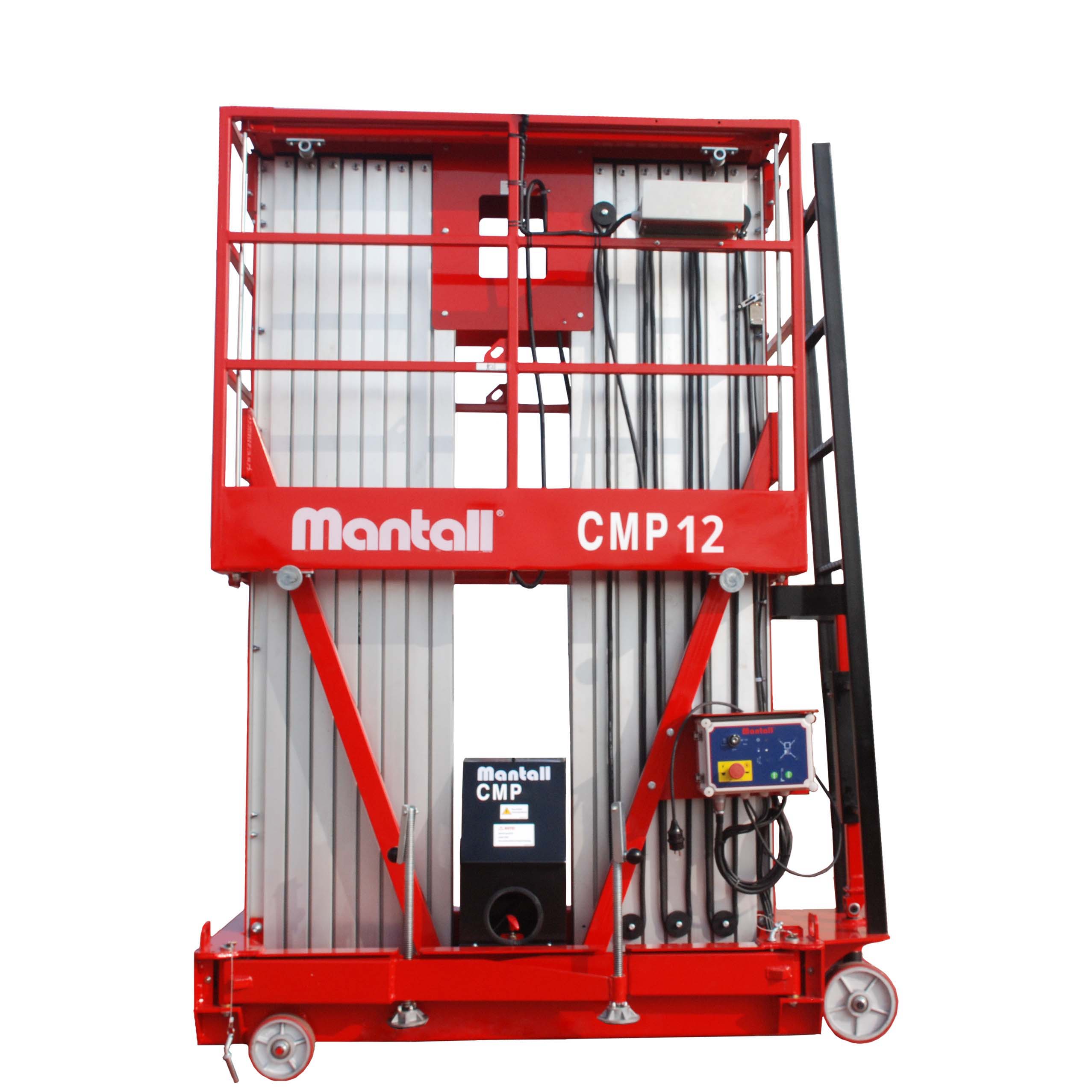

Mantall CMP-12-S – 12m

Mantall CMP series double mast aerial work platforms are economical and portable elevated working platforms that can lift two workers and their tools safely and stably, with a maximum working height of 12 meters. The double mast aerial work platform provides exceptional stability with a high strength aluminum mast system and heavy-duty lifting chains, ensuring the safety of workers.

The robust steel chassis is utilized to further guarantee the safety even when the aerial work platform runs on a harsh working environment. The large platform provides ample space for workers to perform their jobs with ease. In addition, our double mast aerial work platform is provided with dual control system that enables the platform to be moved up and down by simply controlling from either the platform or ground control station.

Call for Price

Send Request
Arbeidshøyde maks H1

12 m

Plattformhøyde maks H2

10 m

Løftekapasitet

272 kg

Plattformdimensjon B * C * A

1.37 * 0.7 * 1.1m

Lengde E

1.48 m

Bredde F

0.8 m

Høyde D

1.98 m

Støtteben område I*K

1.9/2.1 m

Min. bakkeklaring

0.04 m

Kraftkilde (AC)

220V/1.5KW

Kraftkilde (DC)

12VDC/1.6KW

Batteri

12V/120Ah

Lader

12V/15A

Weight 802 kg
Dimensions 148 × 80 × 198 cm
Standard Features
  • Aluminum Platform Basket
  • Polyurethane Non-mark tires
  • Forklift Pockets
  • Foldable Inclined Ladder
  • Two controls: Platform Control and Ground Control
  • Lower Beeper warning
  • Rotation Platform (CMP18 only)
  • Emergercy Lower Down
  • Outrigger Storage Frame
  • Maintenance-free battery
Optional
  • Door Type wide Platform
  • Narrow/Rough Ground Chassis
  • Wide Chassis
  • Tool Box
  • Platform Positioning Laser light
  • Fluorescent Tubes Box
  • Working Flashing Beacon
  • Top Limit Protection Auto-stop device
  • Auxiliary drive wheel
  • Equipment Protection cover
