Arbeidshøyde maks H1 | 10 m |
---|---|
Plattformhøyde maks H2 | 8 m |
Løftekapasitet | 272 kg |
Plattformdimensjon B*C | 1.37 * 0.7 * 1.1m |
Lengde E | 1.48 m |
Bredde F | 0.8 m |
Høyde D | 1.98 m |
Støtteben område I*K | 1.9/2.1 m |
Min. bakkeklaring | 0.04 m |
Kraftkilde (AC) | 220V/1.5KW |
Kraftkilde (DC) | 12VDC/1.6KW |
Batteri | 12V/120Ah |
Lader | 12V/15A |
Weight | 760 kg |
Dimensions | 148 × 80 × 198 cm |

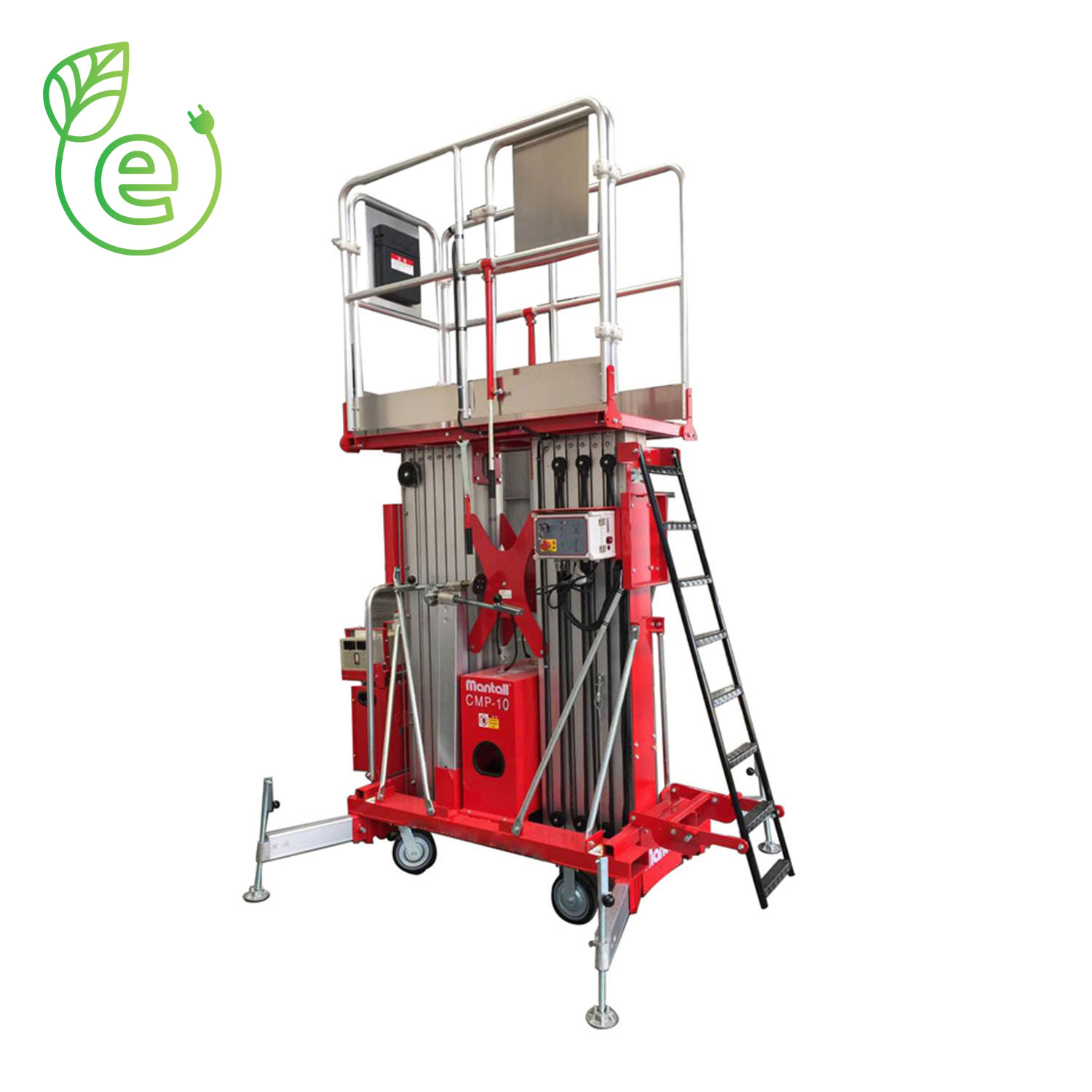

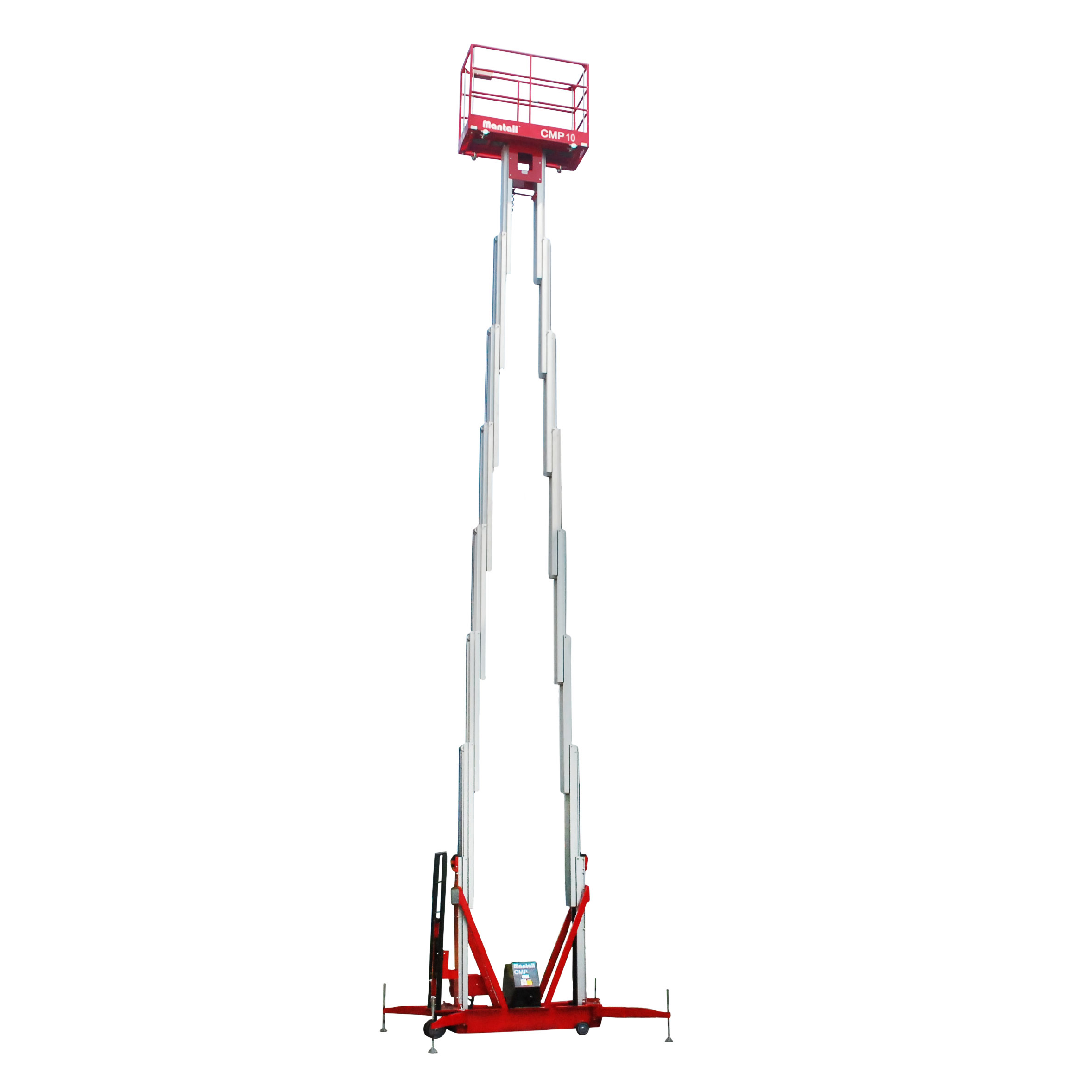

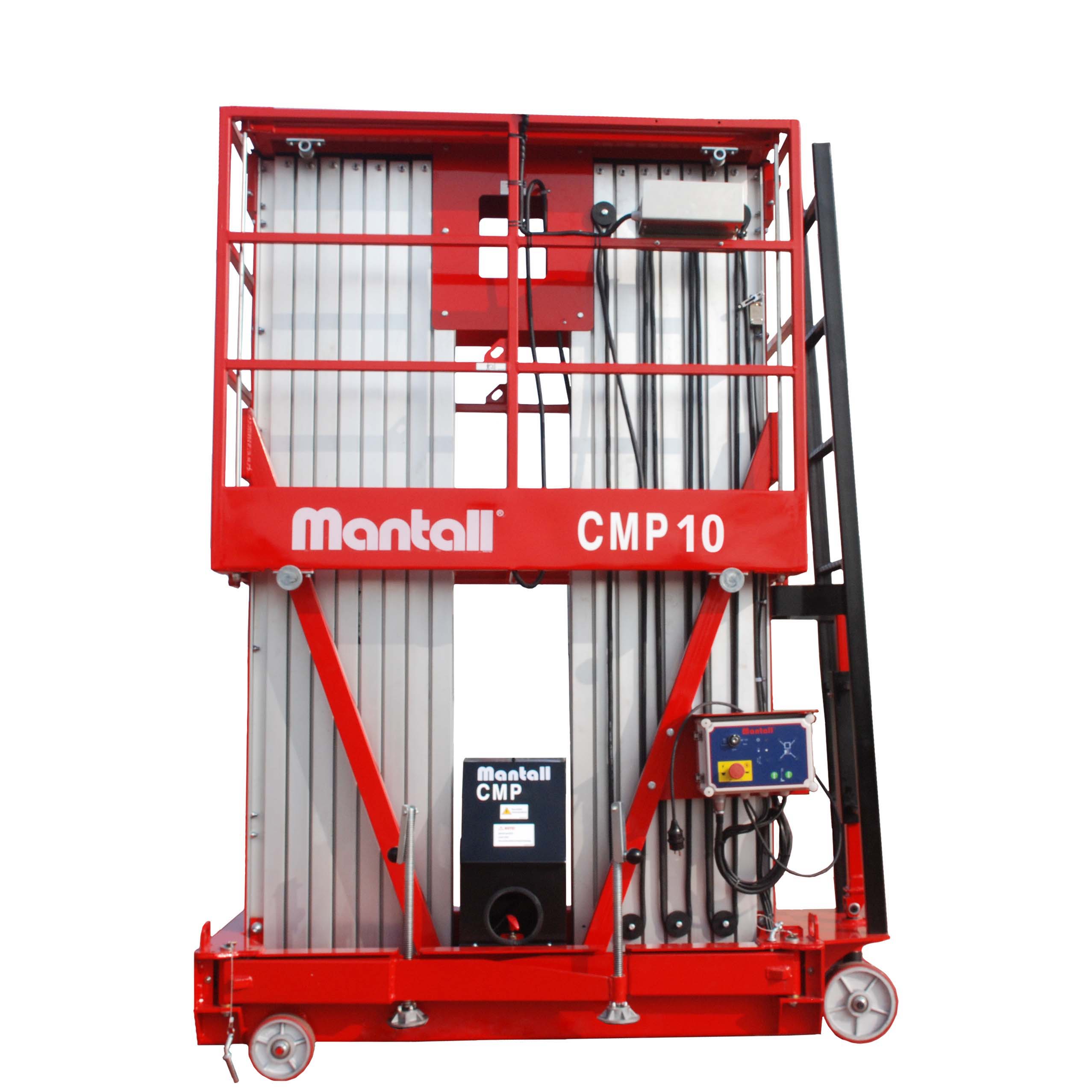

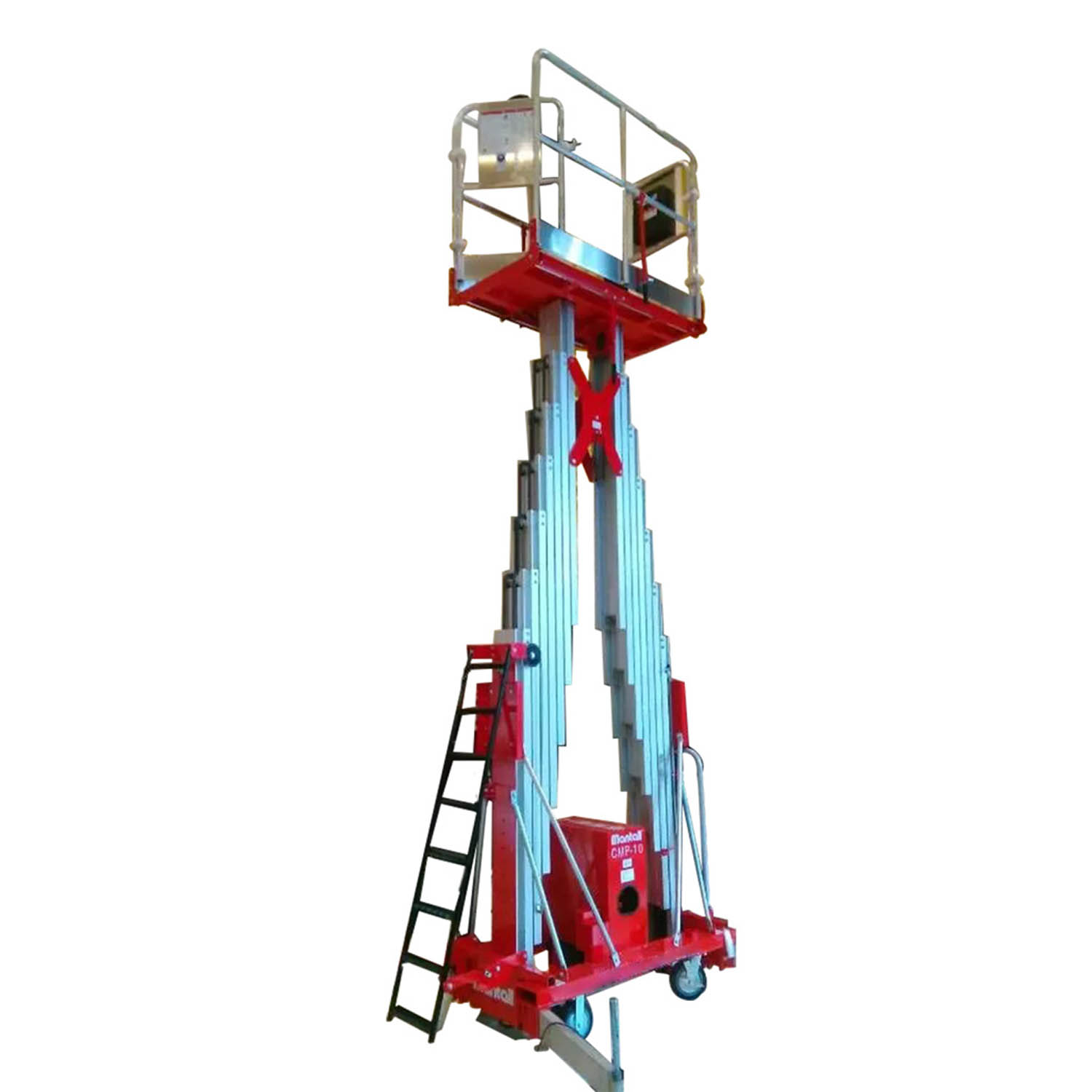

Mantall CMP-10-S – 10m
Mantall CMP series double mast aerial work platforms are economical and portable elevated working platforms that can lift two workers and their tools safely and stably, with a maximum working height of 10 meters. The double mast aerial work platform provides exceptional stability with a high strength aluminum mast system and heavy-duty lifting chains, ensuring the safety of workers.
The robust steel chassis is utilized to further guarantee the safety even when the aerial work platform runs on a harsh working environment. The large platform provides ample space for workers to perform their jobs with ease. In addition, our double mast aerial work platform is provided with dual control system that enables the platform to be moved up and down by simply controlling from either the platform or ground control station.
Call for Price
Send Request- Aluminum Platform Basket
- Polyurethane Non-mark tires
- Forklift Pockets
- Foldable Inclined Ladder
- Two controls: Platform Control and Ground Control
- Lower Beeper warning
- Rotation Platform (CMP18 only)
- Emergercy Lower Down
- Outrigger Storage Frame
- Maintenance-free battery
- Door Type wide Platform
- Narrow/Rough Ground Chassis
- Wide Chassis
- Tool Box
- Platform Positioning Laser light
- Fluorescent Tubes Box
- Working Flashing Beacon
- Top Limit Protection Auto-stop device
- Auxiliary drive wheel
- Equipment Protection cover
