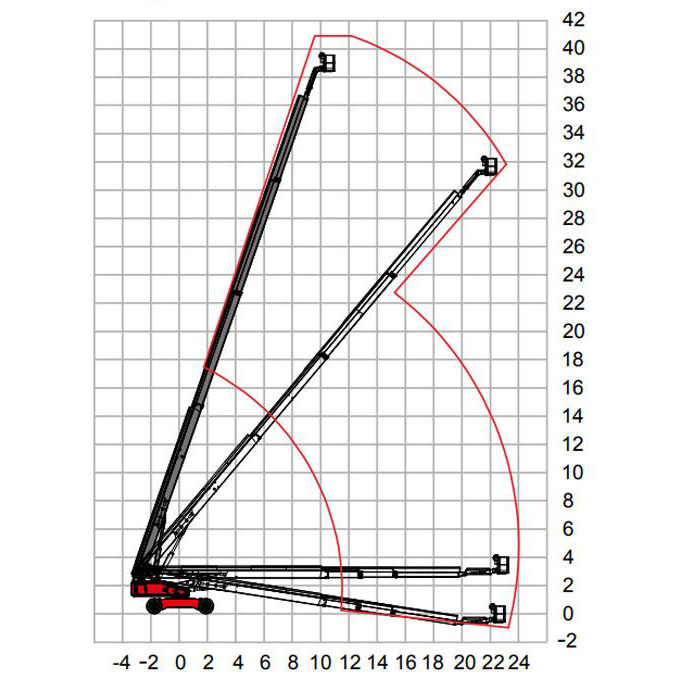

| Working height max H1 | 41m |
|---|---|
| Platform height max H2 | 39m |
| Lifting capacity | 340kg |

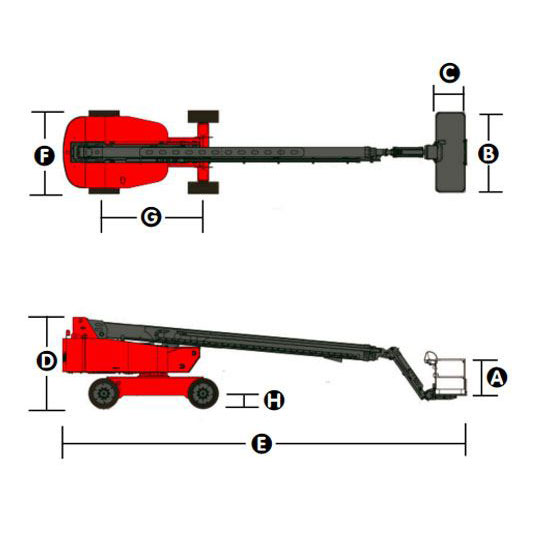

| Platform dimension B*C*A | 1.8 * 0.76 * 1.1m |
| Height D | 3.55m |
| Length E | 16.6m |
| Width F | 2.5m（3.8m） |
| Wheelbase G | 3.8m |
| Ground clearance H | 0.52m |
| Rotation | 360° |
| Platform rotation | 180° |
| Jib swing | 130°（+75°/55°） |
| Speed, platform down | 4.24km/h |
| Speed, platform up | 0.55km/h |
| Max gradeability (2WD) | 25% |
| Max gradeability (4WD) | 40% |
| Drive wheel | 4 |
| Steering wheel | 4 |
| Controller | Electro hydraulic proportional control |
| Voltage | DC 12V |
| Tire | 445/65-24; Rubber Solid Tire |
| Power source | Cummins engine QSF2.8T 54kw |
| Weight | 26500 kg |
| Dimensions | 1660 × 380 × 355 cm |

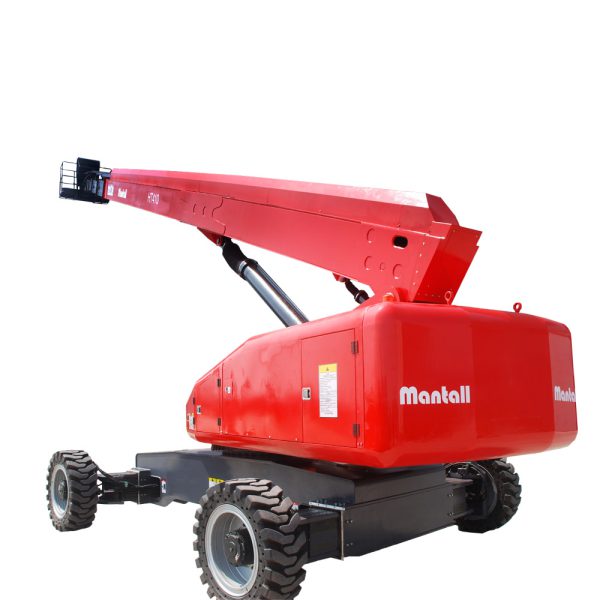

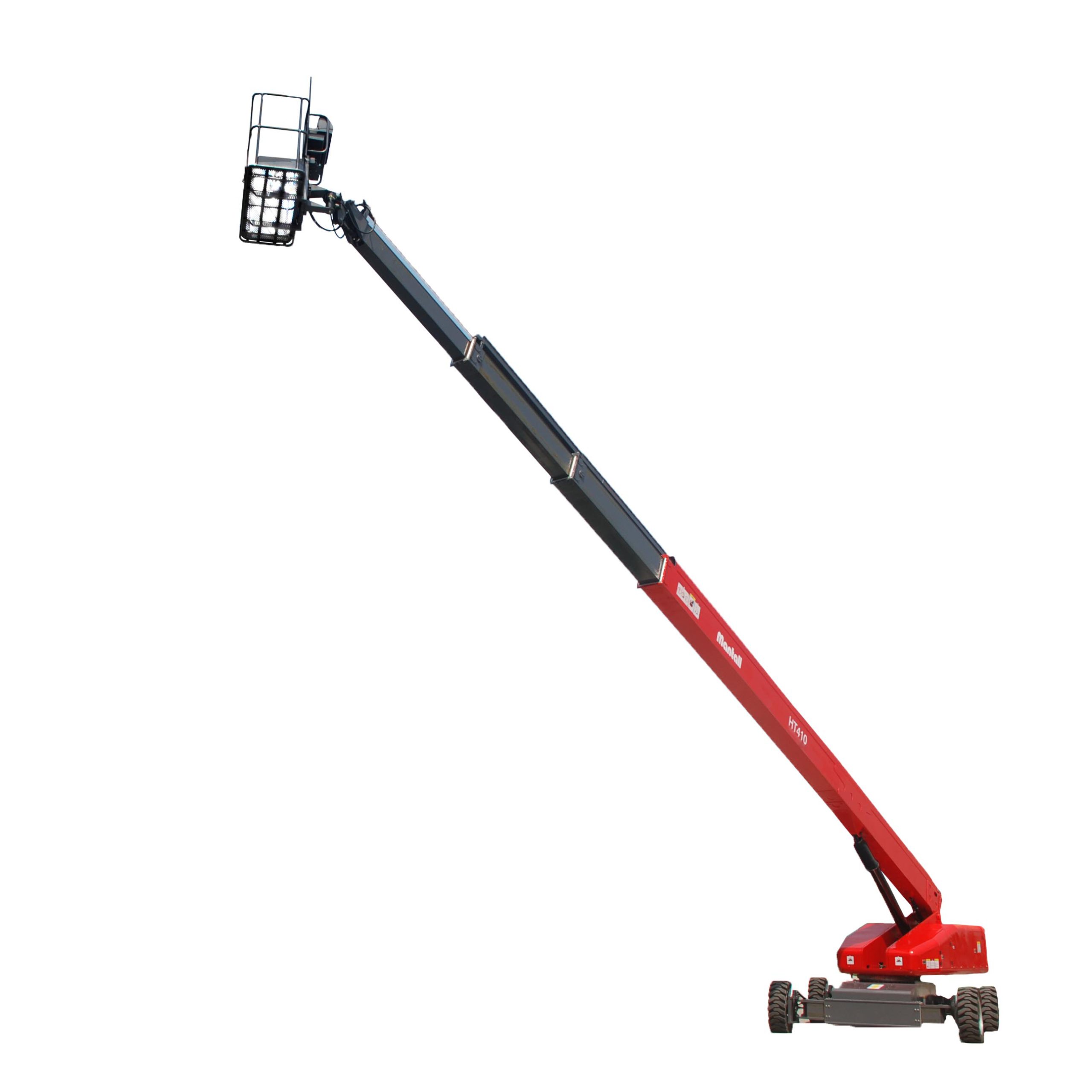

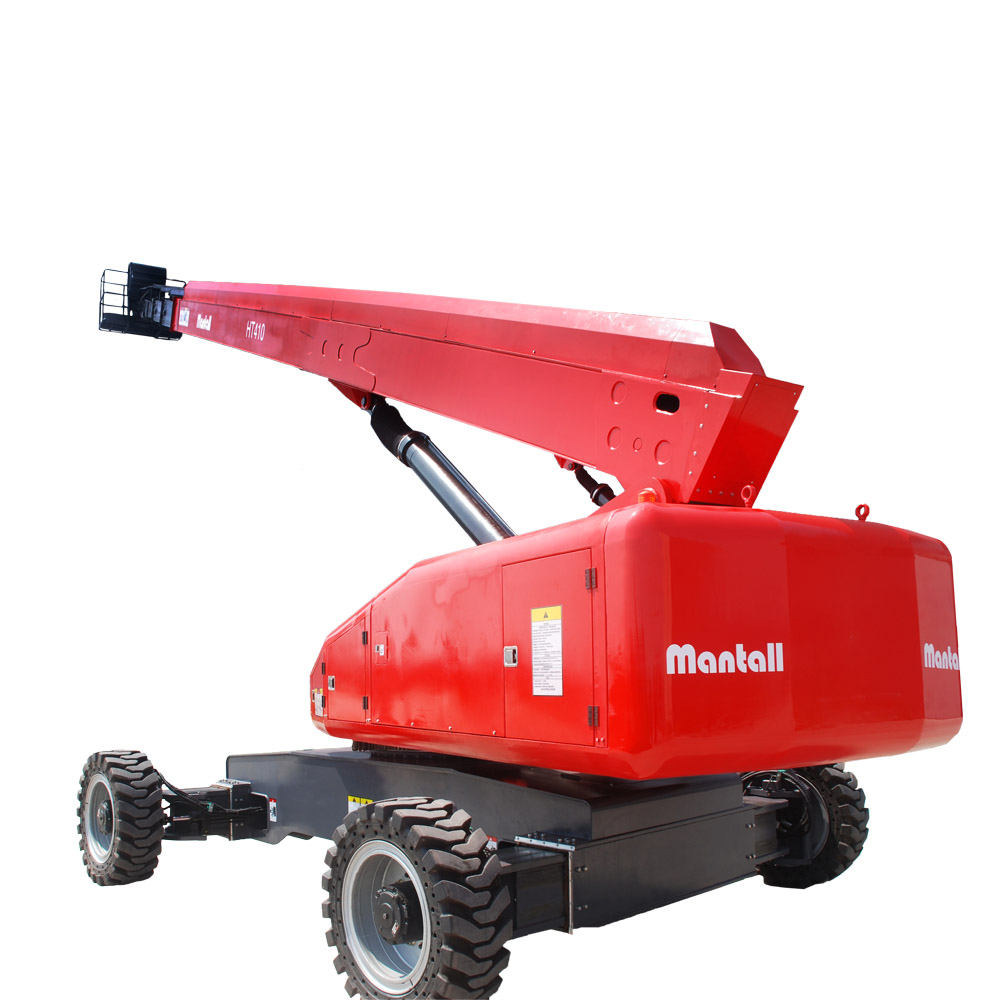

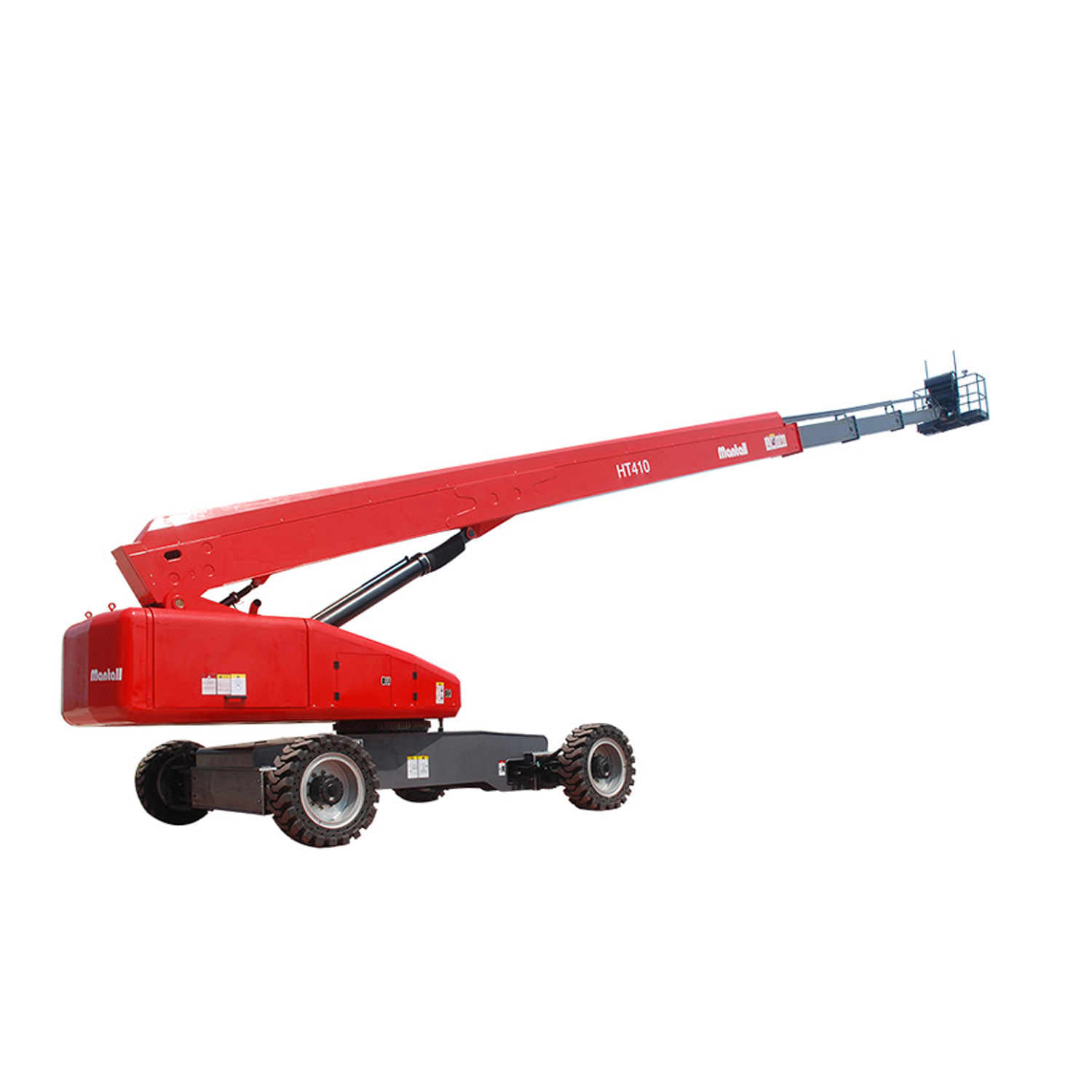

Mantall HT410J – 41m
Mantall HT410J telescopic boom lift has a working height of up to 41m with a jib, a maximum lifting capacity of 340kg, and is equipped with a large platform that can accommodate up to three workers and tools.
360-degree turntable rotation provides excellent flexibility for difficult work site applications. HT410J telescopic boom lift has a change mode of travel speed, which can adapt to various rough terrains.
Call for Price
Send RequestStandard Features
- Self-leveling platform
- Hydraulic rotation platform
- Hall effect fully proportional controls
- Driving confirm
- AC wiring to platform
- 360° Turntable rotation
- Horn
- Hour meter
- Tilt alarm
- Positive traction drive
- Dual Speed motor
- Emergency pump
- CAN intelligent control
- Overload sensor
Optional
- Platform swing gate
- Platform alternate leverage
- Welder connecting packages
- Welder wire connecting to the platform
- Airline to platform
- Hydraulic oil cooler
- Hostile environment packages
- Anti-crash air packages
- Tool tray
- Alarm packages
- Platform work lights
- Traction packages
- AC power source
- Oscillating axle
