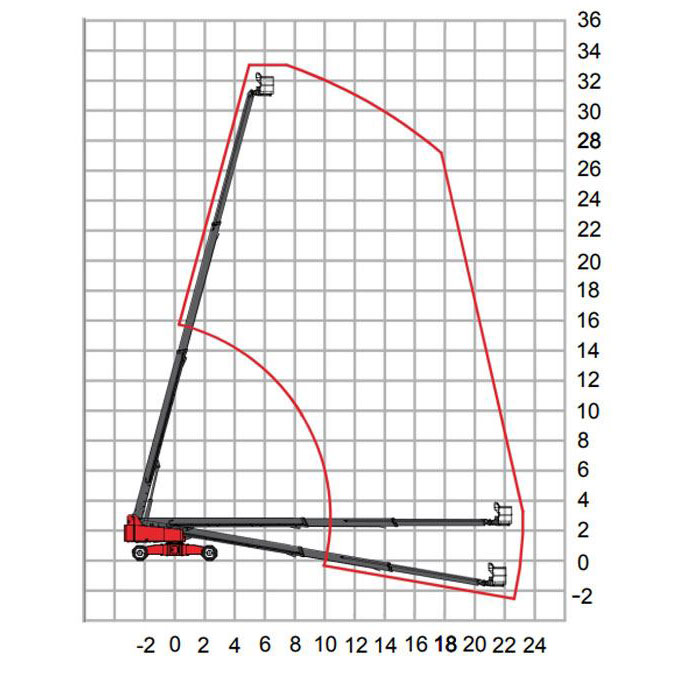

| Max. working heigh H1 | 33m |
|---|---|
| Max. platform height H2 | 31m |
| Max. outreach | 23m |
| Lifting capacity | 300kg |

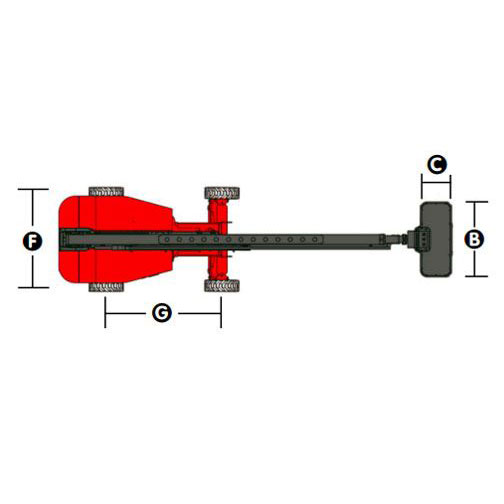

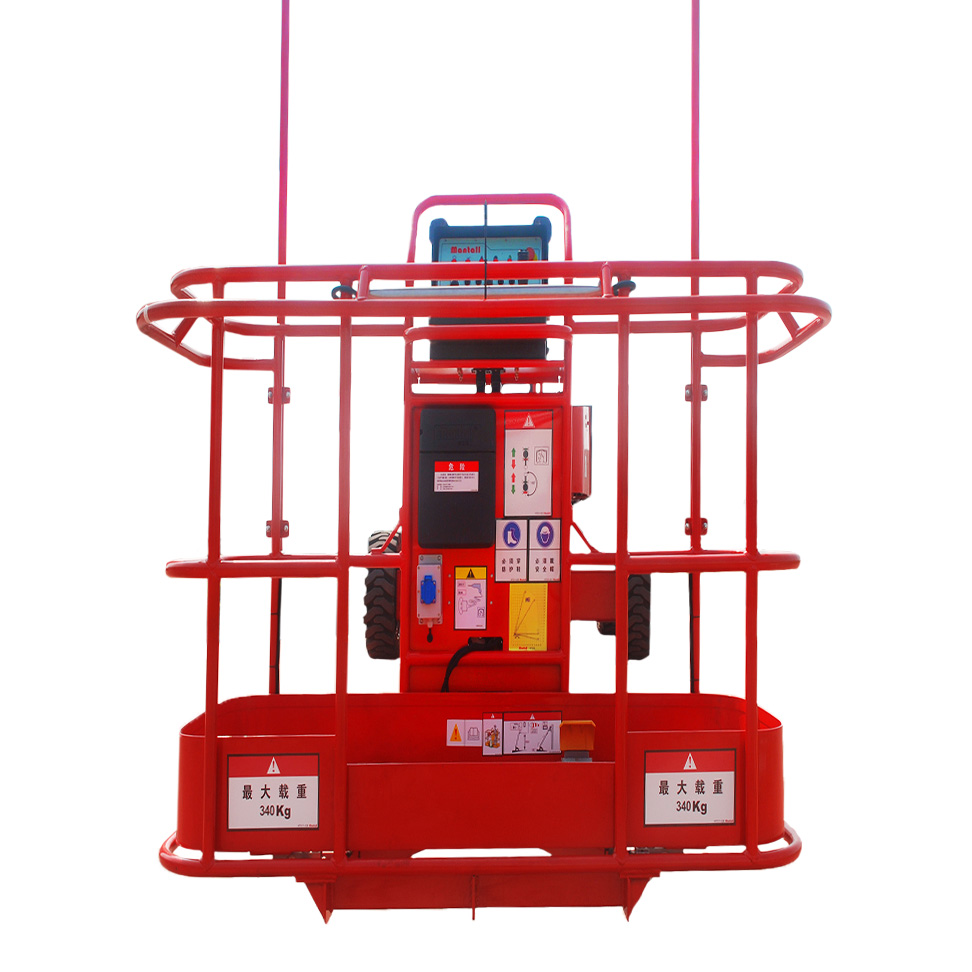

| Platform size B*C*A | 2.44 * 0.91 * 1.1m |

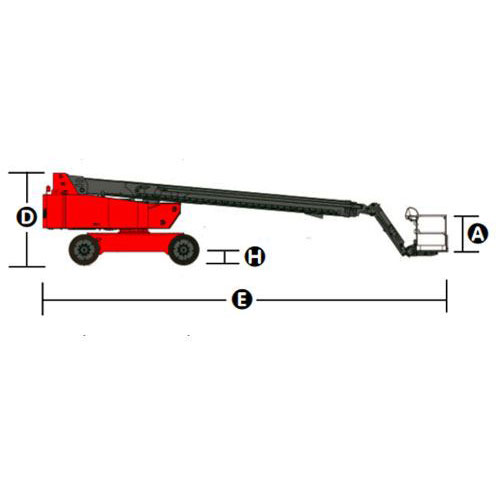

| Height D | 3.05m |
| Length E | 14.1m |
| Width F | 2.49/3.95m |
| Wheelbase G | 4.846/4.633m |
| Ground clearance H | 0.33m |
| Rotation | 360° |
| Rear swing | 1.4m |
| Platform rotation | 180° |
| Jib swing | – |
| Speed, platform down | 4.2km/h |
| Speed, platform up | 1.1km/h |
| Gradeability (4WD) | 40% |
| Turning radius inside | 4.08m |
| Turning radius outside | 6.89m |
| Drive wheel | 4 |
| Steering wheel | 4 |

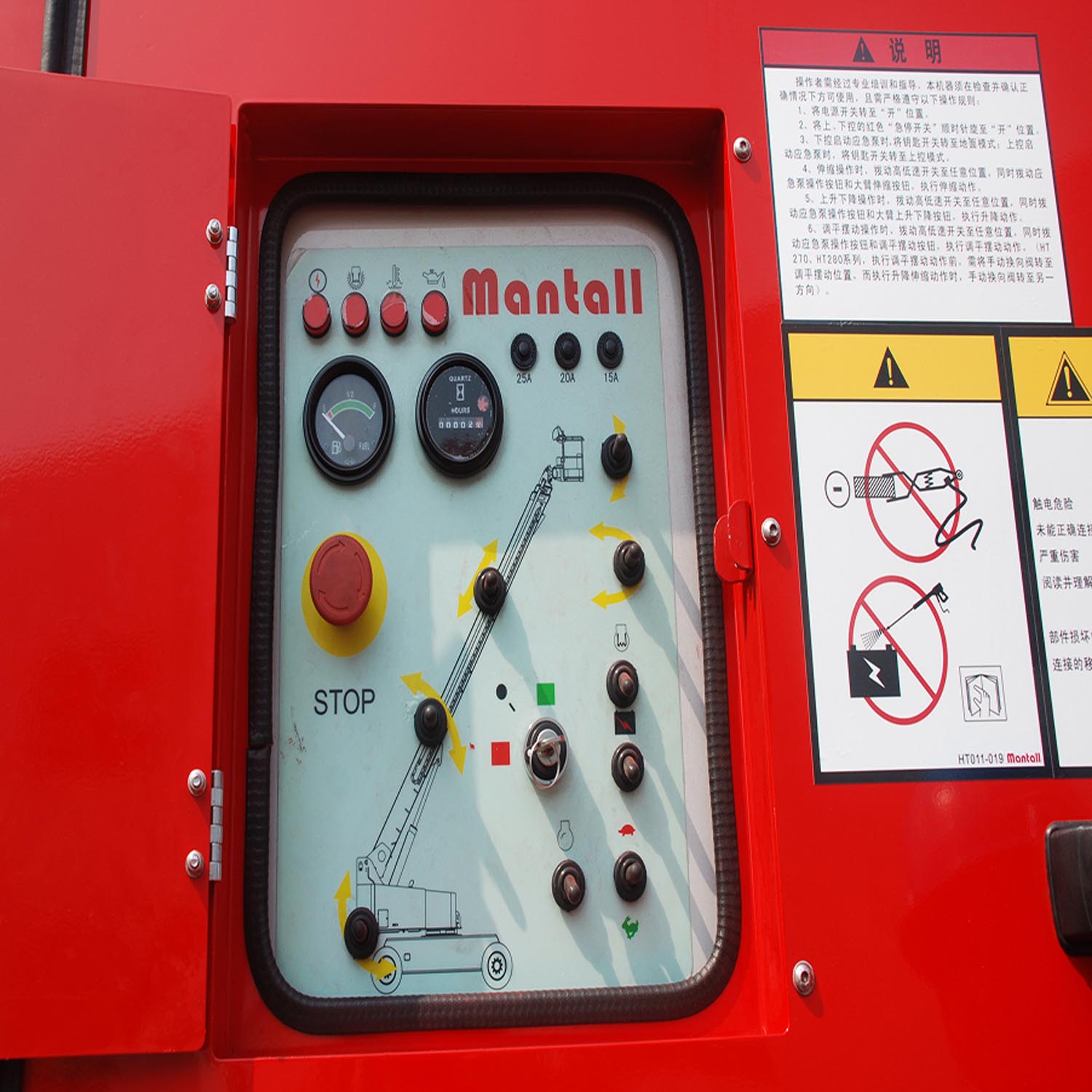

| Controls | Electro hydraulic proportional control |
| Voltage | DC 12V |

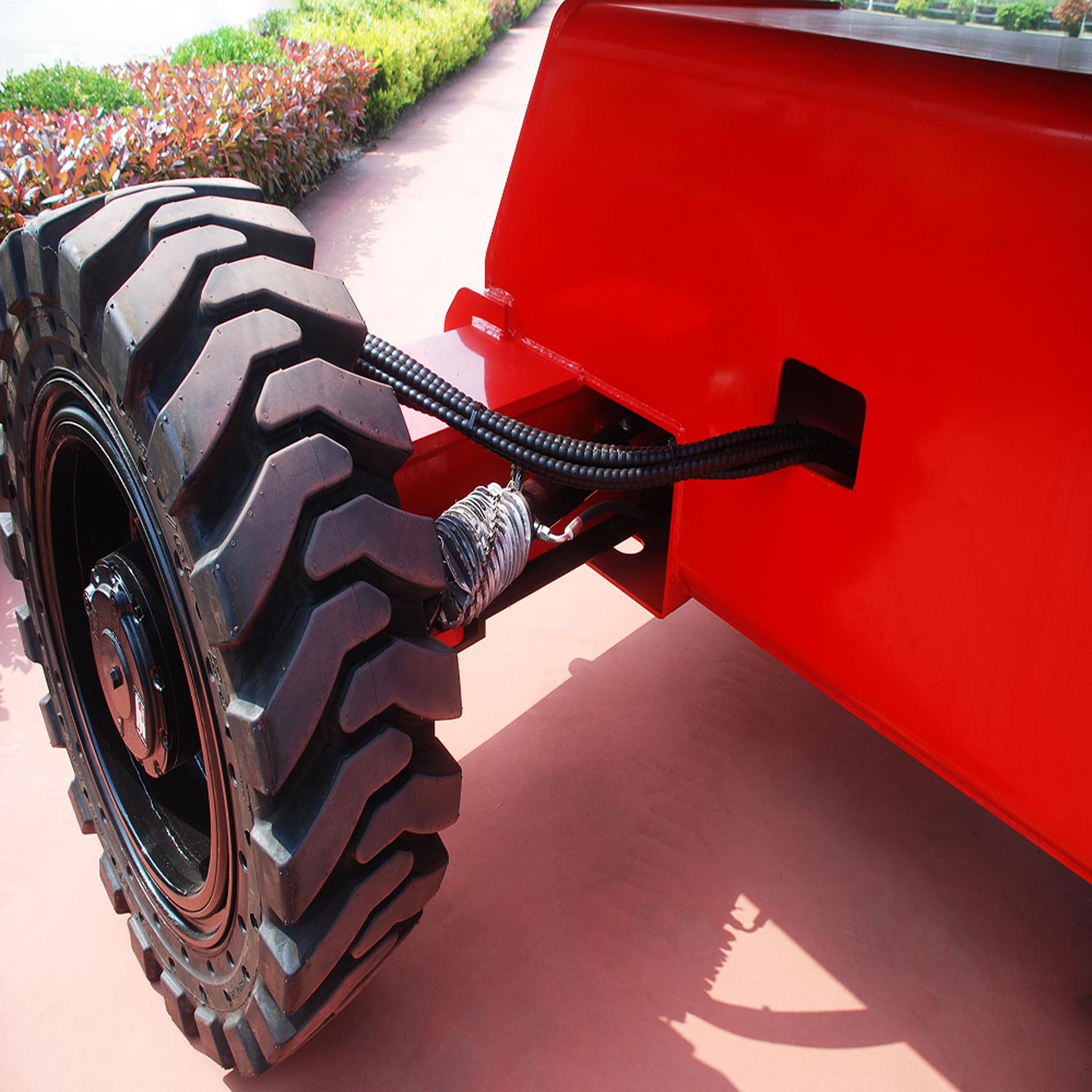

| Tire | 385/65-24 |
| Max. tilt | 3° |
| Power source | Cummins engine QSF2.8T-C72 54kw |
| Weight | 20500 kg |
| Dimensions | 1410 × 395 × 305 cm |

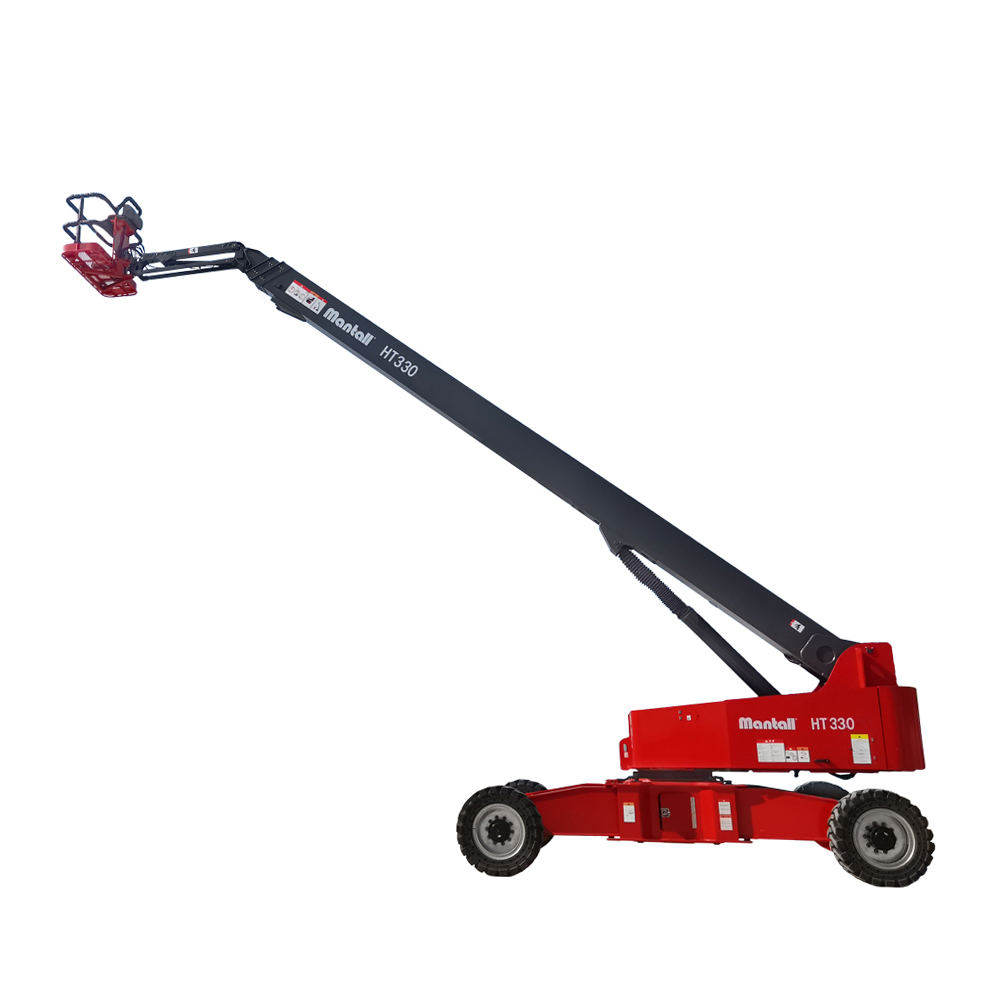

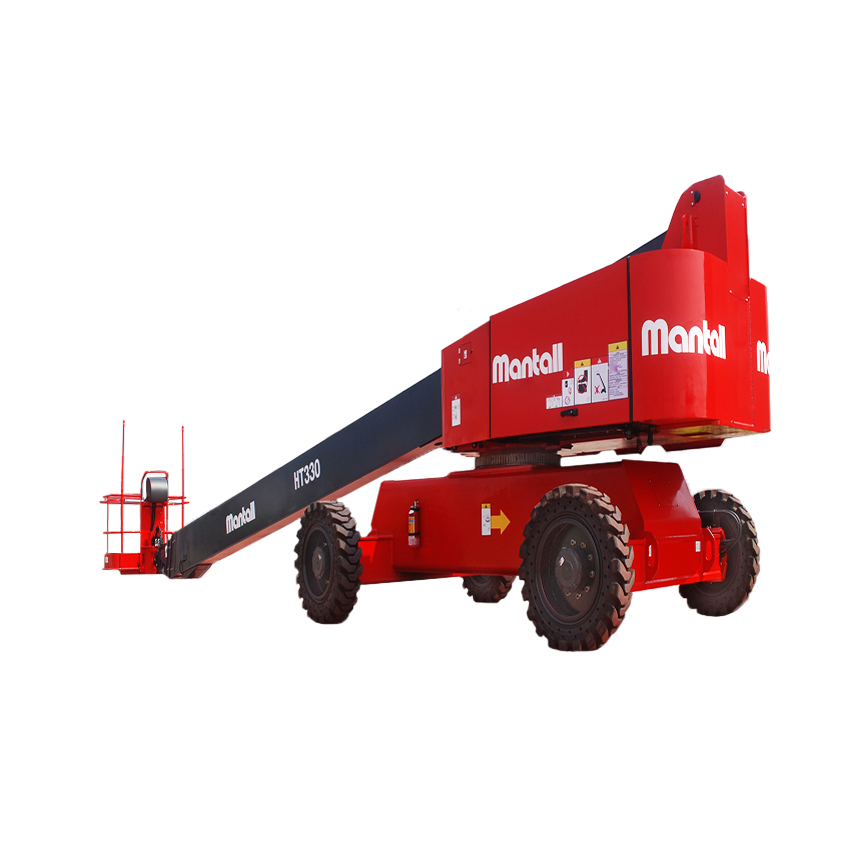

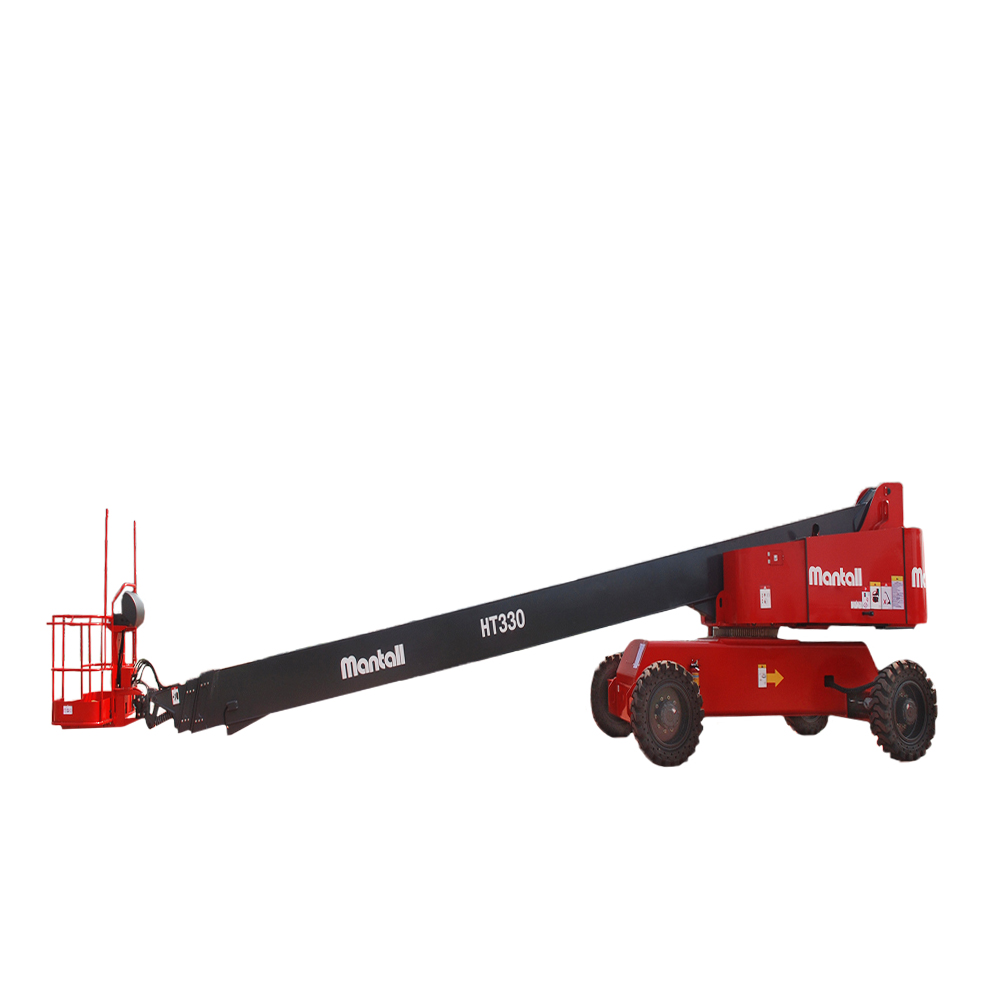

Mantall HT330 – 33m

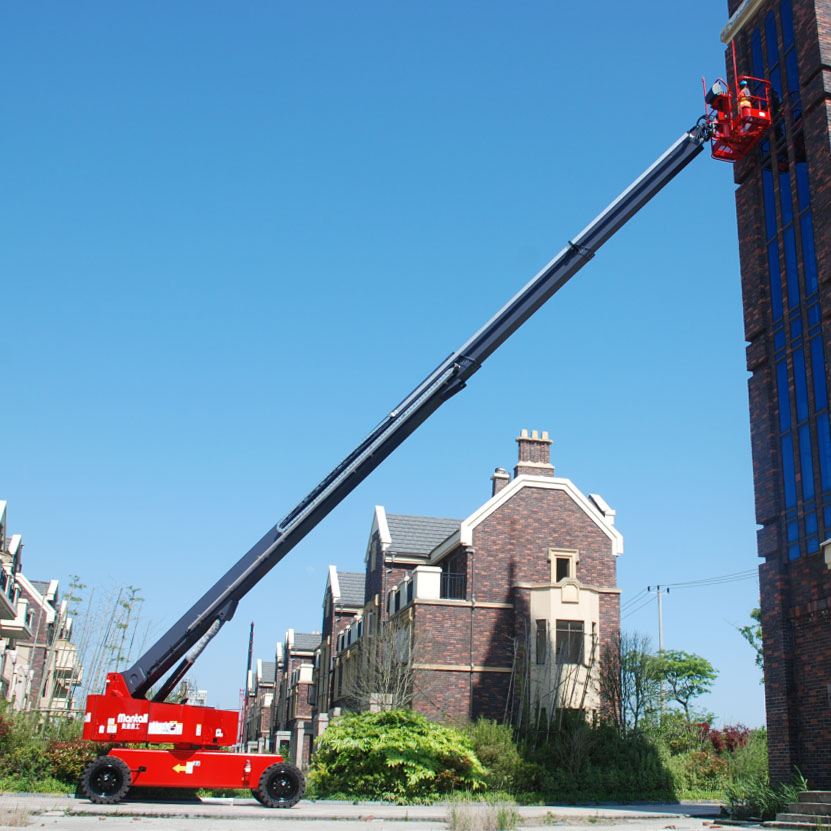

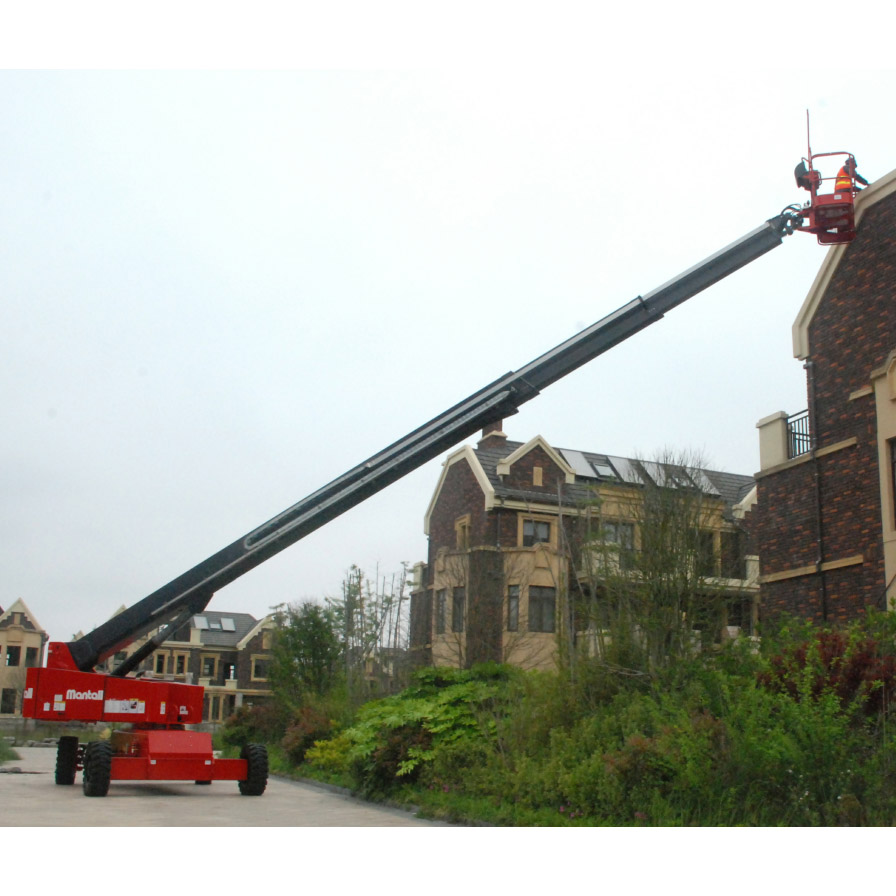

Mantall HT330 telescopic boom lift has a working height of up to 33m, a maximum lifting capacity of 300kg, and is equipped with a large platform that can accommodate up to three workers and tools.

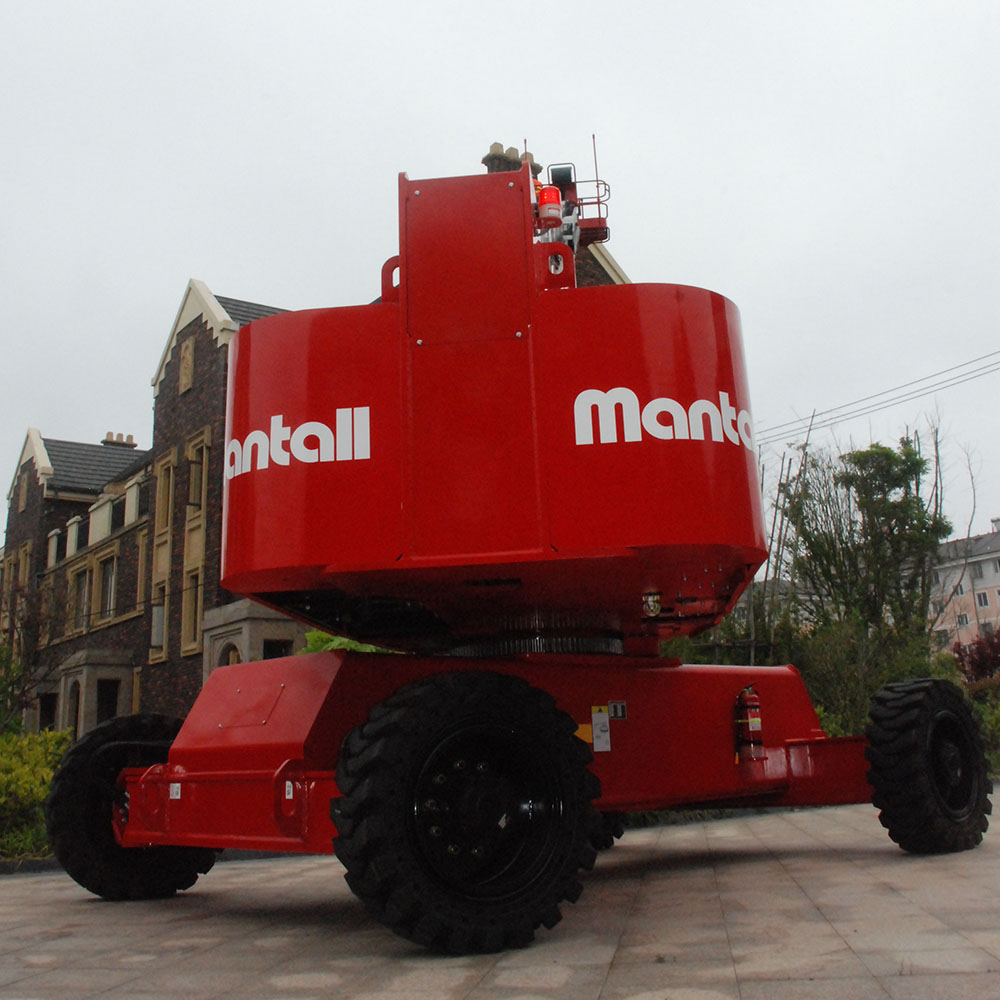

360-degree turntable rotation provides excellent flexibility for difficult work site applications. HT330 telescopic boom lift has a change mode of travel speed, which can adapt to various rough terrains.
Call for Price
Send RequestStandard Features
- Self-leveling platform
- Hydraulic rotation platform
- Hall effect fully proportional controls
- Driving confirm
- AC wiring to platform
- 360° Turntable rotation
- Horn
- Hour meter
- Tilt alarm
- Positive traction drive
- Dual Speed motor
- Emergency pump
- CAN intelligent control
- Overload sensor
Optional
- Platform swing gate
- Platform alternate leverage
- Welder connecting packages
- Welder wire connecting to the platform
- Airline to platform
- Hydraulic oil cooler
- Hostile environment packages
- Anti-crash air packages
- Tool tray
- Alarm packages
- Platform work lights
- Traction packages
- AC power source
- Oscillating axle
