| Working height max H1 | 27m |
|---|---|
| Platform height max H2 | 25m |

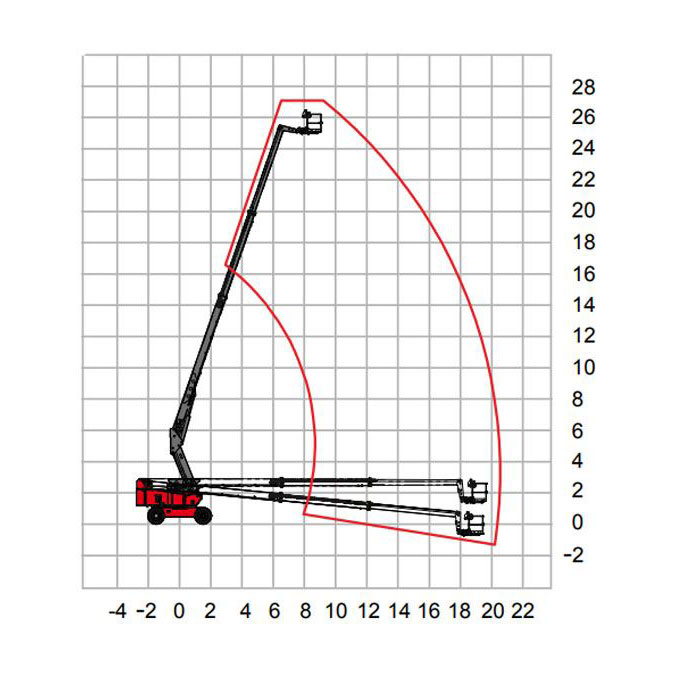

| Max range | 20.2m |
| Lifting capacity | 230kg |
| Platform dimension B*C*A | 1.8 * 0.76 * 1.1m |
| Height D | 2.8m |
| Length E | 11.168m |
| Width F | 2.3/2.5m |
| Wheelbase G | 3.0m |
| Ground clearance H | 0.4m |
| Rotation | 360° |
| Rear swing | 1.5m |
| Platform rotation | 180° |
| Jib Swing | – |
| Speed, platform down | 5.1km/h |
| Speed, platform up | 1.1km/h |
| Max gradeability (4WD) | 45% |
| Turning radius inside | 3.6m |
| Turning radius outside | 6.88m |
| Drive wheel | 4 |
| Steering wheel | 2 |

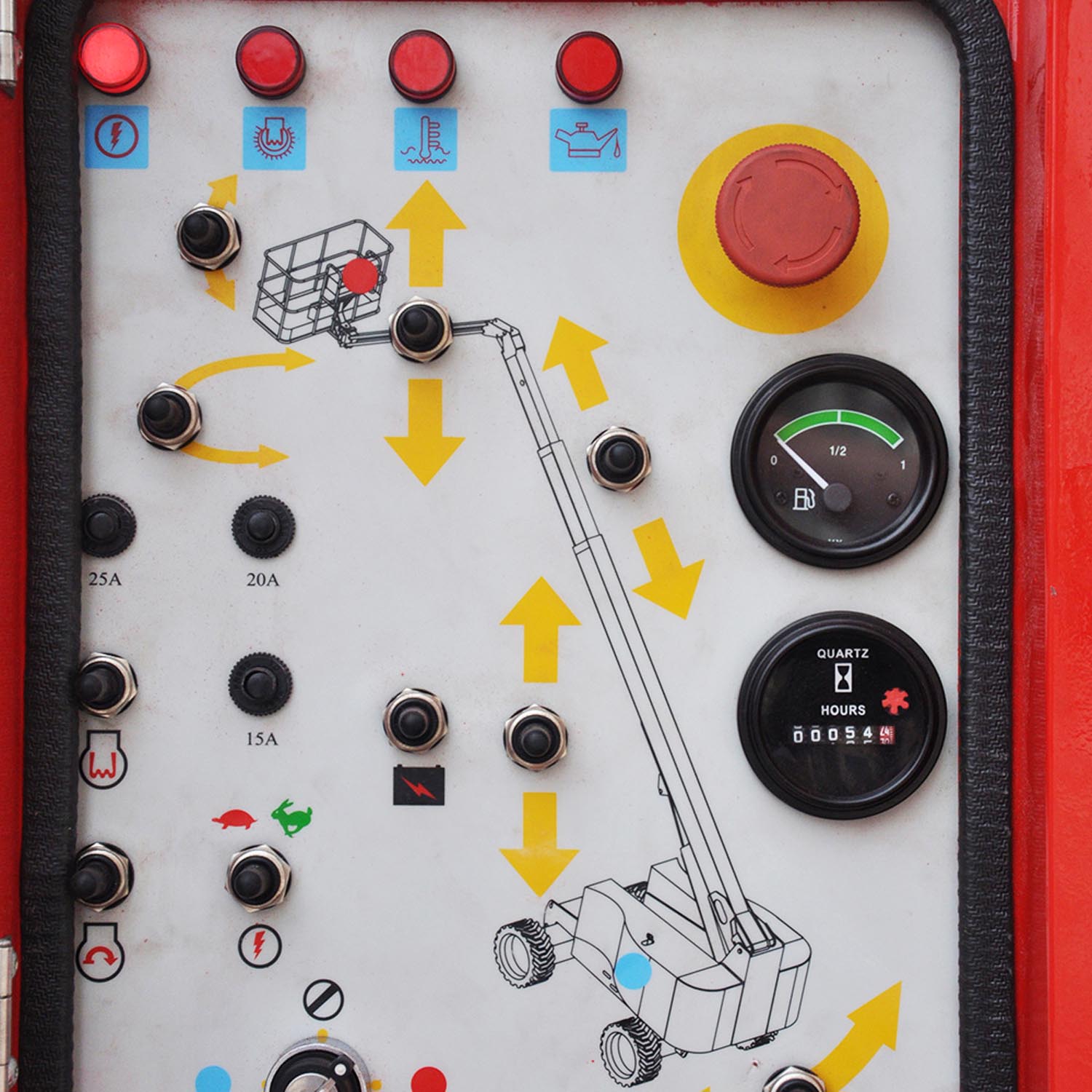

| Controller | Electro Hydraulic proportional control |
| Voltage | DC 12V |
| Tire | 36/14-20; Rubber solid tires |
| Power source | Cummins engine QSF2.8T 54kw |
| Total weight (with oscillating axle) kg | 16100 |
| Total weight (without oscillating axle) kg | 15400 |
| Dimensions | 1116.8 × 250 × 280 cm |

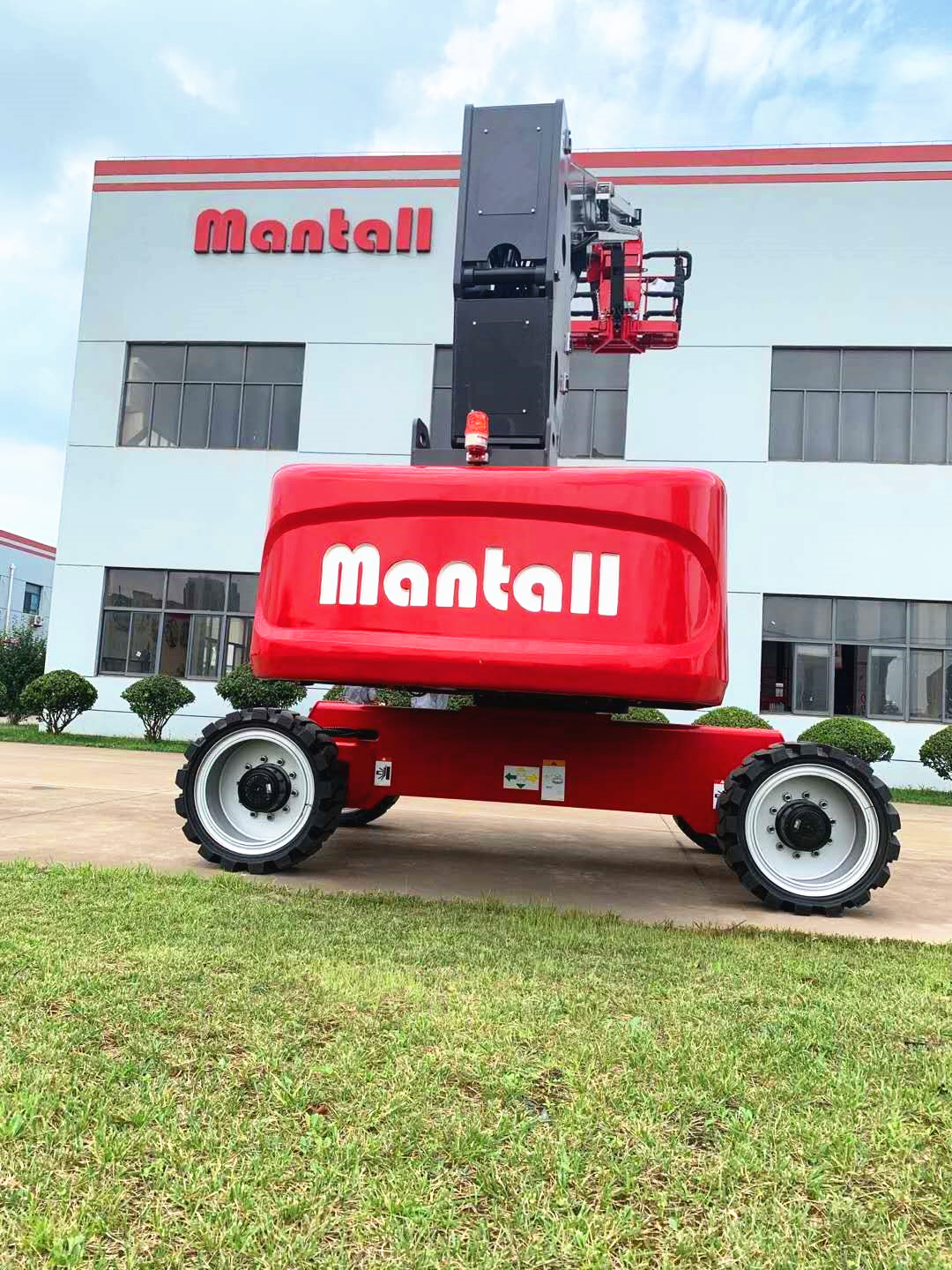

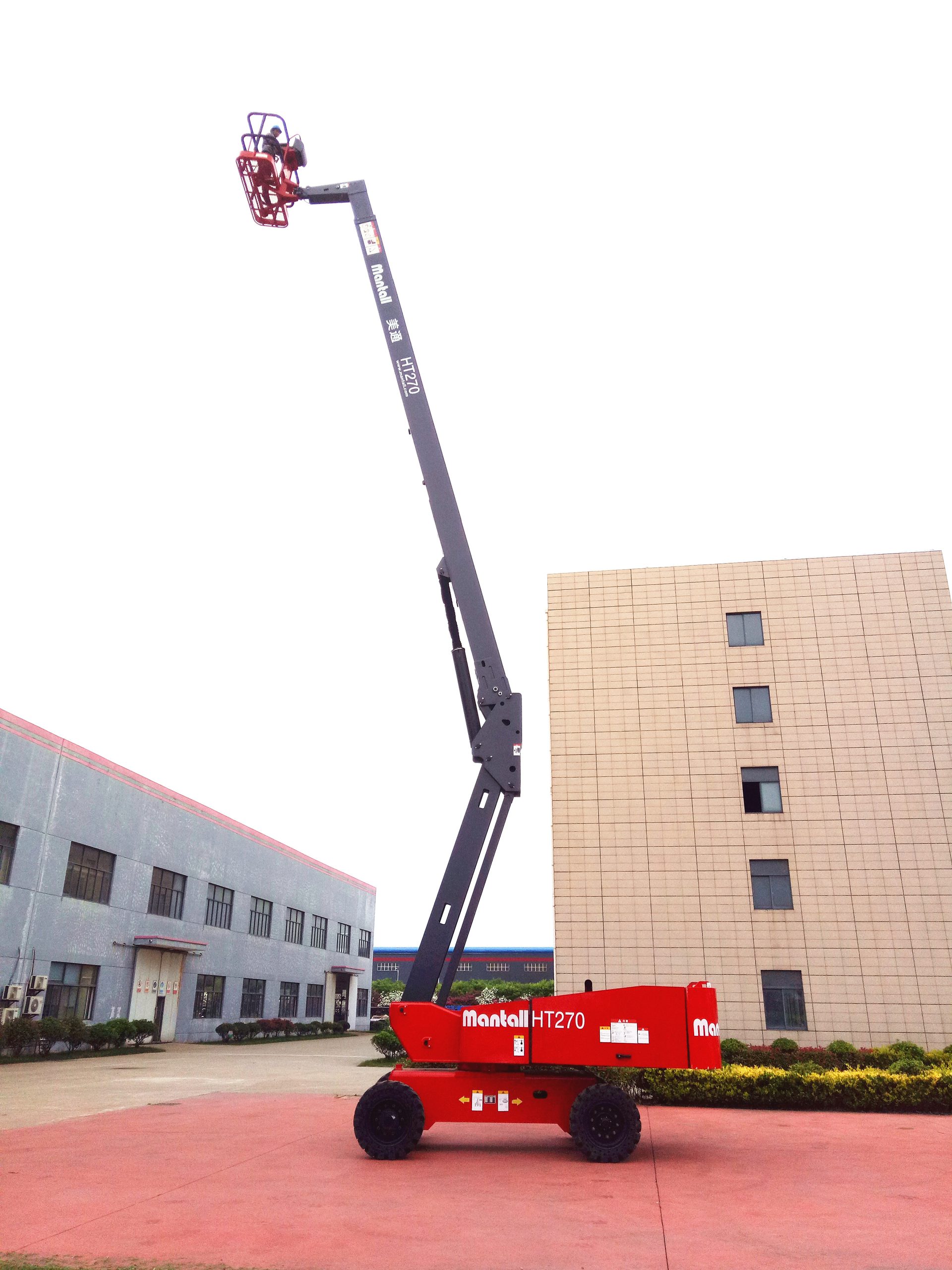

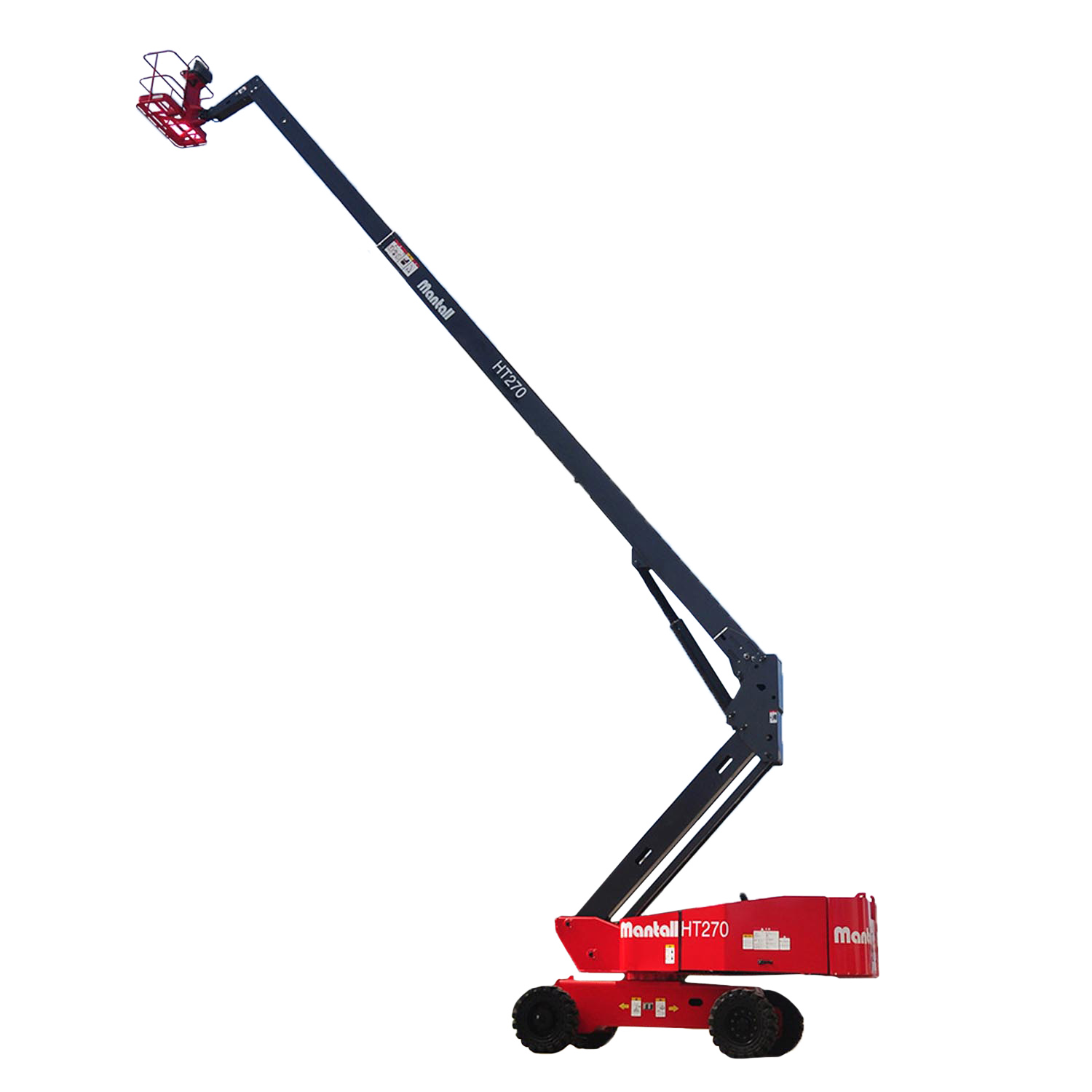

Mantall HT270 – 27m

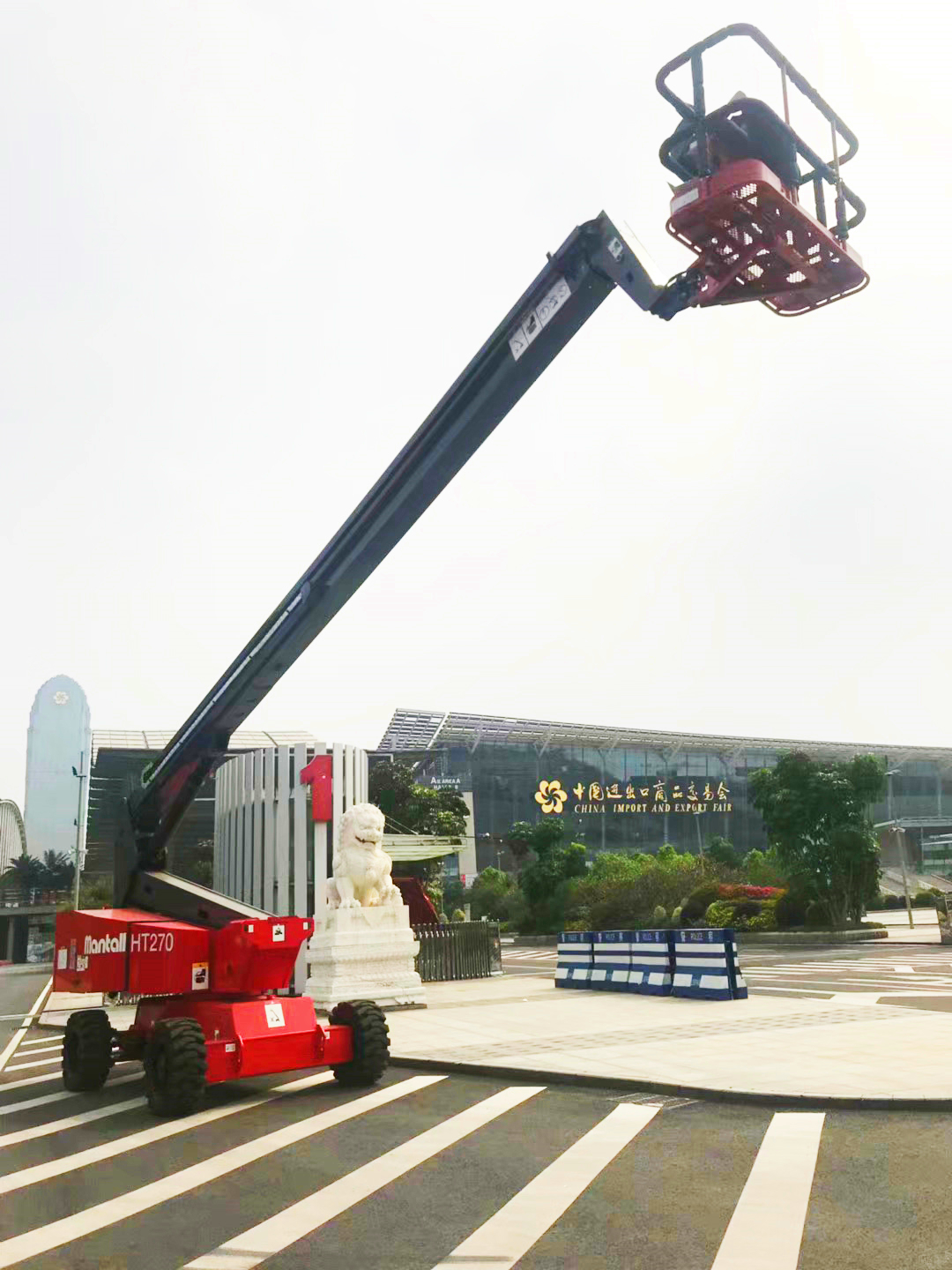

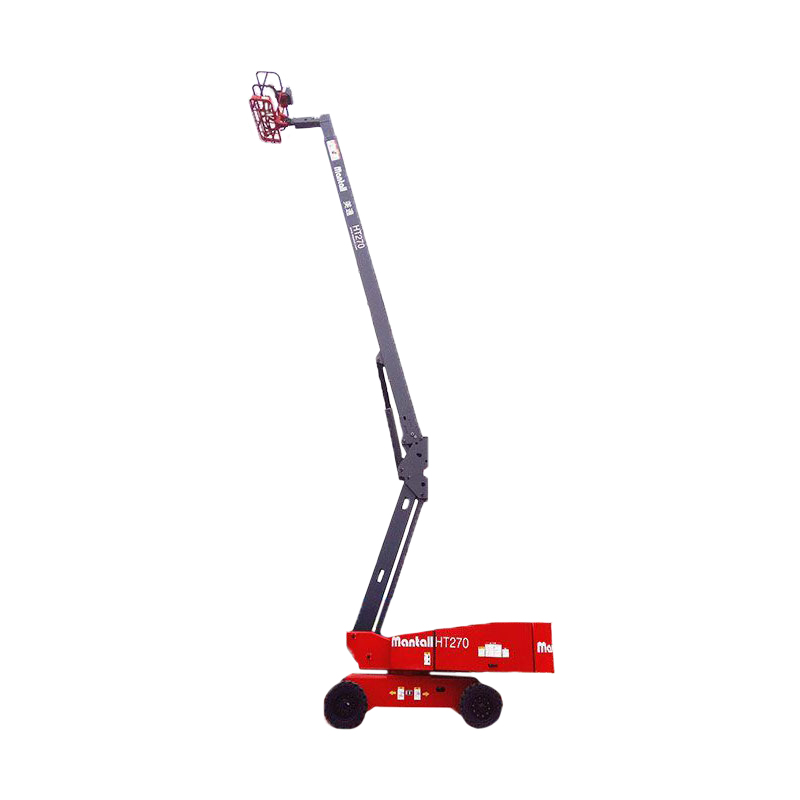

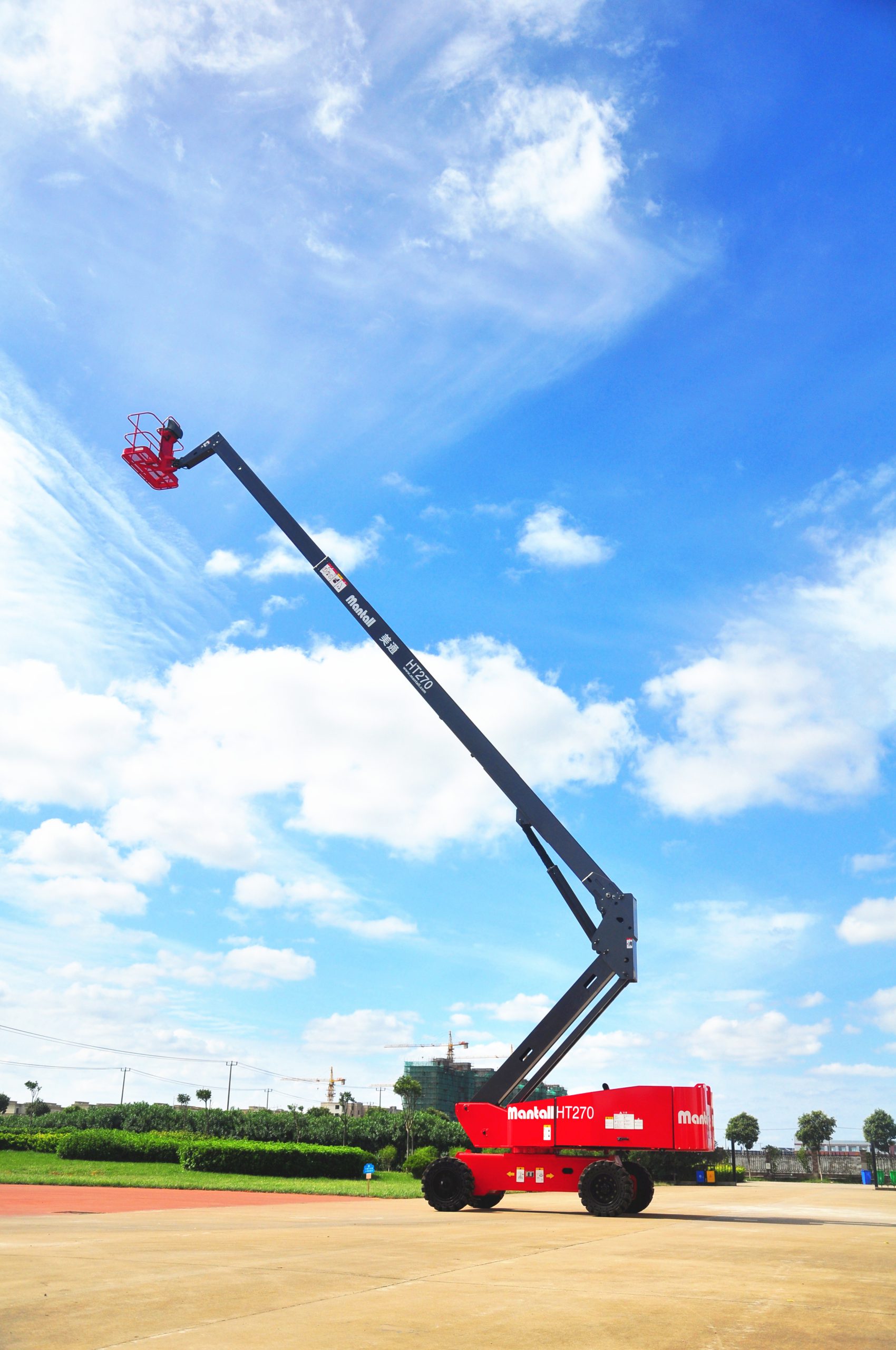

Mantall® HT270 telescopic boom lift has a working height of up to 27 meters and a horizontal working range of 20.2 meters. The 180-degree rotating large platform has a maximum lifting capacity of 230kg.
The 360-degree turntable rotation provides flexibility for difficult job site applications. HT270 is powered by a diesel engine with 4 drive wheels and has a 45% gradeability.
HT270 telescopic boom lift has a variable drive speed mode to adapt to various rough terrains.
Call for Price
Send RequestStandard Features
- Self-leveling platform
- Hydraulic rotation platform

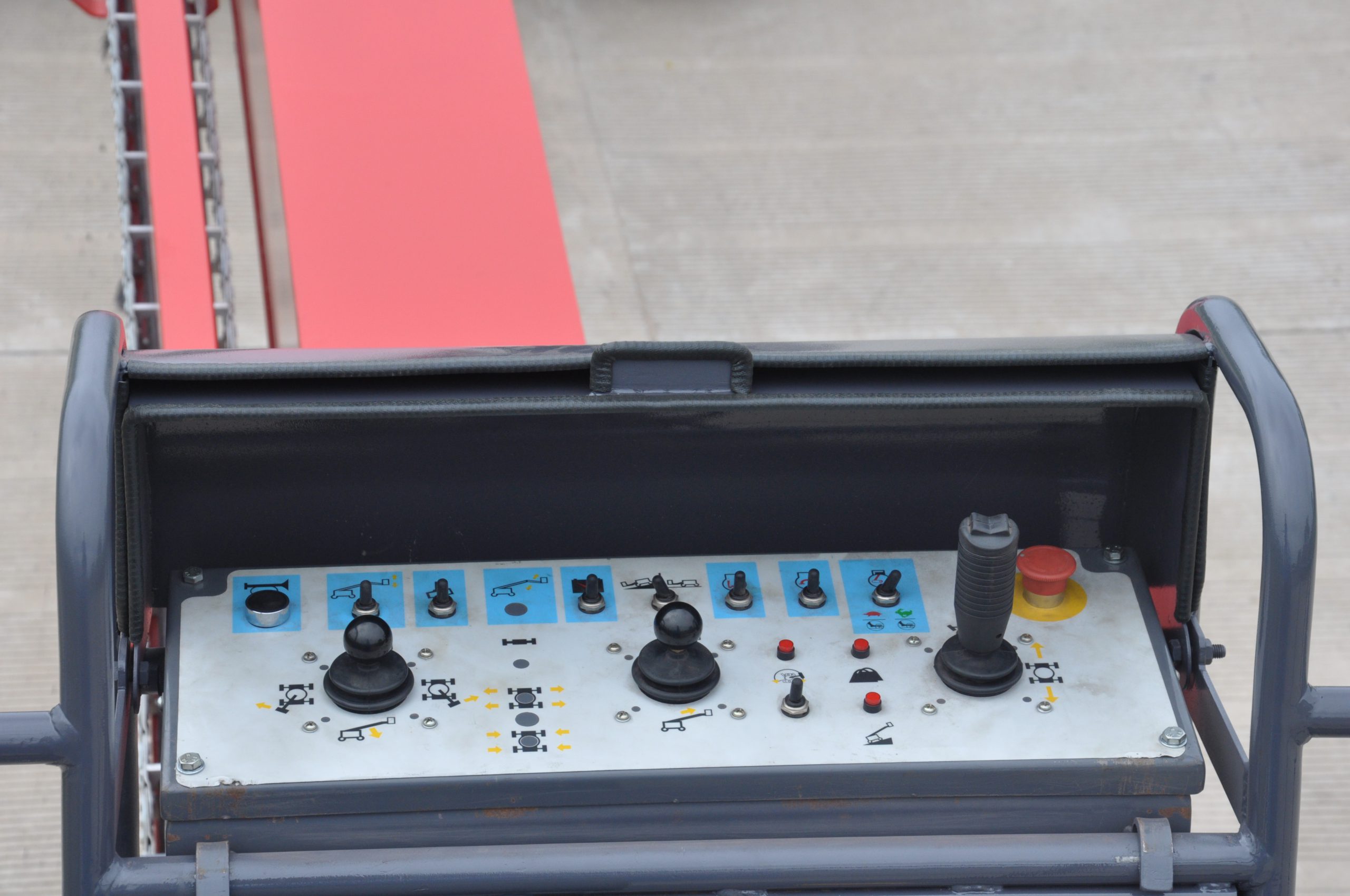

- Hall effect fully proportional controls
- Driving confirm

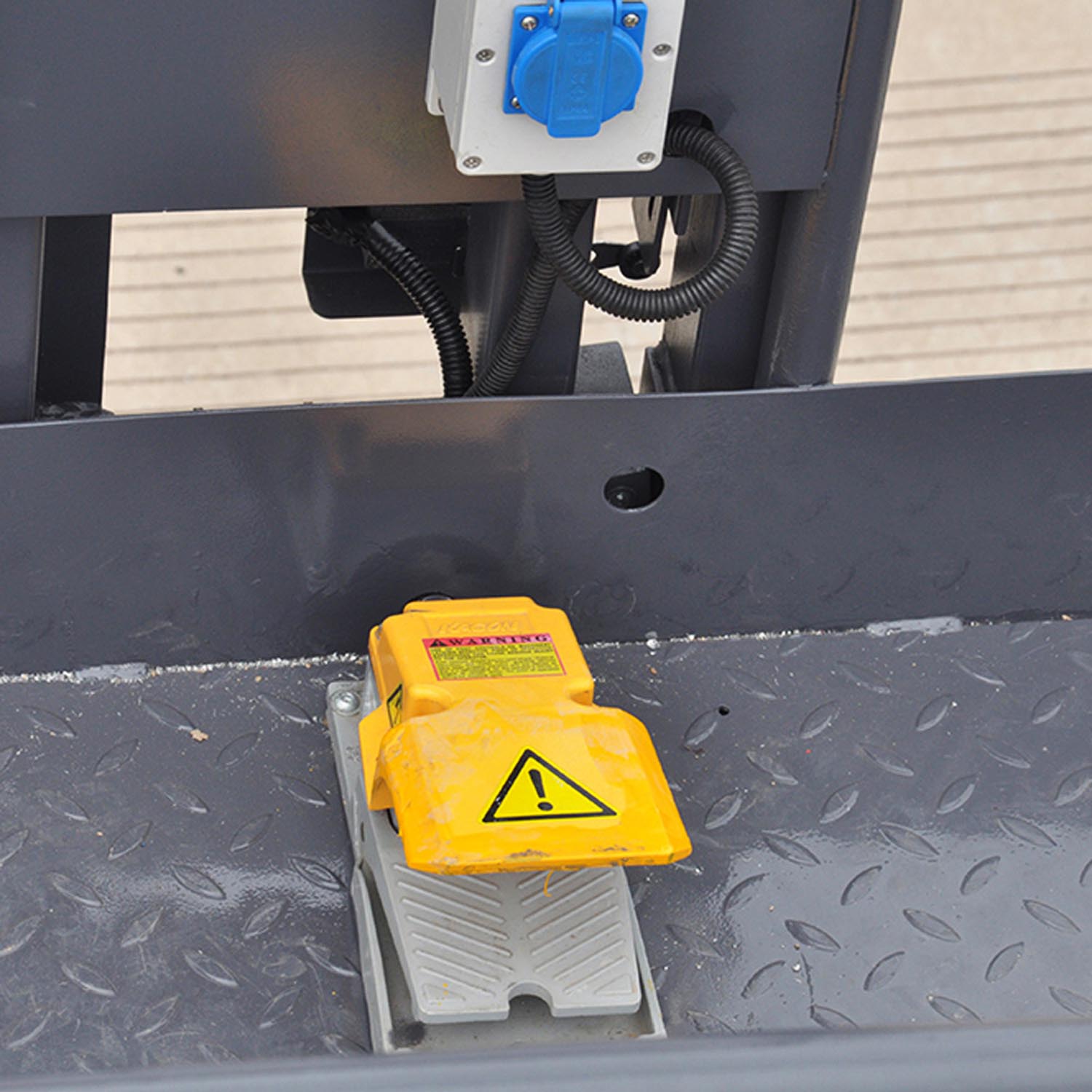

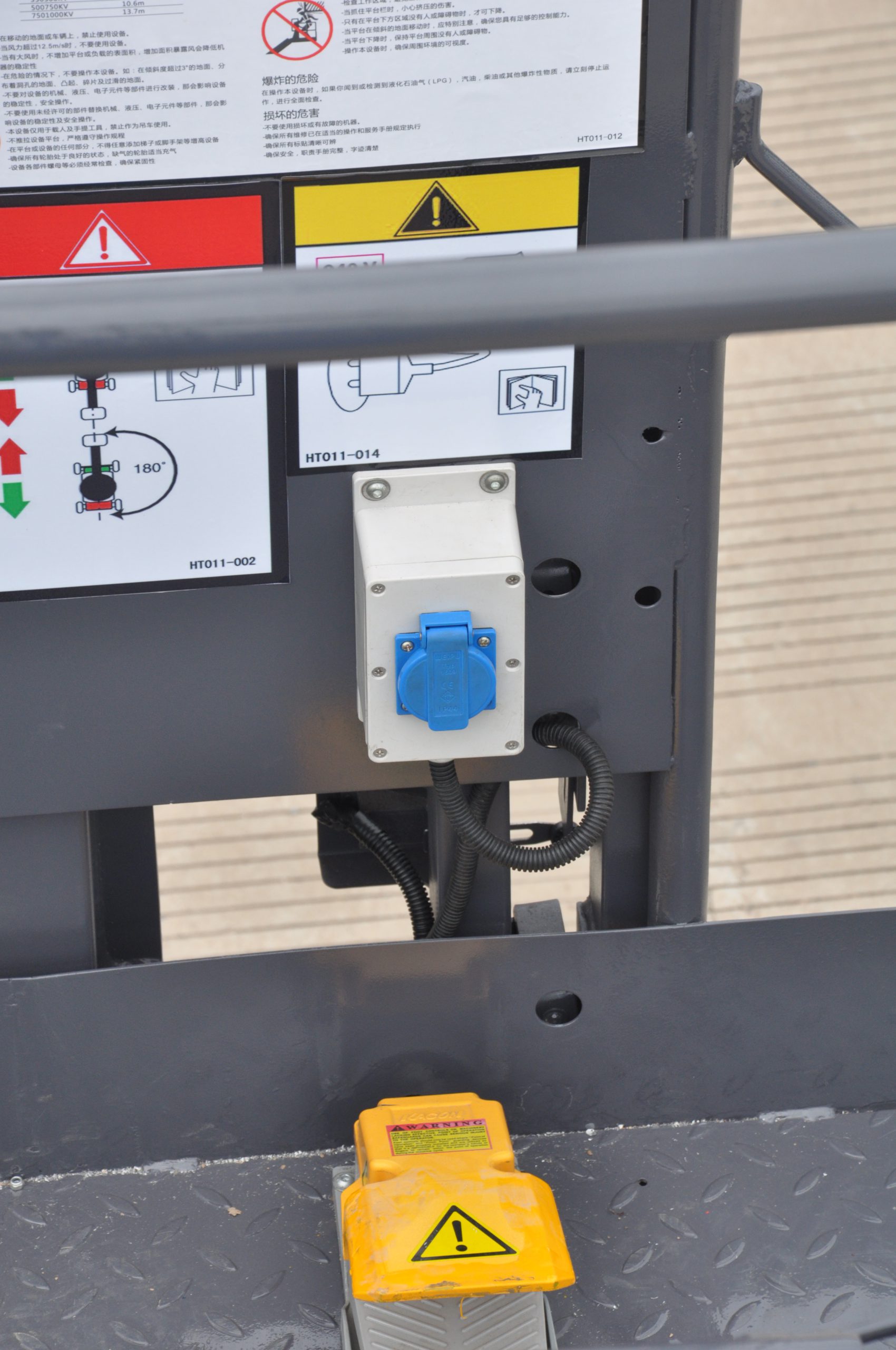

- AC wiring to platform
- 360° Turntable rotation
- Horn
- Hour meter
- Tilt alarm
- Positive traction drive
- Dual Speed motor

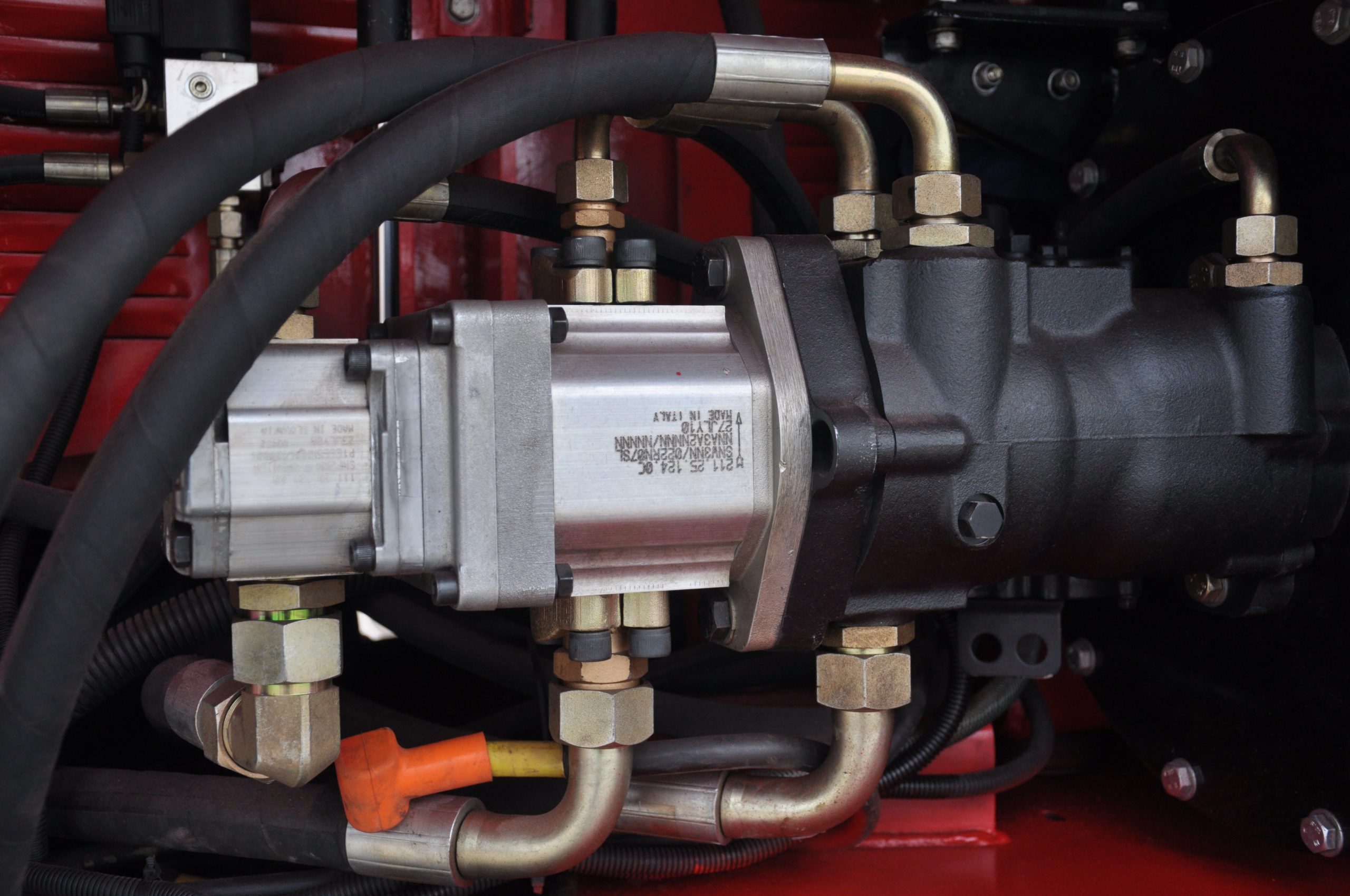

- Emergency pump
- CAN intelligent control
- Overload sensor
- Engine restart protection
- Automatic engine failure shutdown
- Spin out engine tray
Optional
- Platform swing gate
- Platform alternate leverage
- Welder connecting packages
- Welder wire connecting to the platform
- Airline to platform
- Hydraulic oil cooler
- Hydraulic oil for extremely cold areas
- Pipeline for extremely cold area
- Hostile environment packages
- Anti-crash air packages
- Tool tray
- Alarm packages
- Platform work lights
- Front driving light
- Traction packages
- AC power source
- Preheater
- Cold start components
- AC generator set
- Diesel exhaust gas purification muffler
- Diesel fireproof star silencer
- Air pre filter
