| Max. working height H1 | 17m |
|---|---|
| Max. platform height H2 | 15m |

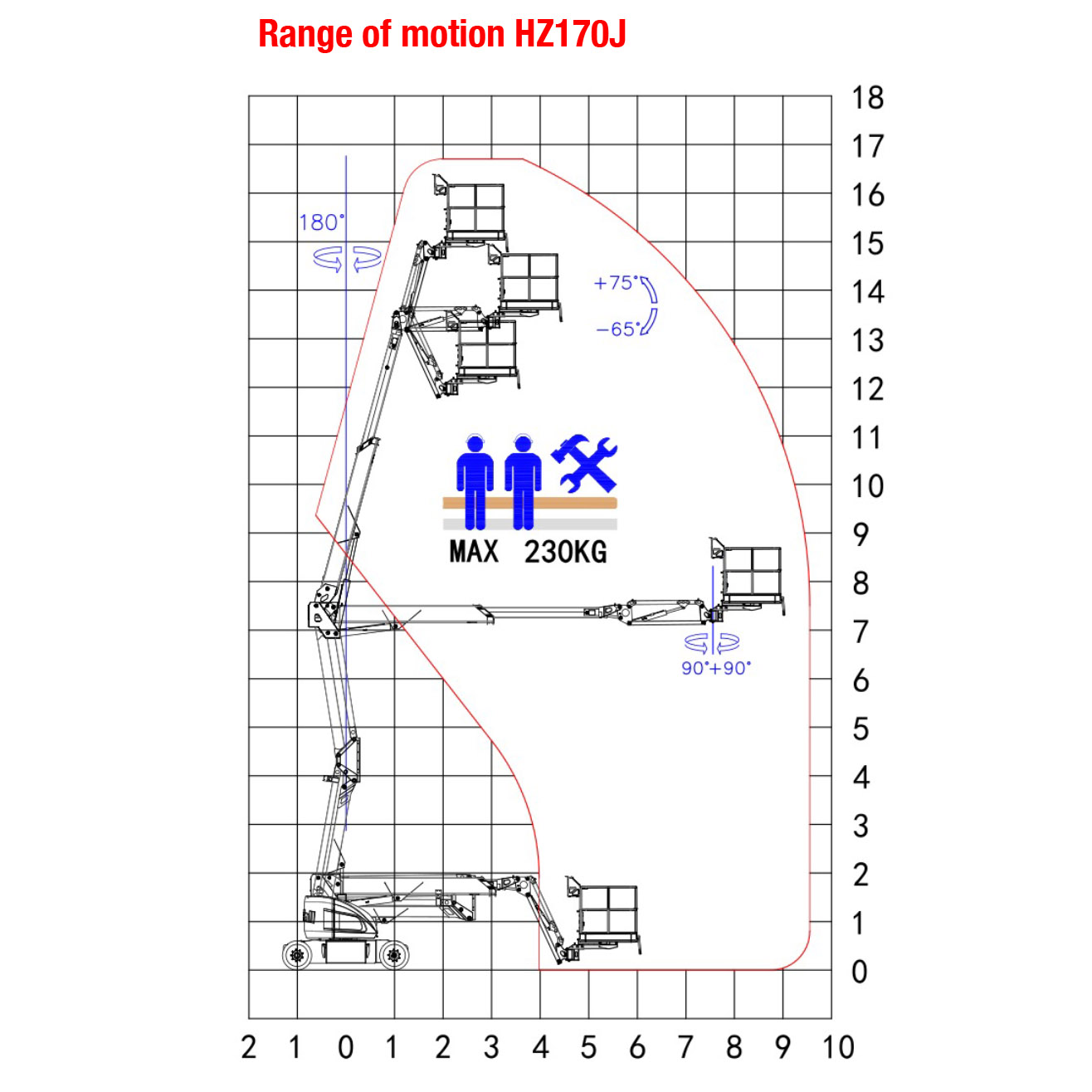

| Max. Outreach | 9.25m |
| Max. Up and over clearance | 7.2m |
| Lifting capacity | 230kg |

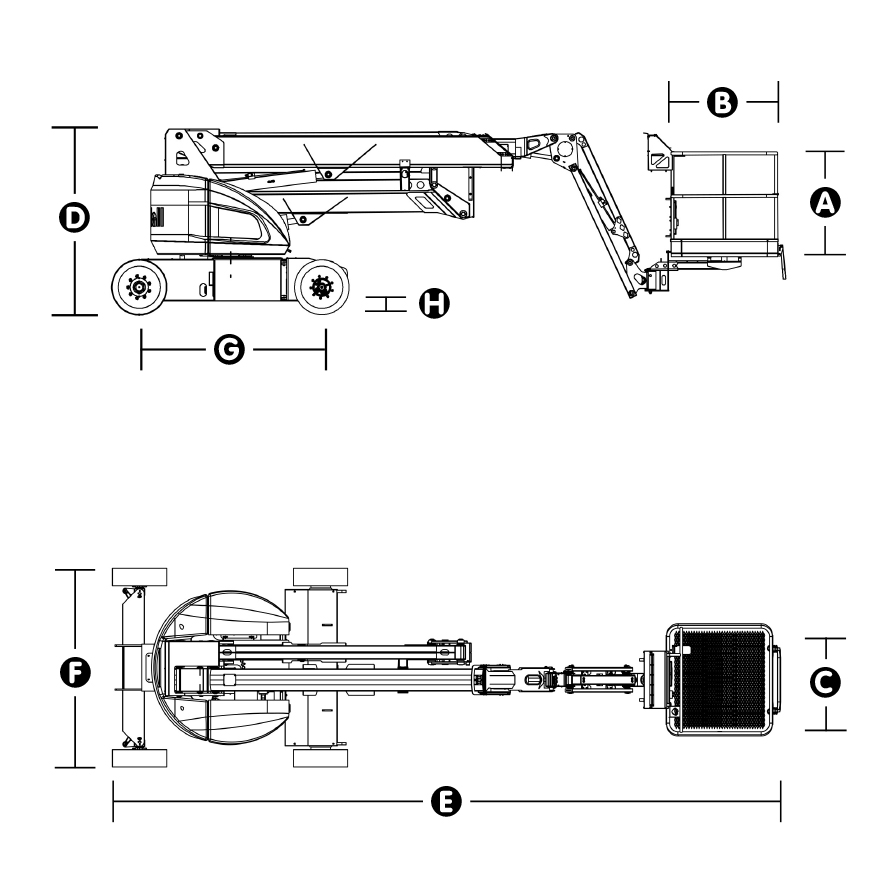

| Platform size B*C*A | 1.5×0.76×1.1m |
| Height D | 2.0m |
| Length E | 6.95m |
| Width F | 1.78m |
| Wheelbase G | 2.1m |
| Ground clearance H | 0.21m |
| Rotation° | 360° discontinuously |
| Platform rotation | 180° |
| Jib swing | 135° |
| Max. platform occupancy | 2 |
| Speed, platform down | 4.8 km/h |
| Speed, platform up | 1.0 km/h |
| Gradeability | 30% |
| Turning radius inside | 1.10m |
| Turning radius outside | 3.50 m |
| Controls | Electrical hydraulic proportional control |
| Wheel size | 240/55D17.5 Foam |
| Power source | DC 48V/320Ah |
| Weight | 6810 kg |
| Dimensions | 695 × 178 × 200 cm |
Mantall HZ170J electric electric – 17m

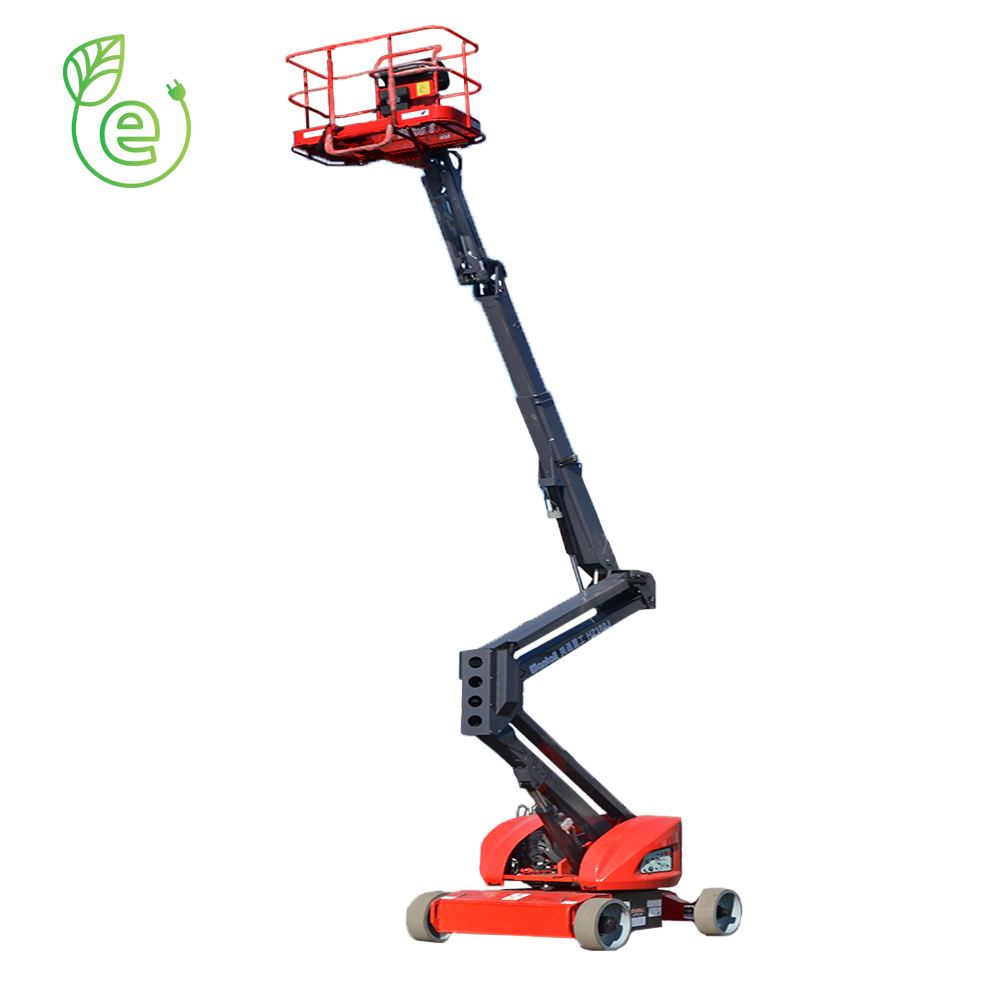

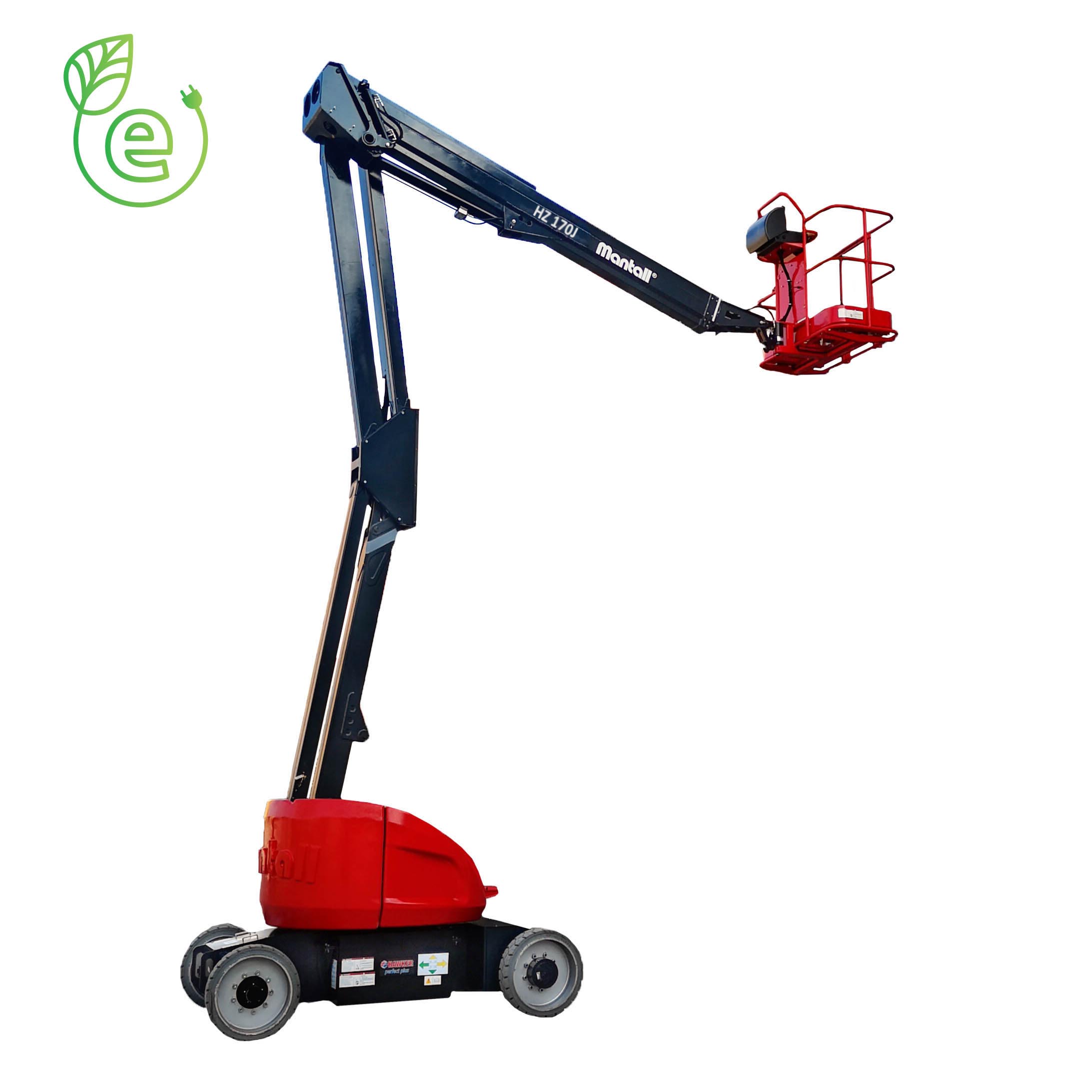

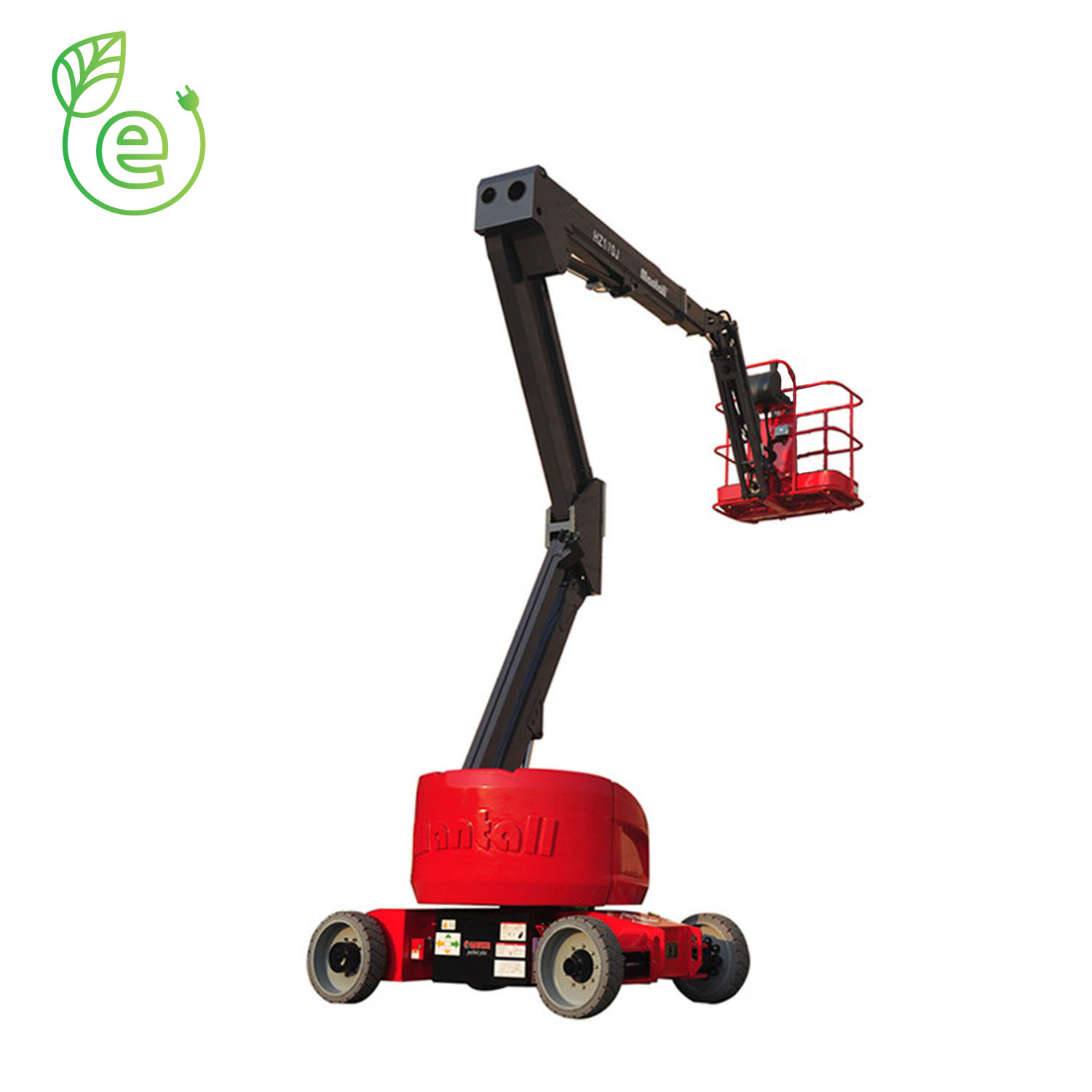

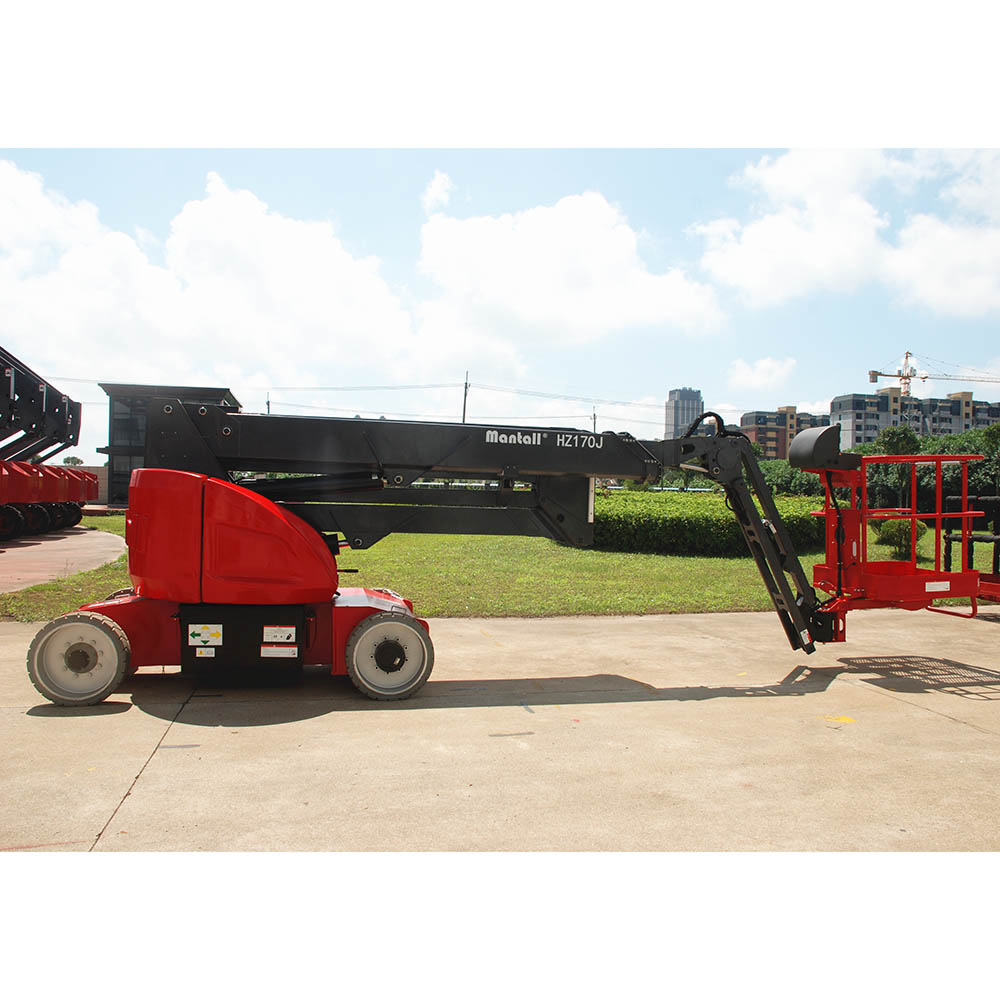

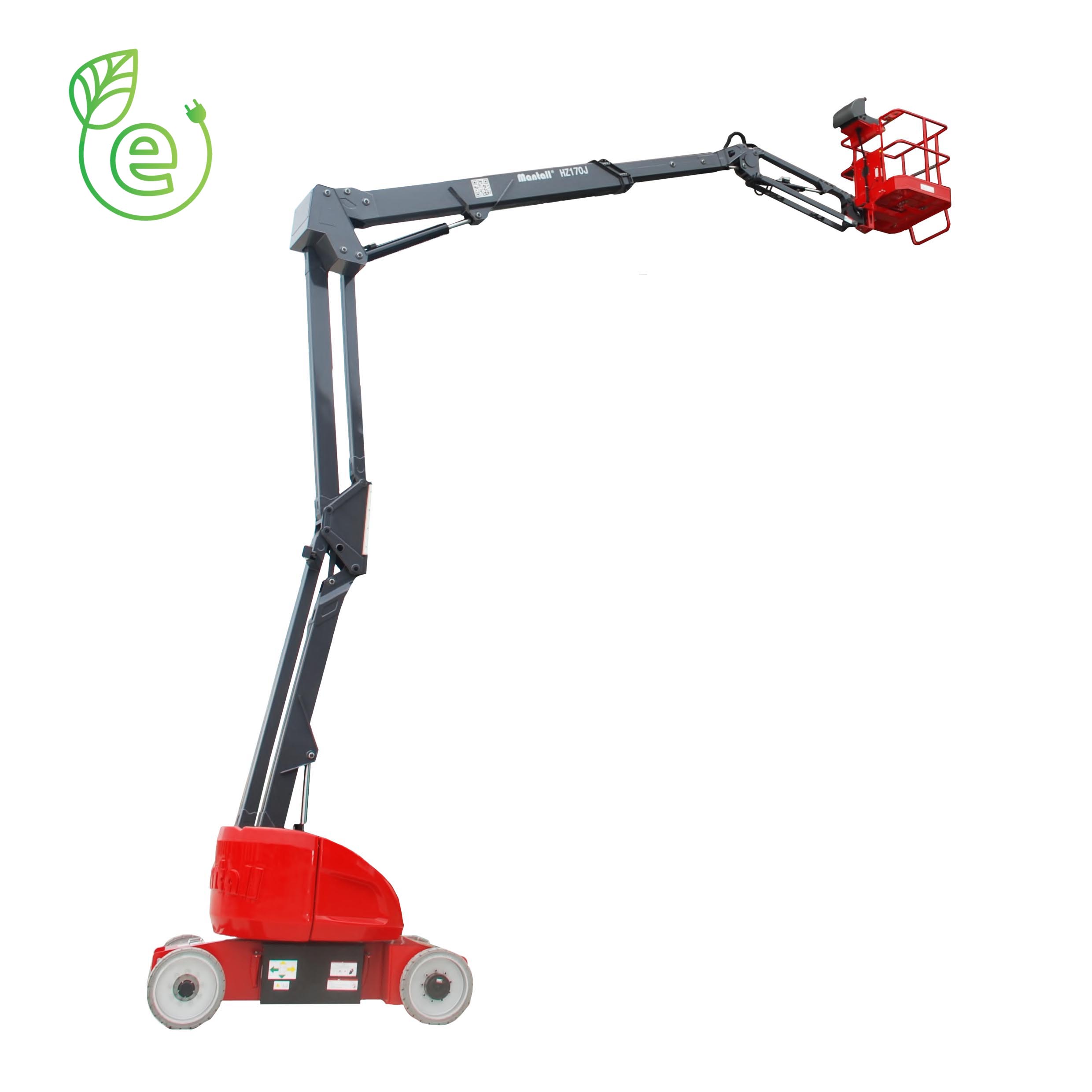

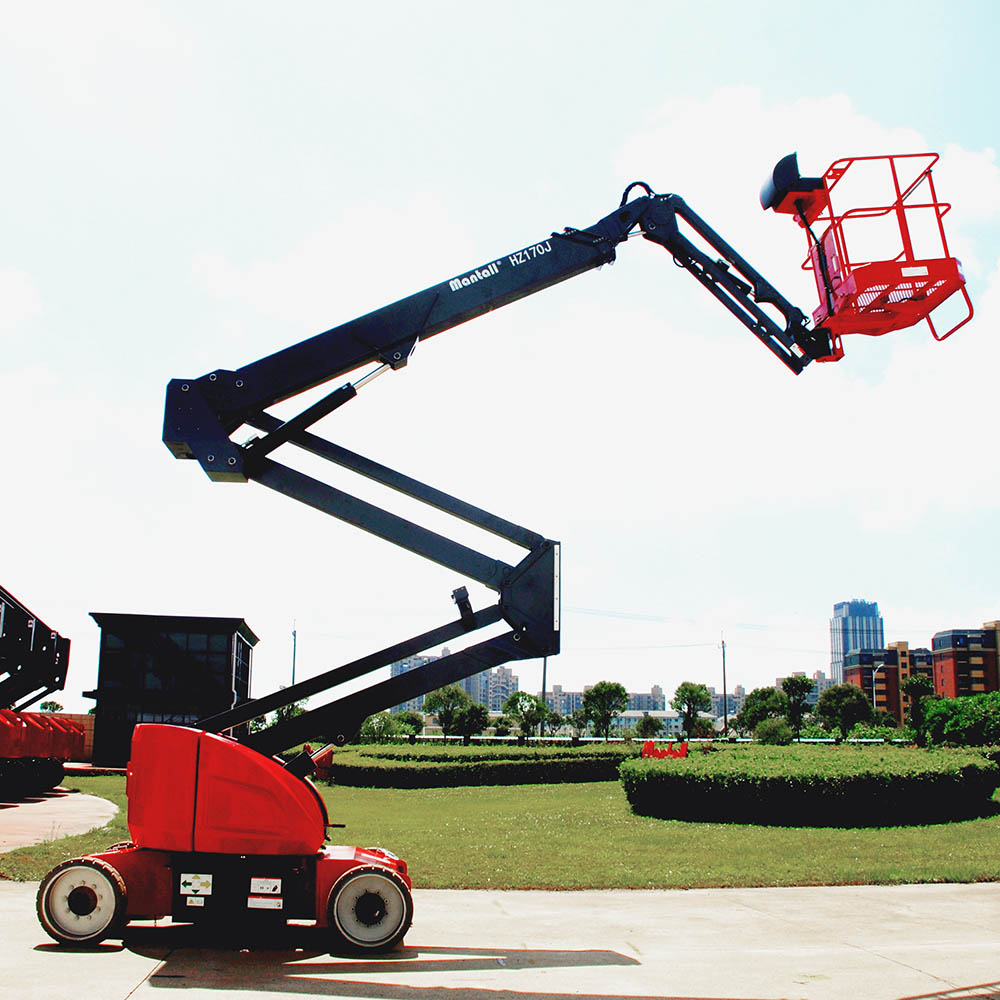

Mantall HZ170J is an electric articulated boom lift with a maximum working height of 17 meters, and horizontal reach of 9.25 meters. Lifting capacity in basket is 230kg.
The lift is equipped with Hall-effect proportional joystick and CAN intelligent control system. The lift can perform precise positioning and lifting operations in most directions, allowing the user to easily work in large areas and avoid obstacles.
The HZ170J is excellent for outdoor use and is designed for working and driving in demanding terrain. As the lift is battery-powered, it has zero emissions and low noise characteristics, which also makes it well suited for indoor use.
Call for Price
Send RequestStandard Features

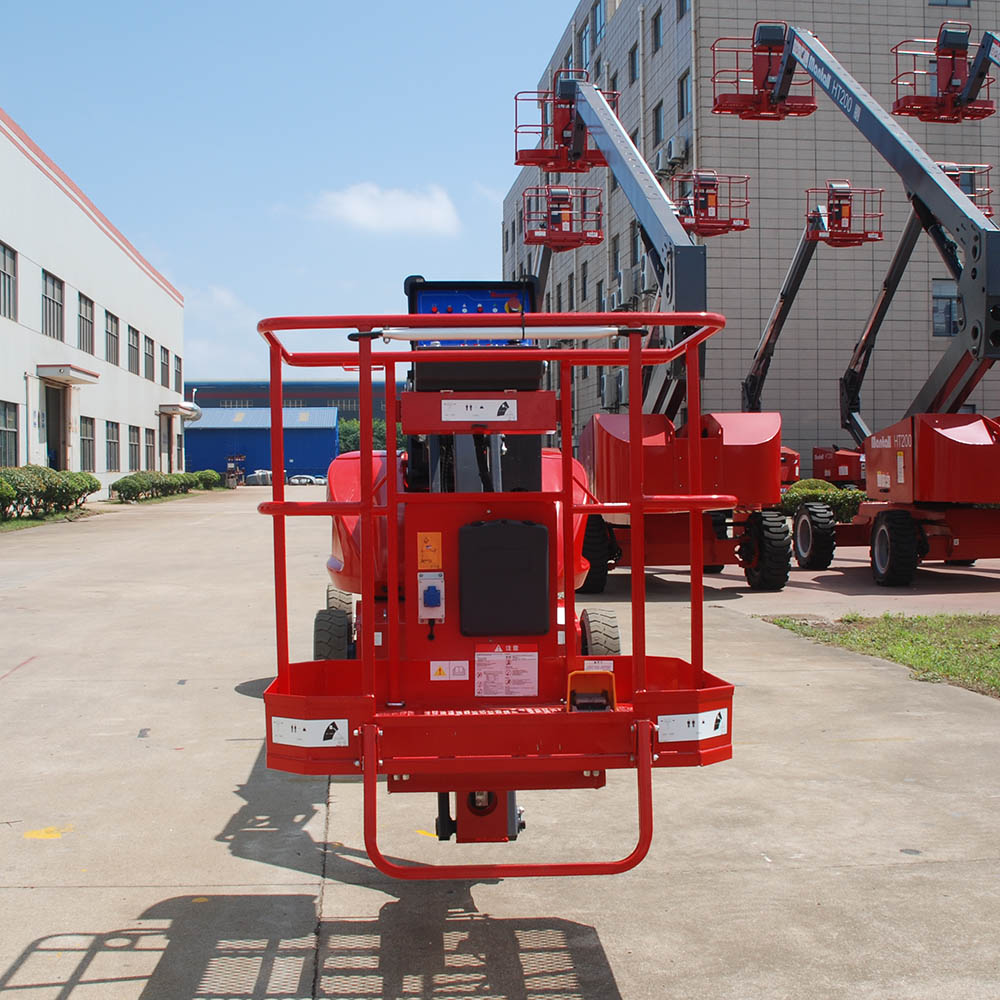

- Self-leveling work basket
- Hydraulic platform rotation
- Proportional controller
- 360 degrees non-continuous rotation
- AC to platform
- Hour counter
- Tilt sensor
- RT deck
- Strong Dual Speed motor
- Emergency lowering
- CAN intelligent controller
- Overload sensor
Optional features
- Swing gate to platform
- Air hose to platform
- Hydraulic oil cooler
- Various environmental packages
- Anti-collision air packages
- Tool tray
- Alarm packages
- Work lights in platform
