Max. working heigh H1 | 14m |
---|---|
Max. platform height H2 | 12m |

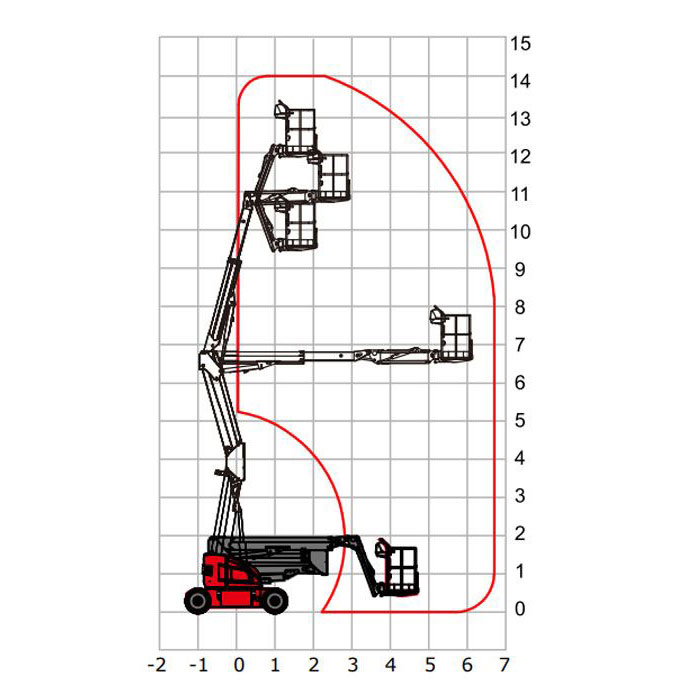

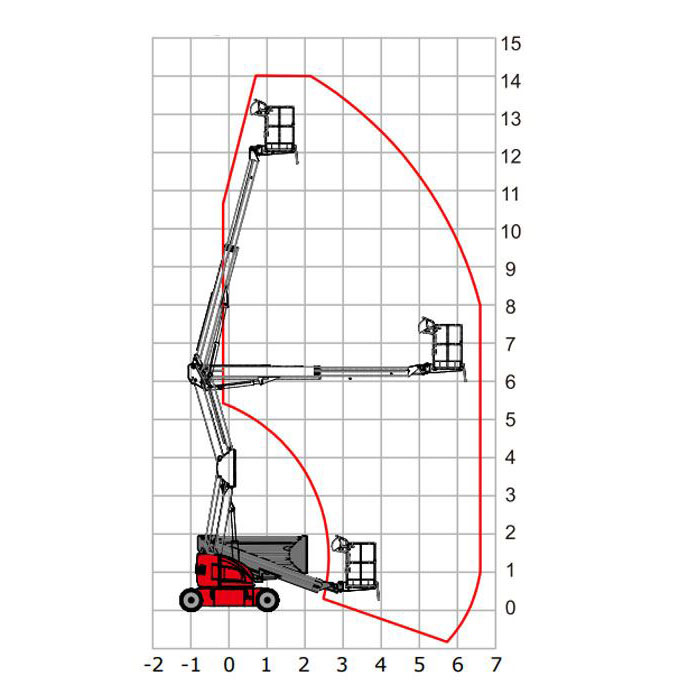

Max. outreach | 7.04/7.259m |
Max. up and over clearance | 6.33m |
Lifting capacity | 230kg |

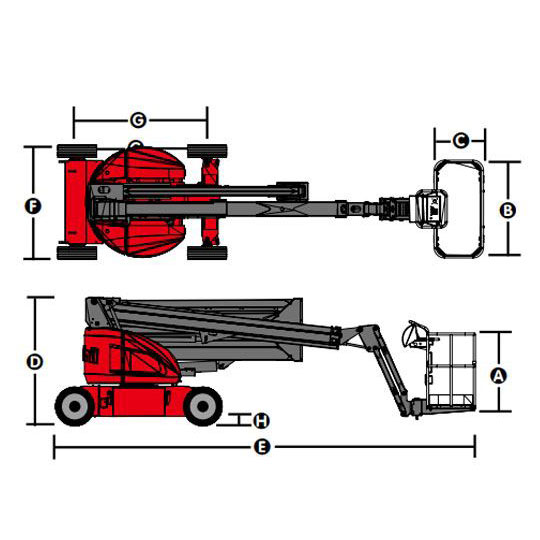

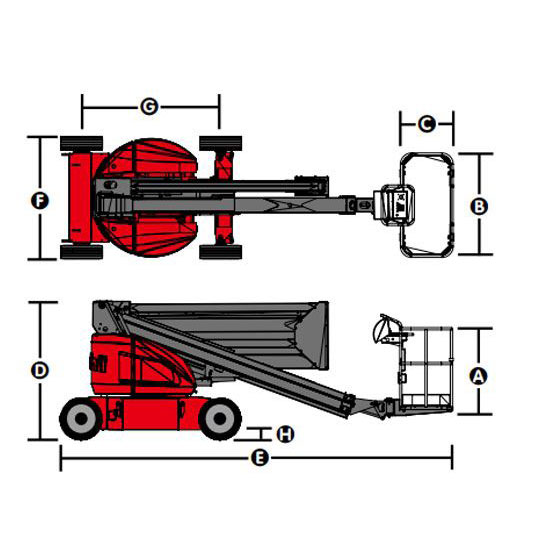

Platform size B*C*A | 1.5m×0.76m×1.1m |
Height D | 2.00m |
Length E | 5.36/6.17 |
Width F | 1.75m |
Wheelbase G | 2.00m |
Ground clearance H | 0.14m |
Rotation | 360° discontinuously |
Rear swing | |
Platform rotation | 180° |
Jib Swing | 0/140°(HZ140J only) |
Platform level | Hydraulic leveling |
Speed, platform down | 3.7km/h |
Speed, platform up | 1.0km/h |
Gradeability | 30% |
Tilt angle max | 3° |
Lateral force N max | 400N |
Wind speed allowed max | 12.5m/s |
Turning radius inside | 2.3m |
Turning radius outside | 3.5m |
Drive wheel | 2 |
Steering wheel | 2 |
Controller | Electrical hydraulic proportional control |
Voltage | DC24V |
Wheels | 600*190 |
Power source | DC48V/320Ah |
Total weight | 5.600 kg / 6.340 kg |

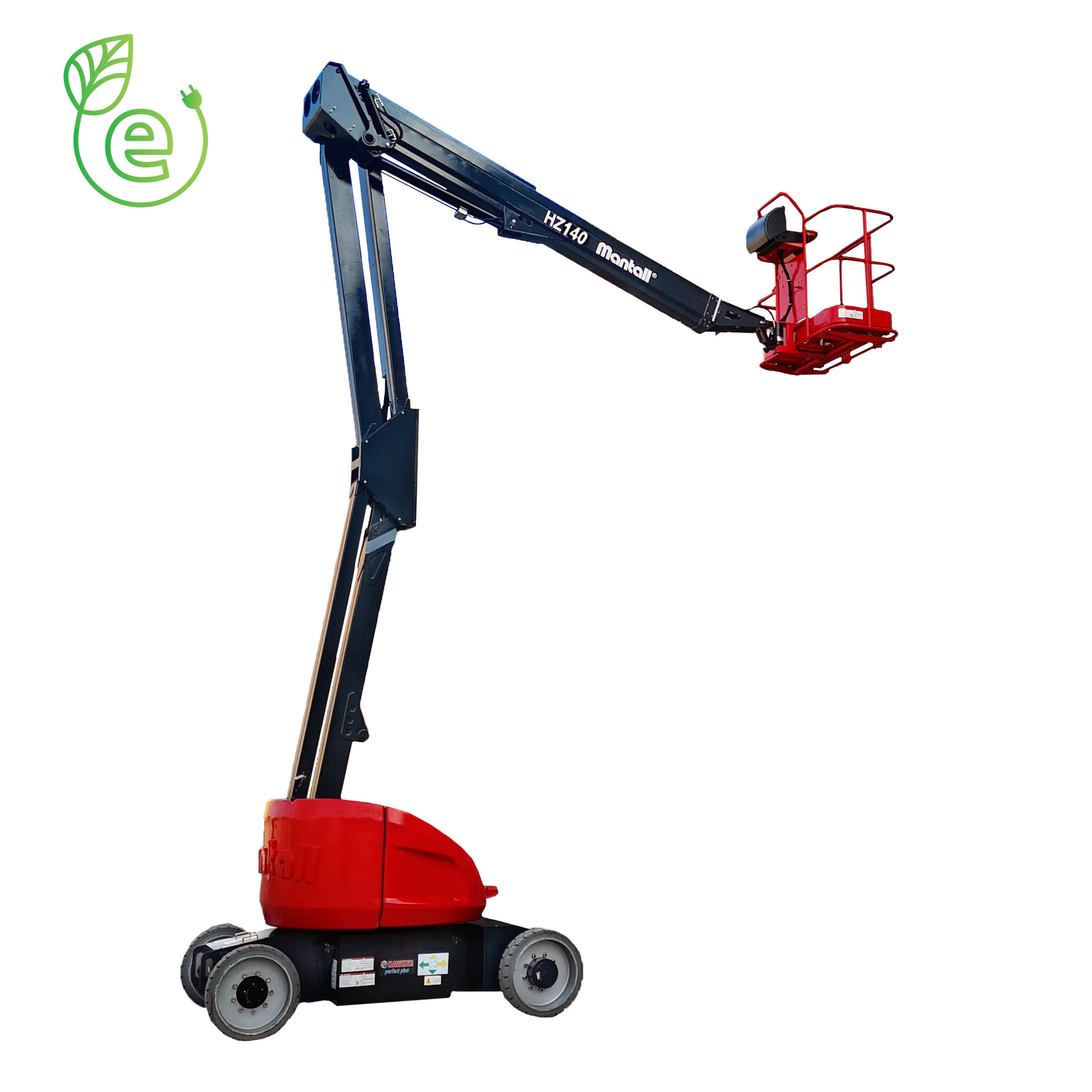

Mantall HZ140/HZ140J electric – 14m

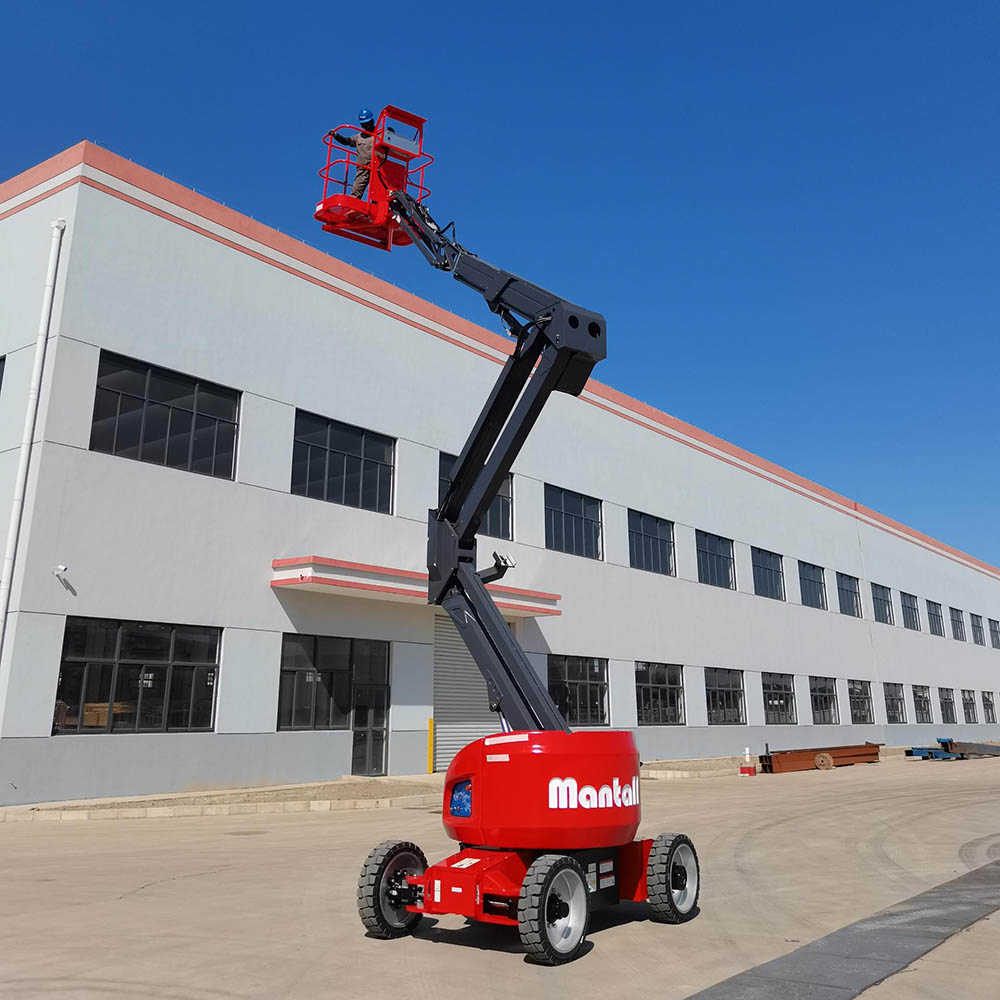

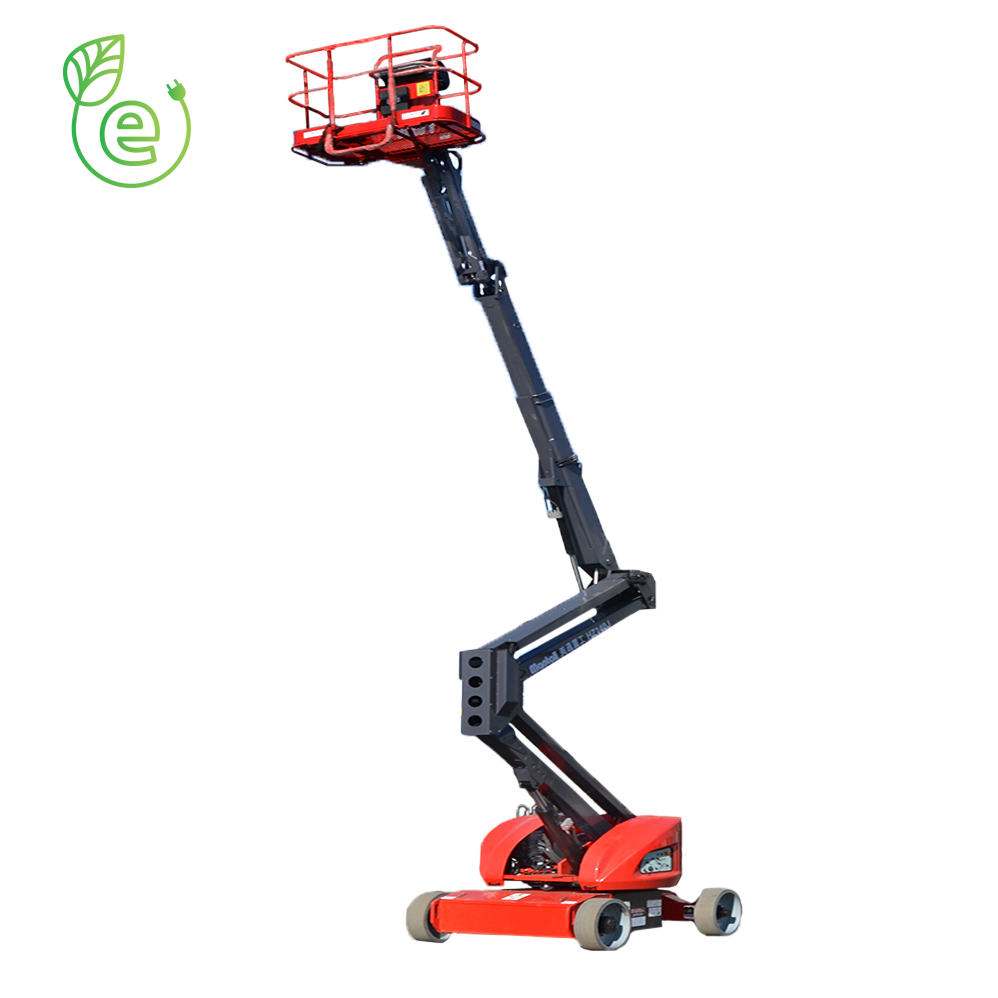

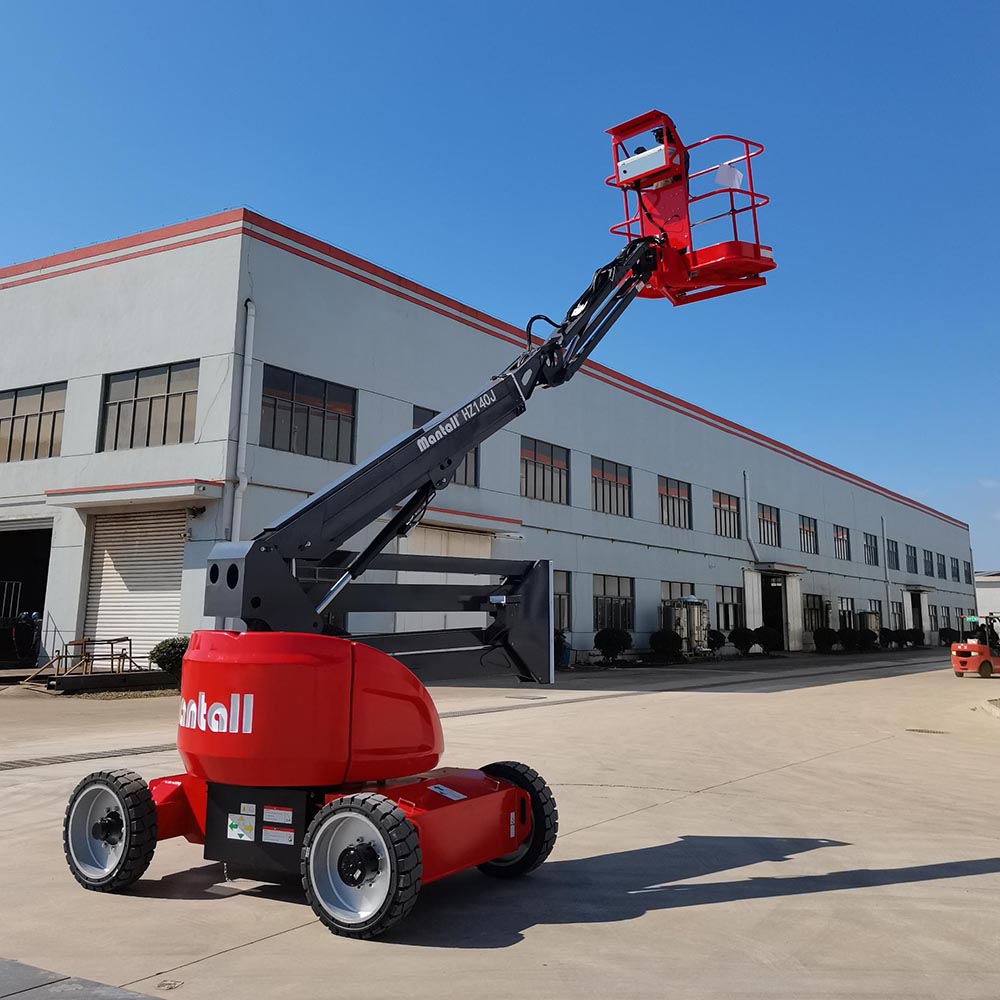

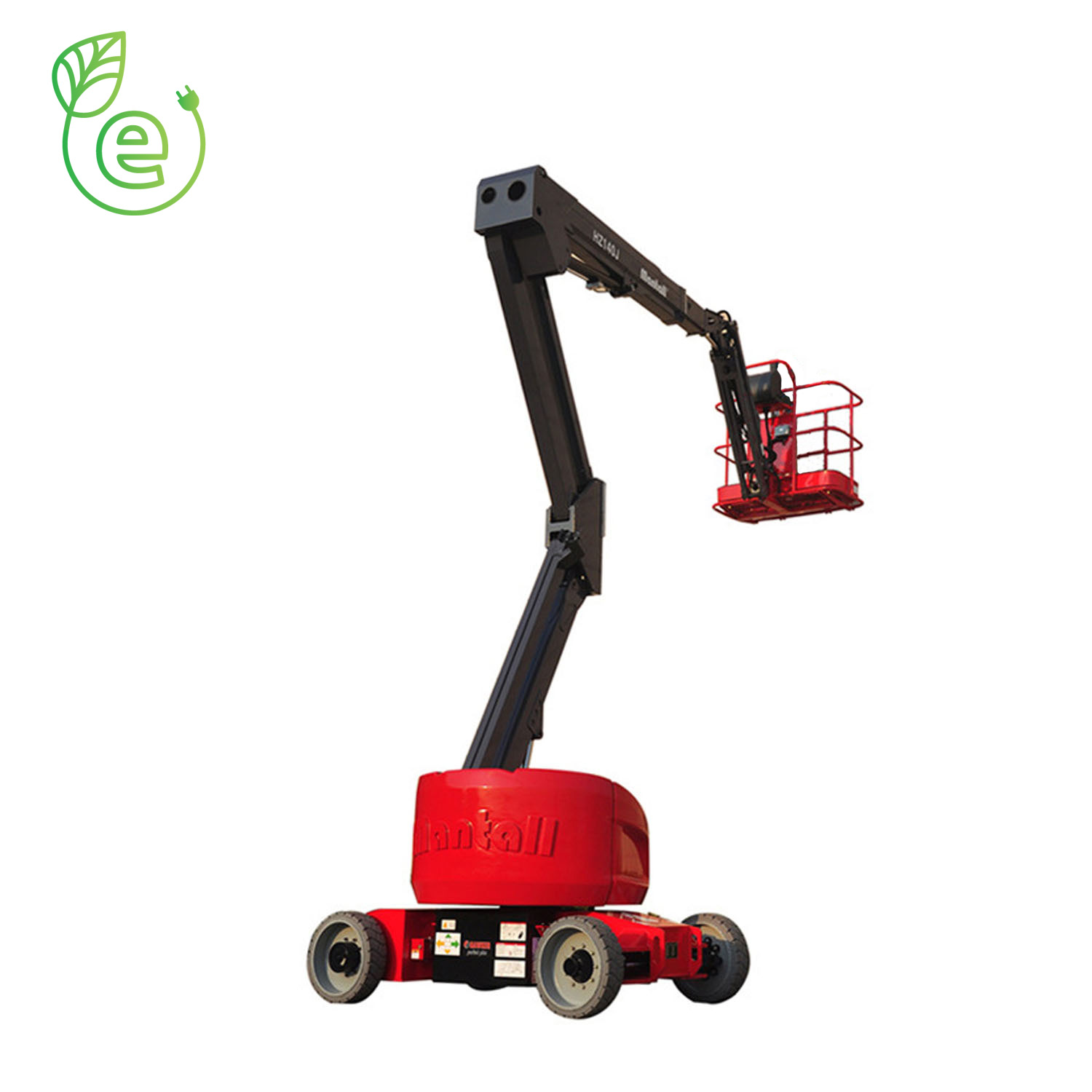

Mantall HZ140J articulated boom lift can reach a working height of 14m. Equipped with 360-degree rotating turntable, electro-hydraulic proportional control, and CAN intelligent control system, it is easier to maintain and upgrade.
HZ140J also allows the operator to perform multiple movements simultaneously, enabling multi-directional precise positioning and lifting operations, enabling workers to access hard-to-reach places and avoid obstacles. HZ140J articulated boom lift is zero emission and suitable for indoor applications.
Call for Price
Send Request- Self-leveling platform
- Hydraulic rotation platform
- Hall effect fully proportional controls
- Driving confirm
- AC wiring to platform
- Horn
- Hour meter
- Tilt alarm
- Positive traction drive
- Dual Speed motor
- Emergency pump
- CAN intelligent control
- Overload sensor
- Platform swing gate
- Platform alternate leverage
- Airline to platform
- Hydraulic oil cooler
- Hostile environment packages
- Anti-crash air packages
- Tool tray
- Alarm packages
- Platform work lights
