| Maximum lifting height | 3,4 m |
|---|---|
| Lifting capacity inside / extended | 608 / 280 kg |
| Machine height | 1,75 m |
| Machine width (min) | 0,83 m |
| Machine length (min) | 2,8 m |
| Extension arm | 0,7 m |
| Page offset | 0,1 m |
| The tip from the horizontal | 40˚ back / 100˚ front |
| Speeds | Stepless high / low |
| Vacuum system | 2 circuits |
| Battery charger | 230V |
| Integrated charger | Cetek XT |
| Charging time | Ca. 8 hours |
| Battery | 24 volts (2 x 12 V) |
| Battery life | 8 hours |
| Rear wheel drive | 1200 W DC |
| Brake | Electronic |
| Suction cups | 4 x Ø400mm |
| Weight | 930 kg |
| Dimensions | 228 × 83 × 151 cm |

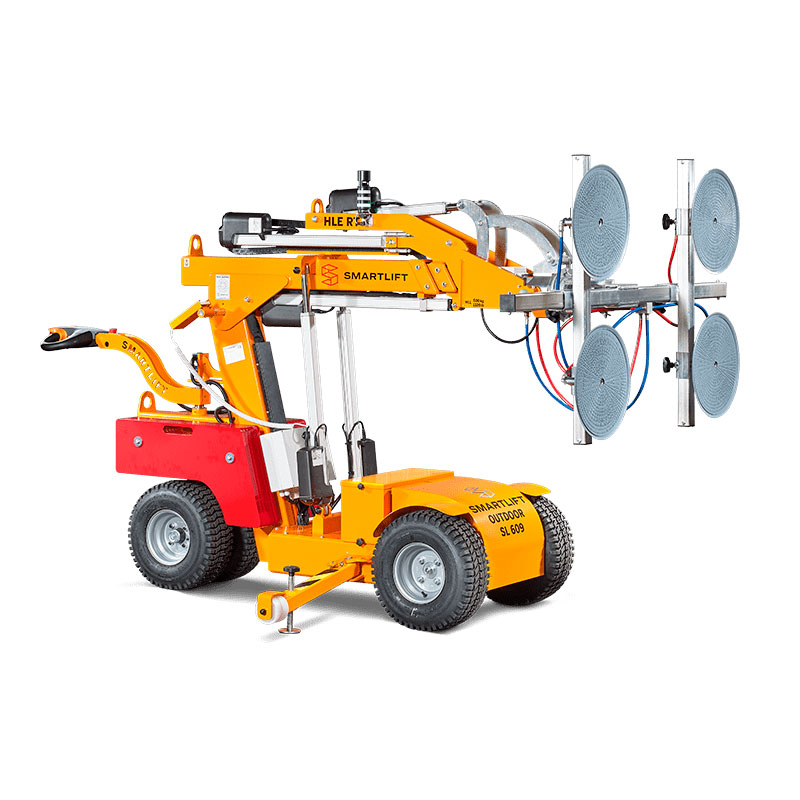

Smartlift SL 609 Outdoor HL

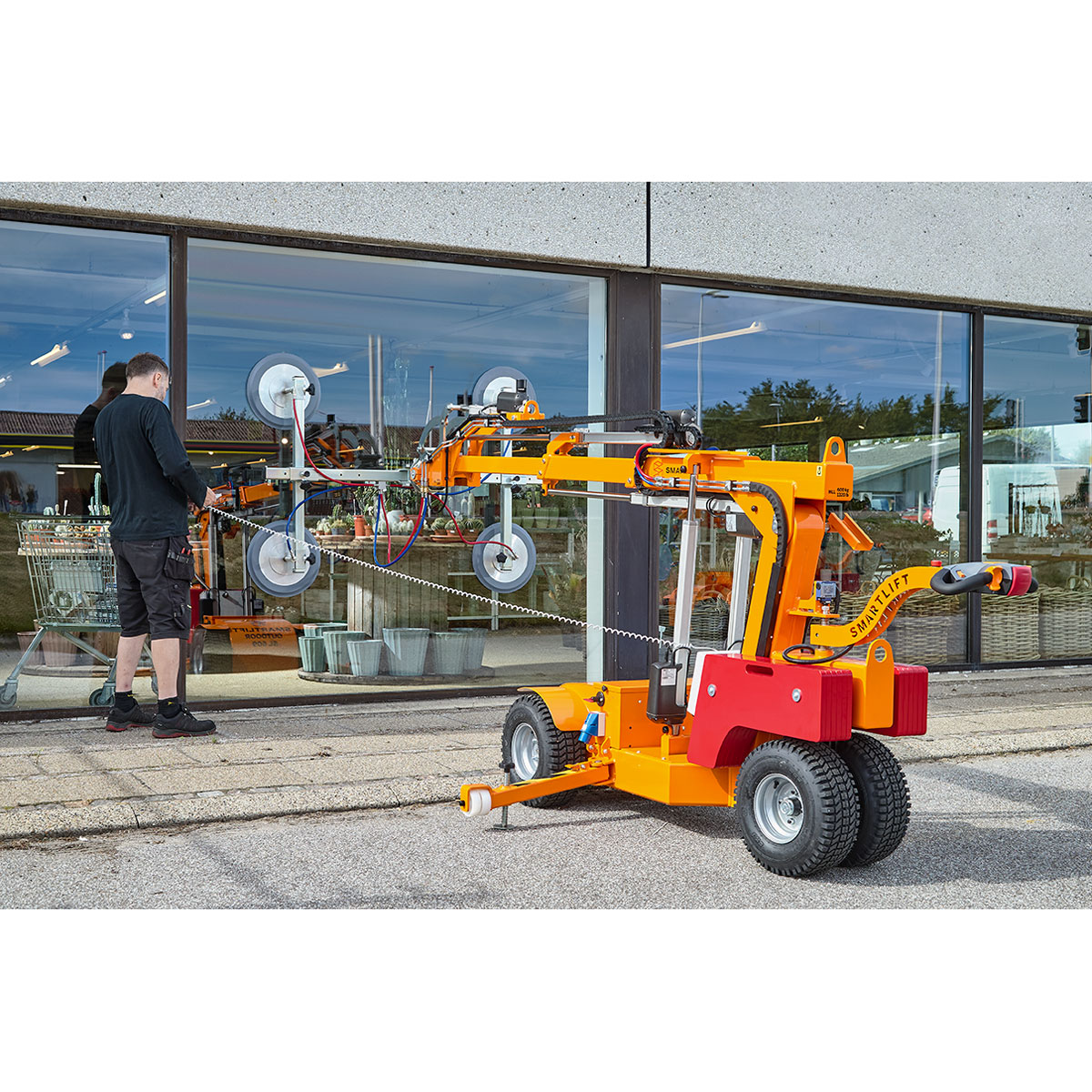

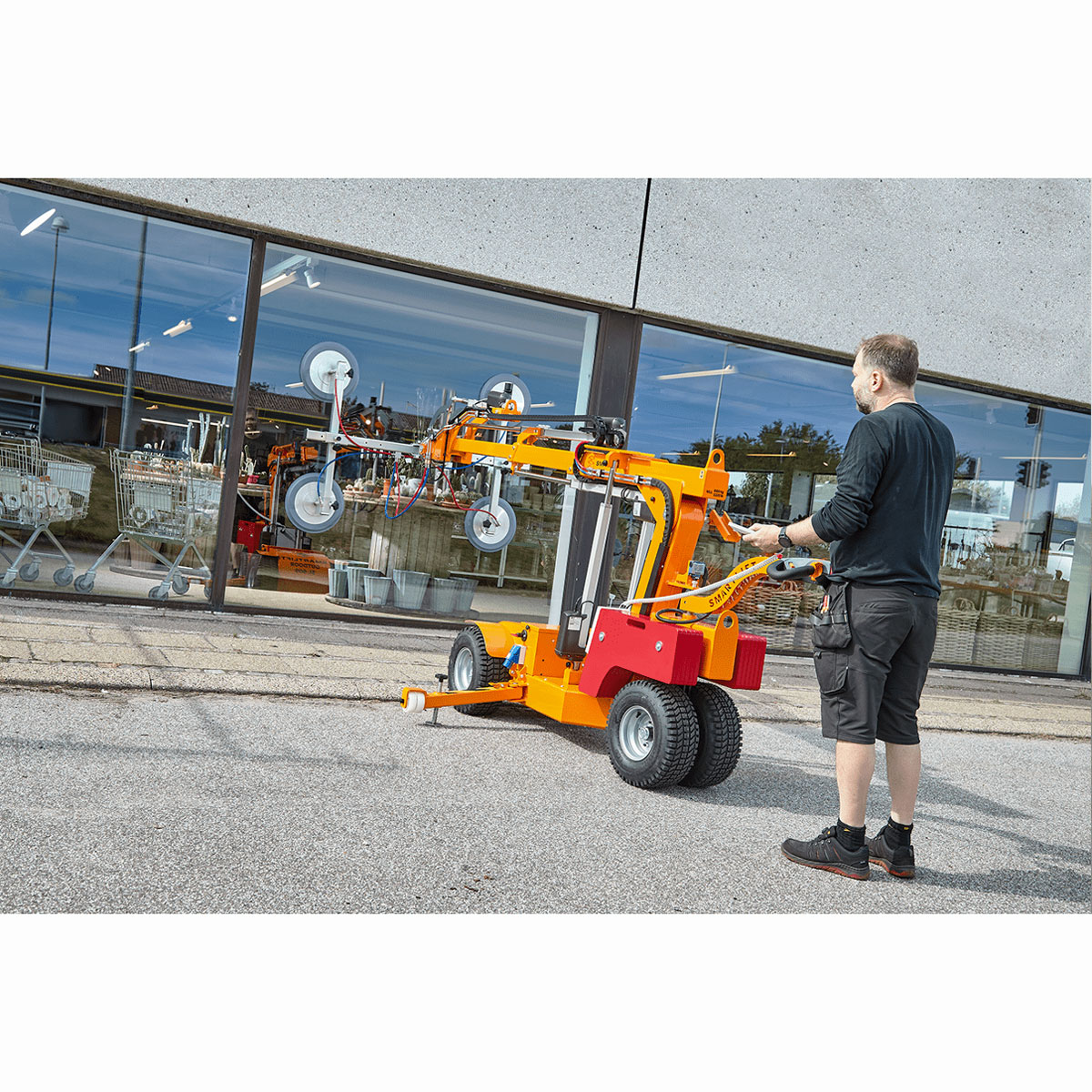

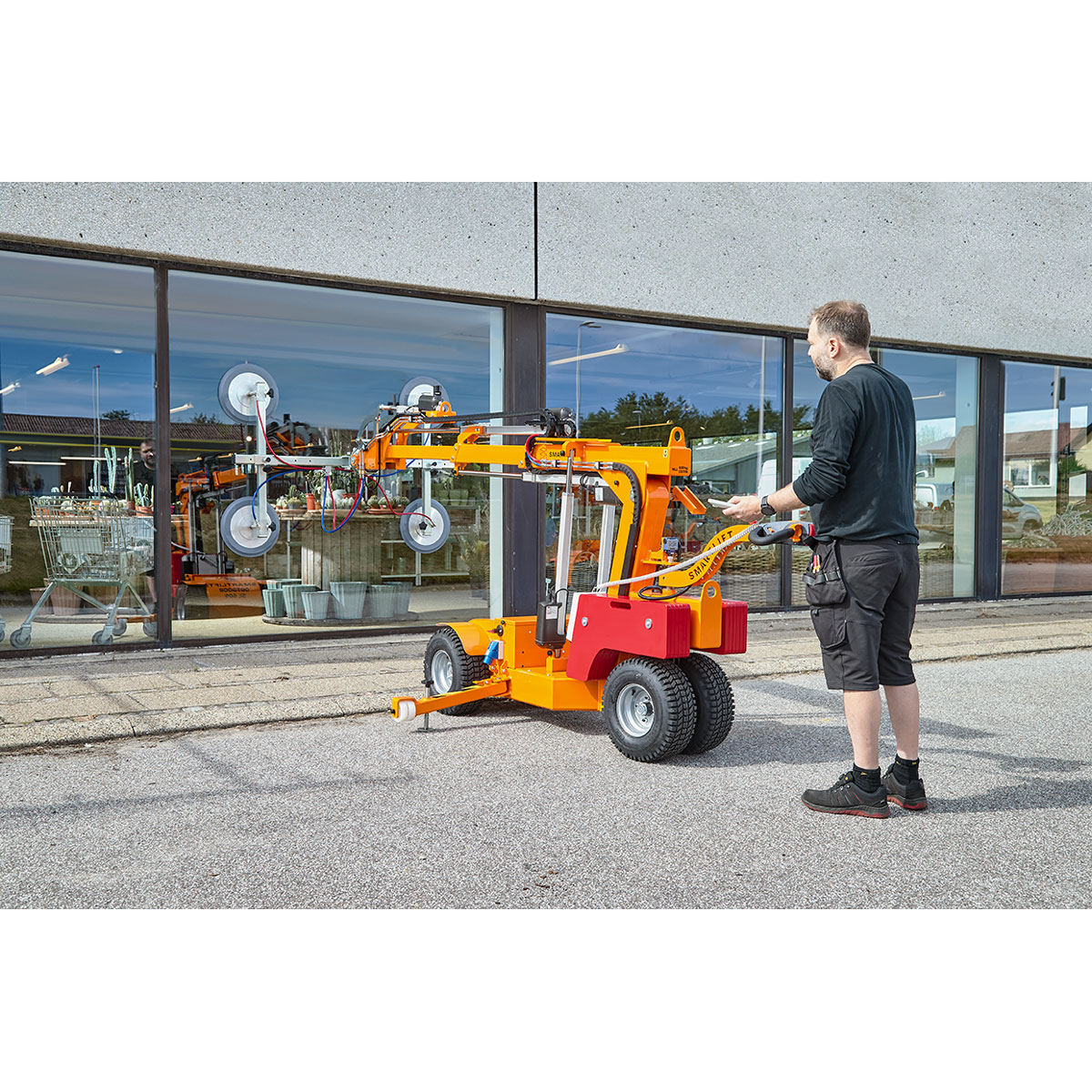

The Smartlift SL609 Outdoor HL is one of the most powerful models in the Smartlift portfolio with a lifting capacity of up to 600 kg. It is self-propelled and offers (like other Smartlifts) stepless movements in all parts. Due to its wide tires, this front-wheel drive machine is exceptionally useful and user-friendly, also outdoors.

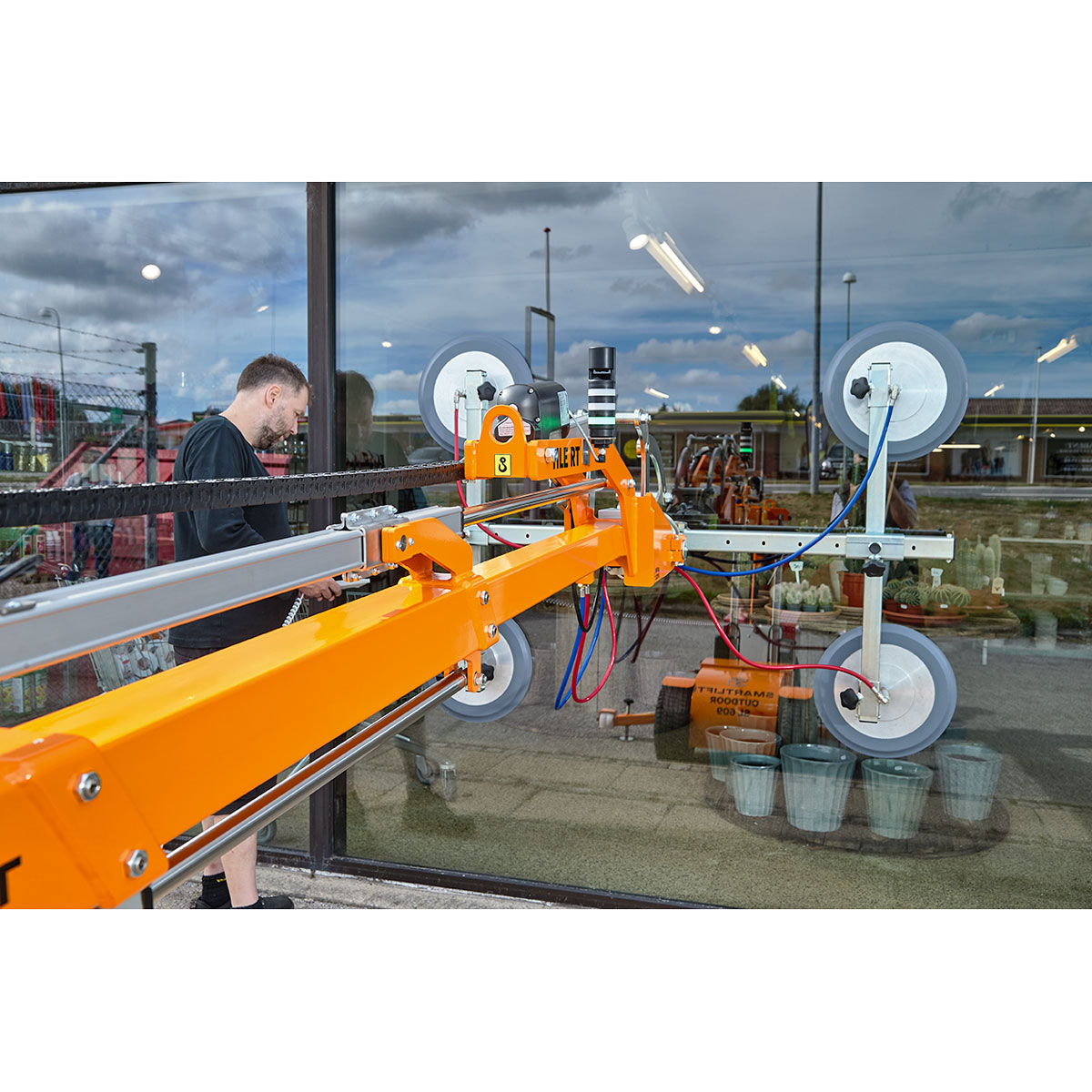

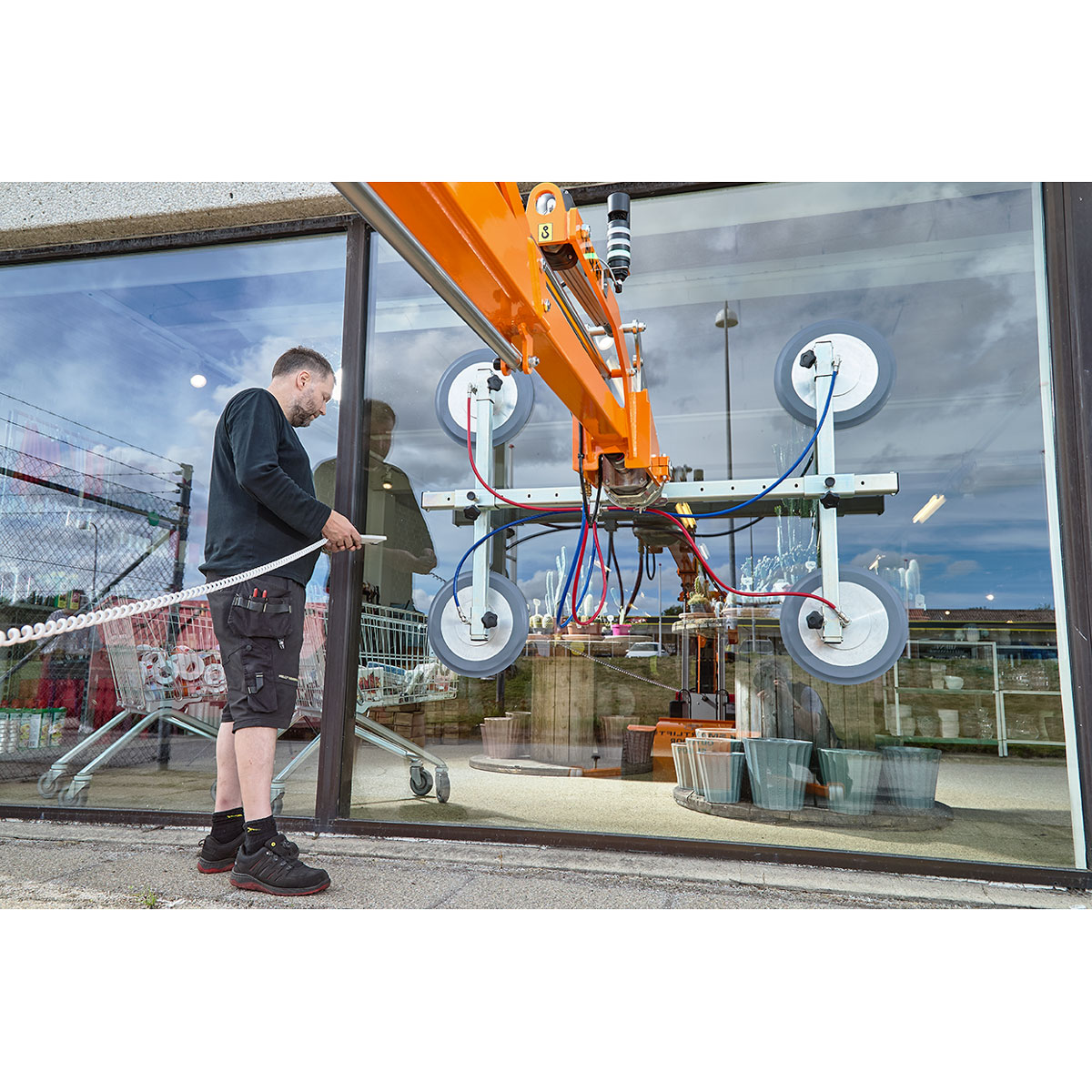

The Smartlift SL609 HL has four suction cups with automatic suction and a diameter of 40 cm and a maximum lifting height of 4.15 m.
Call for Price
Send RequestThe new SL609 Outdoor HL is efficient and hardworking. It saves you the cost of extra crews for installing elements such as glass, windows, granite, marble and steel, and it never needs a day off. The growing demand for triple-glazed windows and other energy-saving building elements is triggering much more heavy lifting. The compact and robust design helps you get the job done safely and efficiently.
The new 9 series incorporates years of knowledge and customer feedback.
