| Maximum lifting height | 2.74 m |
|---|---|
| Lifting capacity inside / extended | 208 kg / 150 kg |
| Machine height | 1,23 m |
| Machine width (min) | 0,73 m |
| Machine length (min) | 1.65 m / 1.37m (merged) |
| Extension arm | 0,5 m |
| The tip from the horizontal | 54˚ back / 53˚ forward |
| Speeds | Stepless high / low |
| Swing radius | 0,88 m |
| Vacuum system | 2 circuits |
| Battery charger | 230V |
| Integrated charger | Cetek XT 14000 |
| Charging time | Ca. 8 hours |
| Battery | 24 volts (2 x 12 V) / 70 Ah |
| Battery life | 10 hours |
| Rear wheel drive | 2 x 1500 Watt – AC |
| Brake | Electronic |
| Suction cups | 4 x Ø 250 mm |
| Weight | 470 kg |
| Dimensions | 137 × 73 × 123 cm |

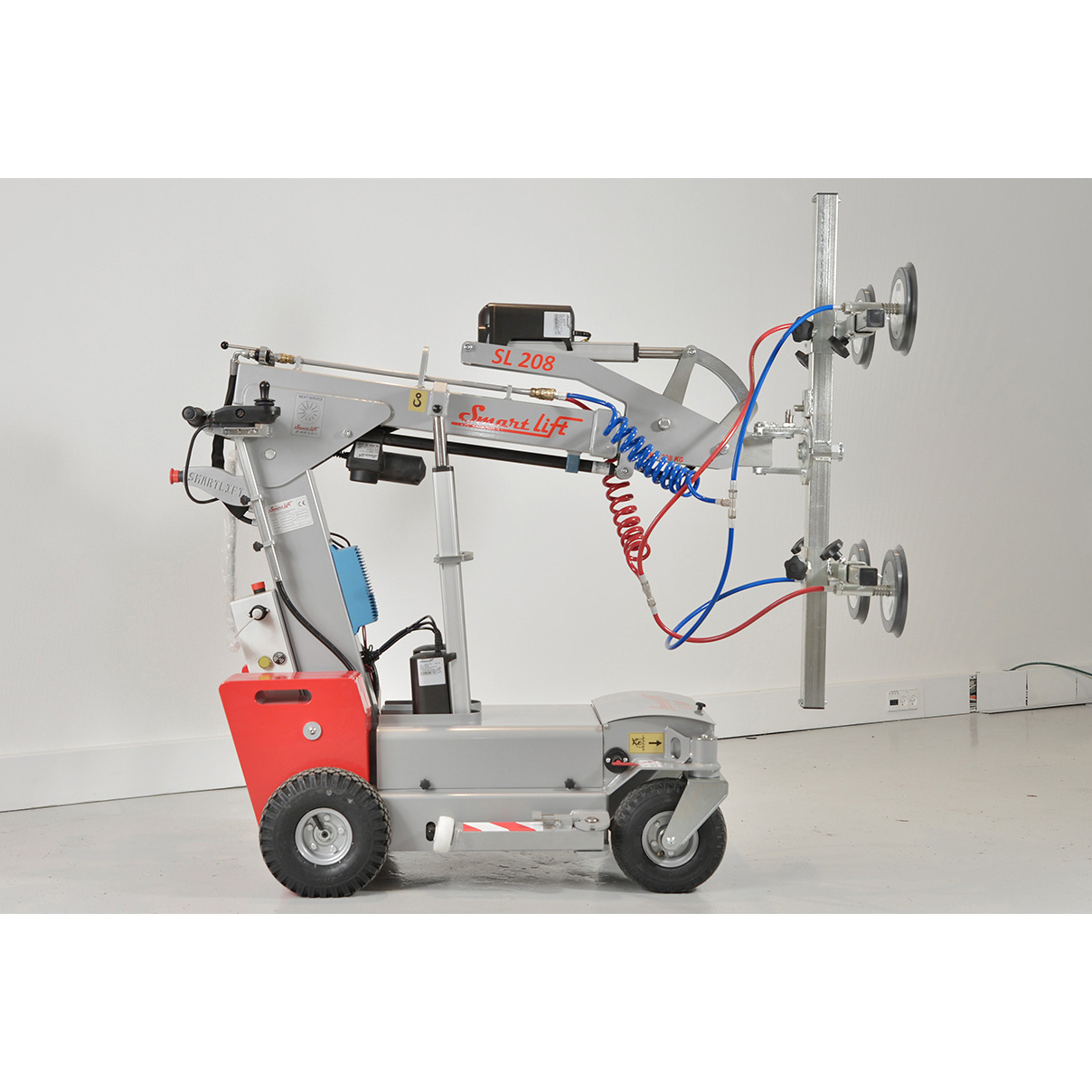

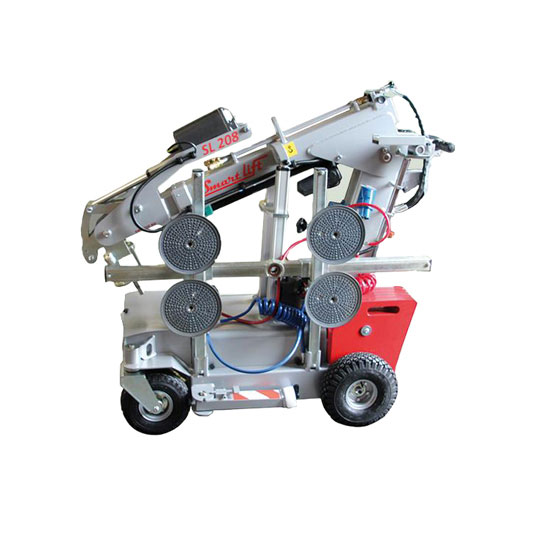

Smartlift SL 208

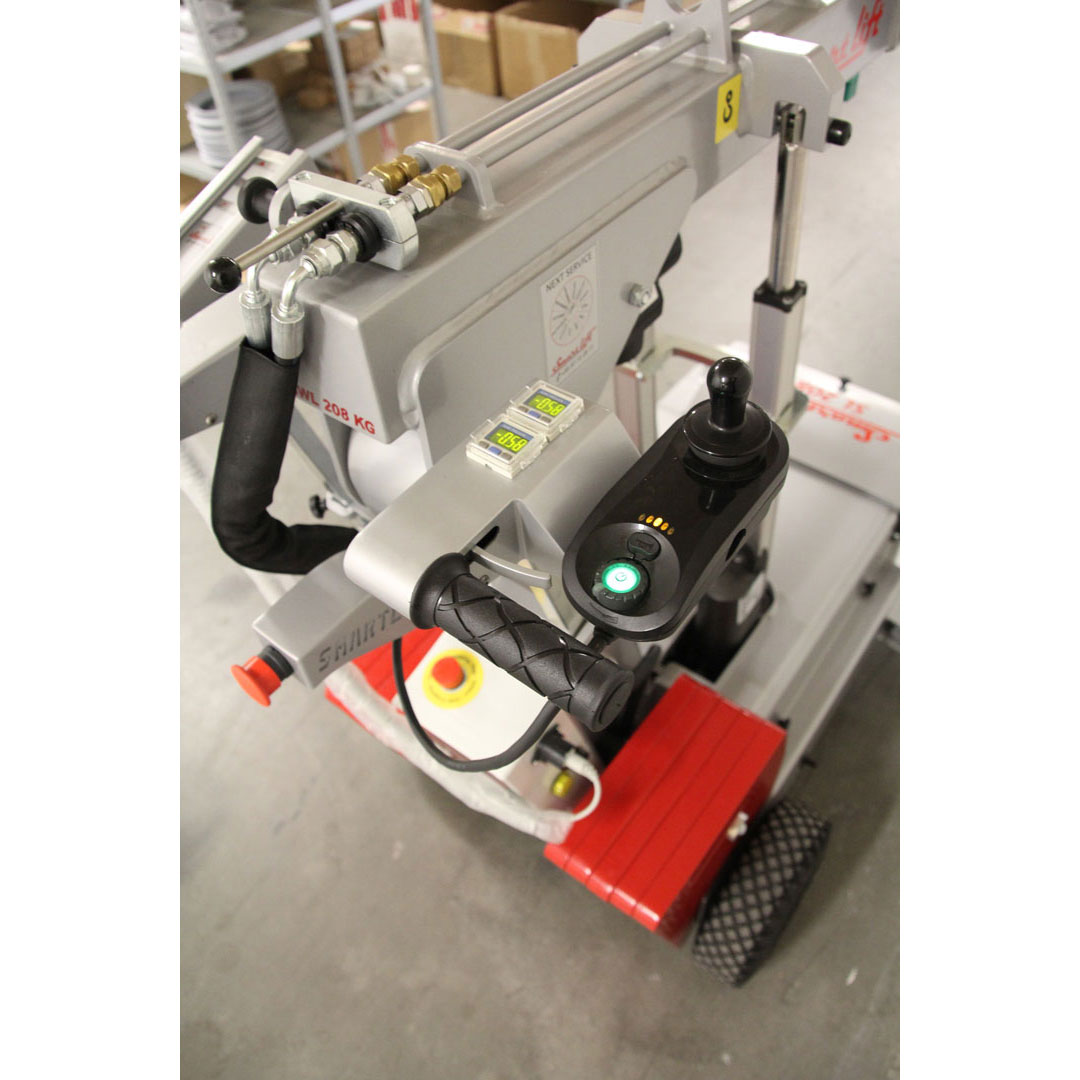

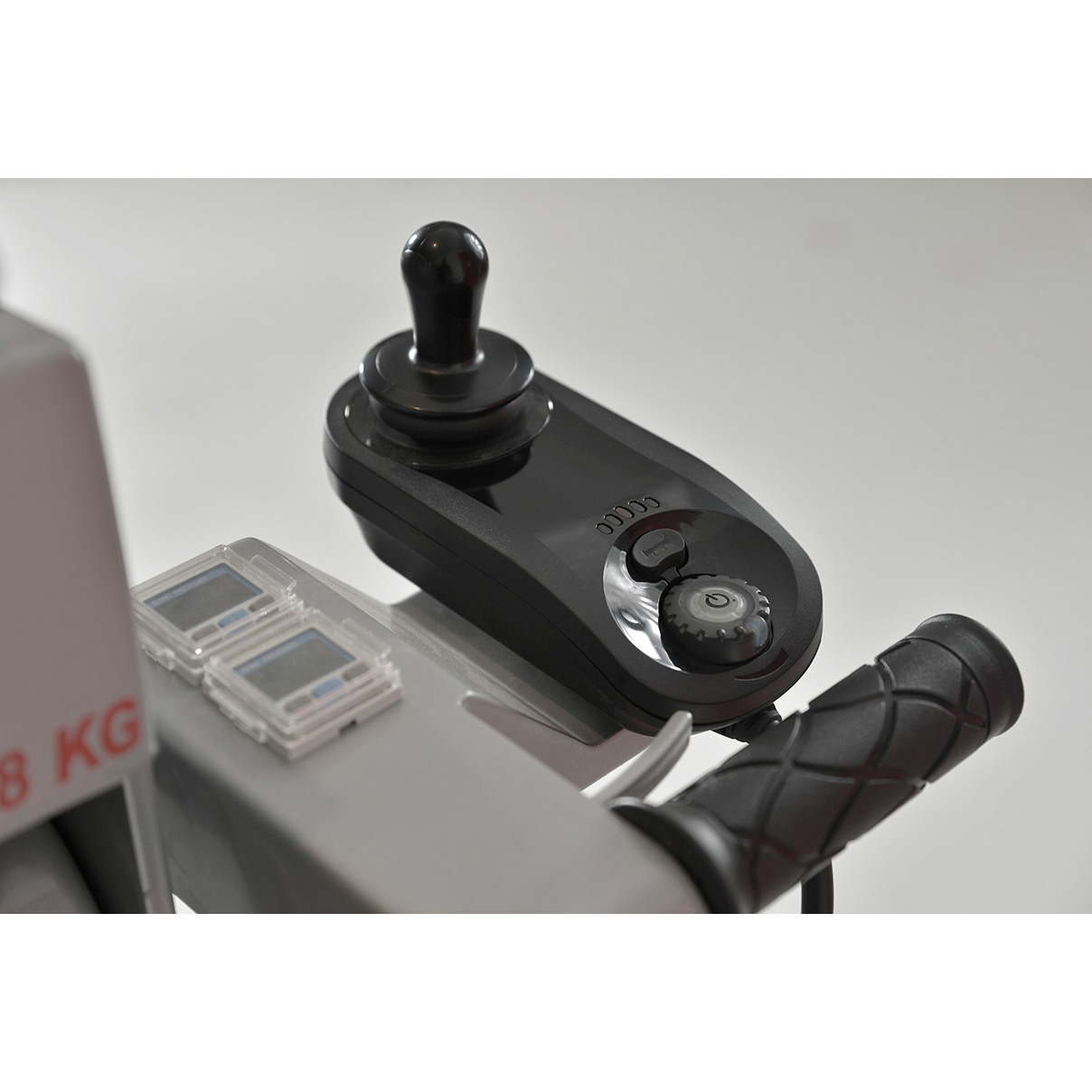

Smartlift SL208 is a compact and easy-to-maneuverable machine, designed with a focus on ergonomics and ease of use. The machine is easily controlled with a joystick and can be used on very small areas.
The glass lift has four suction cups with automatic suction and a diameter of 25 cm. Despite its compact design, it has a lifting capacity of 208 kg and can lift to a height of 2.74 m.
